Technical Data Sheet

Chiltern Open Unit 200 Standard

4433CH

Calypso Logo

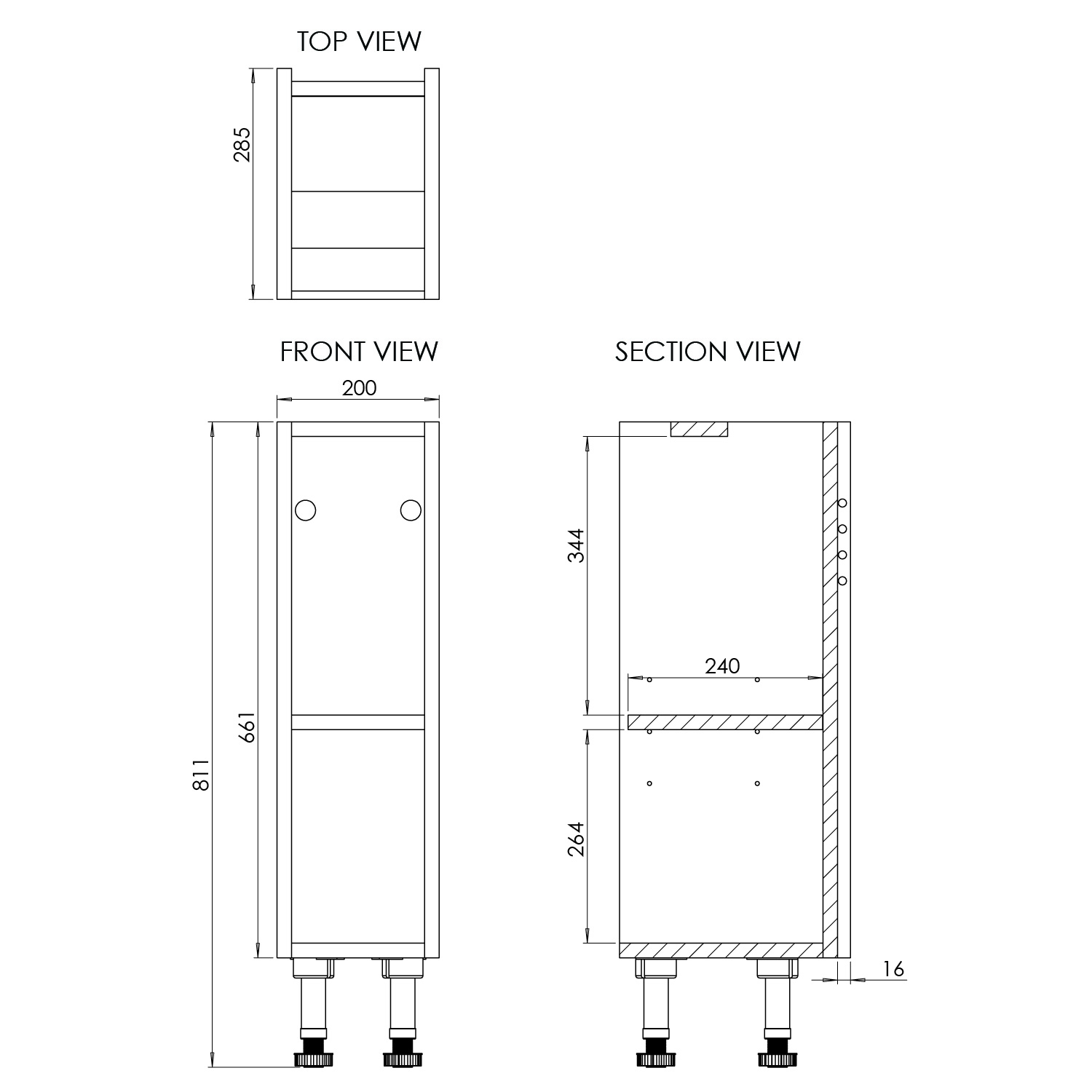

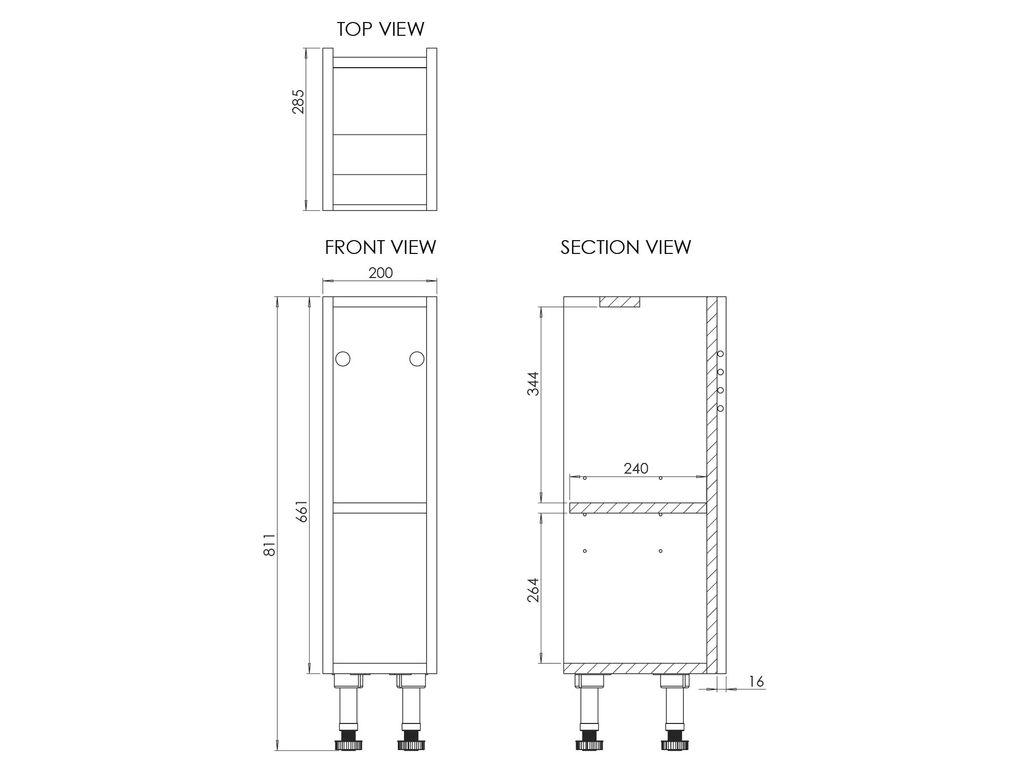

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

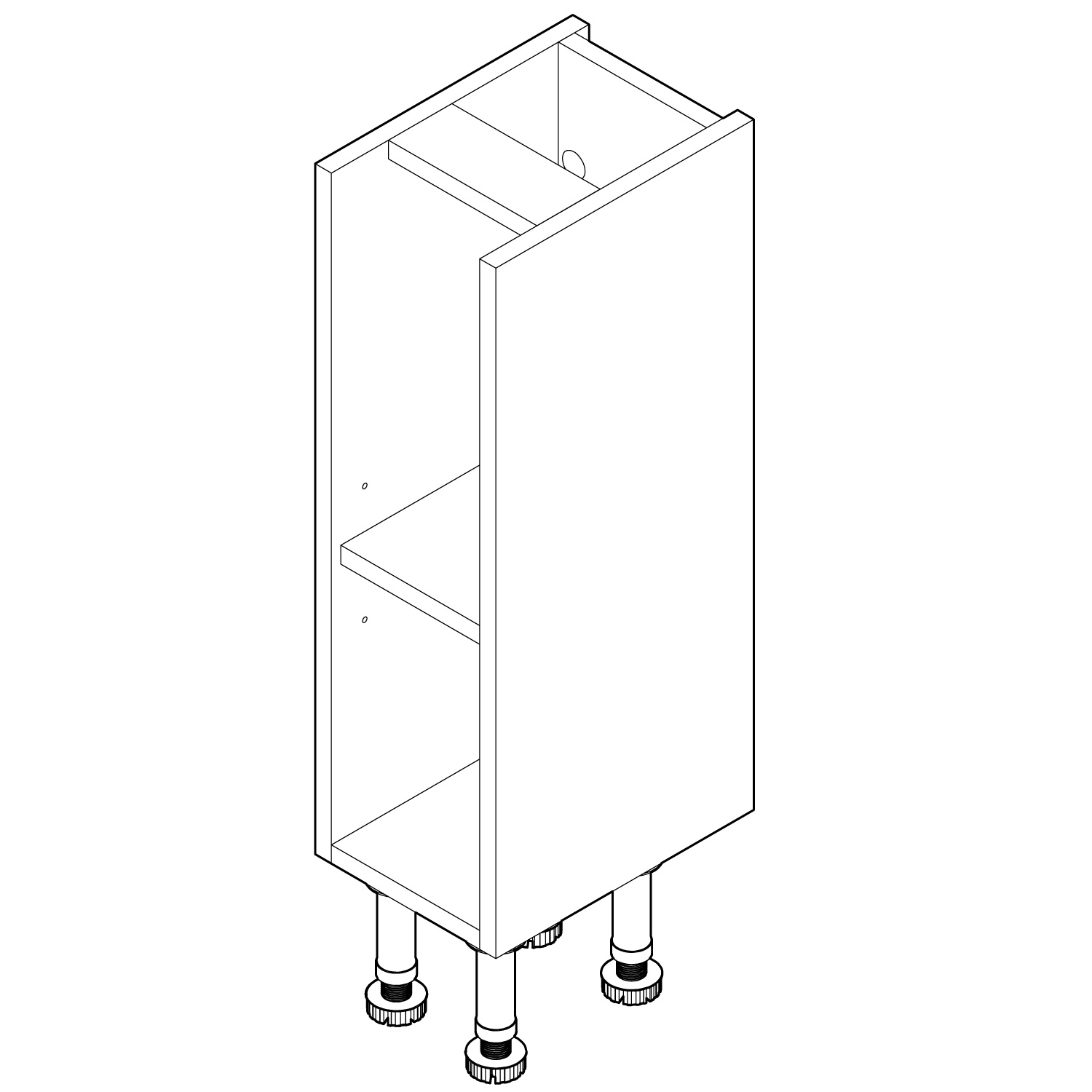

3D Line Drawing2D Line Drawing

Technical Details

Furniture Type:

Open Unit

Dimensions (WxDxH):

200 x 285 x 811mm

Carcass Material:

MFC 18mm

Carcass Edging:

PVC Edging

Carcass Service Area:

Closed Back

Shelves:

1 removable - MFC 18mm

Removable Shelf Supports:

Studs

Fixation Method:

Adjustable Metal Wall Brackets, 80mm from top @ 135mm centres

Leg / Foot Type:

Leg Sockets, Legs Included

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

In The Box:

Chiltern Open Unit 200 Standard
Instructions
Fitting kit
