Technical Data Sheet
Chiltern High Rise WC Unit 600 Two Door Standard
4431CH

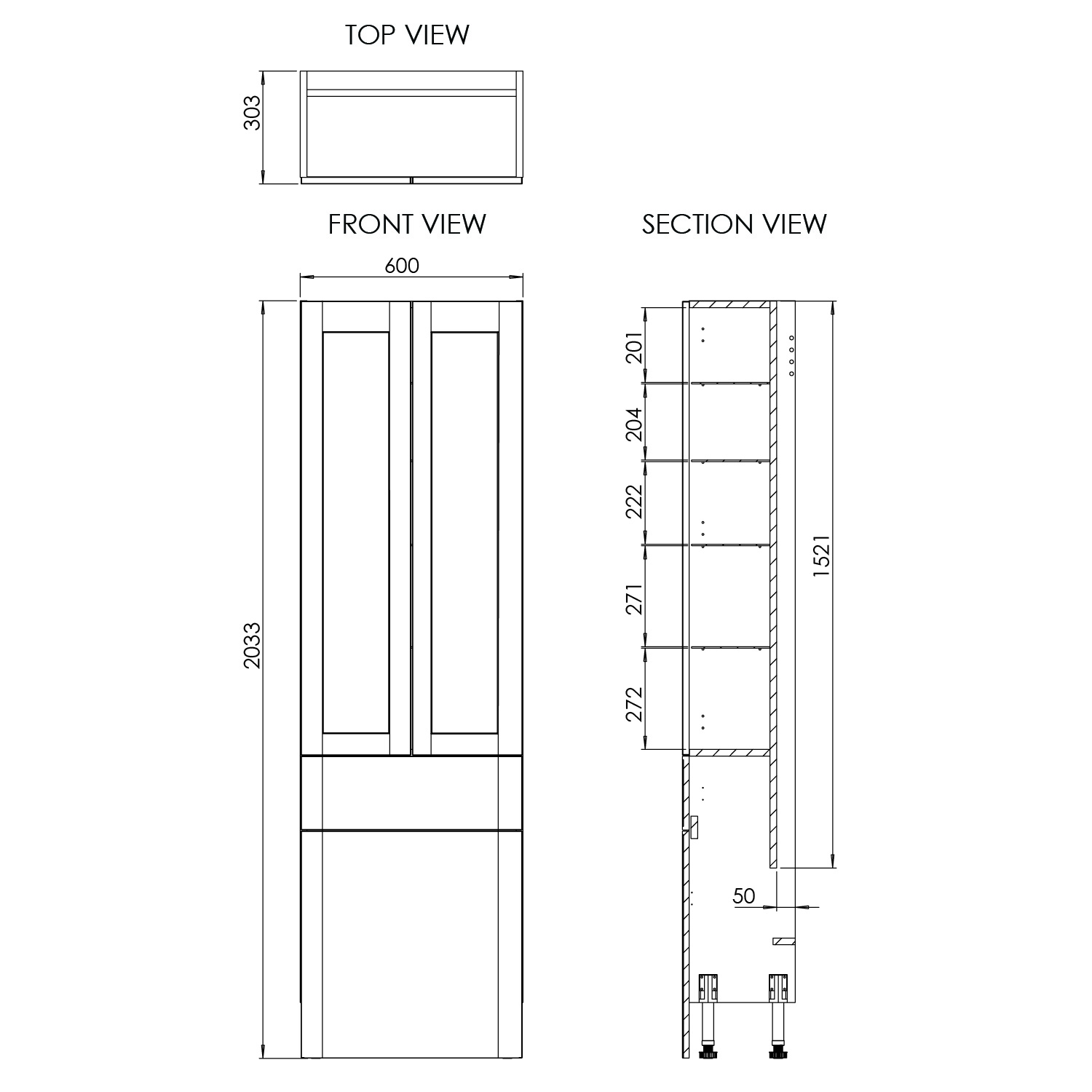

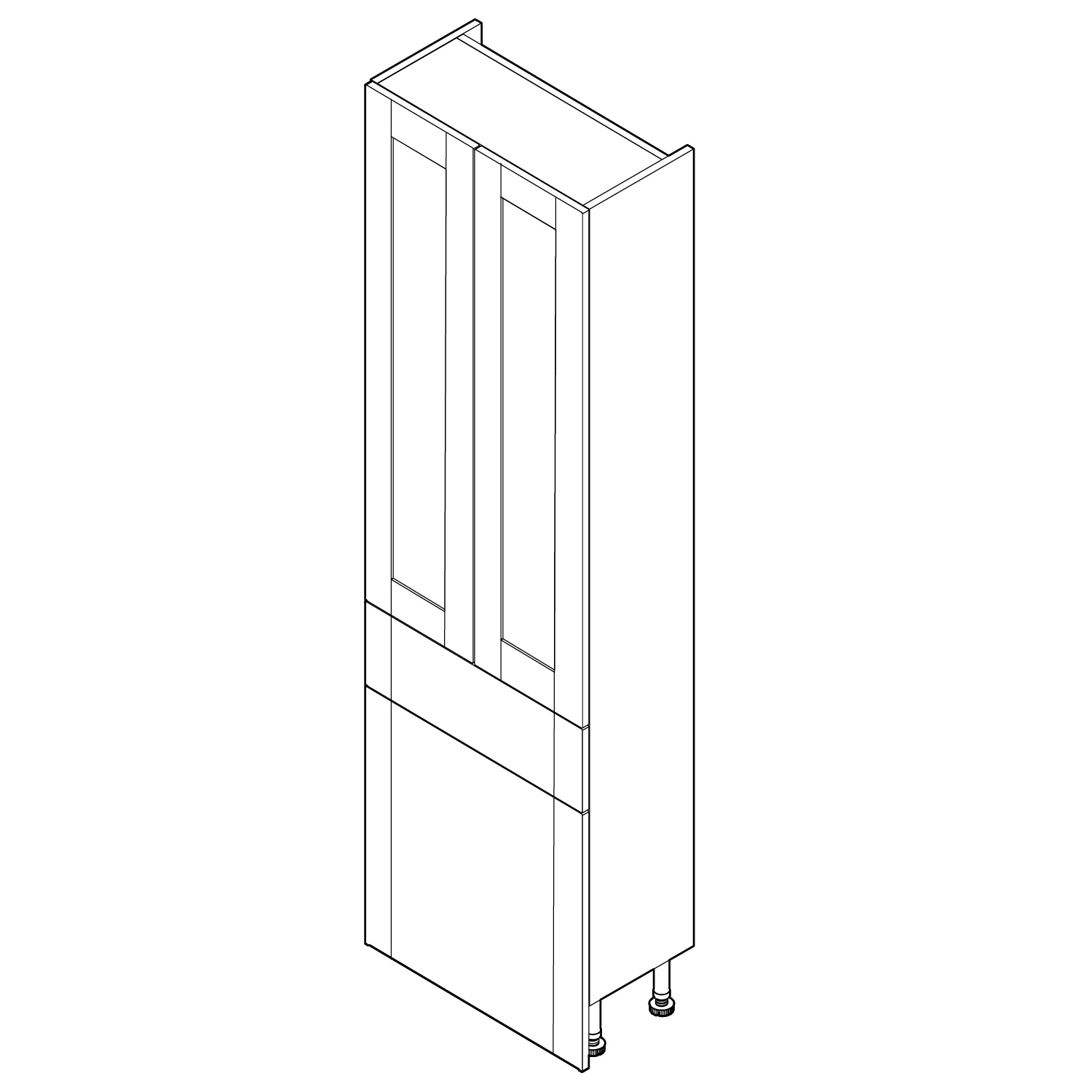

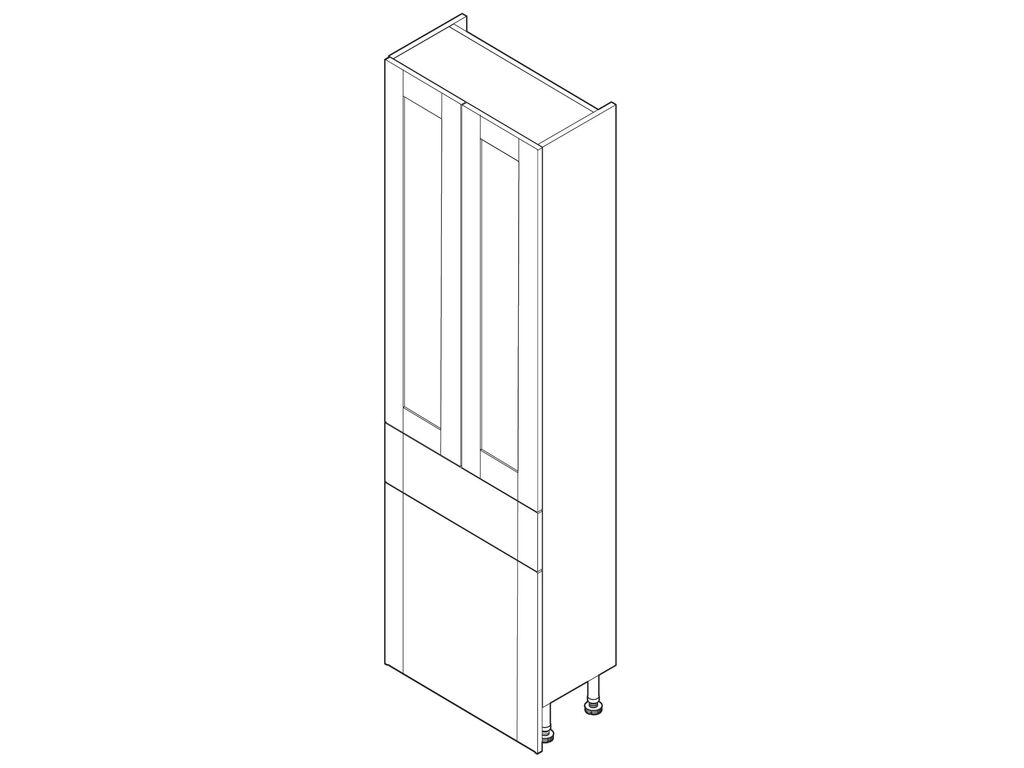

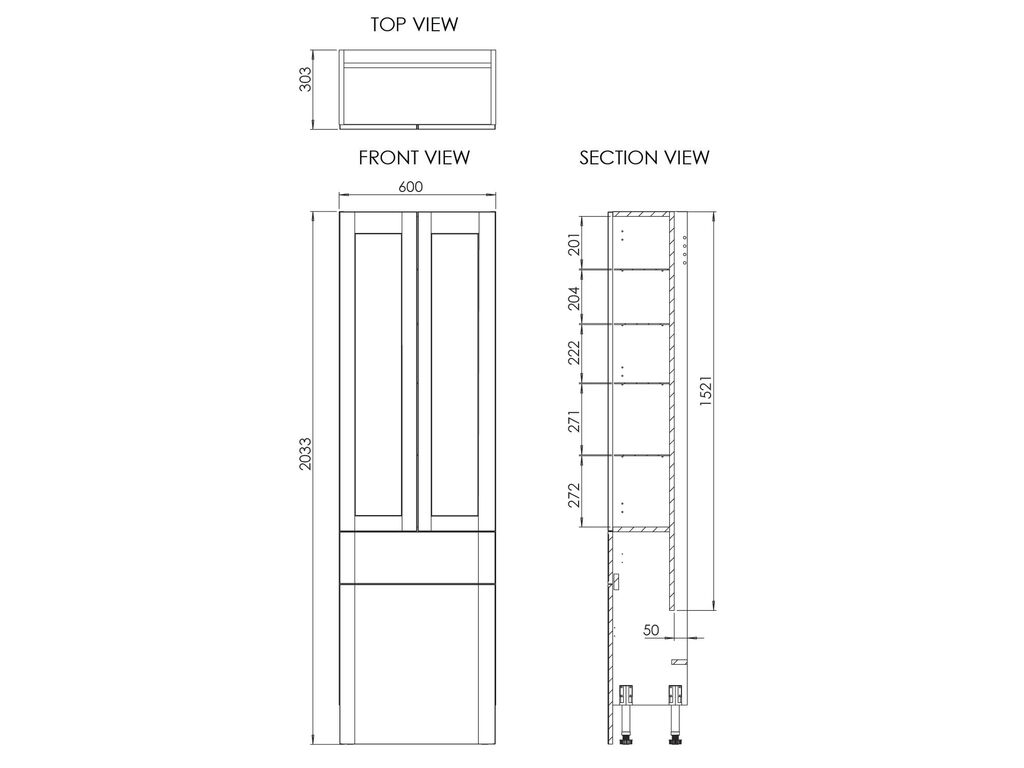

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
WC Unit
Dimensions (WxDxH):
600 x 303 x 2033mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Shaker Frame
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Shelves:
1 fixed, 4 removable - Glass 5mm,MFC 18mm
Removable Shelf Supports:
Clamps
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 535mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Door Open Unit Depth:
585mm
Service Void Depth:
50mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Chiltern High Rise WC Unit 600 Two Door Standard
Instructions
Fitting kit
