Technical Data Sheet
Pentland Base Unit 300 One Door Slim
4239PD

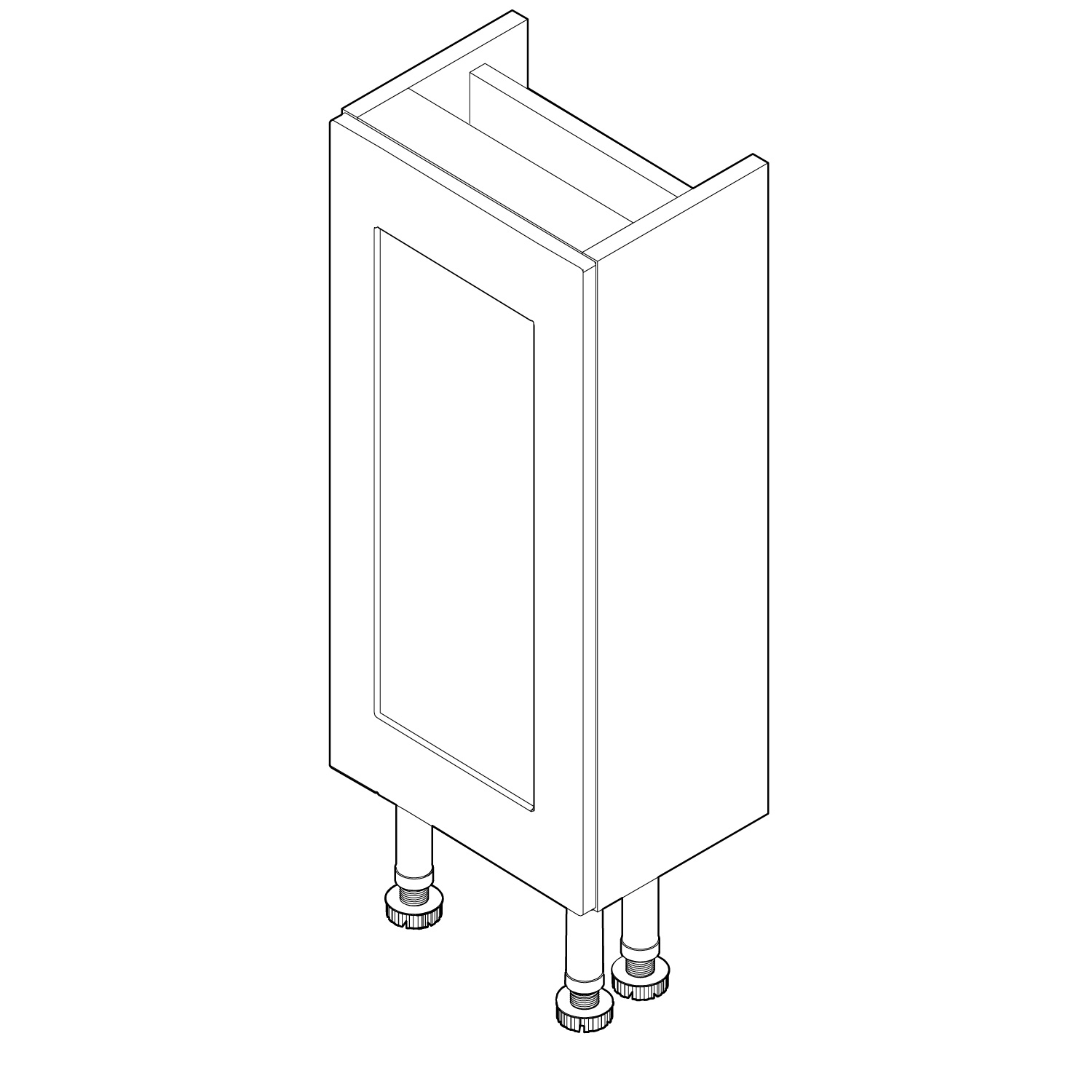

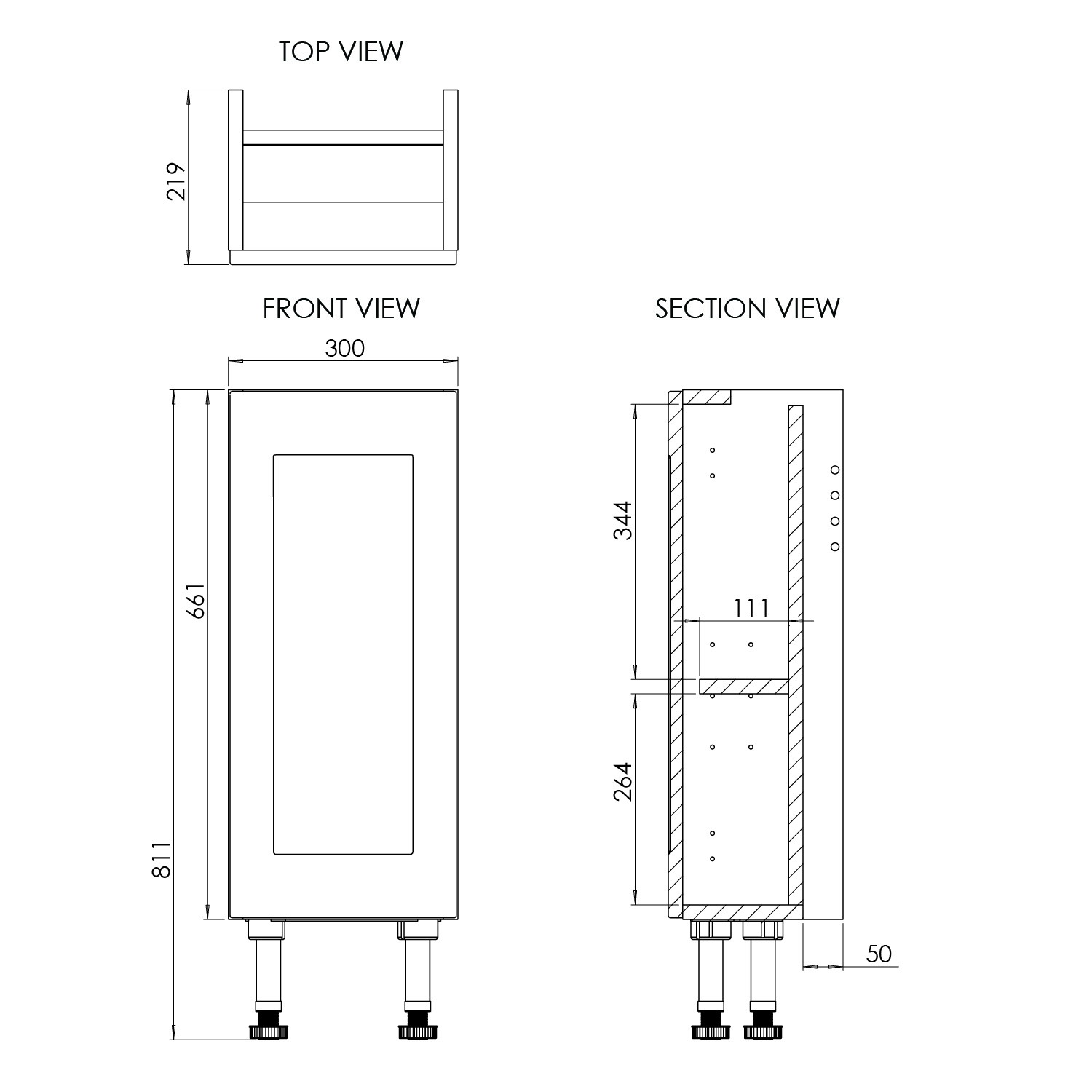

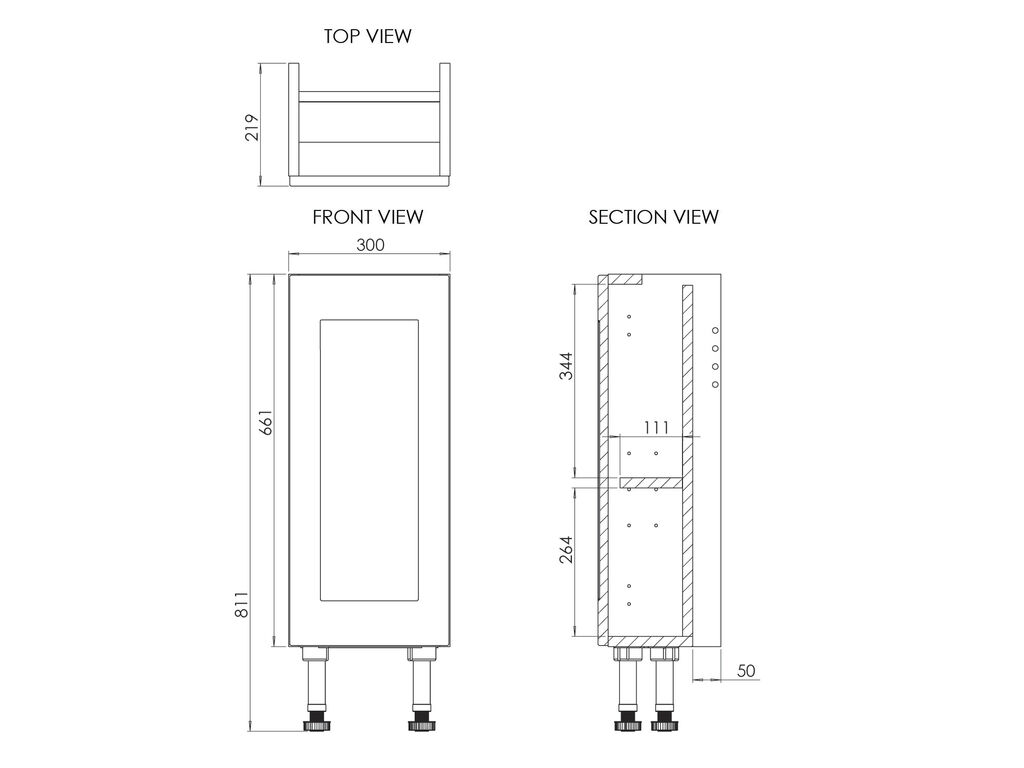

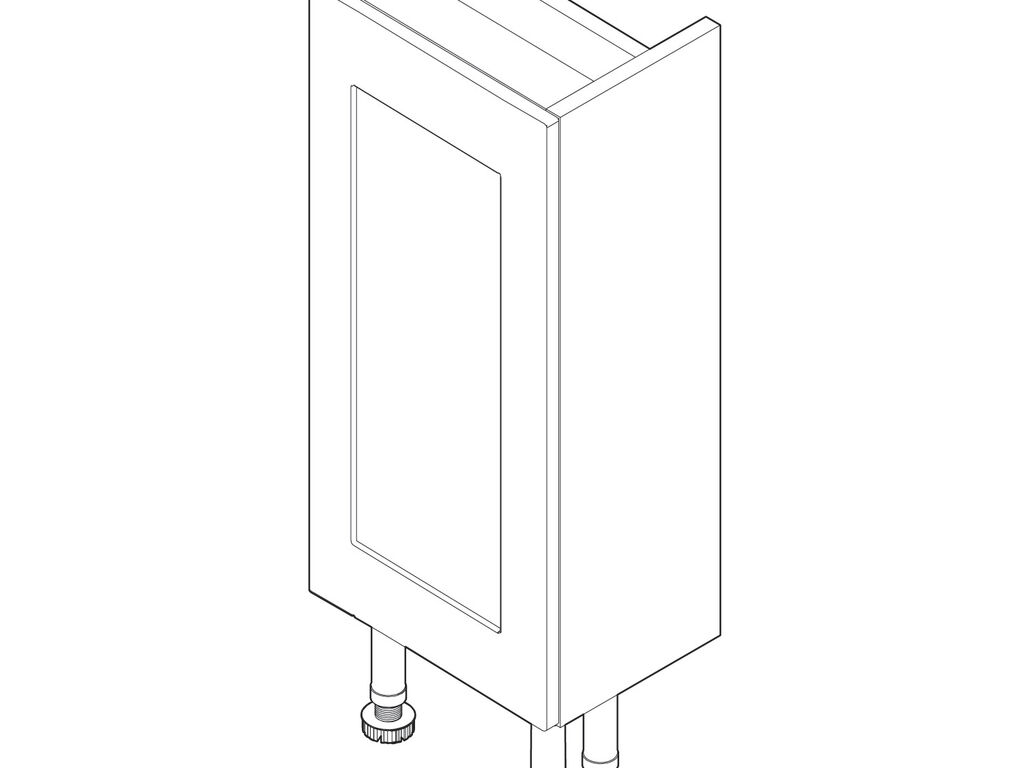

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Base Unit
Dimensions (WxDxH):
300 x 219 x 811mm
Carcass Material:
MFC 18mm
Fascia Style:
MDF 19mm Shaker
Door Openings:
1
Door(s) Hinge Side:
Both
Shelves:
1 removable - MFC 18mm
Leg / Foot Type:
Leg Sockets, Legs Included
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Pentland Base Unit 300 One Door Slim
Instructions
Fitting kit
