Technical Data Sheet
Dartmoor WC Unit 550 Freestanding Slim
4229DA

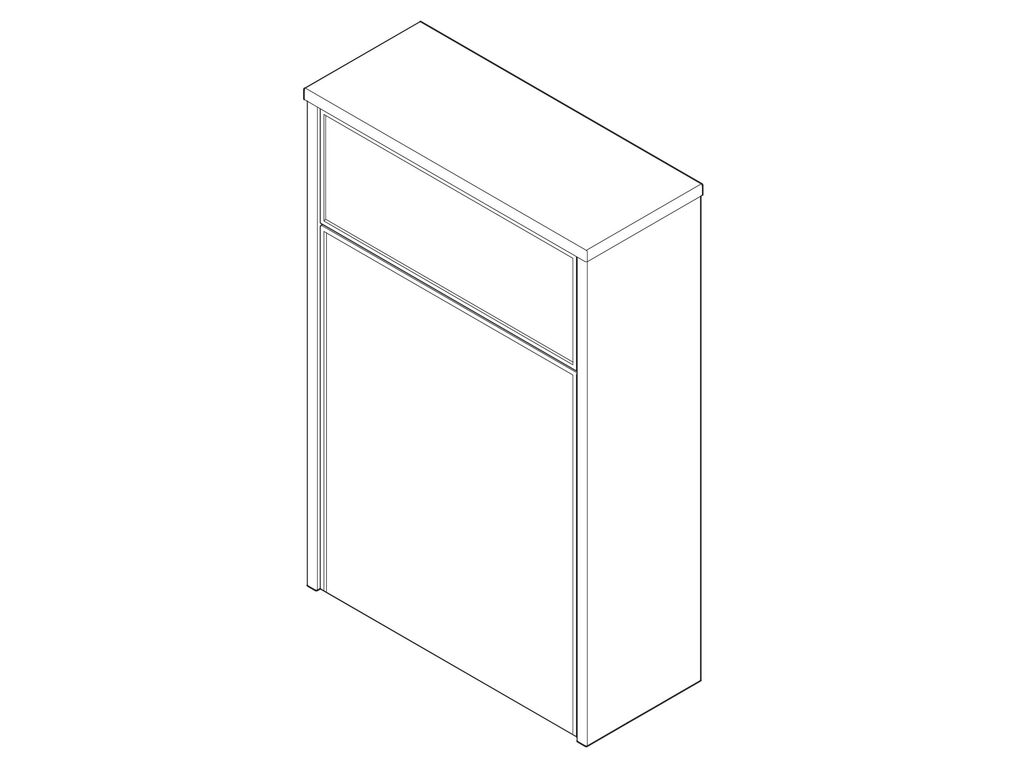

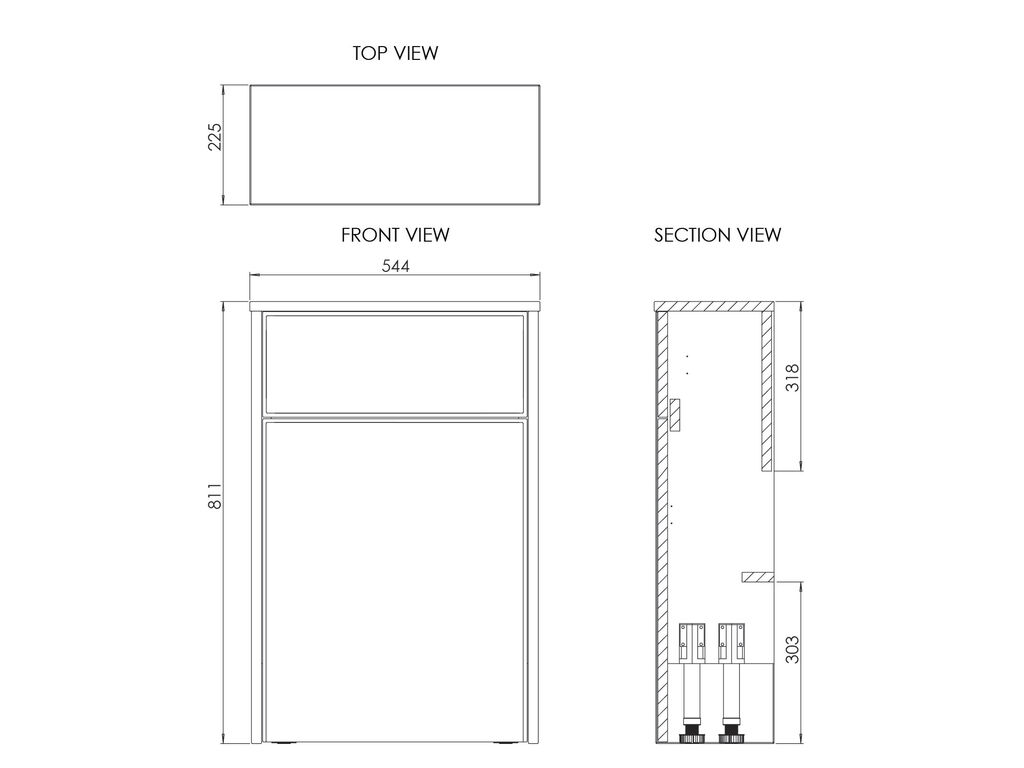

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
WC Unit
Dimensions (WxDxH):
544 x 225 x 829mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Slim Shaker Frame
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Fixation Method:
Adjustable Metal Wall Brackets, 109mm from top @ 435mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Dartmoor WC Unit 550 Freestanding Slim
Instructions
Fitting kit
