Technical Data Sheet
Pentland WC Unit 500 Floor Reaching Slim
4226PD

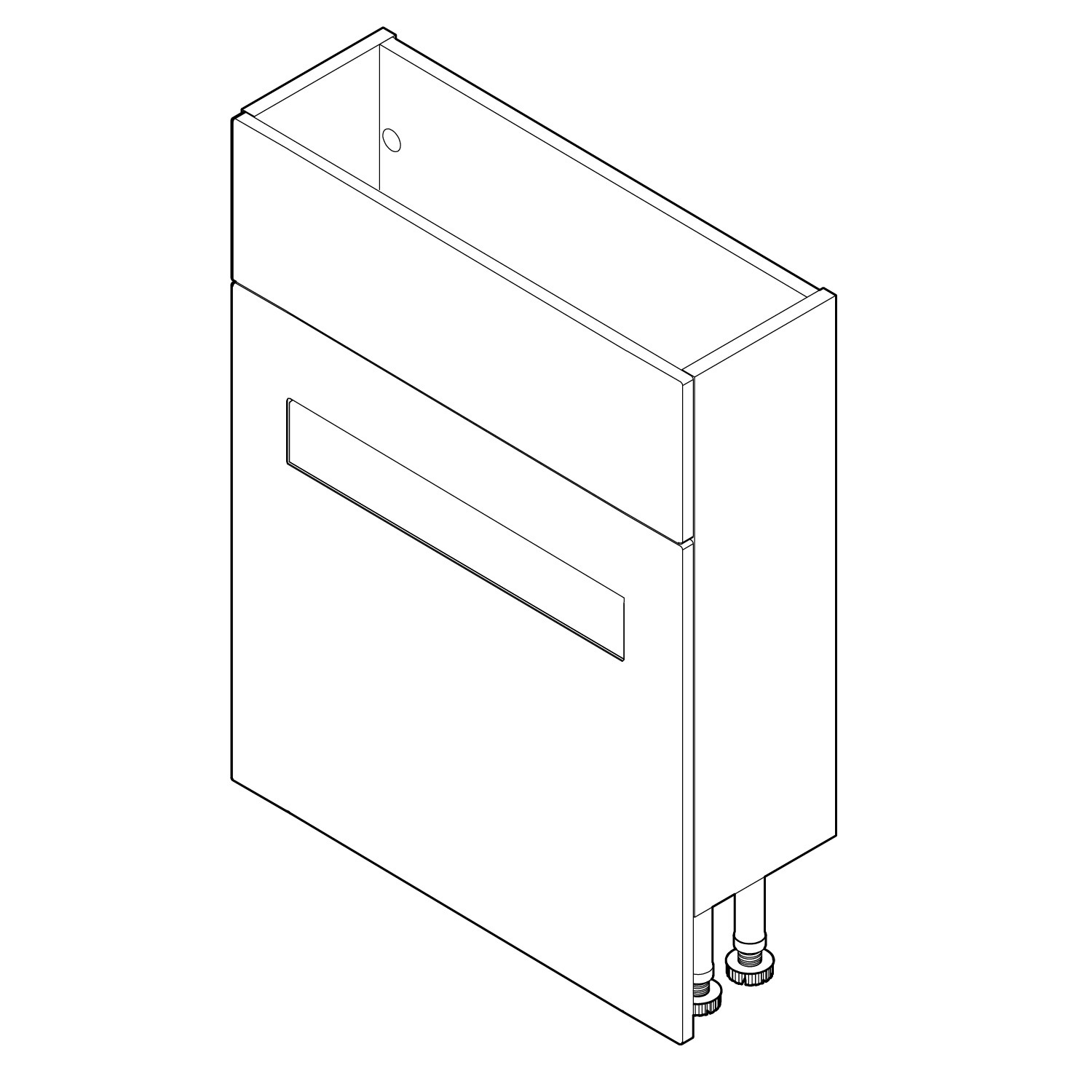

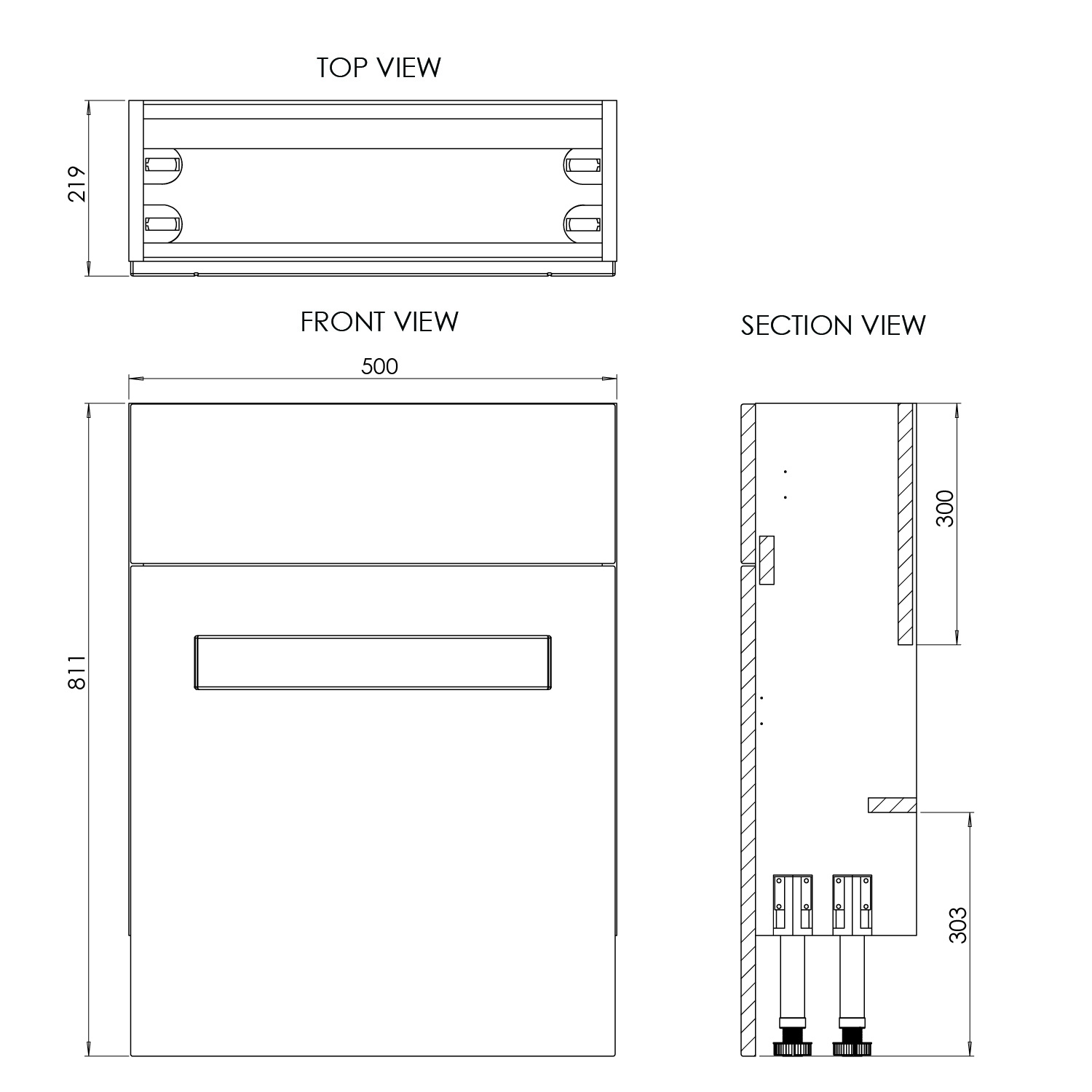

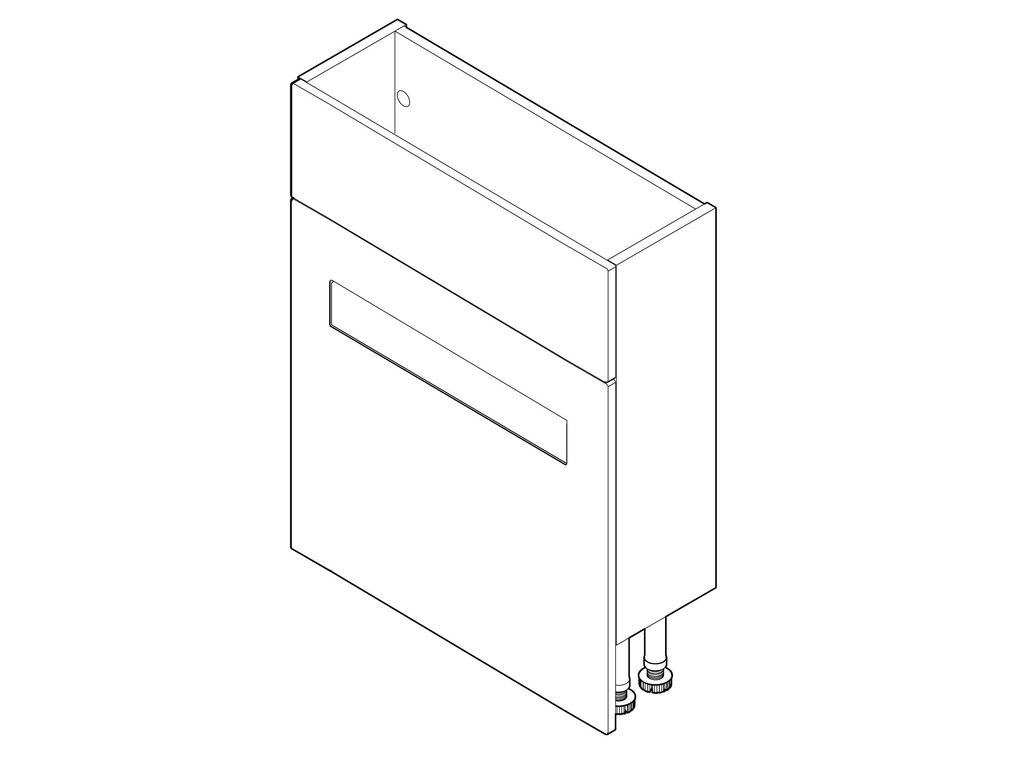

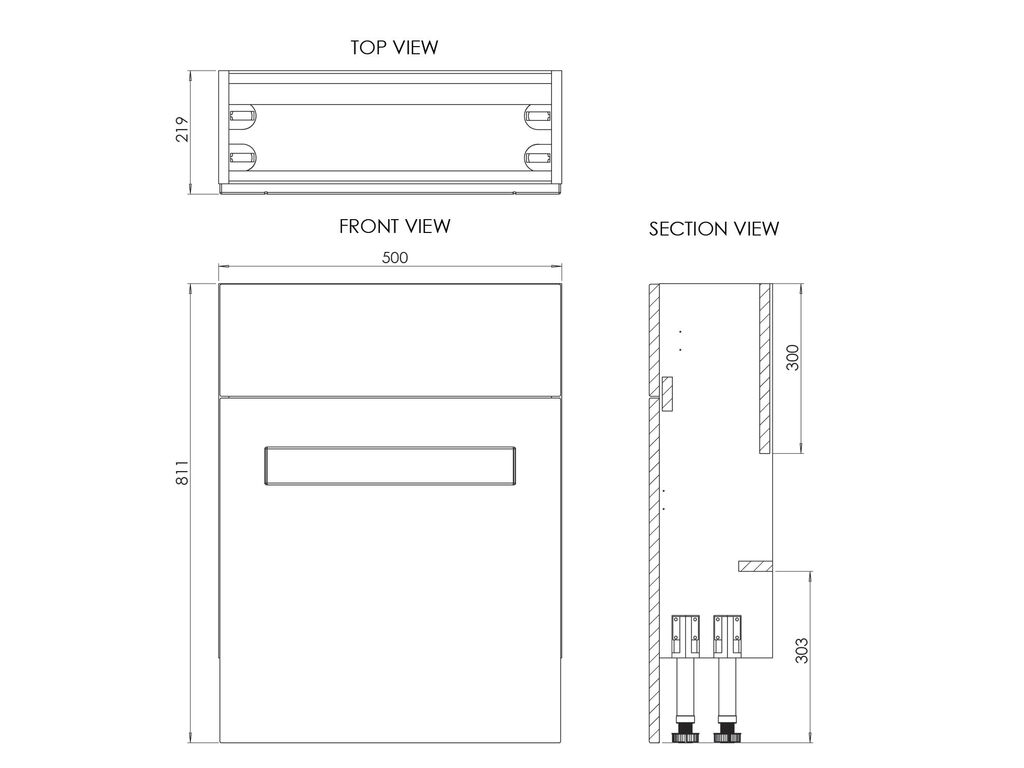

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
WC Unit
Dimensions (WxDxH):
500 x 219 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 19mm Shaker
Fascia Detail:
Beaded Frame
Fixation Method:
Adjustable Metal Wall Brackets, 109mm from top @ 435mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Pentland WC Unit 500 Floor Reaching Slim
Instructions
Fitting kit
