Technical Data Sheet
Solid Oak Basin Unit 400 One Door Slim
4201CHSO

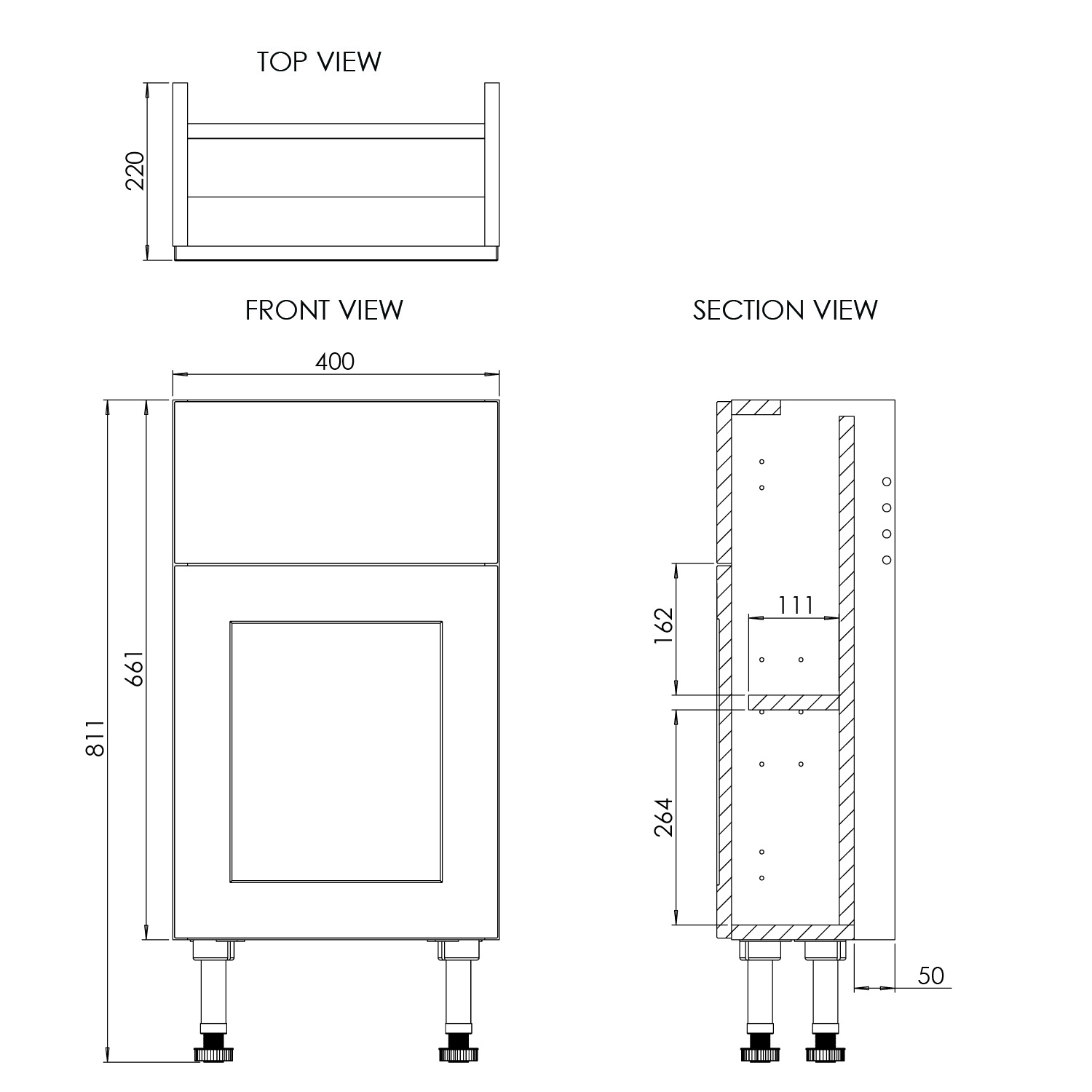

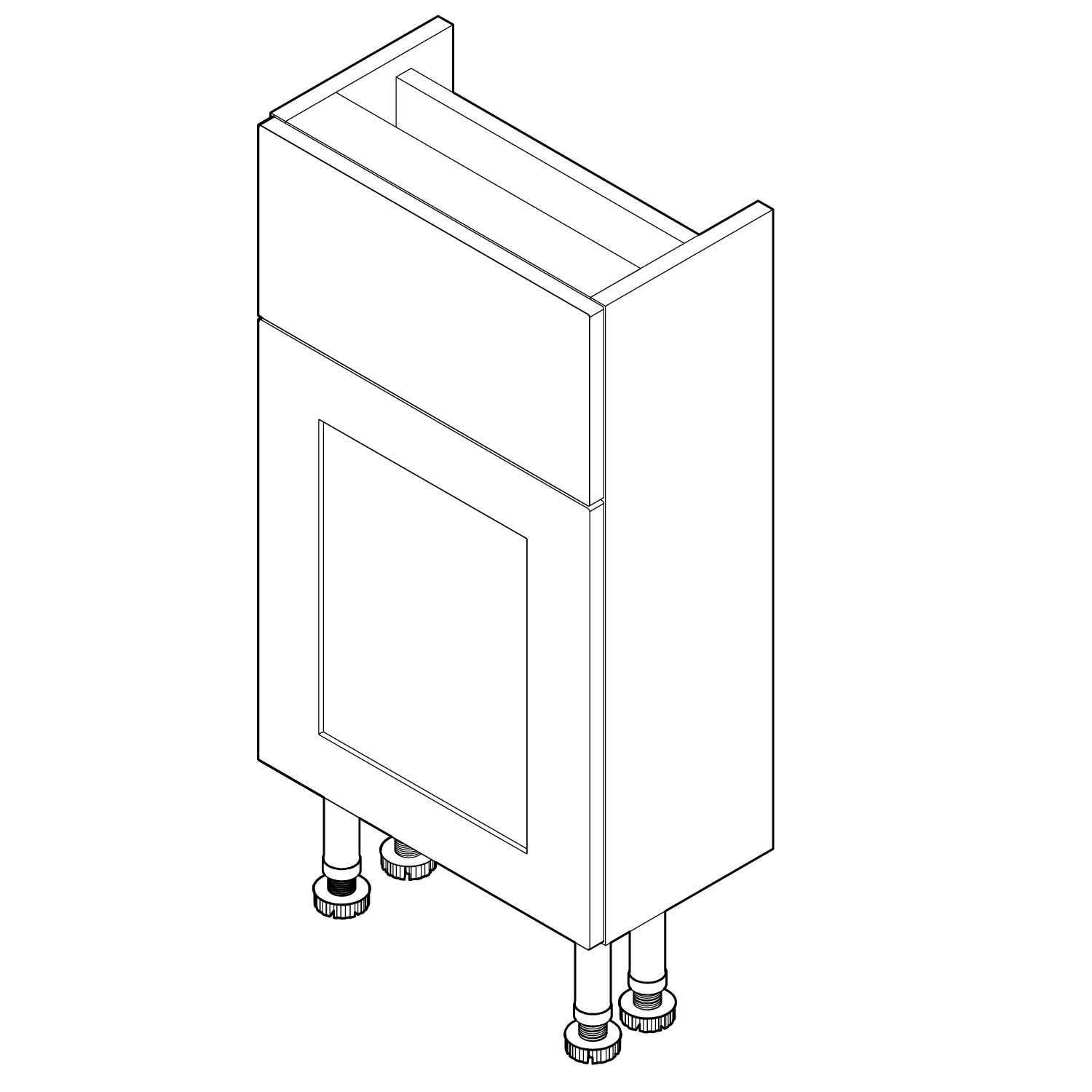

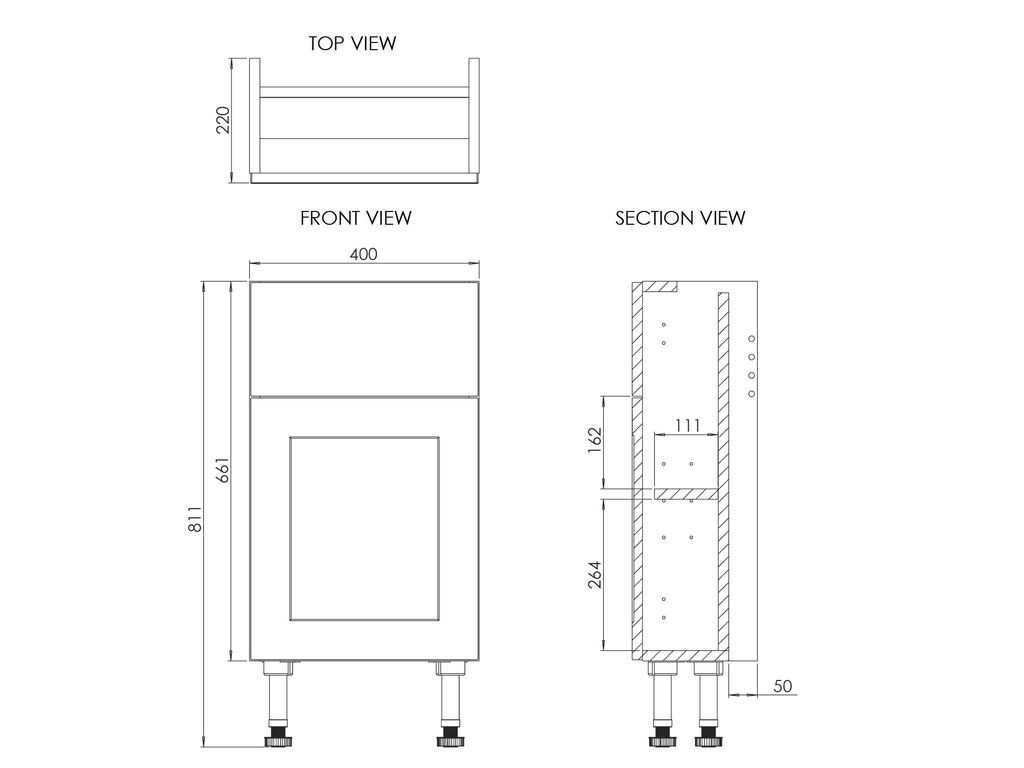

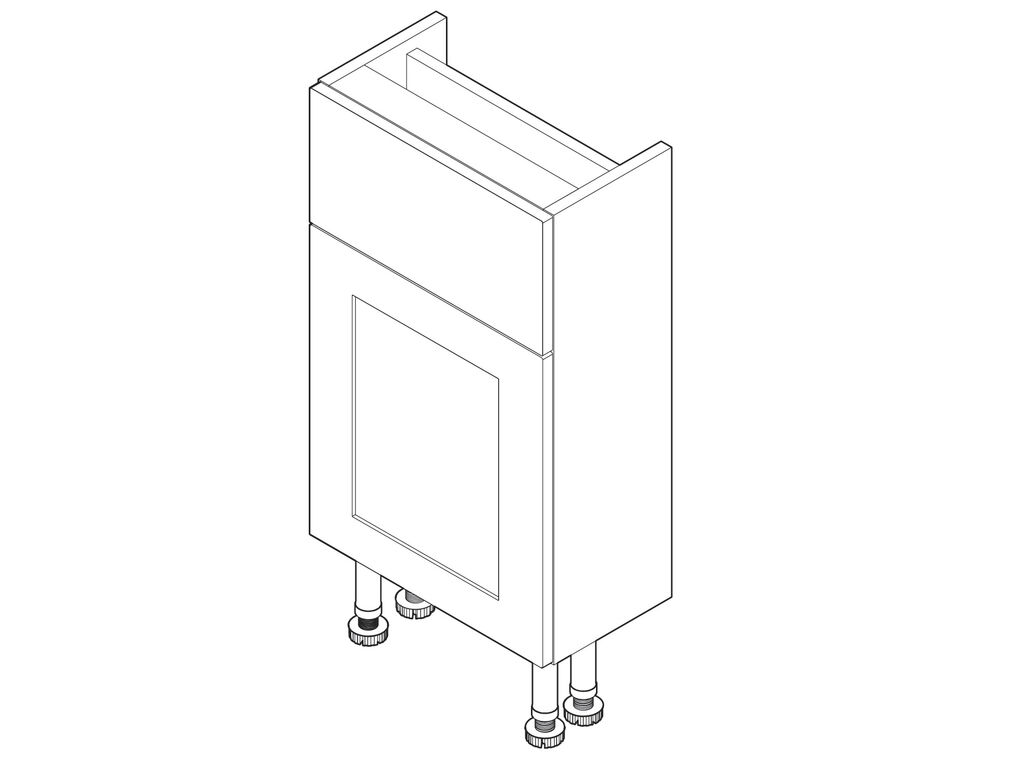

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Basin Unit
Dimensions (WxDxH):
400 x 220 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 20mm Shaker
Fascia Detail:
Shaker Frame
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Handle Not Included
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 335mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Door Open Unit Depth:
400mm
Service Void Depth:
50mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Solid Oak Basin Unit 400 One Door Slim
Instructions
Fitting kit
