Technical Data Sheet
Valor Tall Wall Unit 350 One Door
4130

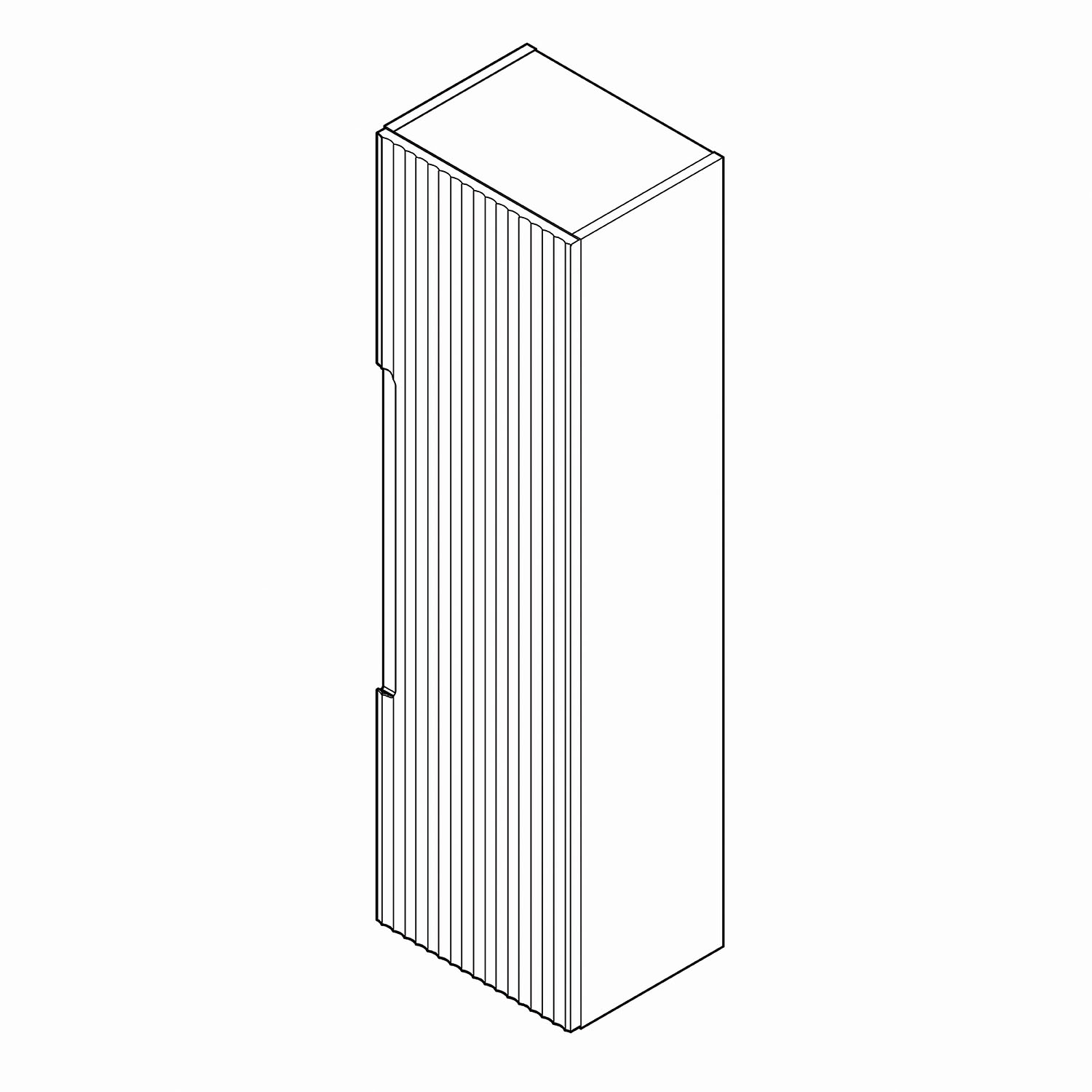

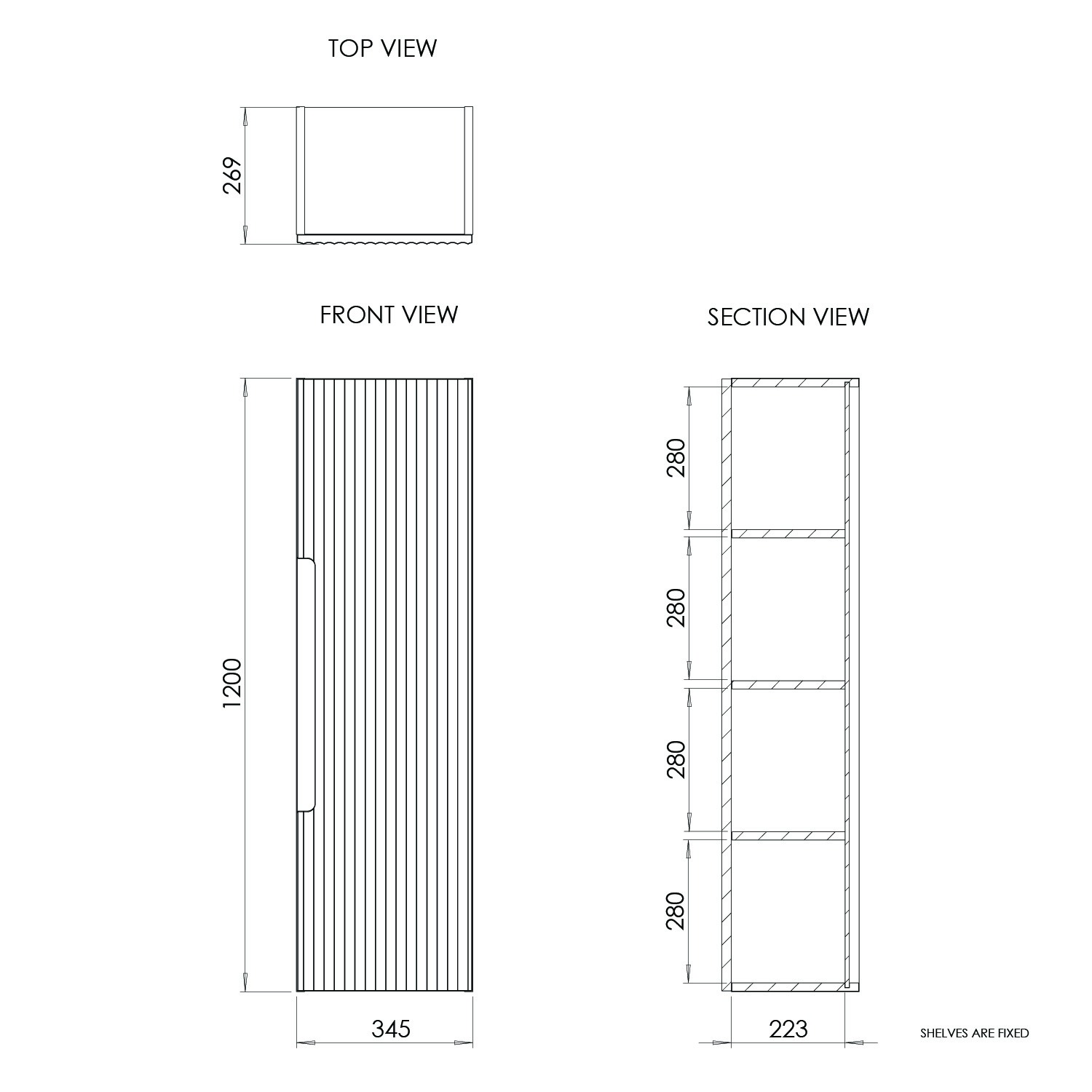

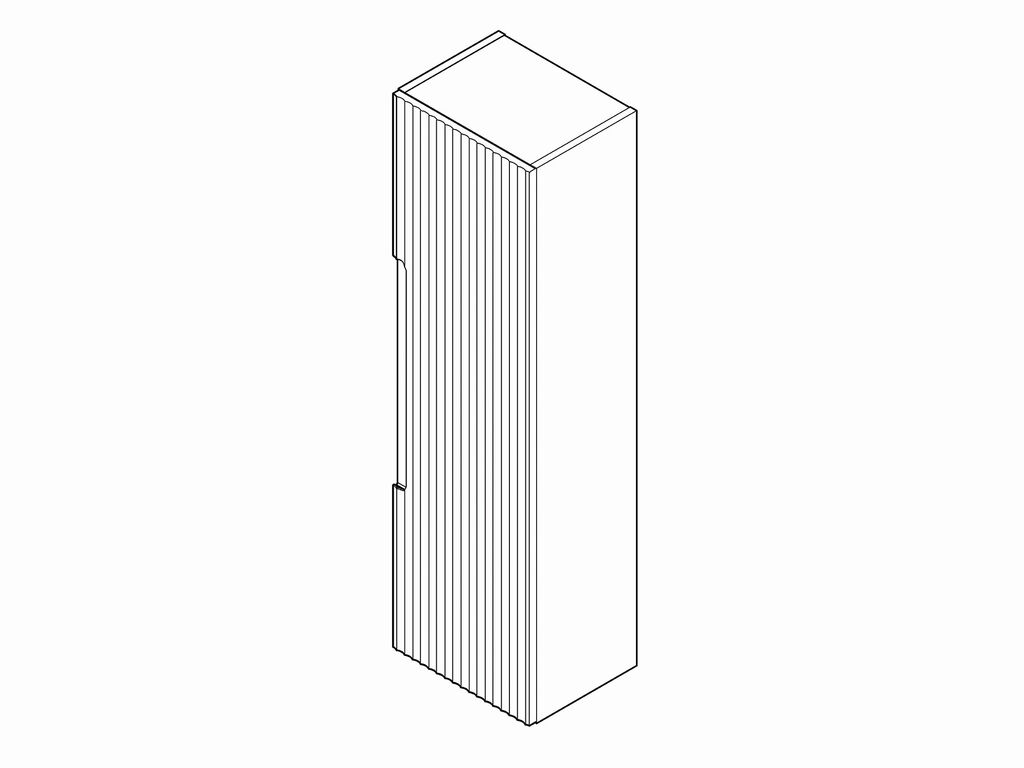

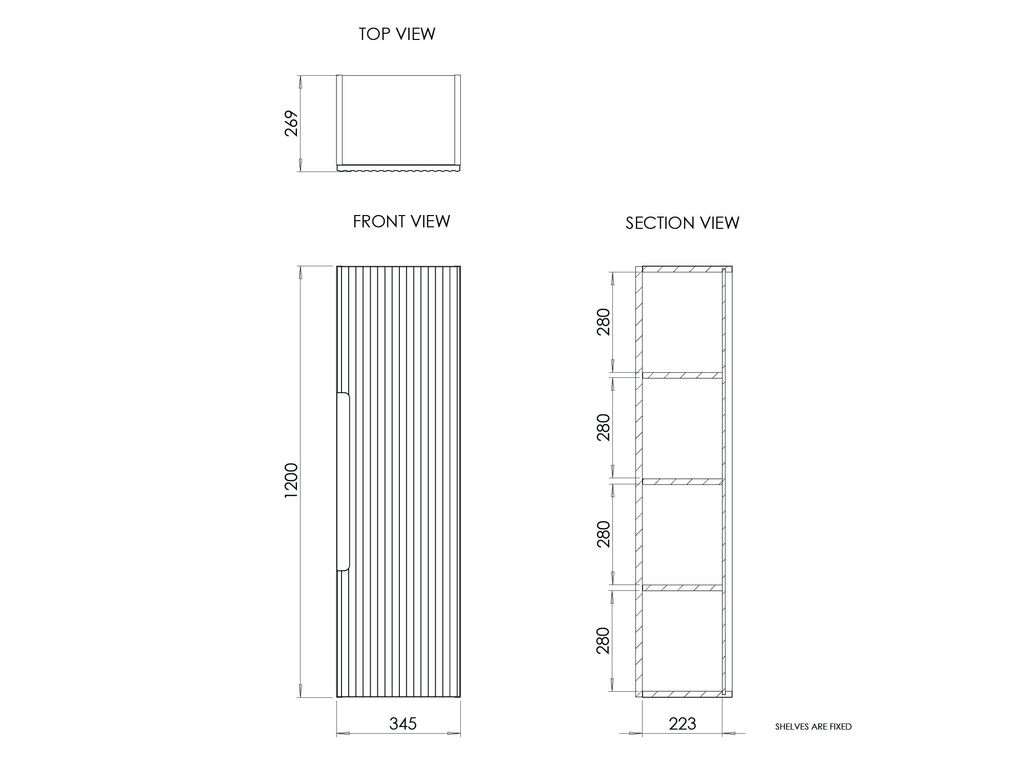

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
345 x 269 x 1200mm
Weight:
18.38 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Colour:
Dark Grey
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Fluted
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close,Full Overlay
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
3 fixed - MFC 16mm
Fixation Method:
Adjustable Metal Wall Brackets, 40mm from top
Door Open Unit Depth:
598mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Valor Tall Wall Unit 350 One Door
Fitting kit
