Technical Data Sheet
Sora Tall Wall Unit 300 Two Door
4126

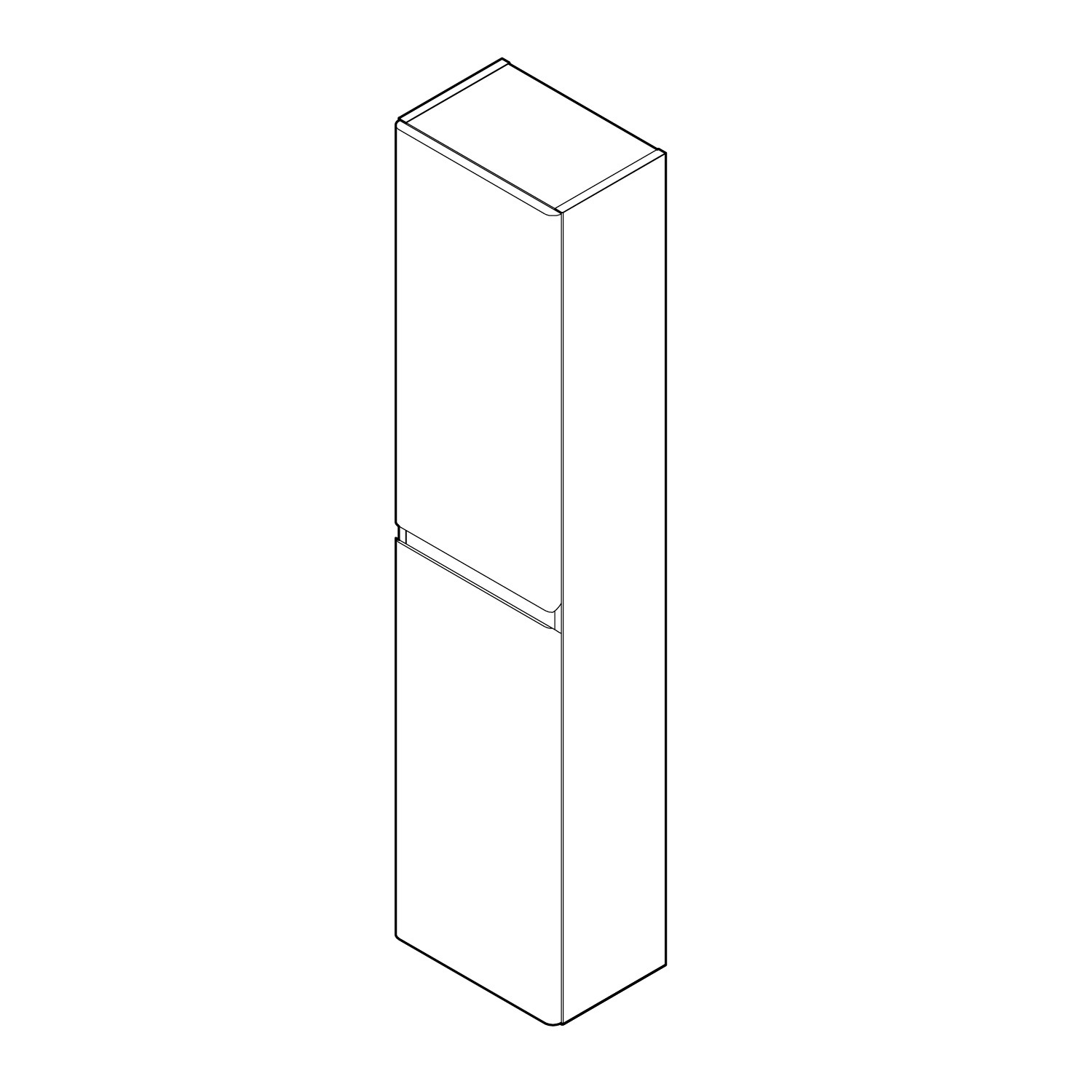

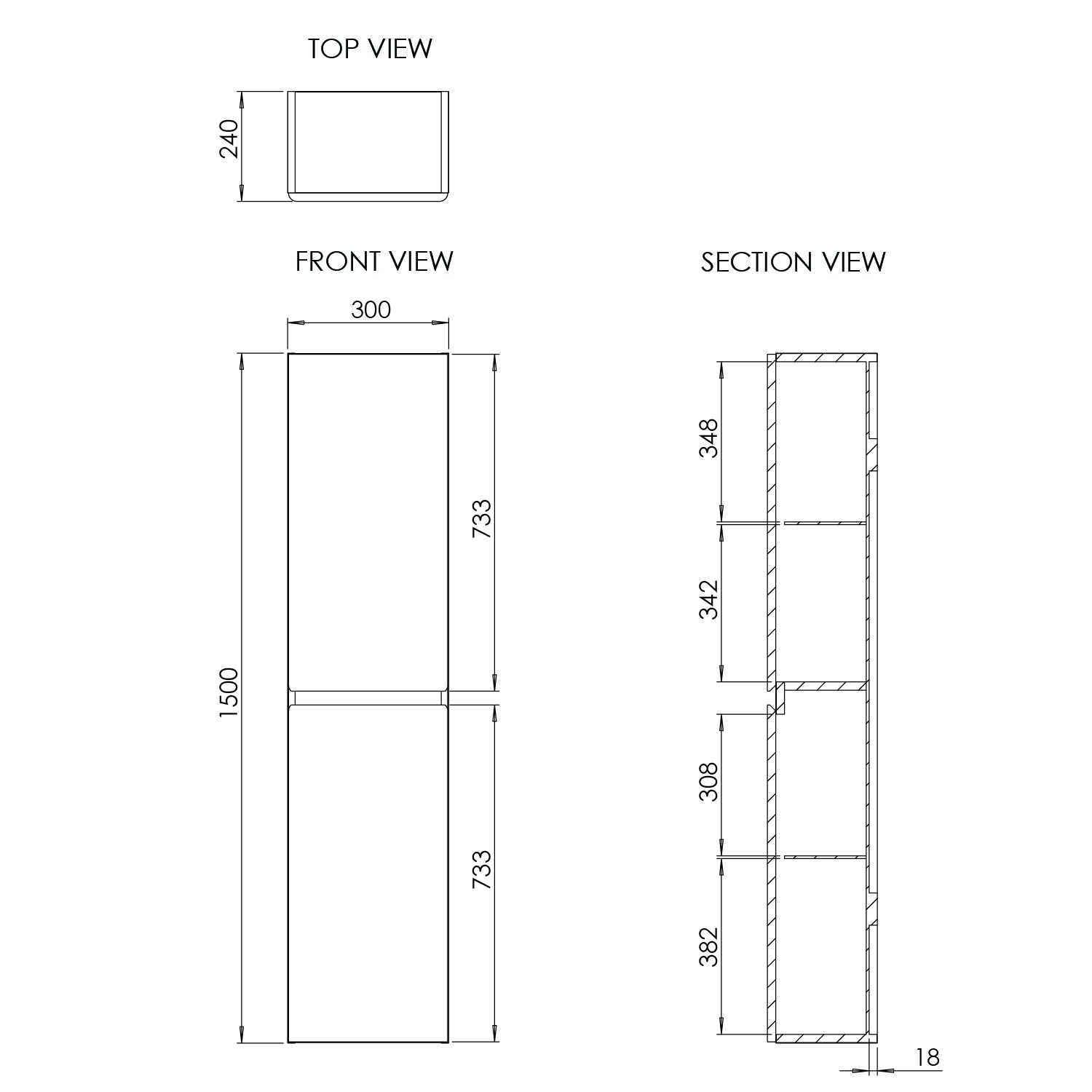

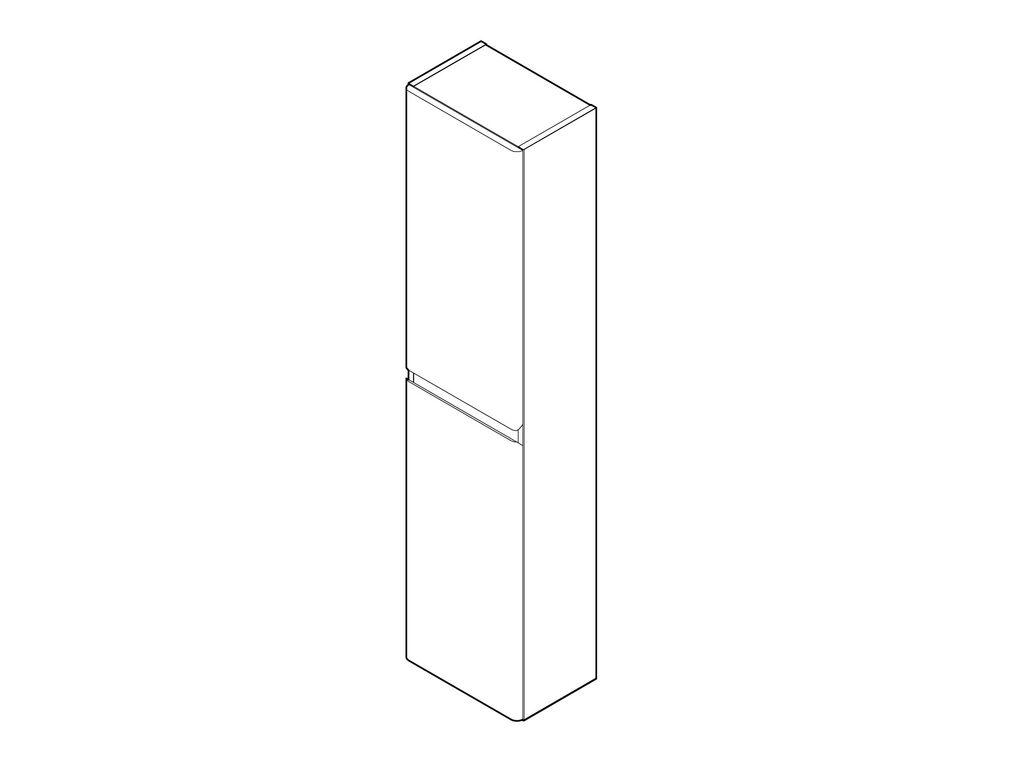

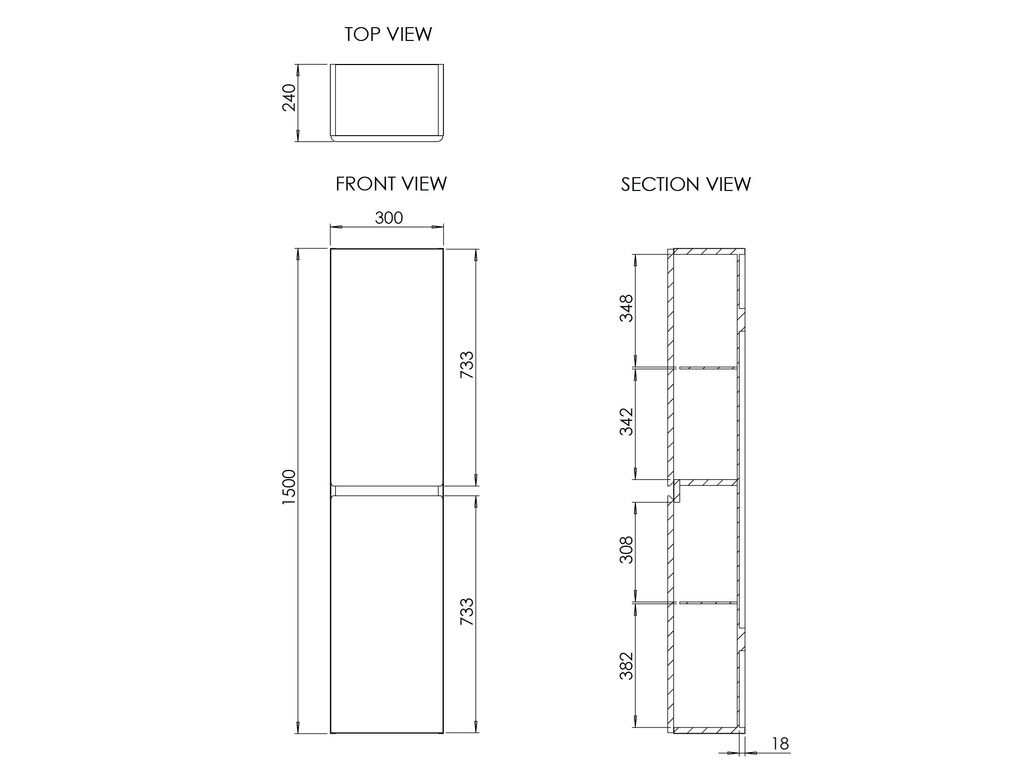

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
300 x 240 x 1500mm
Weight:
20.1 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Colour:
Dark Grey
Fascia Style:
MDF 20mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
2 removable - Glass 5mm
Removable Shelf Supports:
Clamps
Fixation Method:
Split Batten, 300mm from top @ 130mm centres
Door Open Unit Depth:
525mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Sora Tall Wall Unit 300 Two Door
Fitting kit
