Technical Data Sheet

Sora Wall Hung Vanity Unit 800 Two Drawer

4124

Calypso Logo

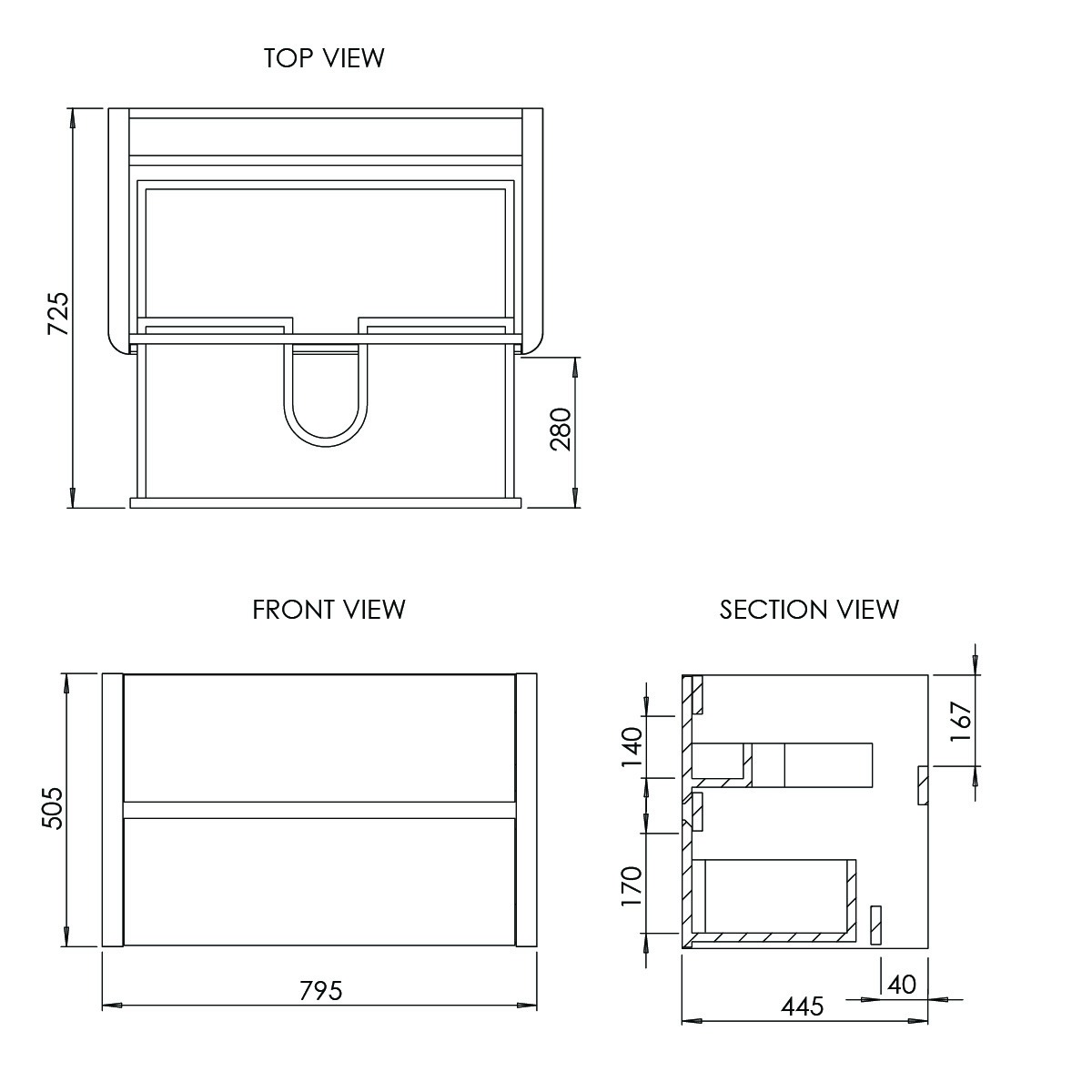

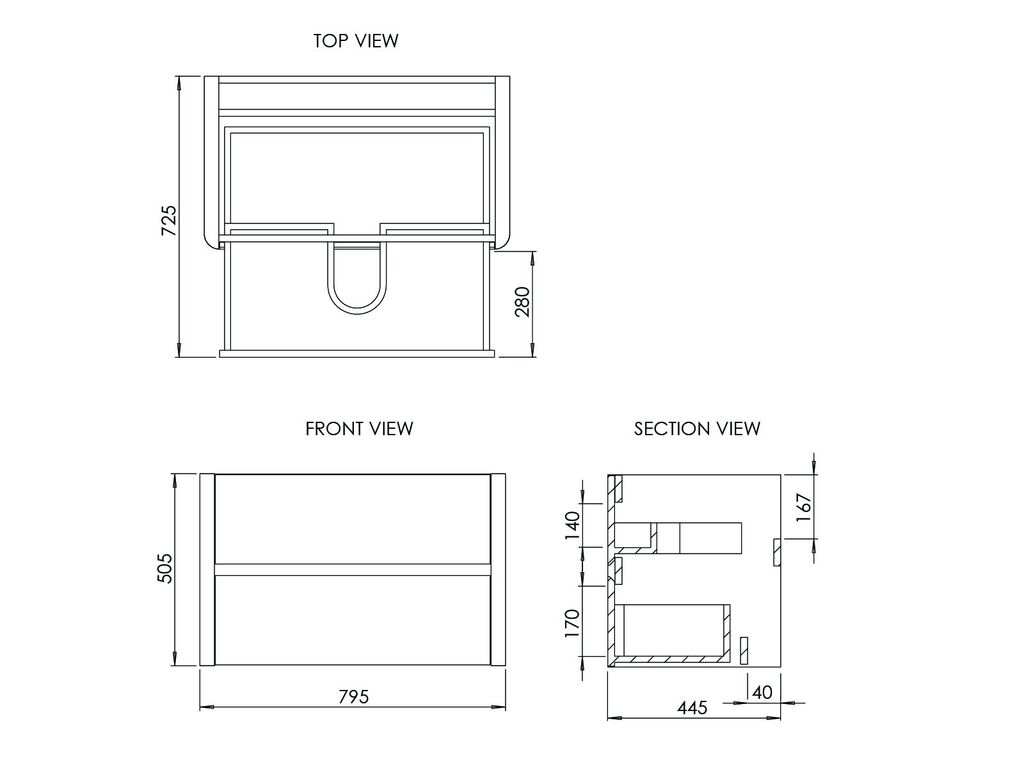

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

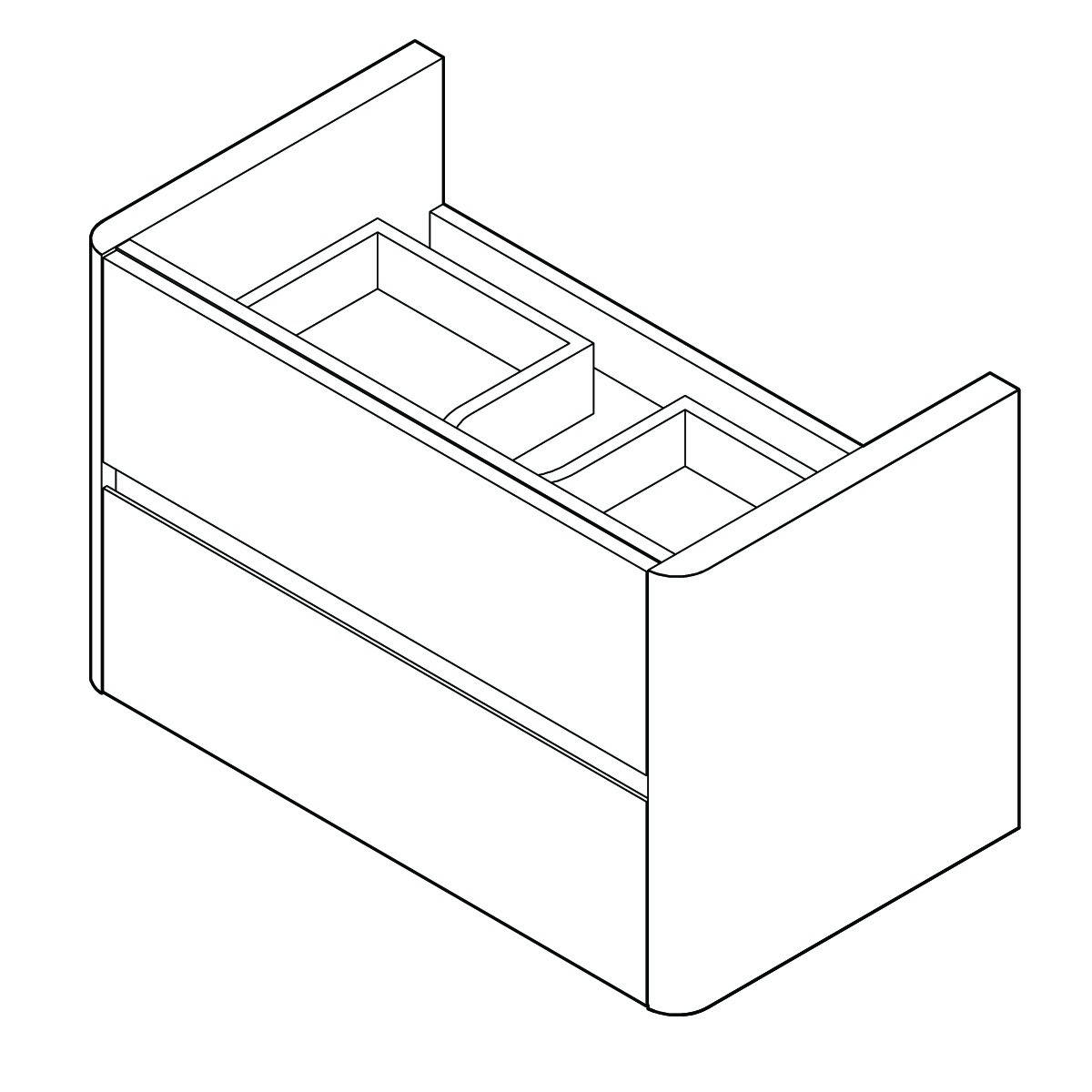

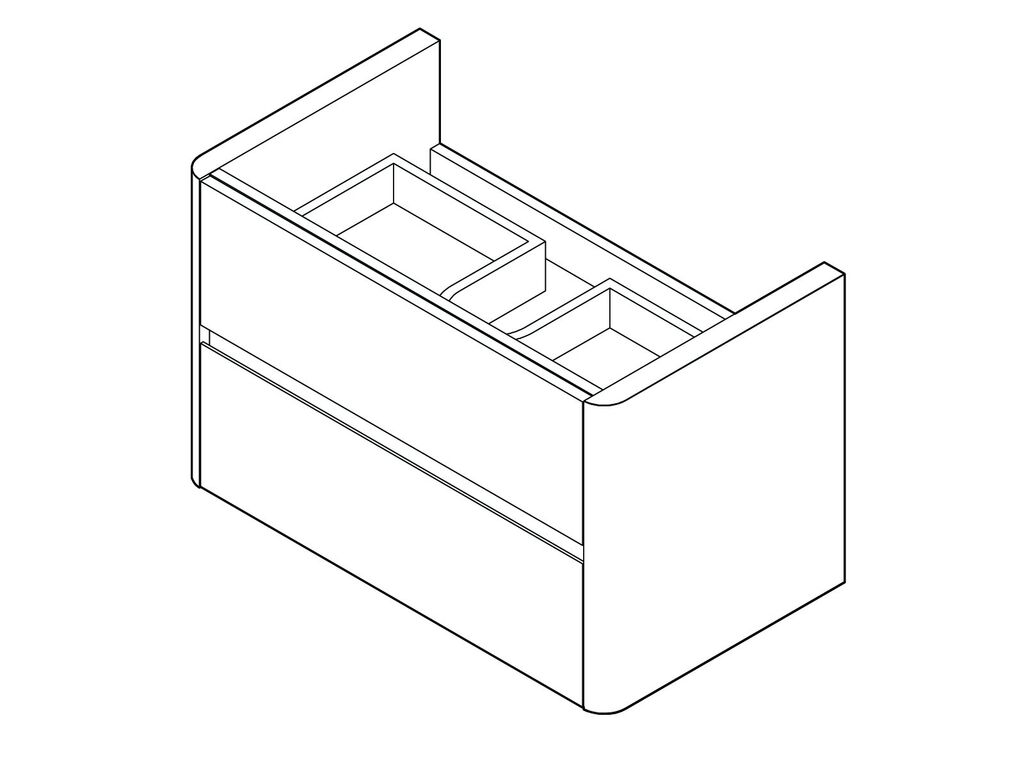

3D Line Drawing2D Line Drawing

Technical Details

Furniture Type:

Wall Hung Vanity Unit

Dimensions (WxDxH):

795 x 445 x 505mm

Weight:

33.72 kg

Carcass Material:

MFC 16mm

Carcass Colour:

Dark Grey

Fascia Style:

MDF 19mm Slab

Drawers:

2 drawers, Emuca Soft Close, 350mm runners

Guarantee Period:

5 Years

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

In The Box:

Sora Wall Hung Vanity Unit 800 Two Drawer
Instructions
Fitting kit
Expansion plugs
Metal wall brackets
Screws
White plastic bracket covers
