Technical Data Sheet
Portel LED Mirror 700
3839

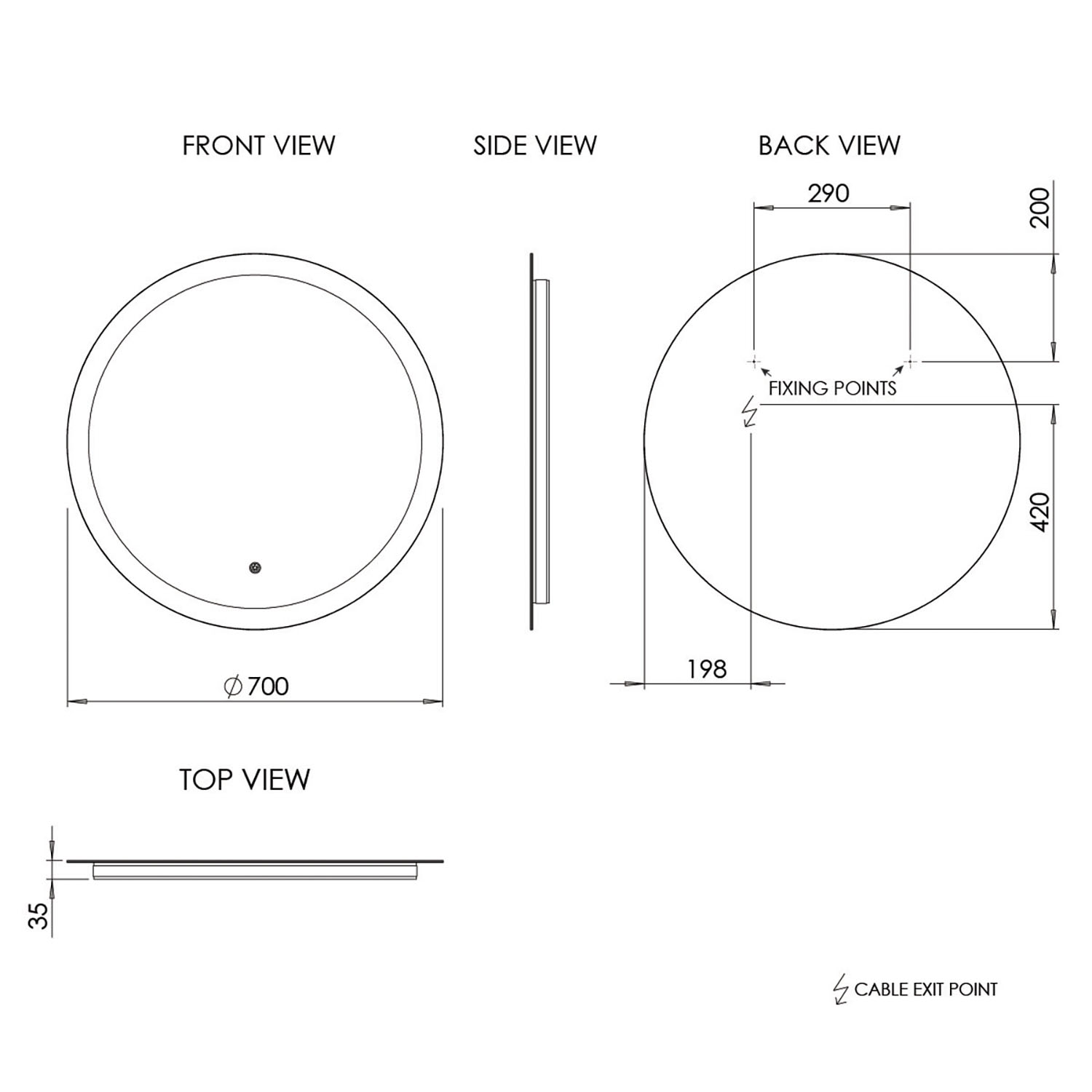

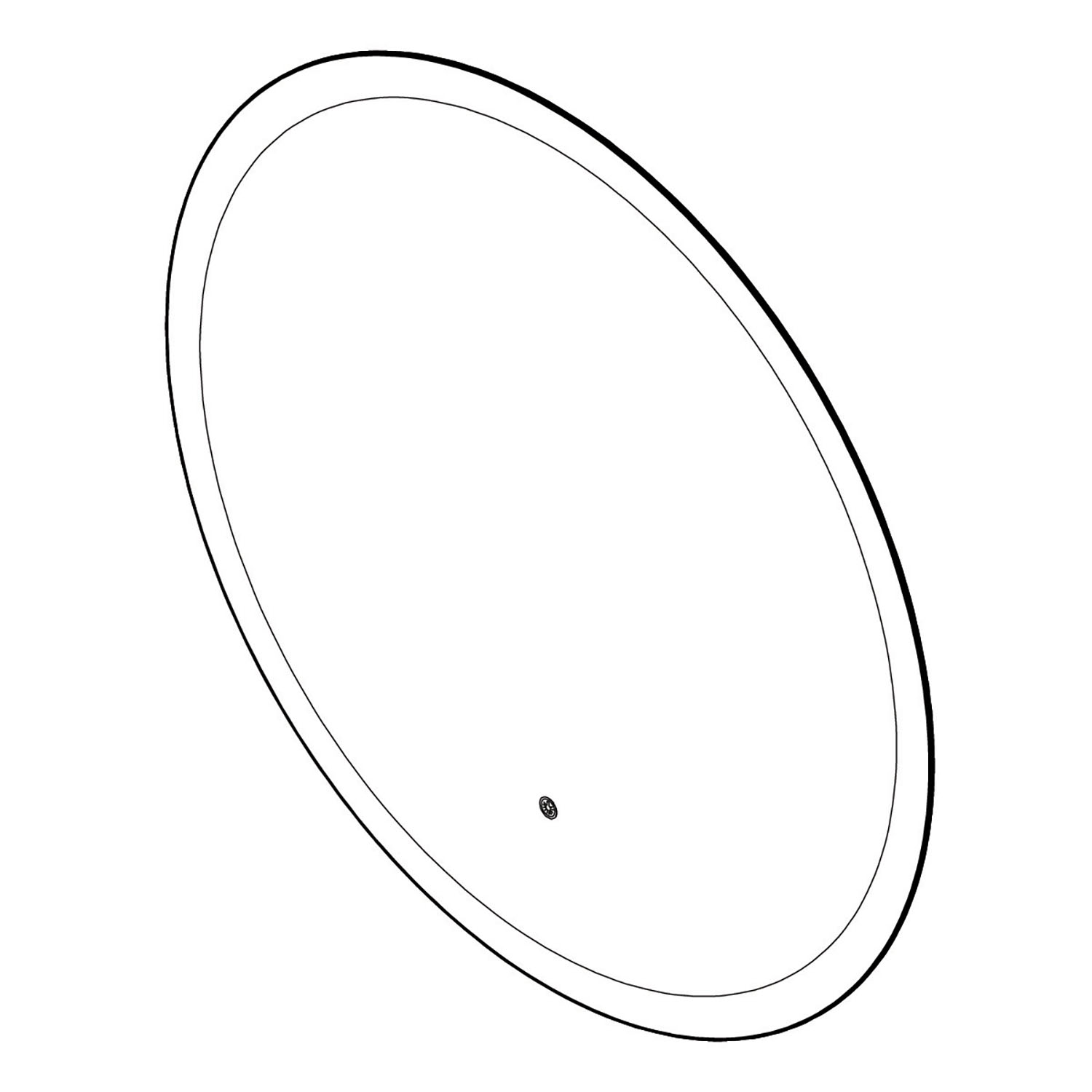

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
700 x 35 x 700mm
Weight:
5.0 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 14.6W, Demister 15W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
300 x 200mm
Cable Length:
370mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Daylight White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Portel LED Mirror 700
Instructions
Fitting kit
Expansion plugs
Terminal connection box
Wall brackets
Screws
