Technical Data Sheet
Vittoria LED Mirror 450 Plain
3834

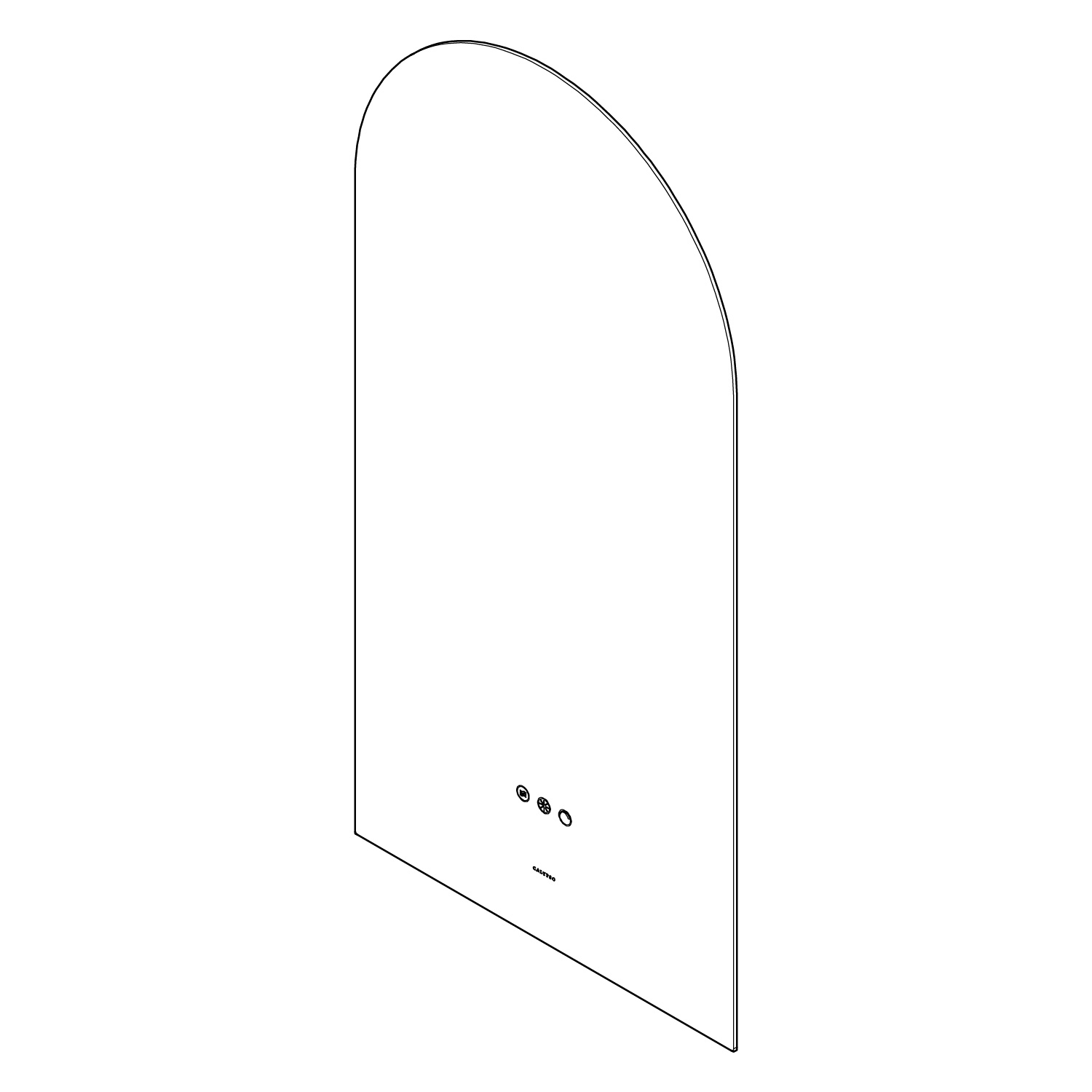

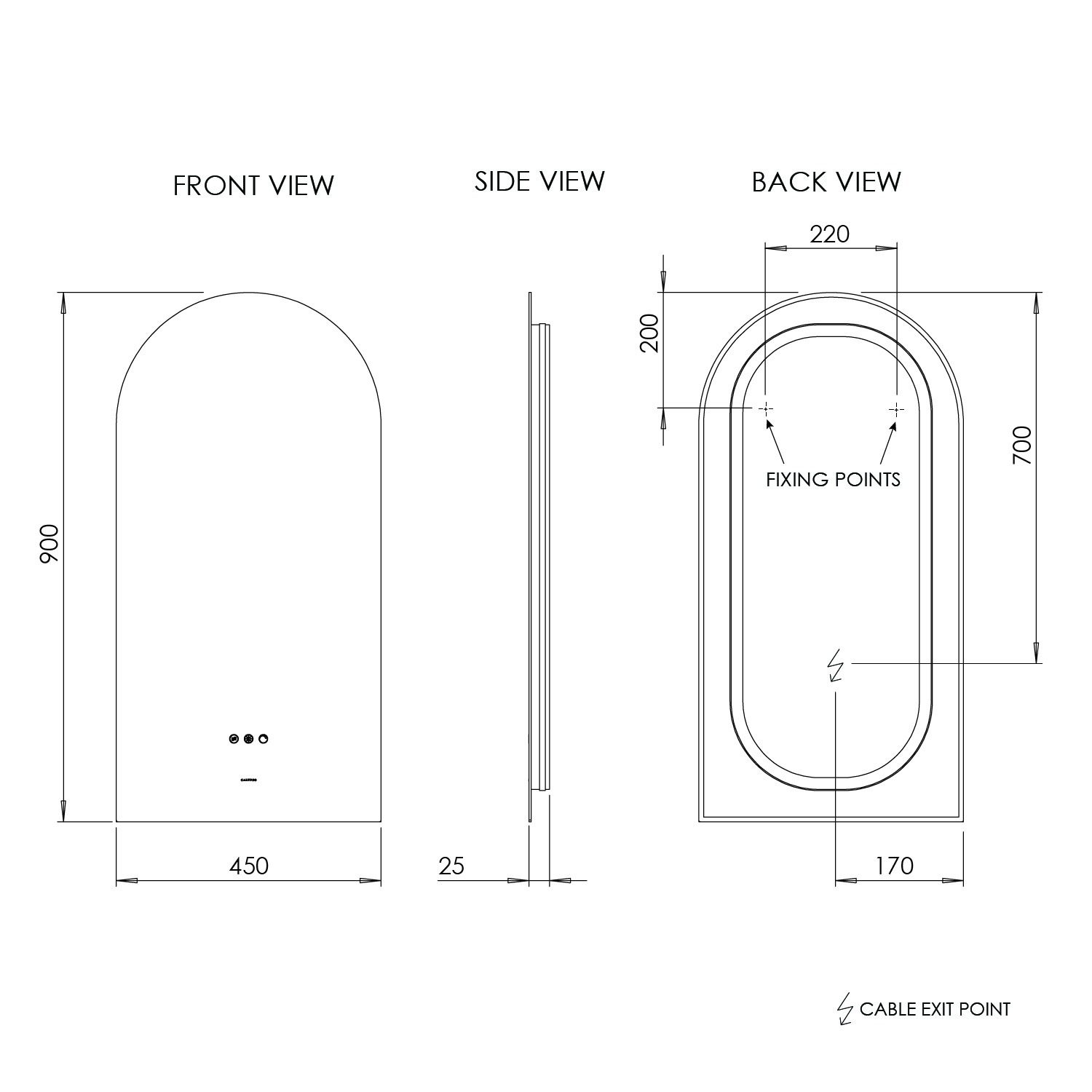

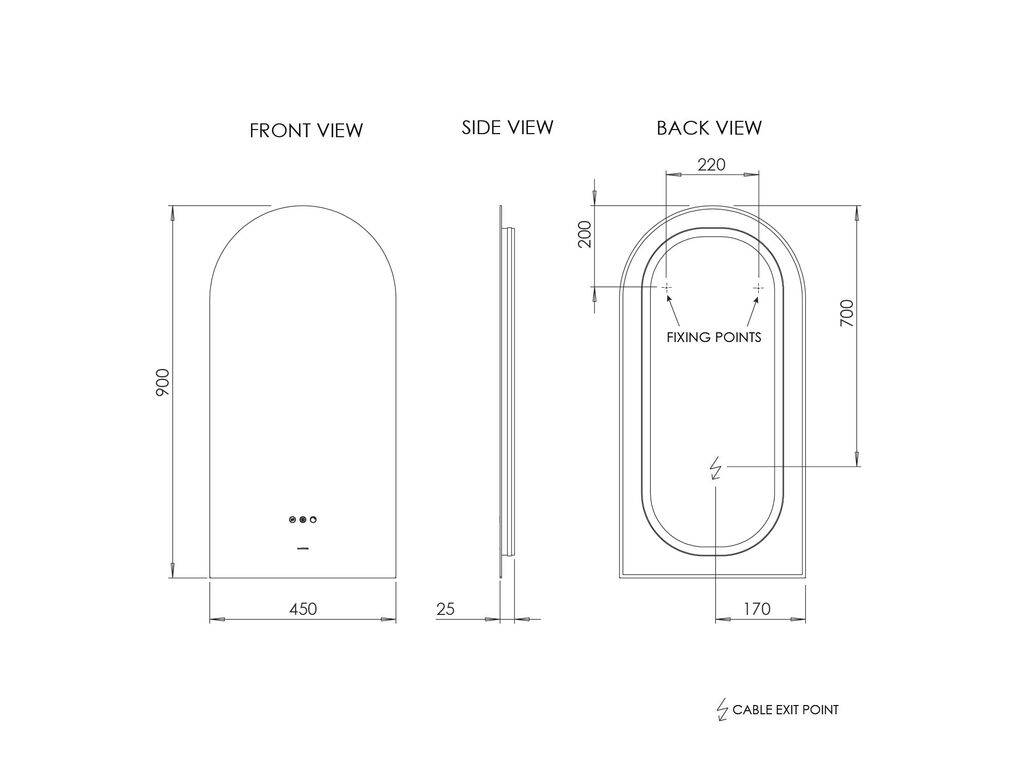

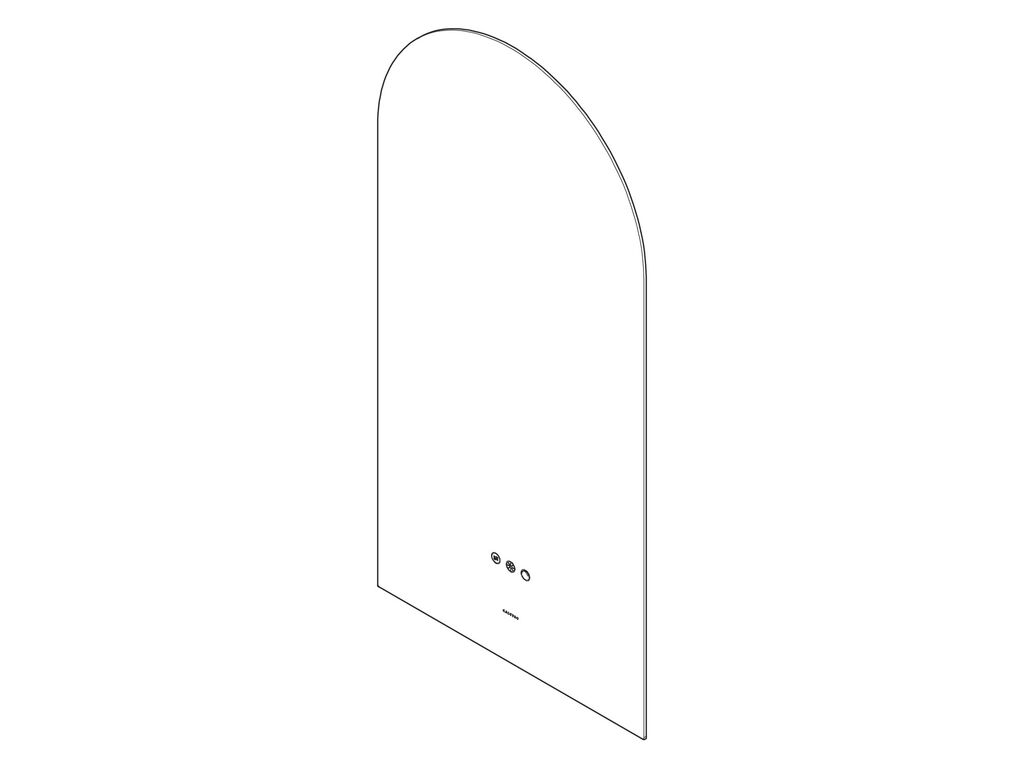

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
450 x 25 x 900mm
Weight:
4.66 kg
Form / Shape:
Irregular
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Portrait
Hanging Fixation Method:
Two fixed hanging points
LED Mirror:
Yes
Lamp Type:
Dotless LED
Light Direction:
Back lit
Light Switching Method:
Touch Control
Dimmable:
Yes
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Total Power Outputs:
Light 14W, Demister 22W
Power Input Voltage:
240V/50Hz
Cable Length:
1000mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
290 x 390mm
In The Box:
Vittoria LED Mirror 450 Plain
Instructions
Fitting kit
