Technical Data Sheet

Ostuni LED Mirror 1000

3832

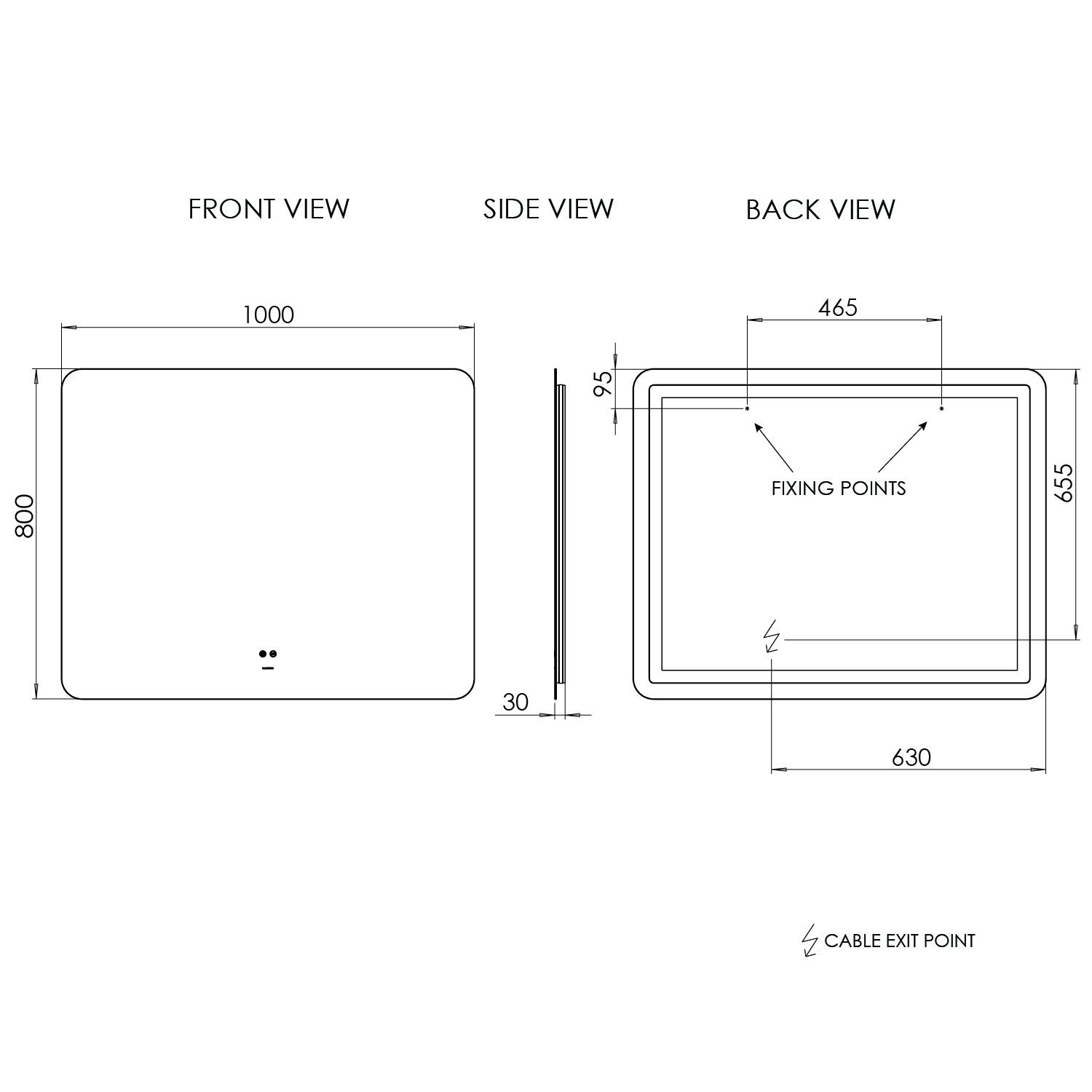

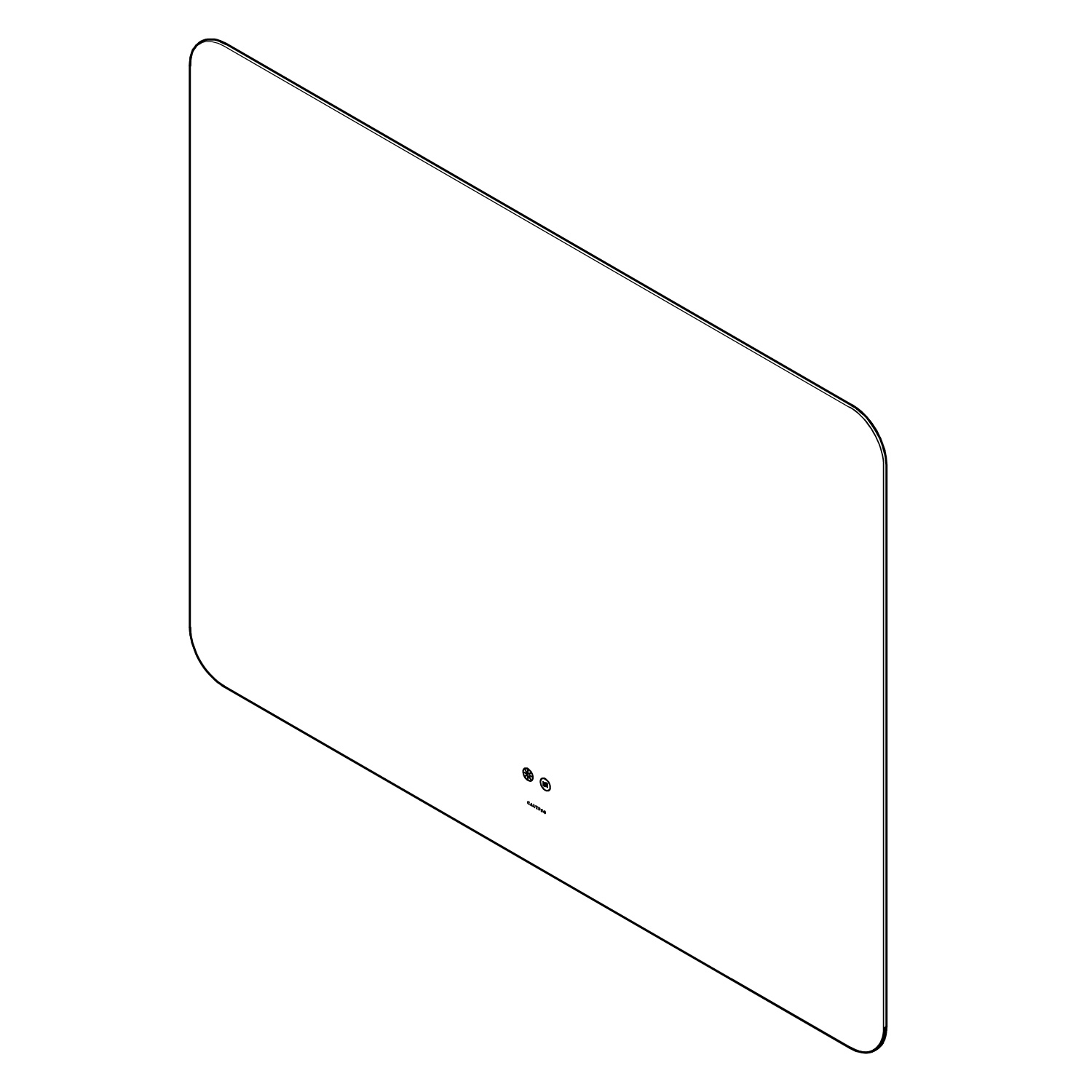

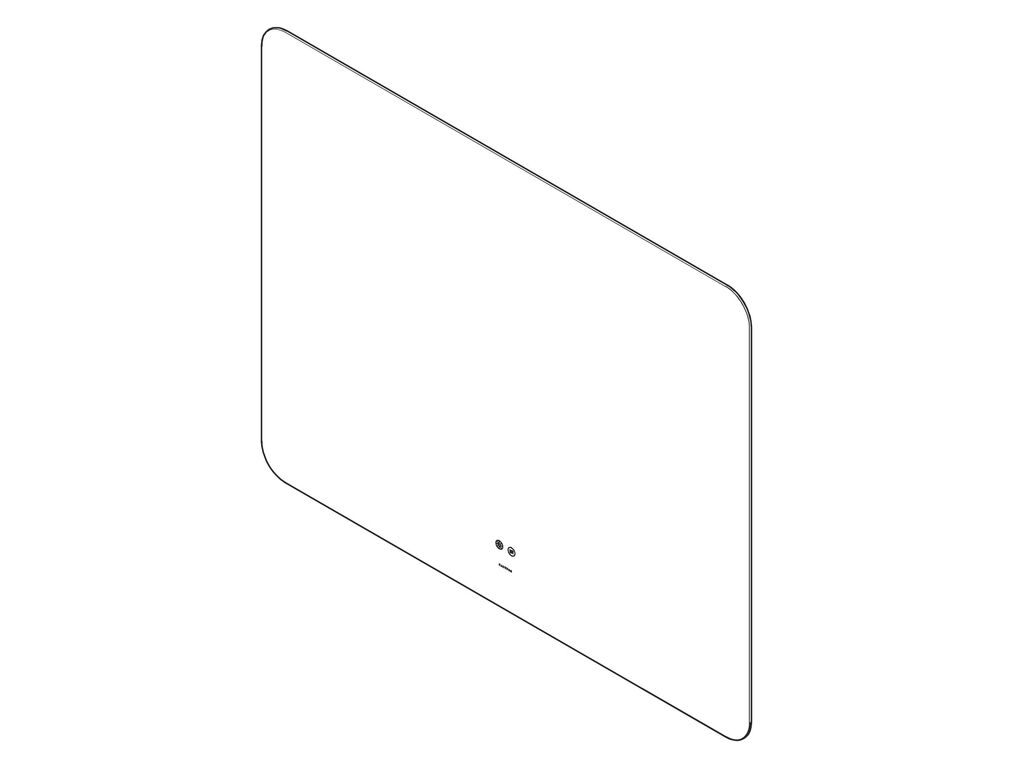

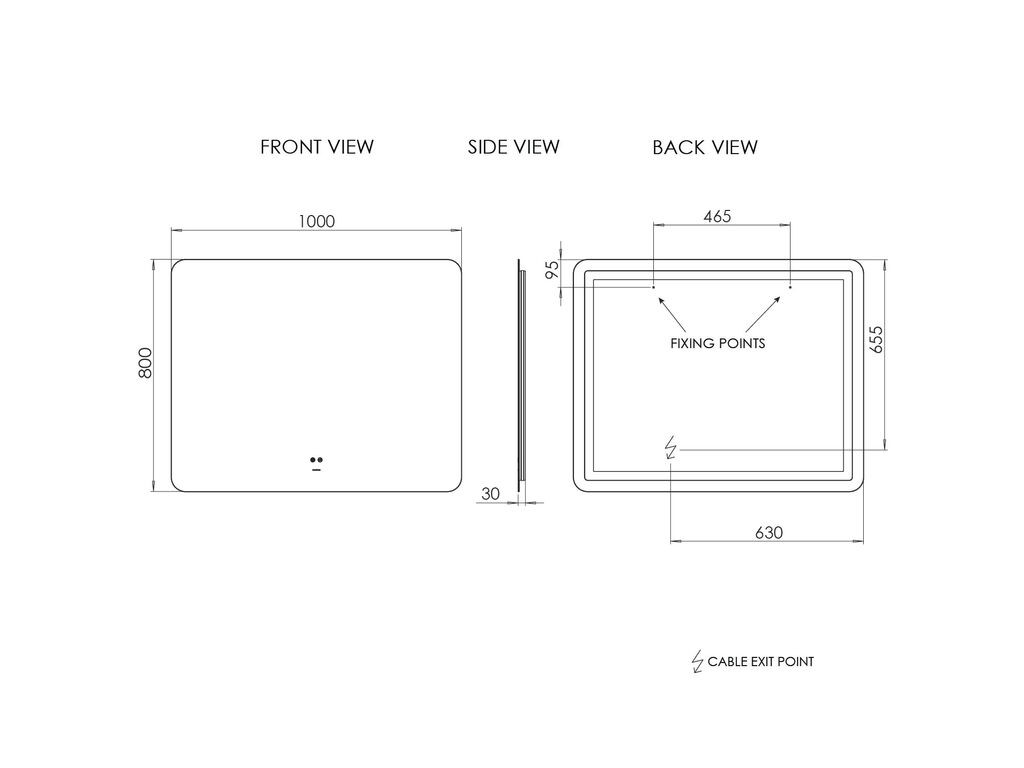

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

Technical Details

Dimensions (WxDxH):

1000 x 30 x 800mm

Weight:

9.83 kg

Form / Shape:

Square with rounded corners

Main Construction Material:

Glass

Frame Material:

Frameless

Hanging Orientation:

Landscape

Hanging Fixation Method:

Three Fixed Hanging Points

LED Mirror:

Yes

Lamp Type:

Dotless LED

Light Direction:

Back lit

Light Switching Method:

Touch Control

Dimmable:

Yes

Light Colour Temperature:

Adjustable (Cool White to Warm White)

Power Input Voltage:

240v / 50hz

Cable Length:

210mm

IP Rating:

IP44

Bathroom Zone Rating:

Zone 2

Demister Included:

Yes

Demister Pad (WxH):

400 x 400mm

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 1mm.

In The Box:
