Technical Data Sheet
Ostuni LED Mirror 800
3831

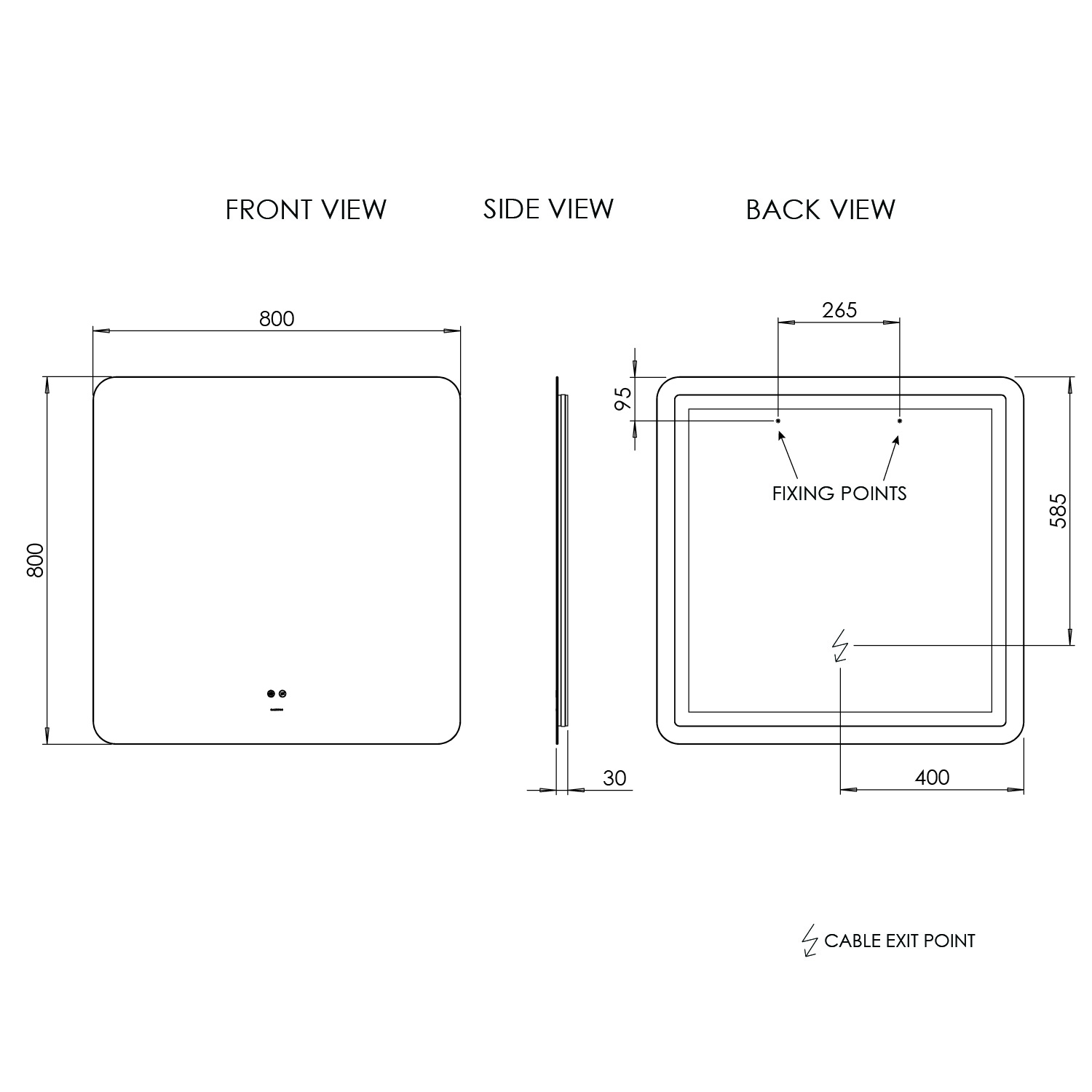

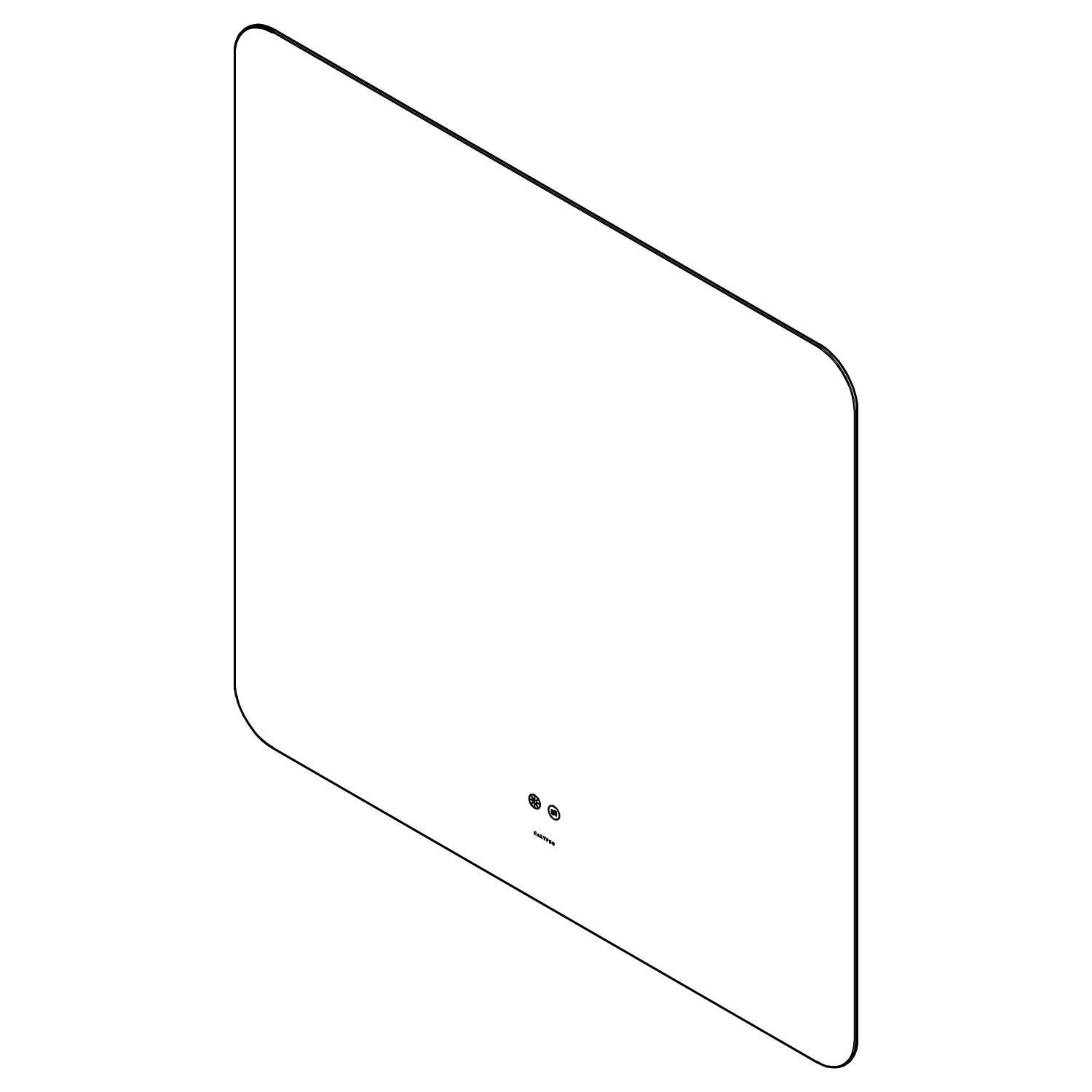

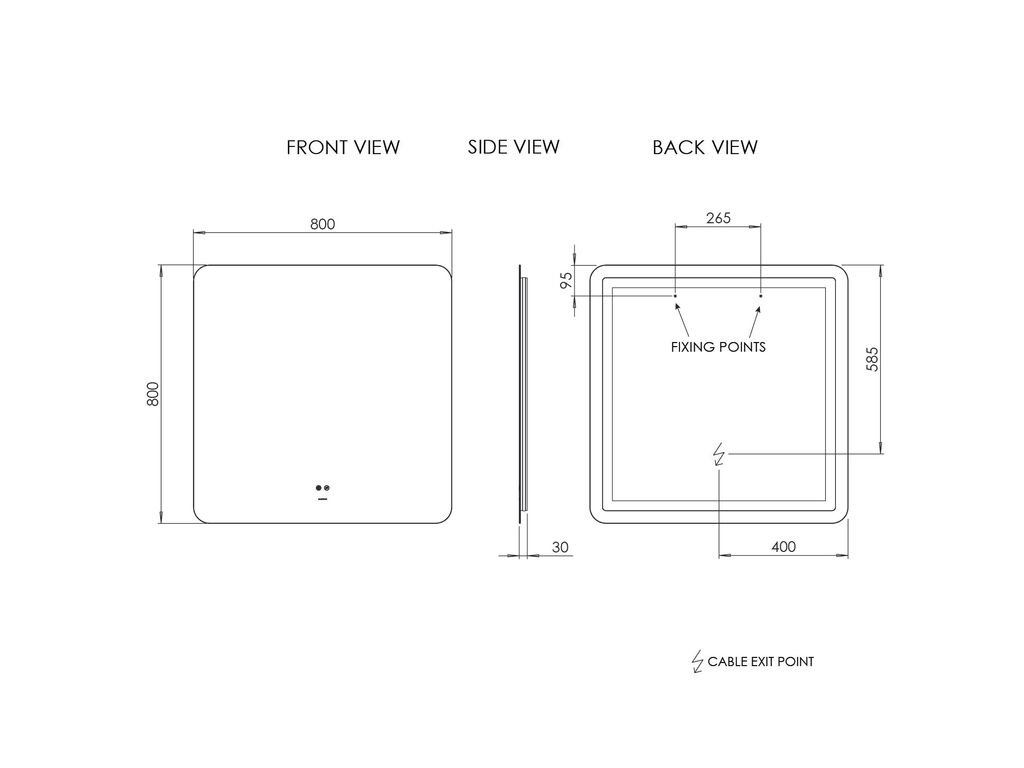

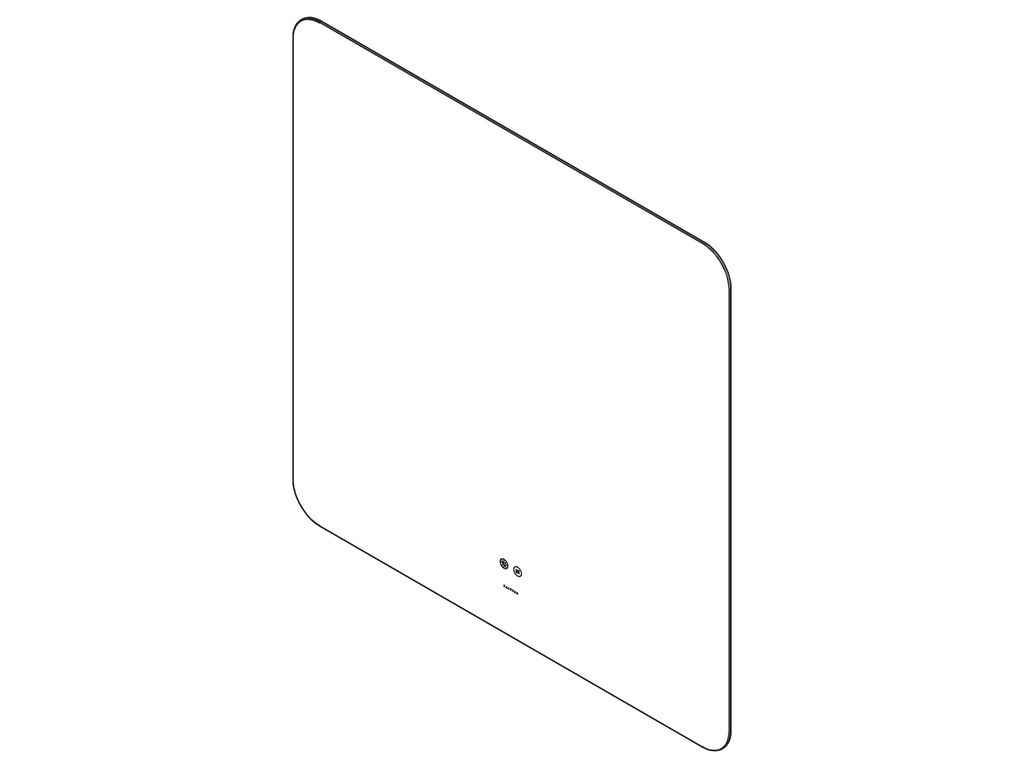

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
800 x 30 x 800mm
Weight:
7.85 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Demister 15W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
400 x 400mm
Cable Length:
210mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Ostuni LED Mirror 800
Instructions
Fitting kit
Screw hooks
