Technical Data Sheet
Marbella LED Mirror 1000 Gold
3810

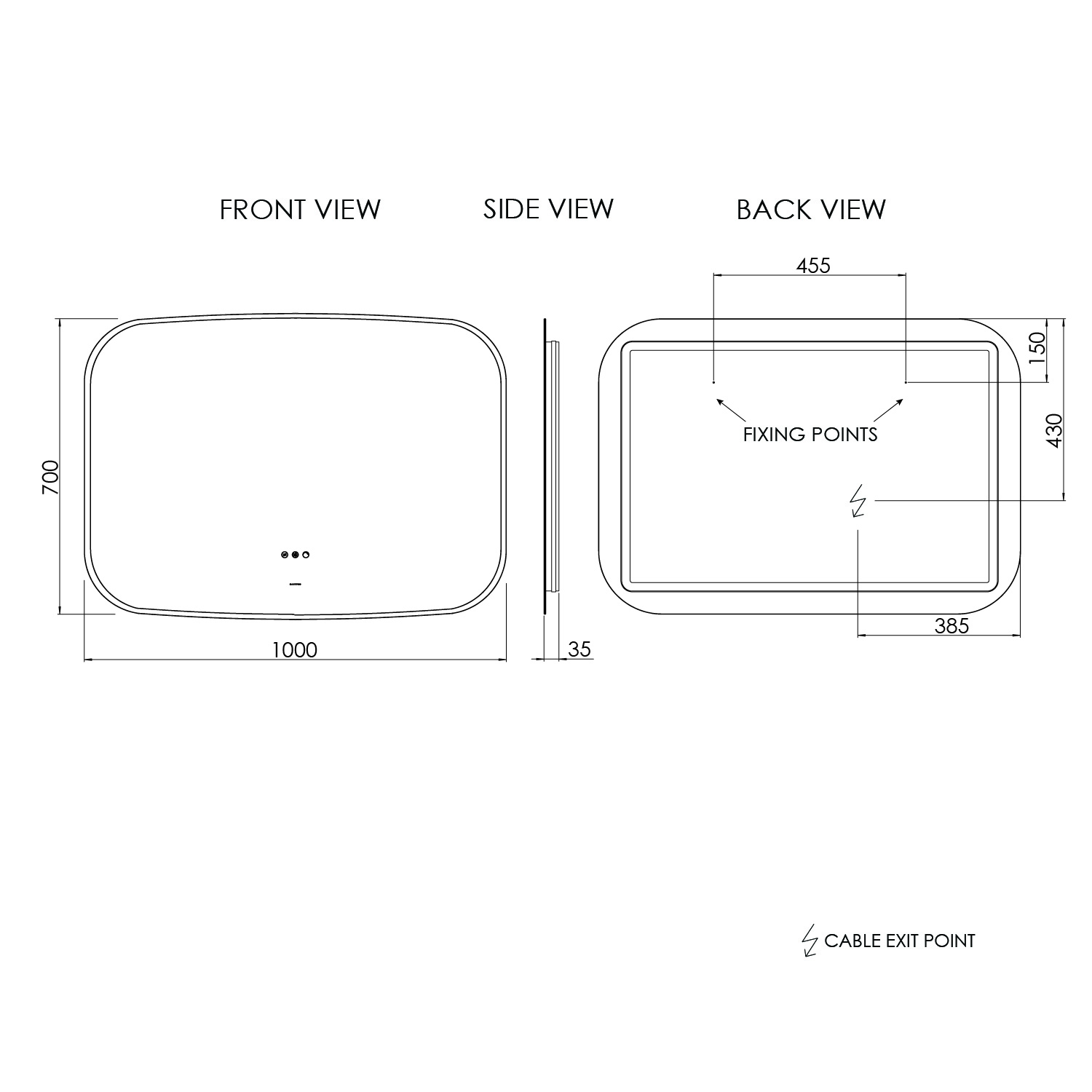

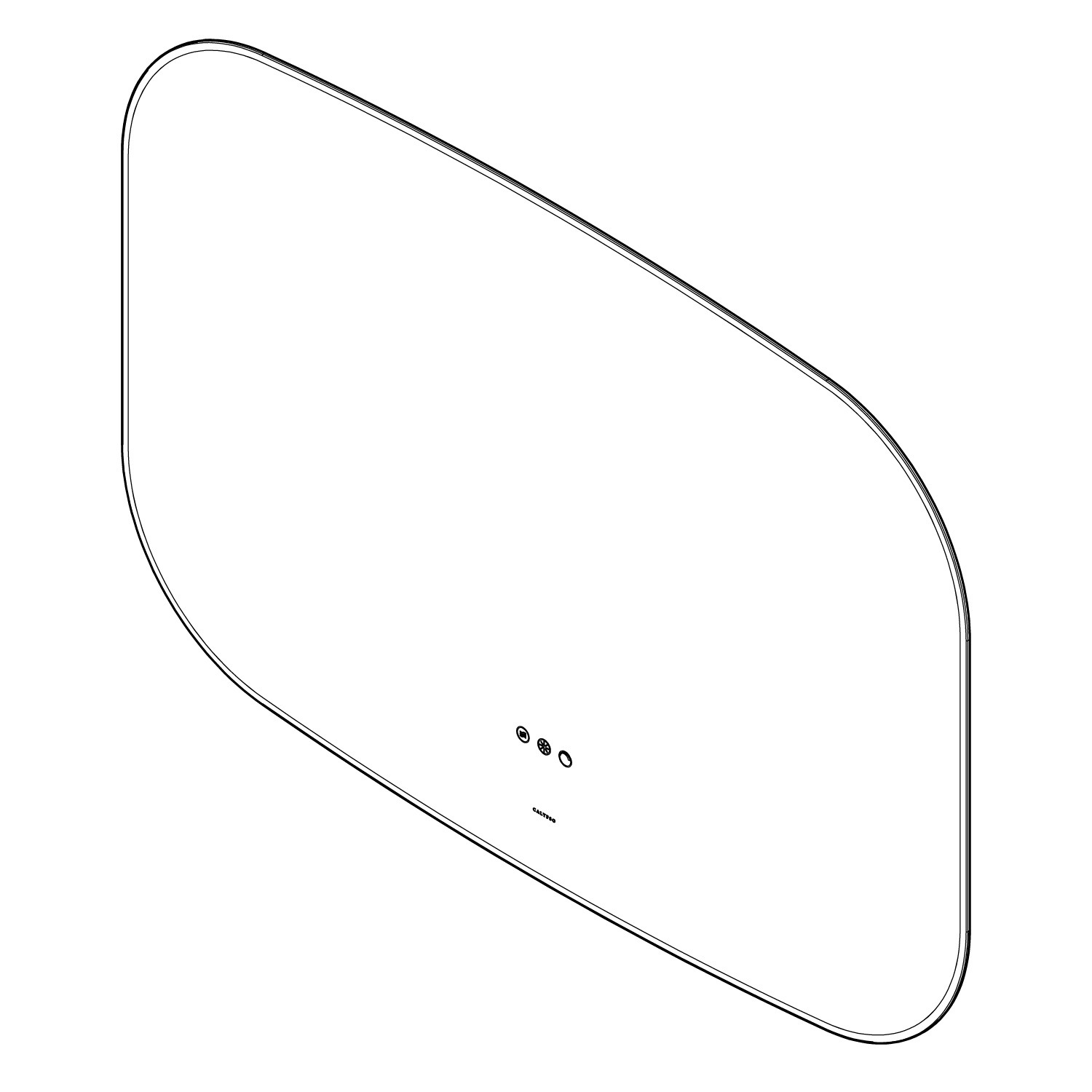

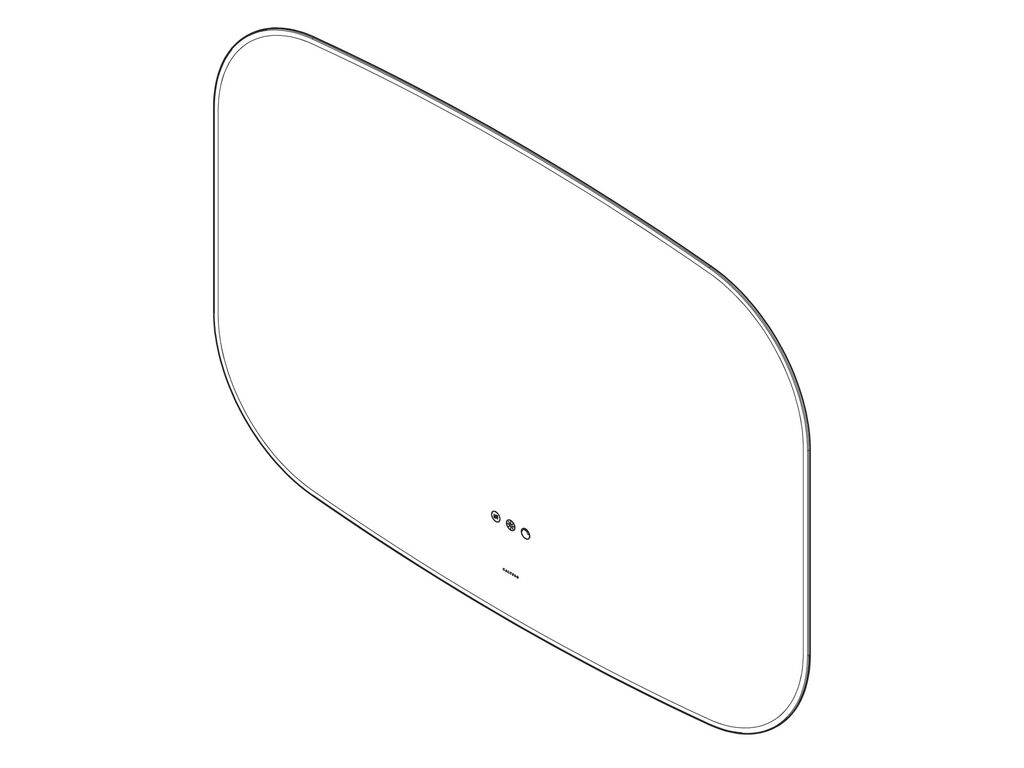

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1000 x 35 x 700mm
Weight:
7.42 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 16W, Demister 18W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
390 x 290mm
Cable Length:
1000mm
Earth Connection Required:
No
Hanging Orientation:
Landscape
Switching Method:
Touch Control
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Marbella LED Mirror 1000 Gold
Instructions
Fitting kit
