Technical Data Sheet
Marbella LED Mirror 800 Gold
3807

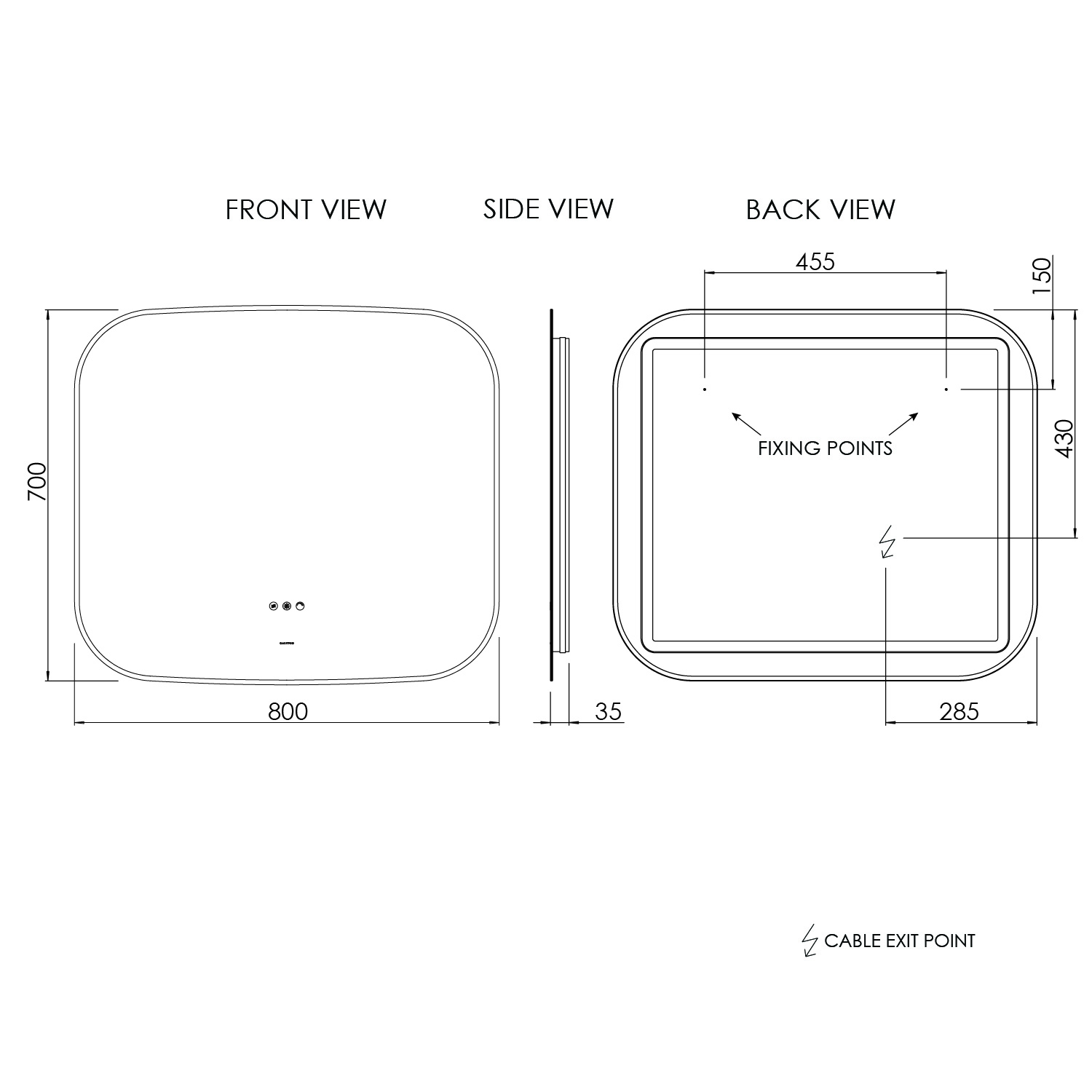

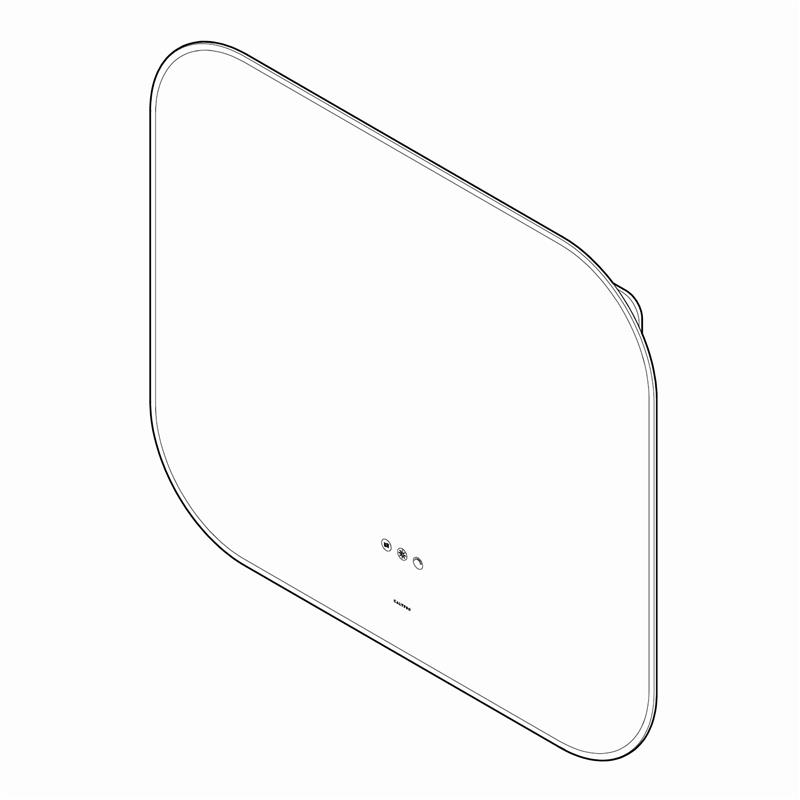

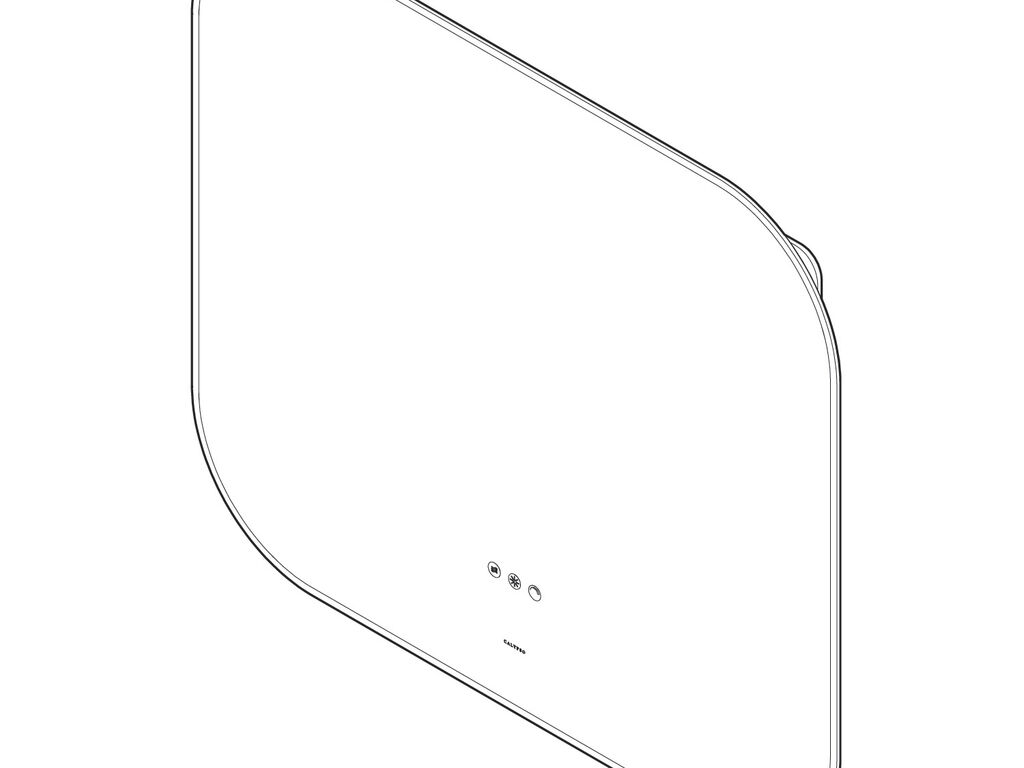

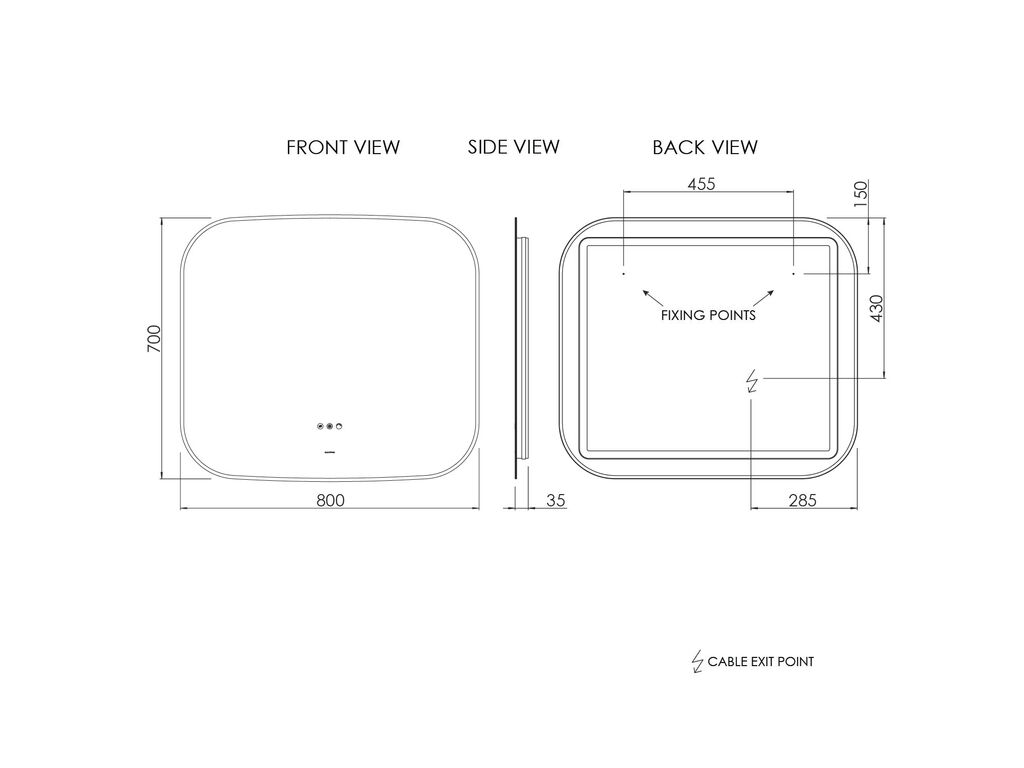

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
800 x 35 x 700mm
Weight:
5.98 kg
Form / Shape:
Rectangular with rounded corners
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Landscape
Hanging Fixation Method:
Three Fixed Hanging Points
LED Mirror:
Yes
Lamp Type:
LED
Light Direction:
Back lit
Light Switching Method:
Touch Control
Dimmable:
Yes
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Total Power Outputs:
Light 16W, Demister 18W
Power Input Voltage:
240v / 50hz
Cable Length:
990mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
390 x 290mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Marbella LED Mirror 800 Gold
