Technical Data Sheet
Roberta Cup Handle 60
3753

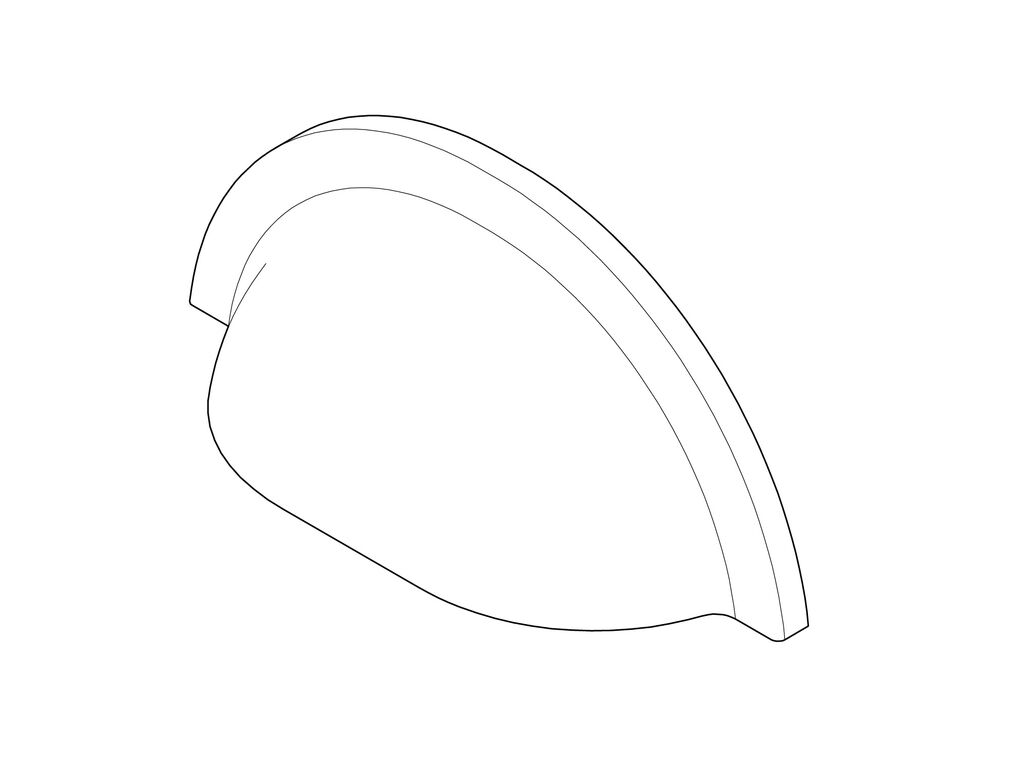

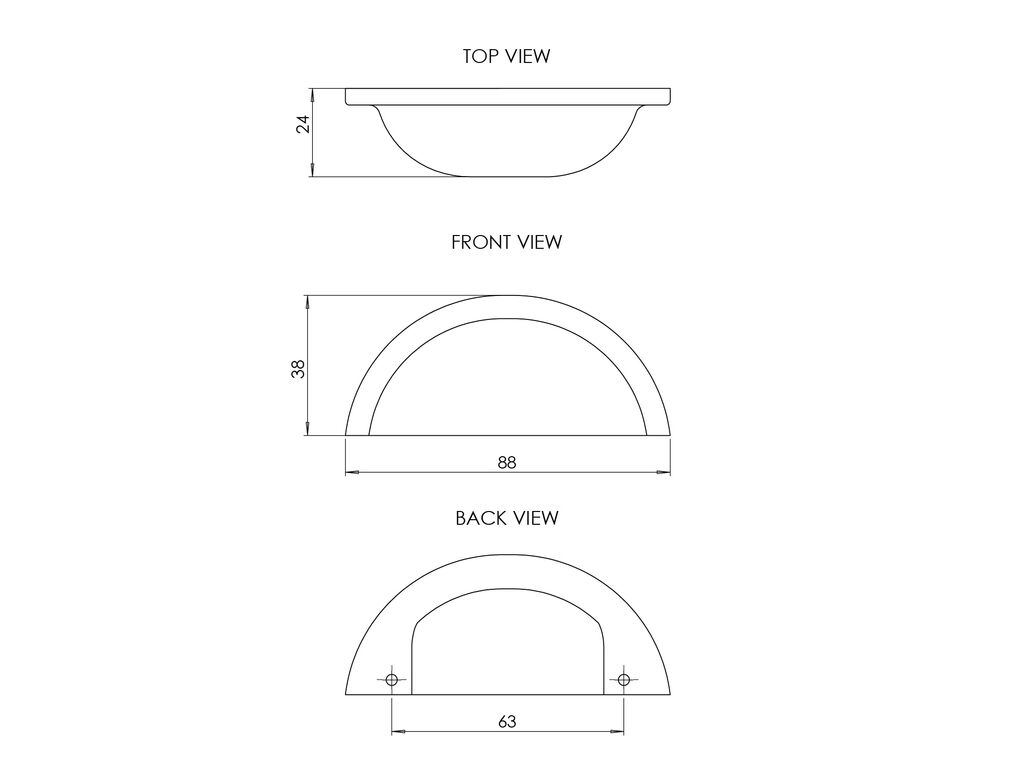

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
90 x 38 x 24mm
Weight:
0.12 kg
Main Construction Material:
Metal
Handle Type:
Cup
Screw Length Required:
22mm
Number of Screws Required:
2
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Roberta Cup Handle 60
Fixings
