Technical Data Sheet
Aurora Ceramic Semi-Recessed Basin 500 White
37.9357

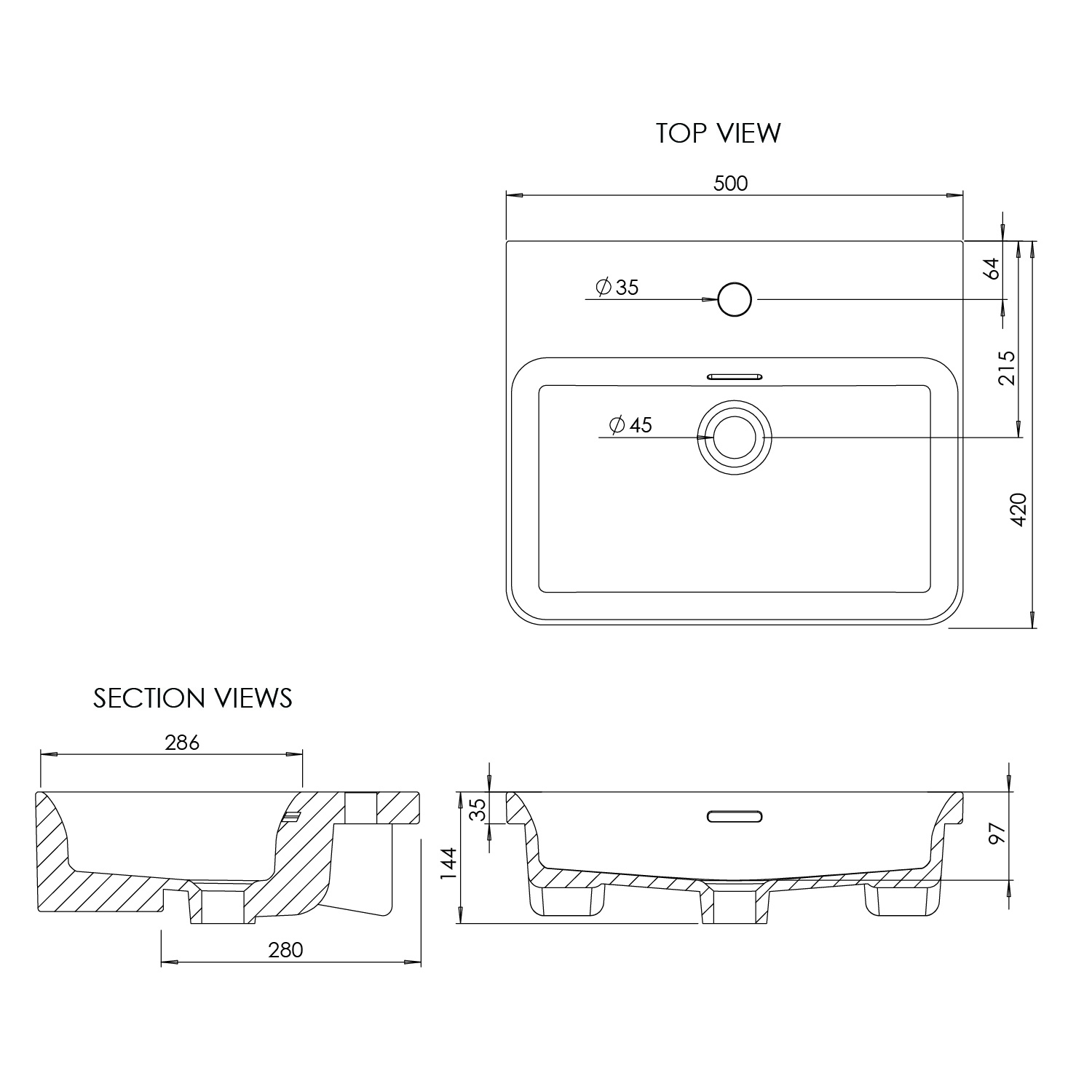

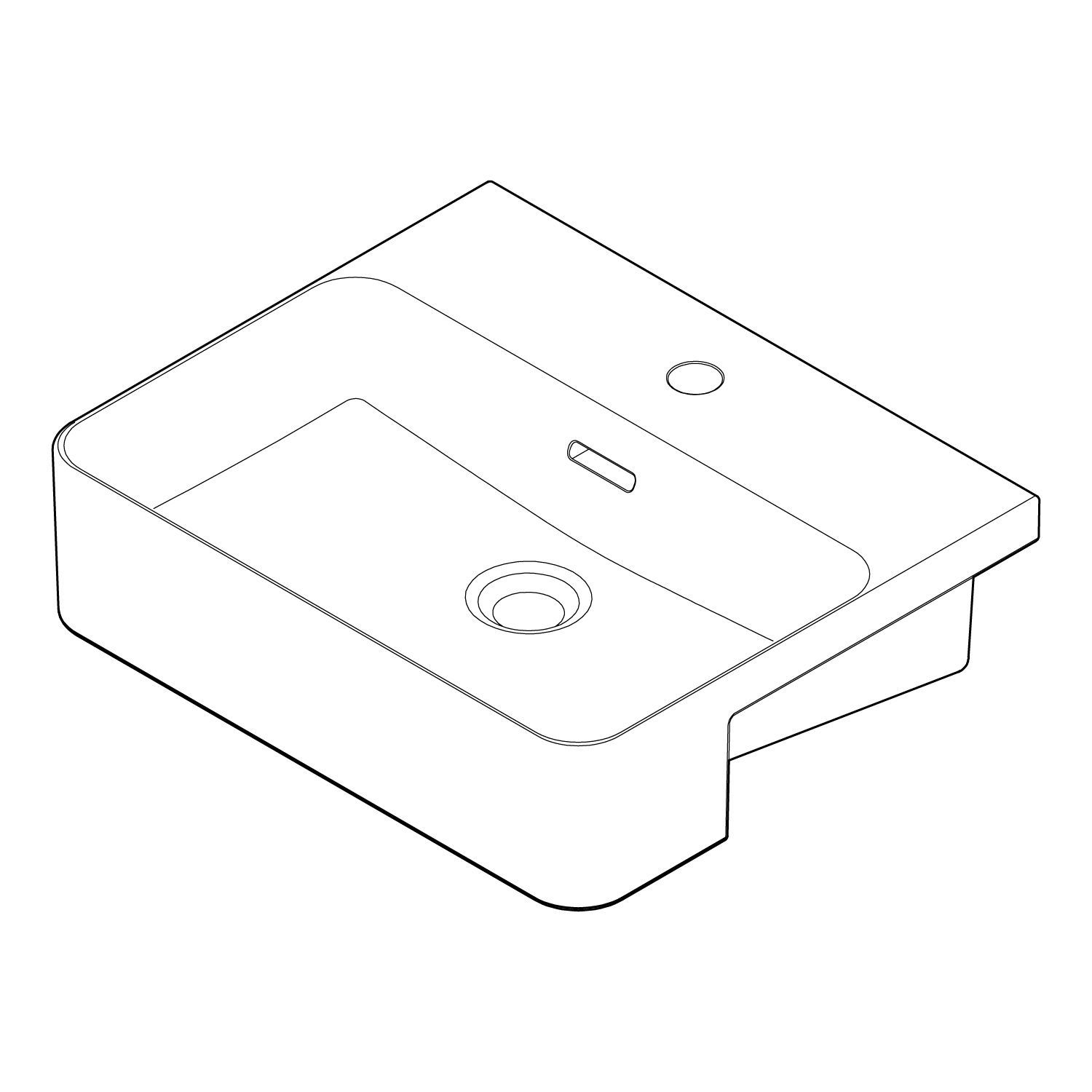

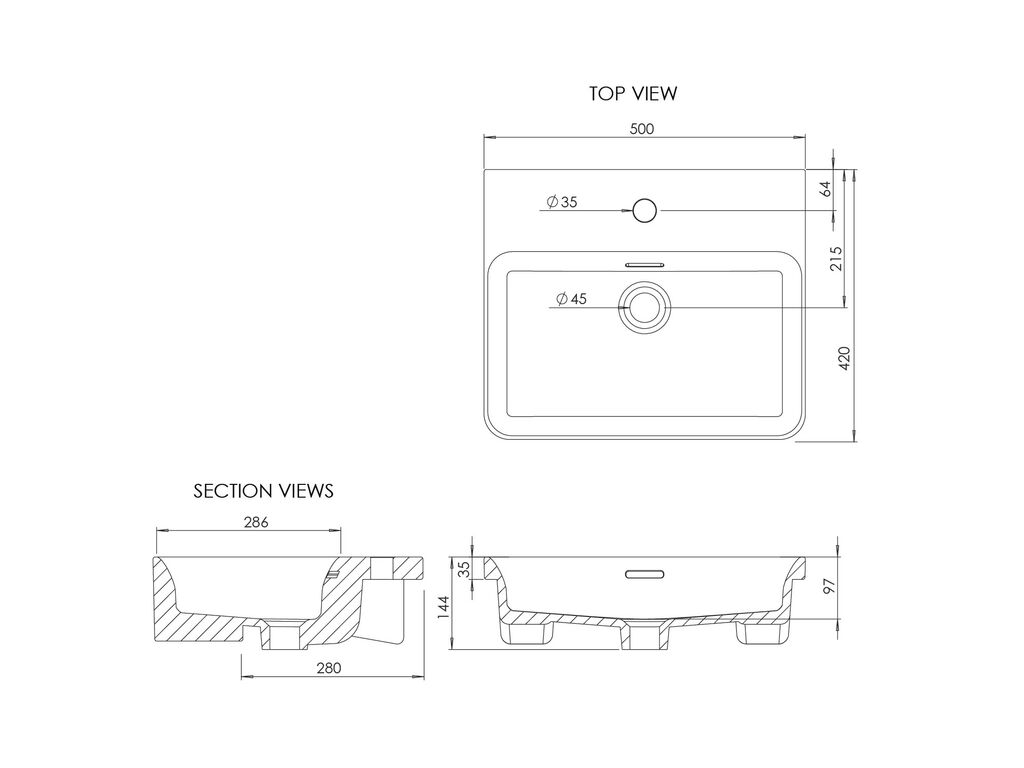

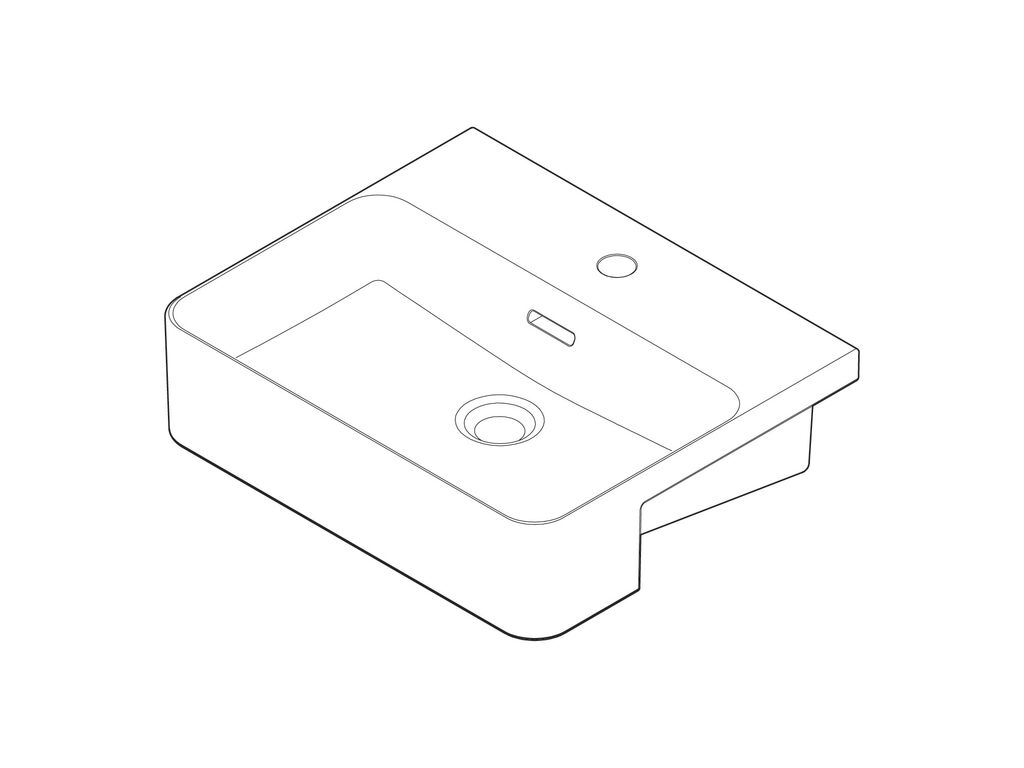

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
500 x 420 x 144mm
Weight:
14.50 kg
Basin Type:
Inline Wing Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Rounded Front Corners
Bowl Shape:
Rectangular
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
480 x 280 x 96mm
Depth at Centre:
423mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Centre Rear of Top Surface
Max Water Temperature:
100°C
Overflow Type:
Integrated Overflow
Interchangeable Overflow Ring Type:
No overflow ring required
Waste Hole Diameter:
35 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Aurora Ceramic Semi-Recessed Basin 500 White
