Technical Data Sheet
Favaro Cast Semi-Recessed Wing Basin 1244 Left Bowl White NTH
37.3764

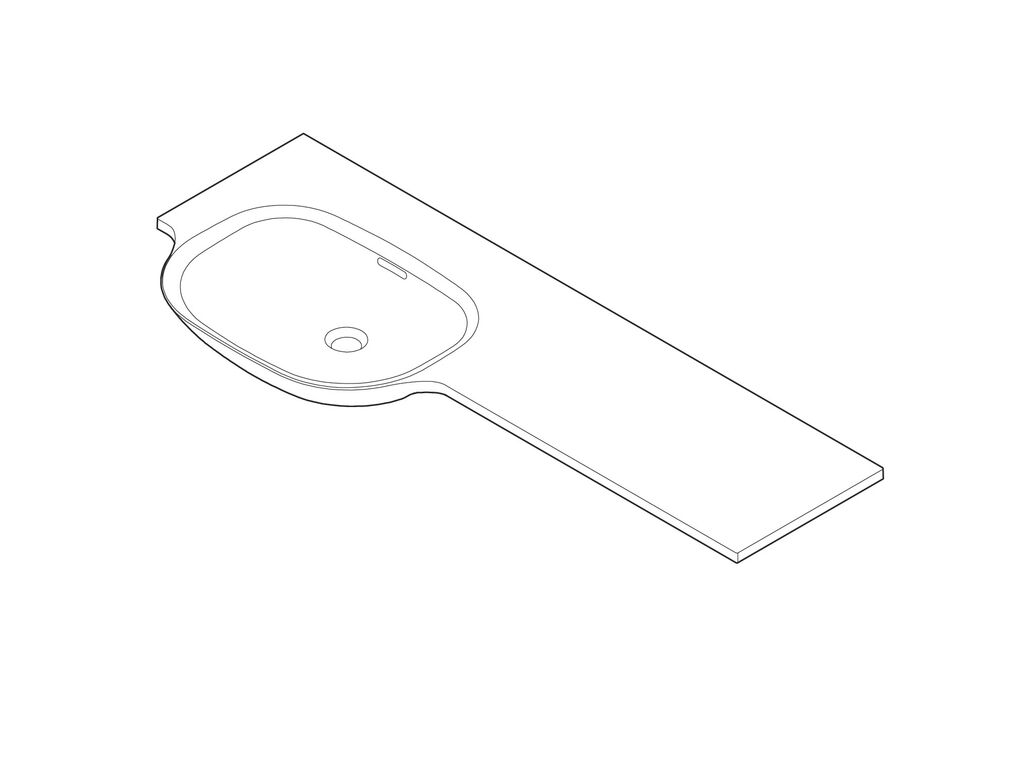

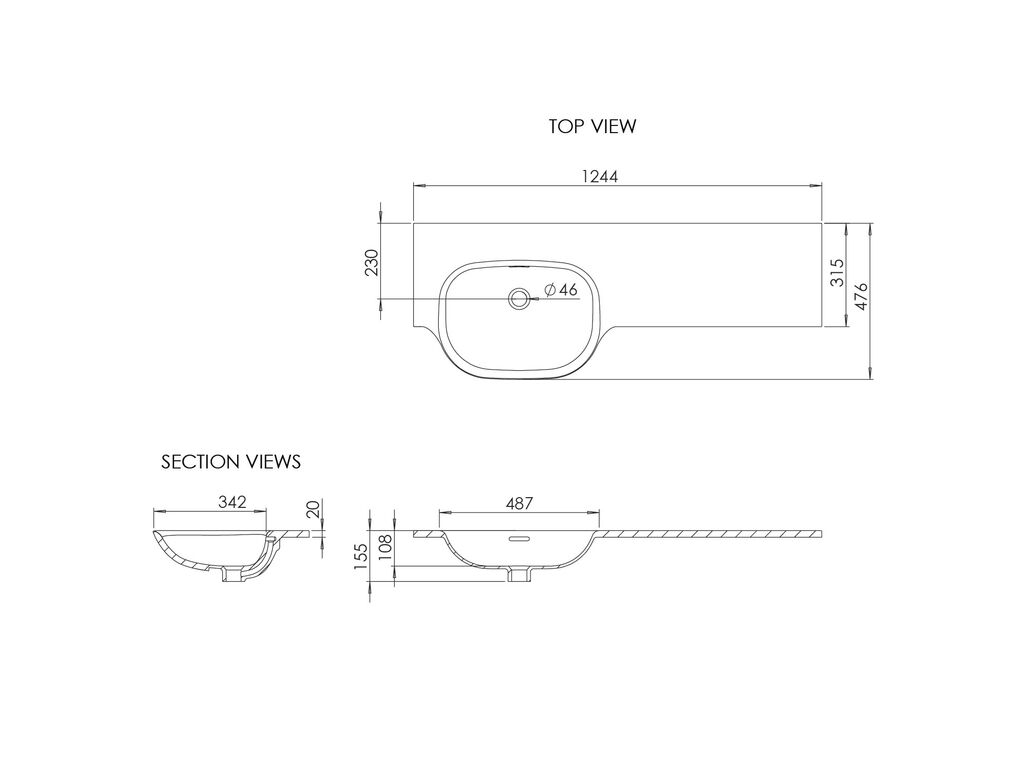

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1244 x 476 x 155mm
Basin Type:
Semi Recessed Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Rounded Front Corners
Bowl Shape:
Rectangular with Convex Front
Configuration:
Left Hand Bowl
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
Integrated Overflow
Interchangeable Overflow Ring Type:
No overflow ring required
Waste Hole Diameter:
45 mm
In The Box:
Favaro Cast Semi-Recessed Wing Basin 1244 Left Bowl White NTH
