Technical Data Sheet
Fontana Cast Semi-Recessed Wing Basin 1044 Left Bowl NTH White
37.3518

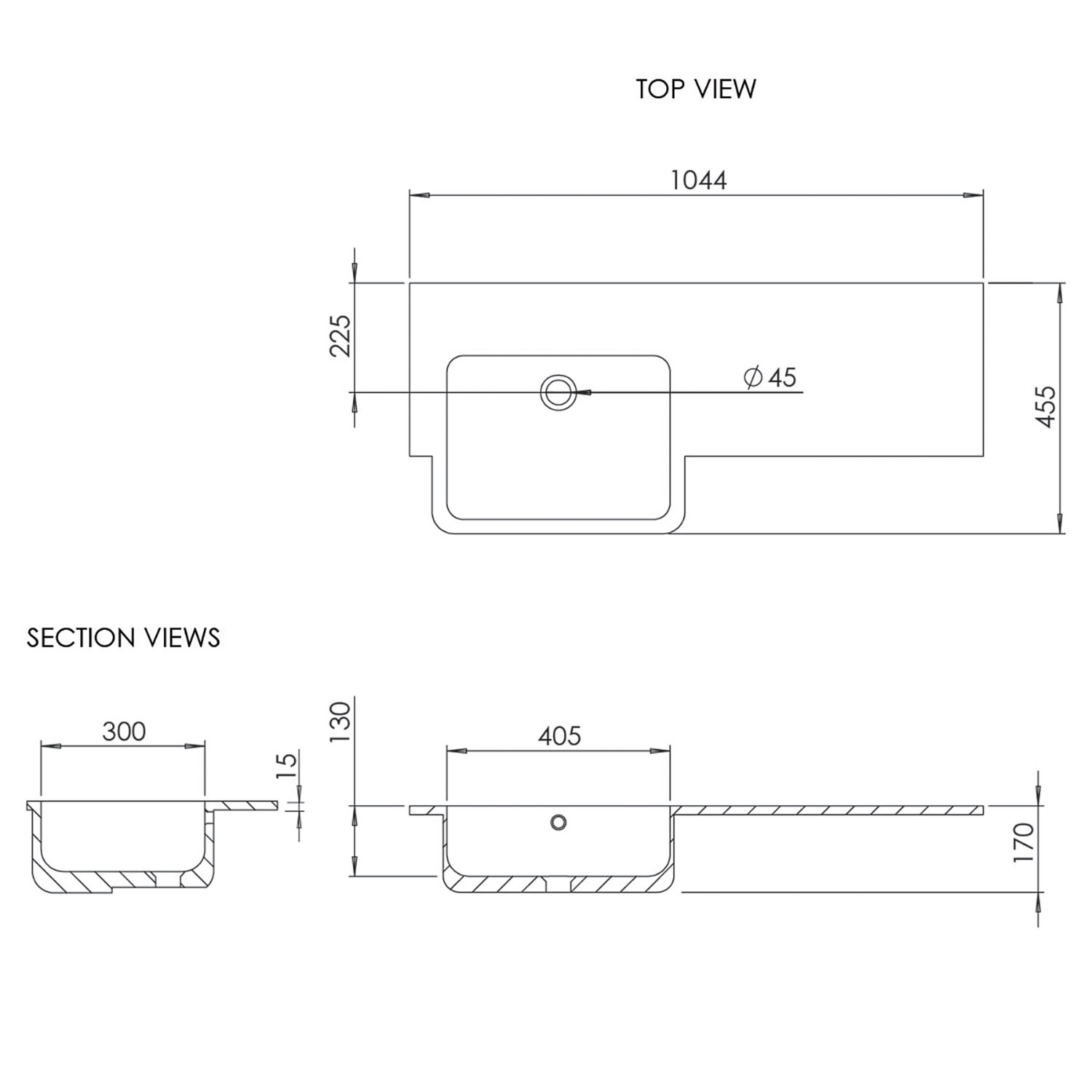

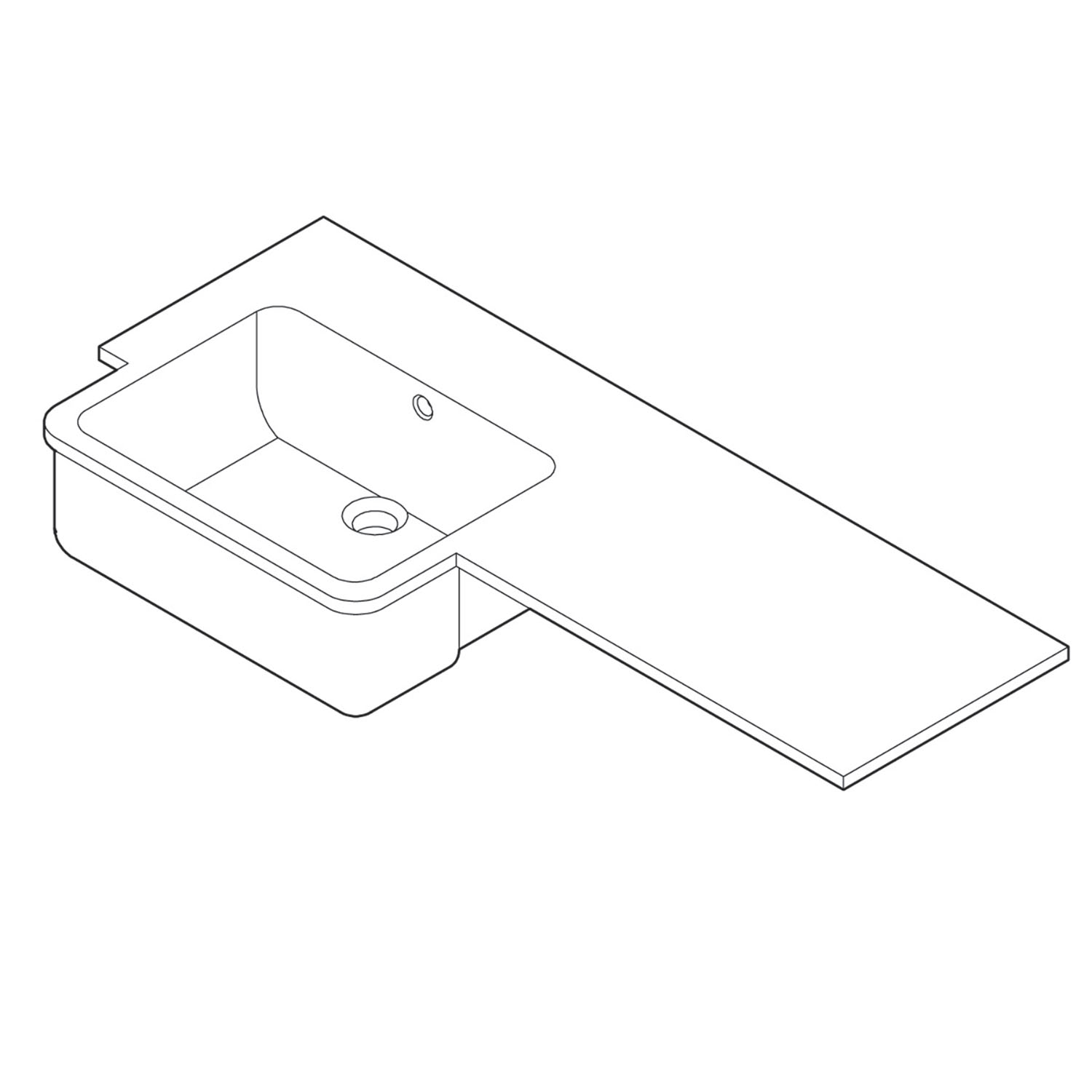

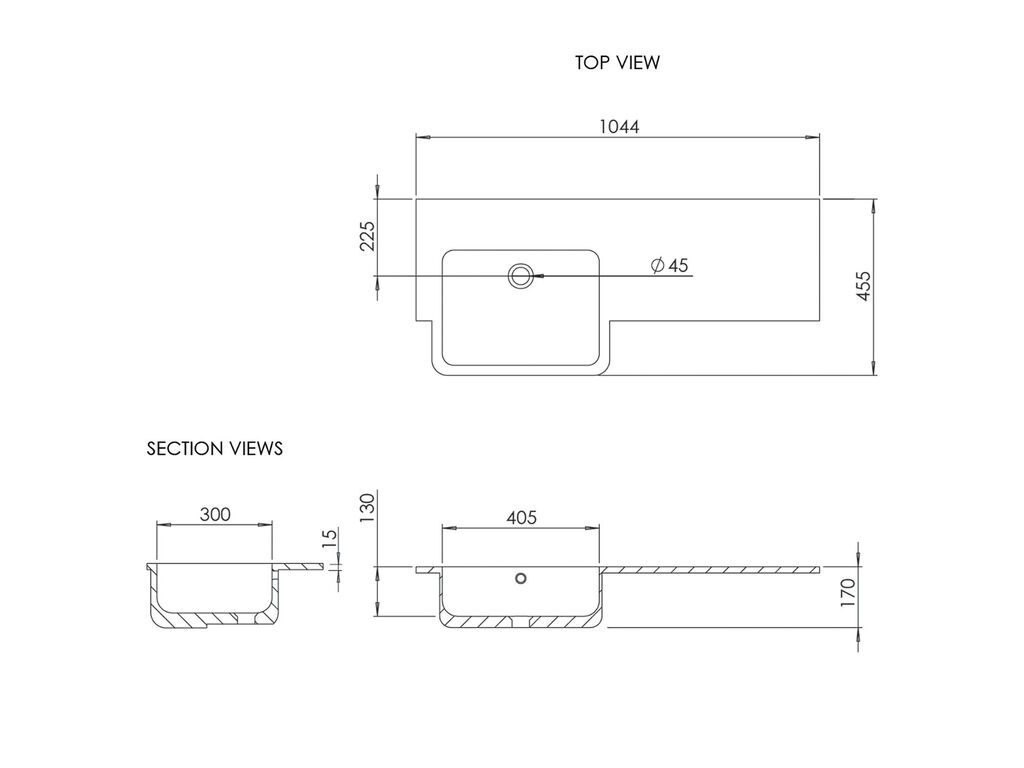

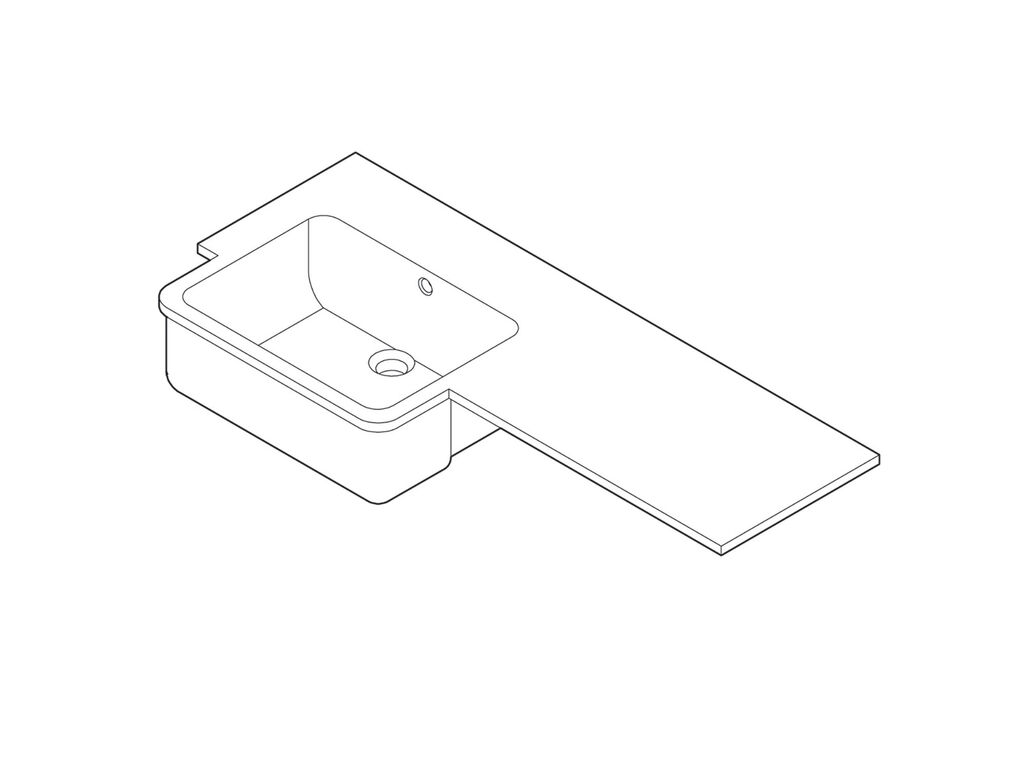

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1044 x 455 x 170mm
Weight:
18.52 kg
Basin Type:
Semi Recessed Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Left Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
405 x 300 x 130mm
Depth at Centre:
456mm
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
White
Interchangeable Overflow Ring Type:
Type 1
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Fontana Cast Semi-Recessed Wing Basin 1044 Left Bowl NTH White
Instructions
