Technical Data Sheet
Renaico Knob Handle
3693

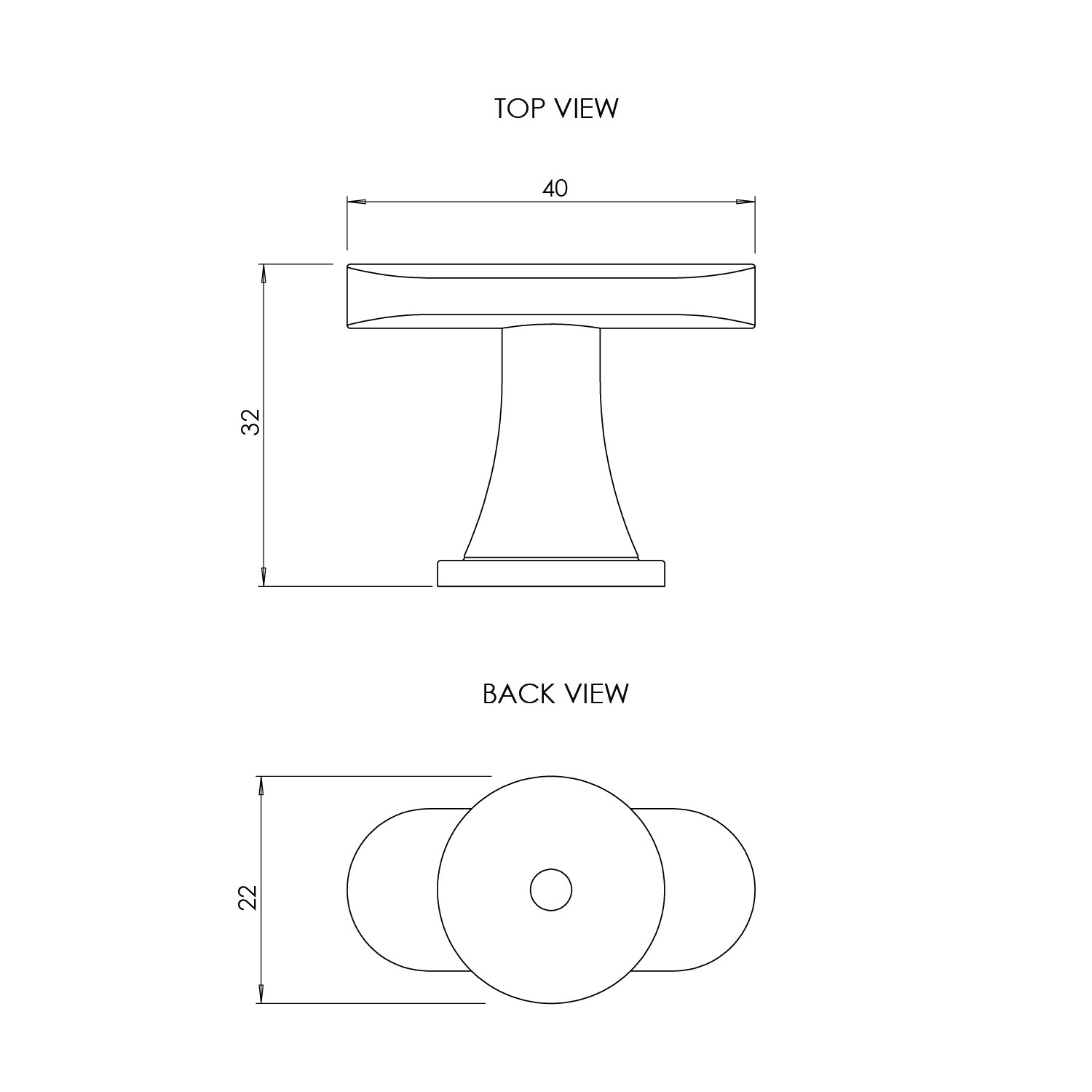

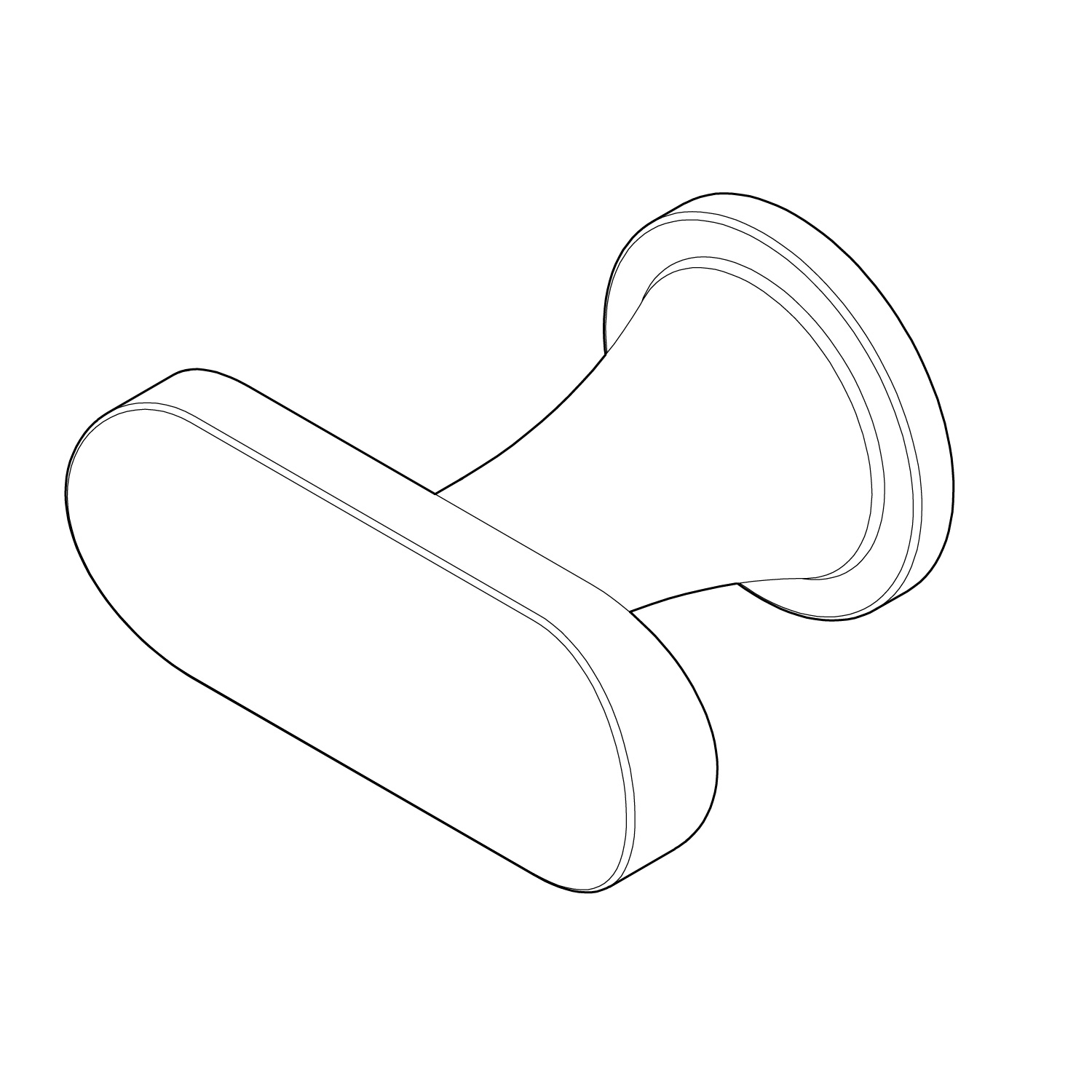

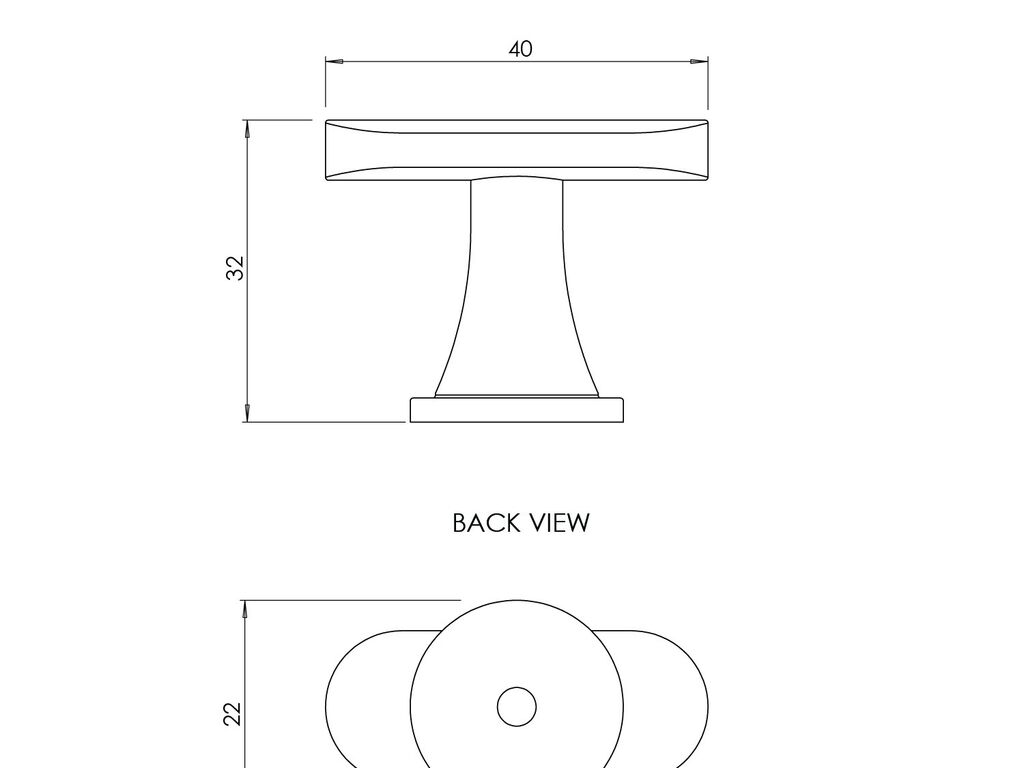

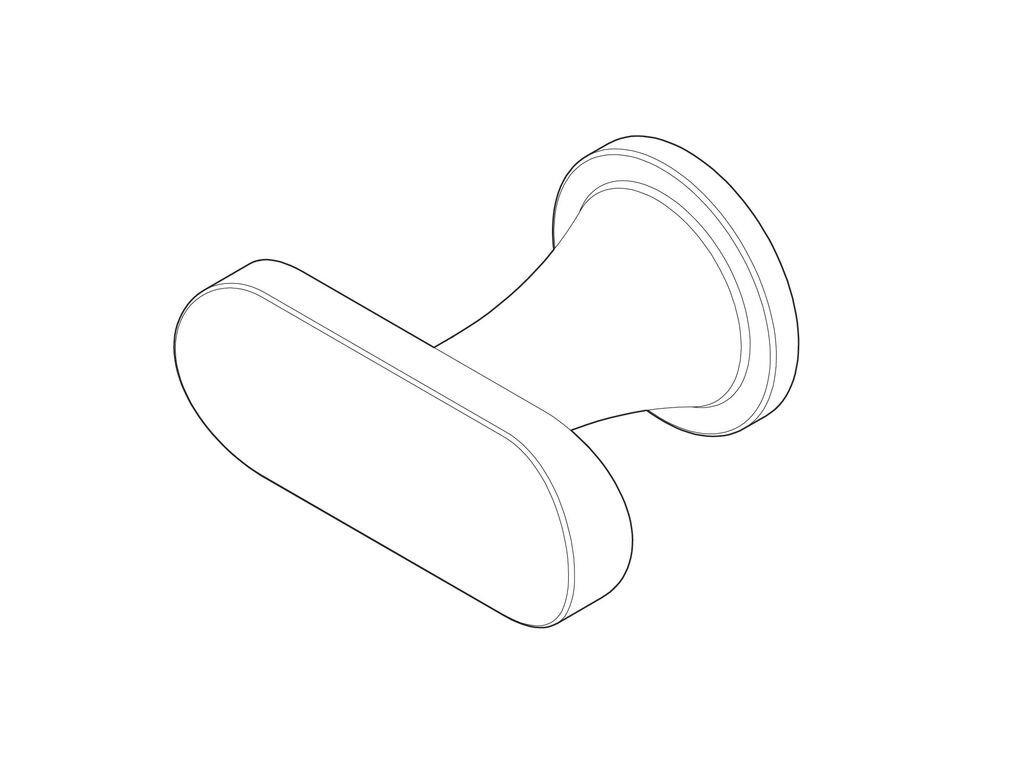

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
40 x 32 x 22mm
Weight:
0.06 kg
Main Construction Material:
Brass
Handle Type:
Knob
Screw Length Required:
25mm
Number of Screws Required:
1
Surface Finish:
Natural Brass
Finish Effect:
Smooth
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Renaico Knob Handle
M4 machine screws
