Technical Data Sheet
Renaico Bar Handle 136
3691

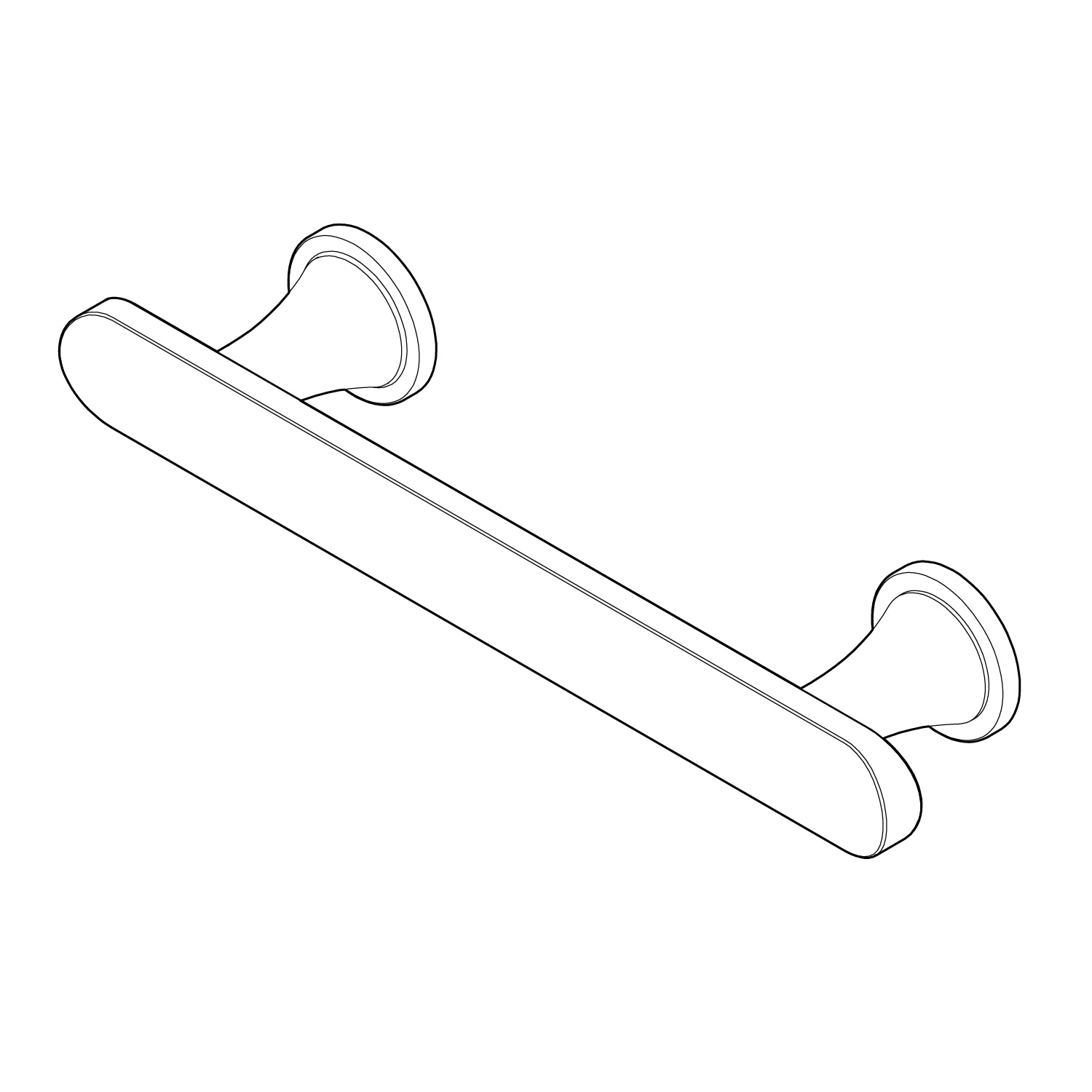

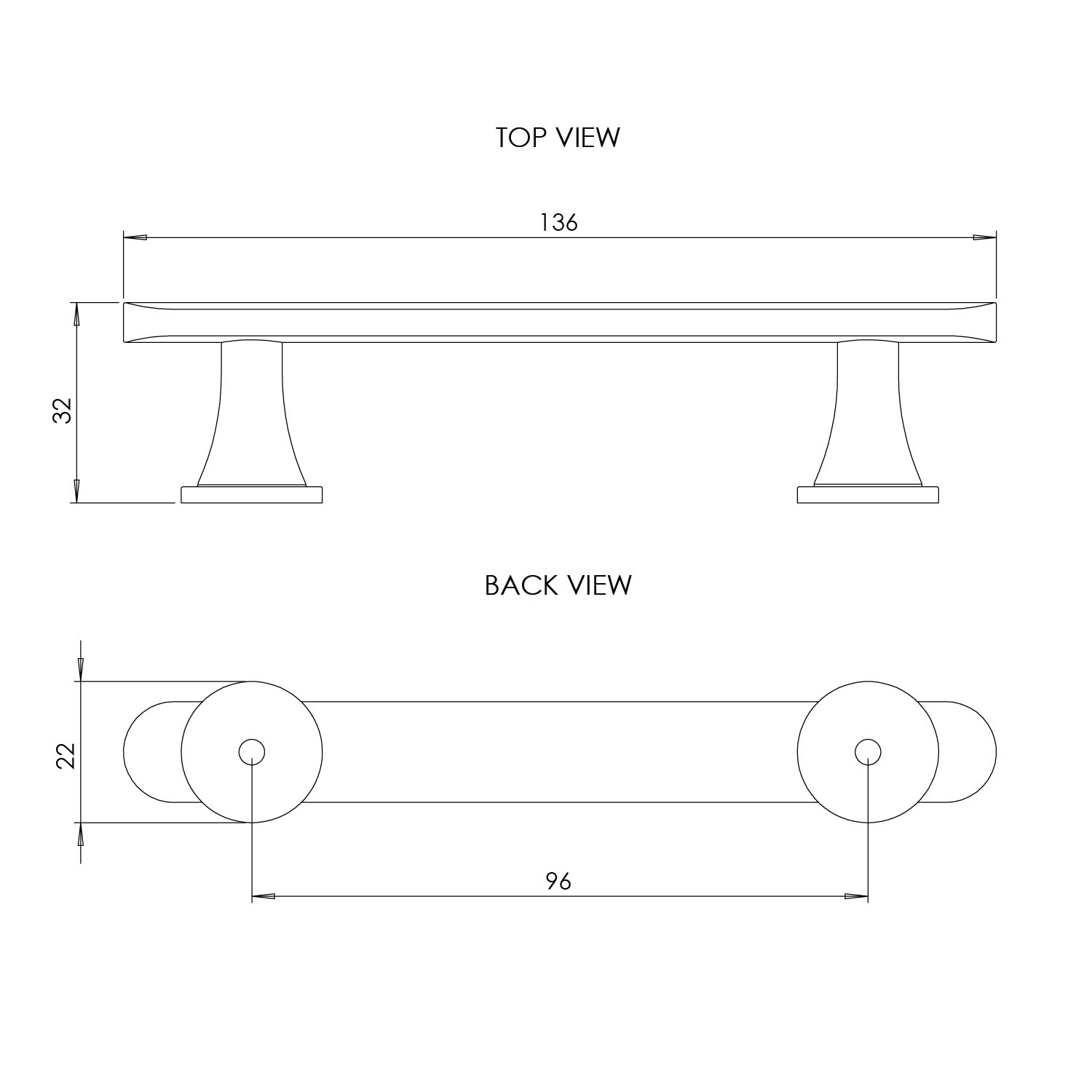

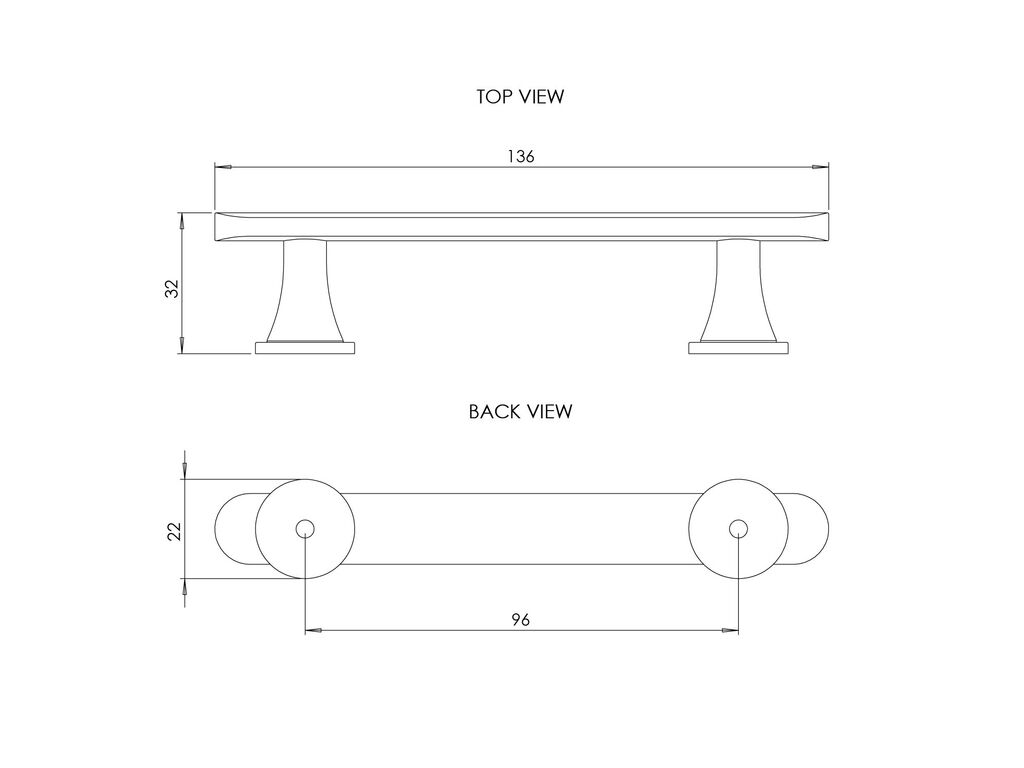

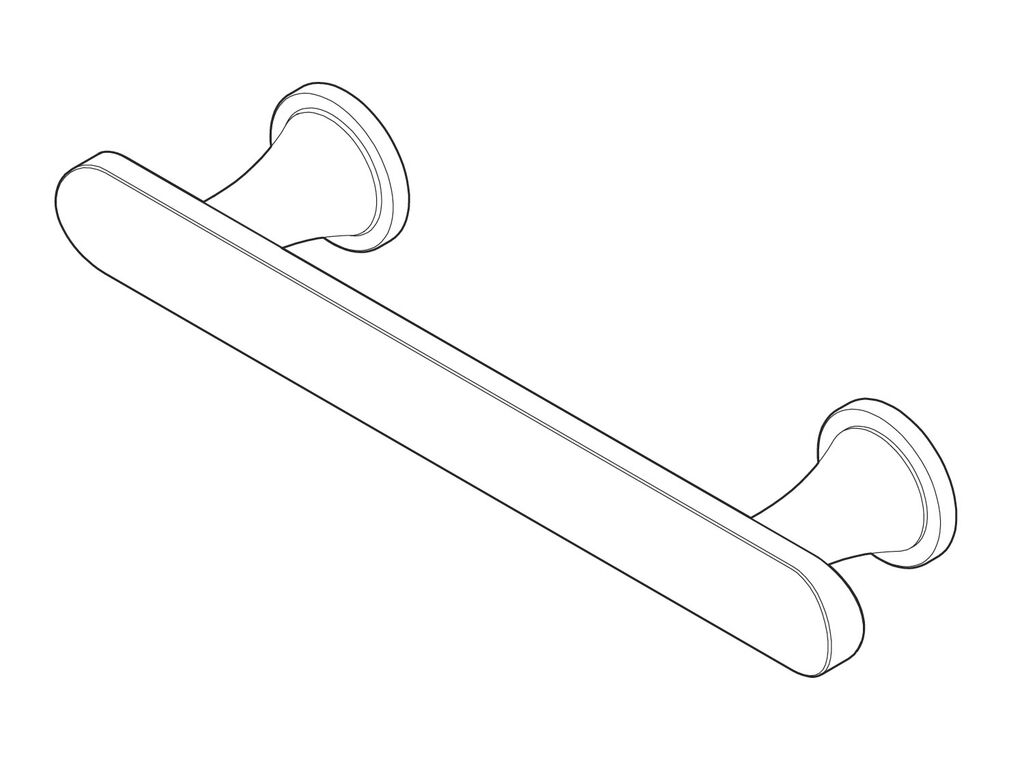

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
136 x 32 x 22mm
Weight:
0.16 kg
Main Construction Material:
Brass
Handle Type:
Bar
Fixing Hole Centres:
96mm
Screw Length Required:
25mm
Number of Screws Required:
2
Surface Finish:
Natural Brass
Finish Effect:
Smooth
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Renaico Bar Handle 136
M4 machine screws
