Technical Data Sheet
Antiguo Cup Handle
3690

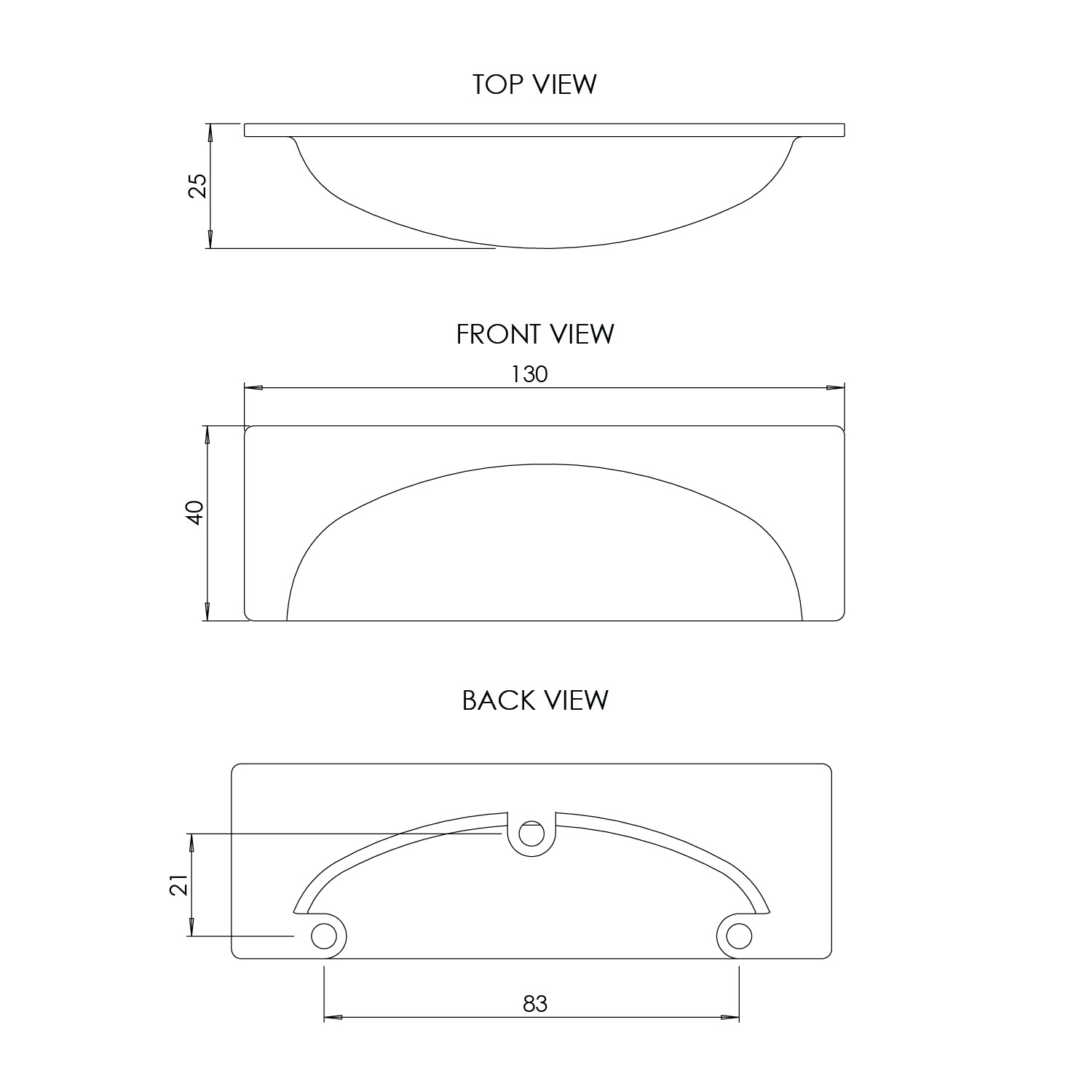

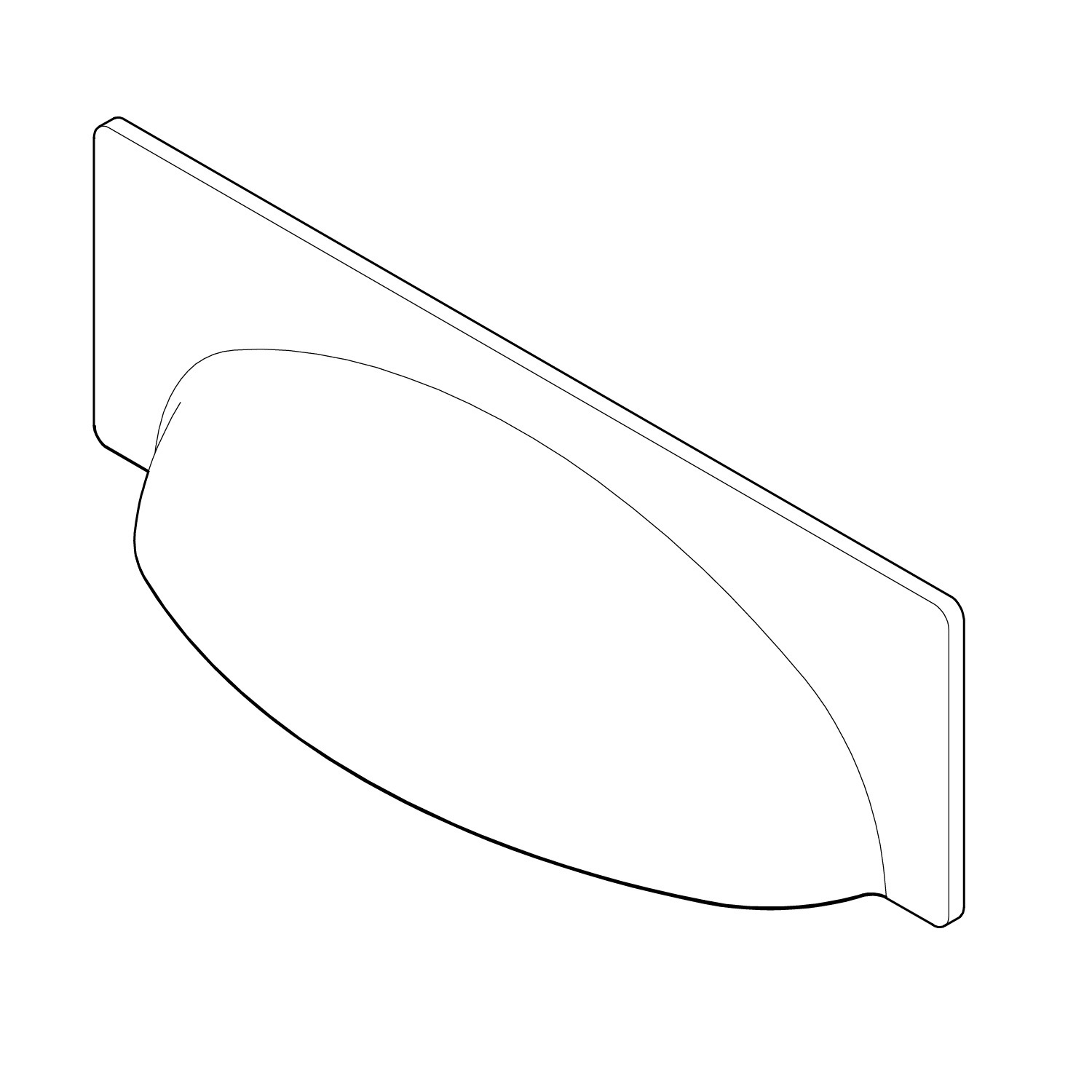

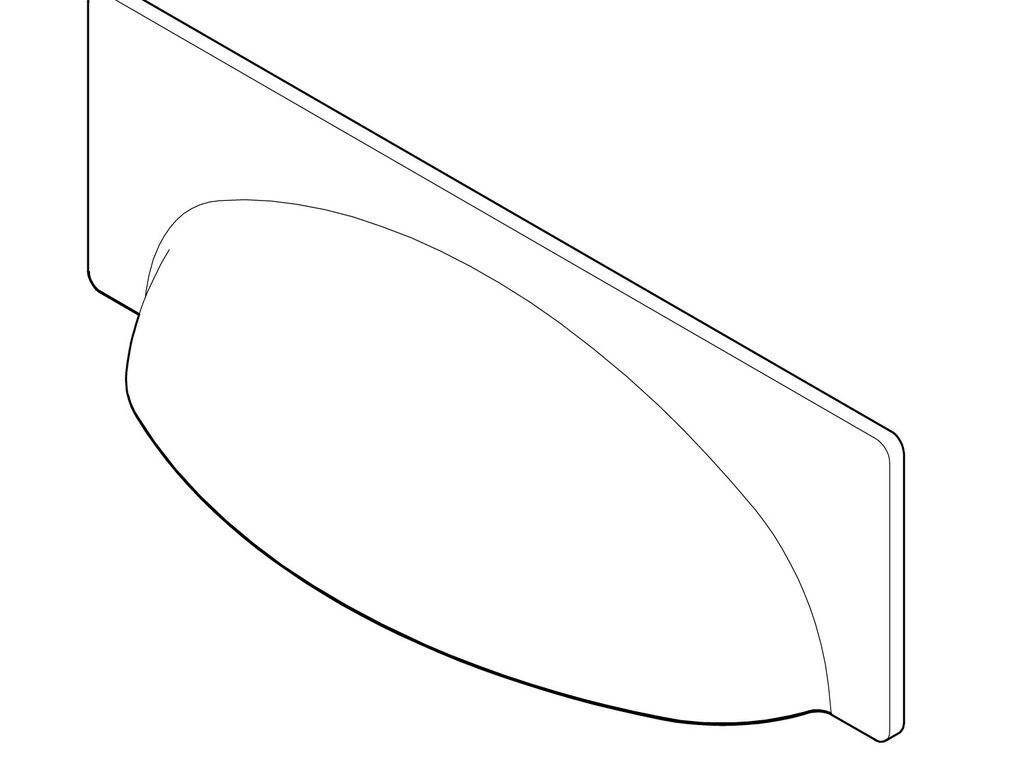

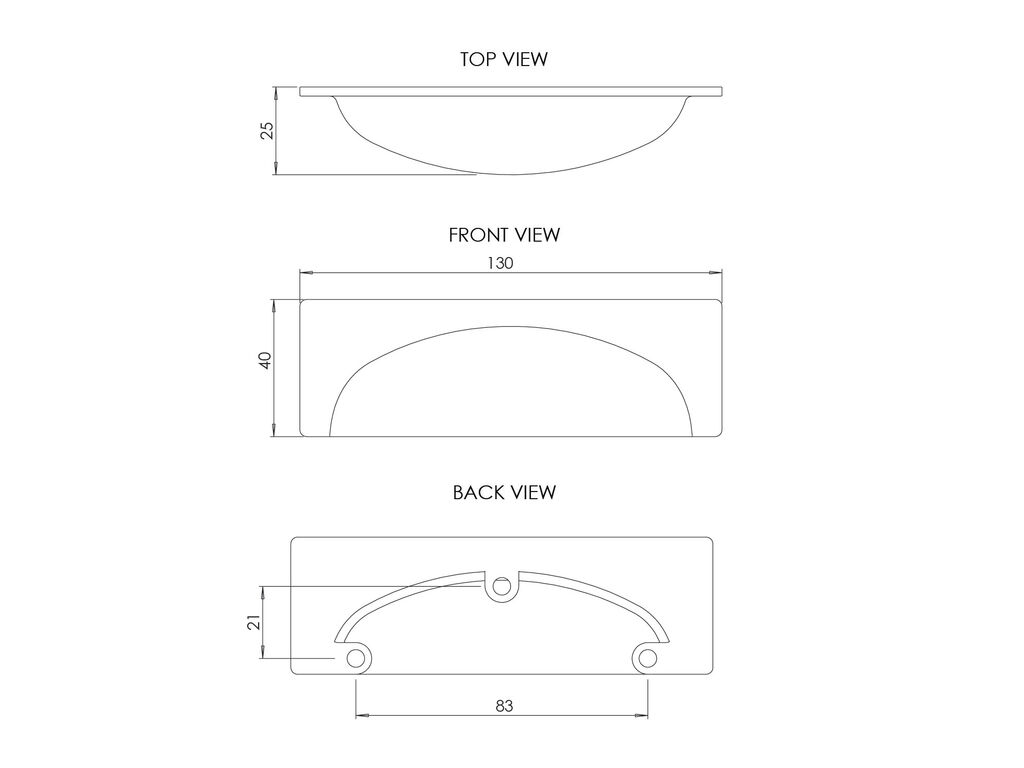

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
130 x 25 x 40mm
Weight:
0.16 kg
Main Construction Material:
Brass
Handle Type:
Cup
Fixing Hole Centres:
96mm
Screw Length Required:
25mm
Number of Screws Required:
2
Surface Finish:
Natural Brass
Finish Effect:
Smooth
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Antiguo Cup Handle
M4 machine screws
