Technical Data Sheet
Torla LED Mirror 550
3680

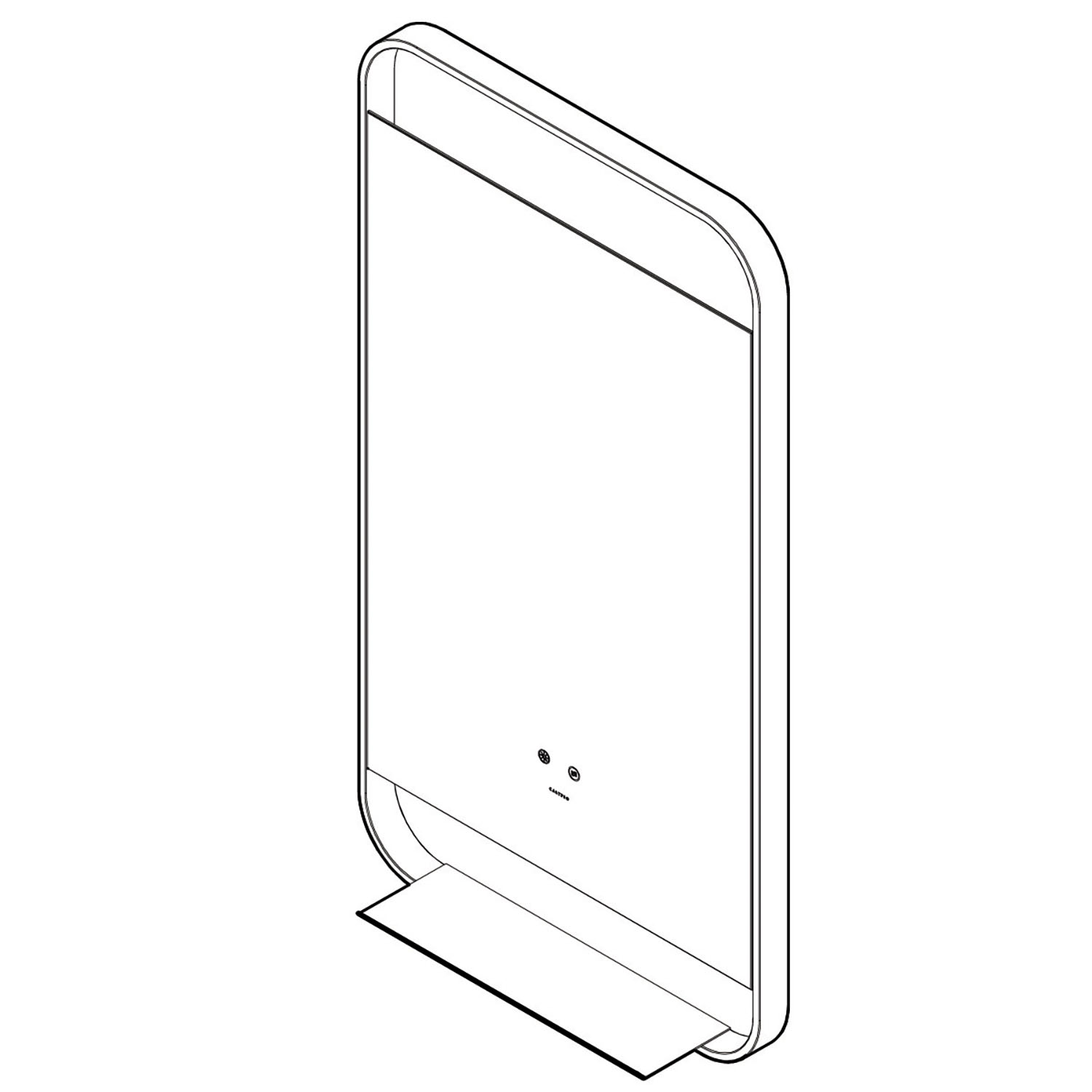

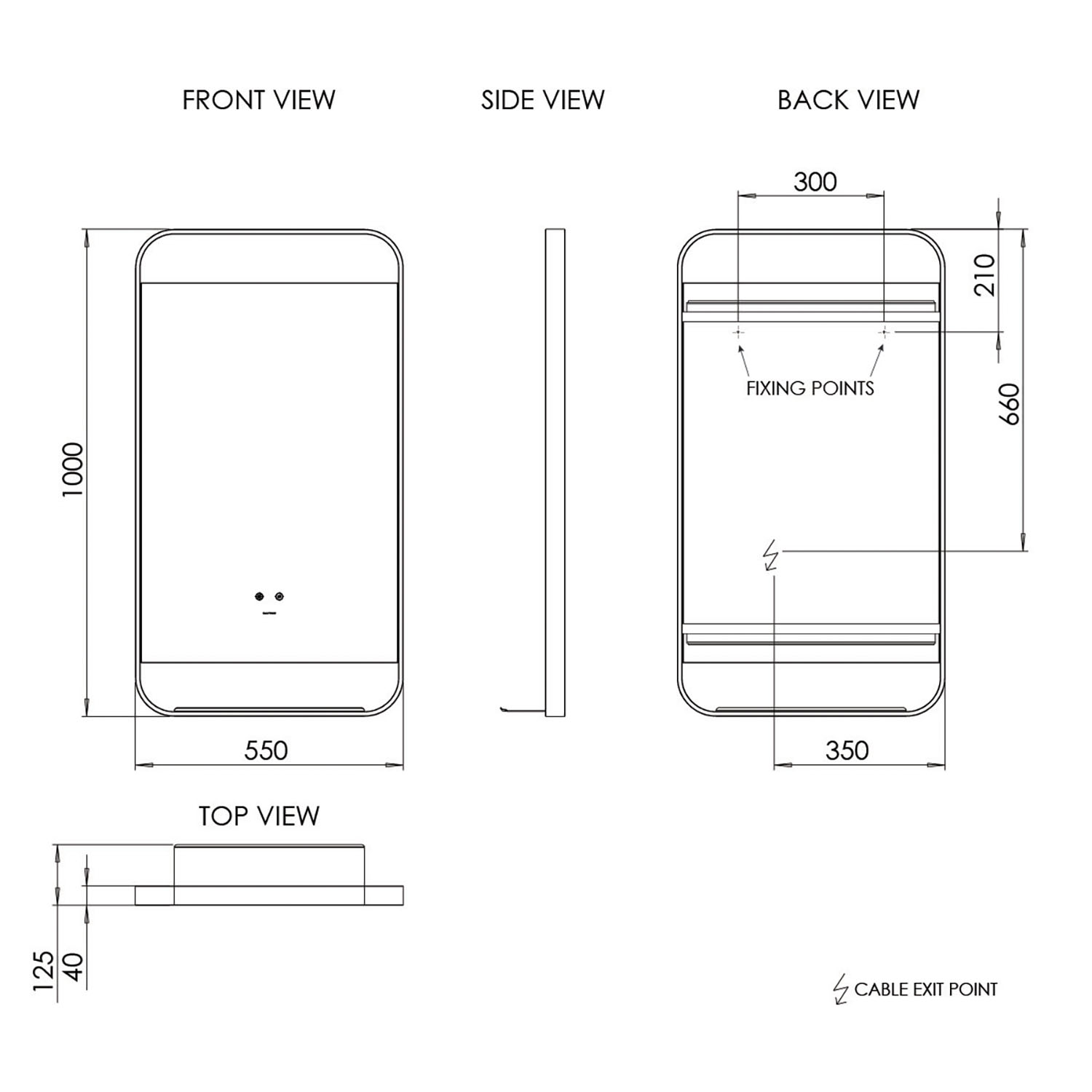

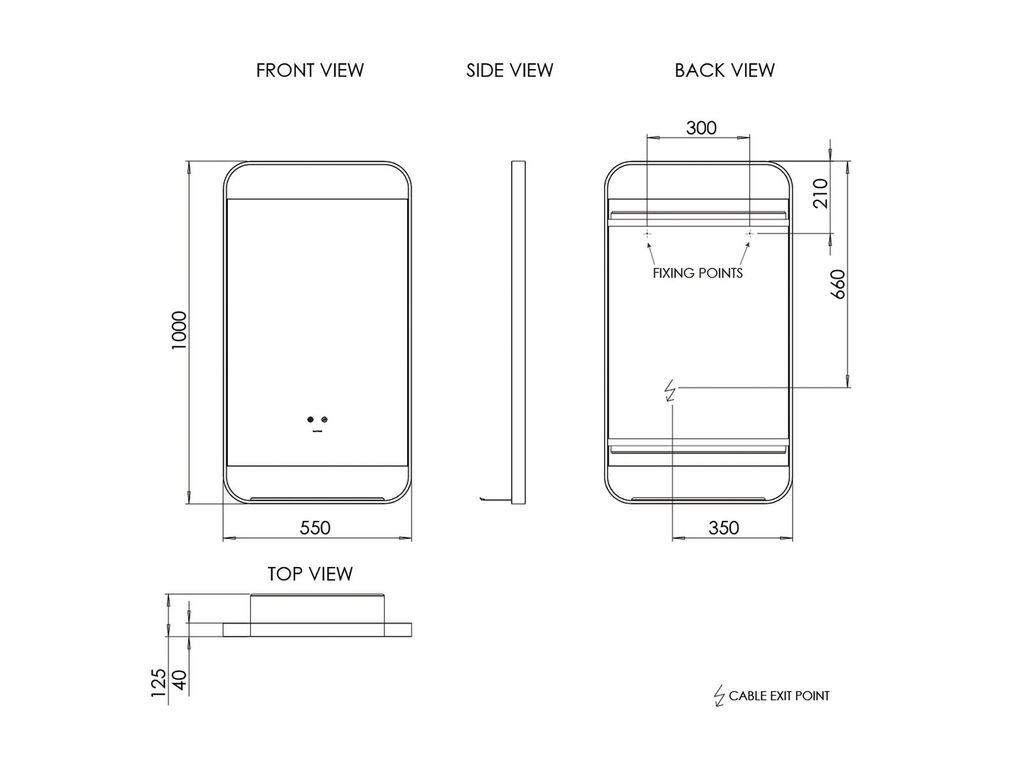

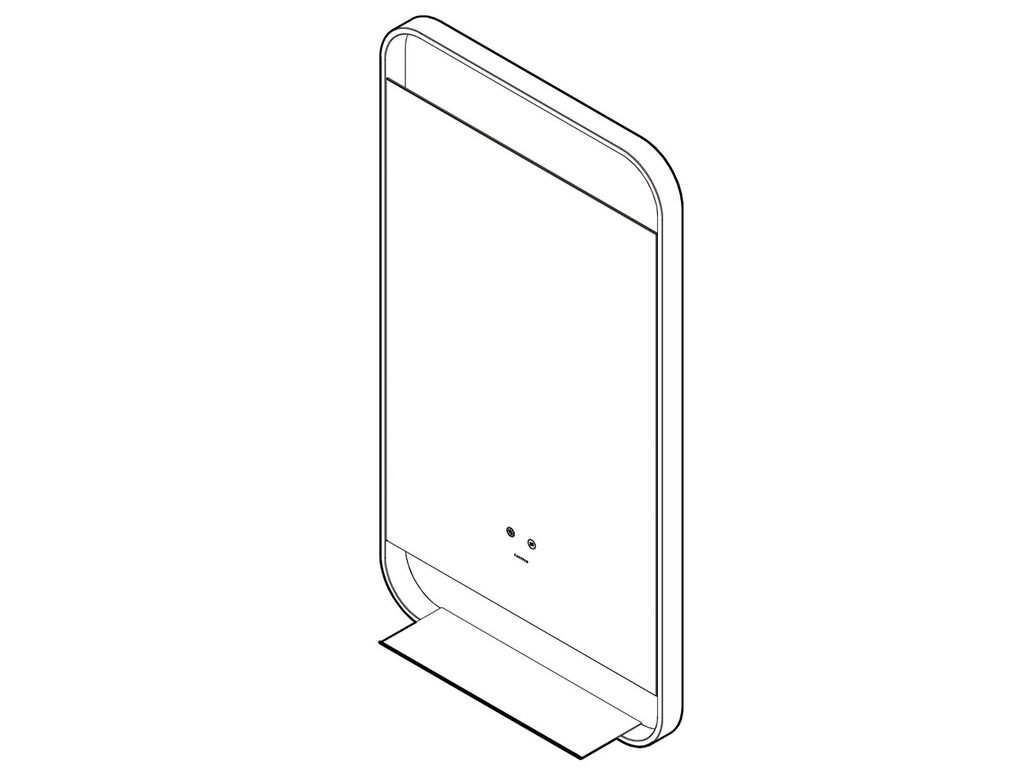

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
550 x 125 x 1000mm
Weight:
7.78 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 12W, Demister 35W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
400 x 400mm
Cable Length:
350mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Torla LED Mirror 550
Instructions
Fitting kit
Expansion plugs
Screw hooks
Terminal connection box
