Technical Data Sheet
Floresta Bar Handle 128
3659

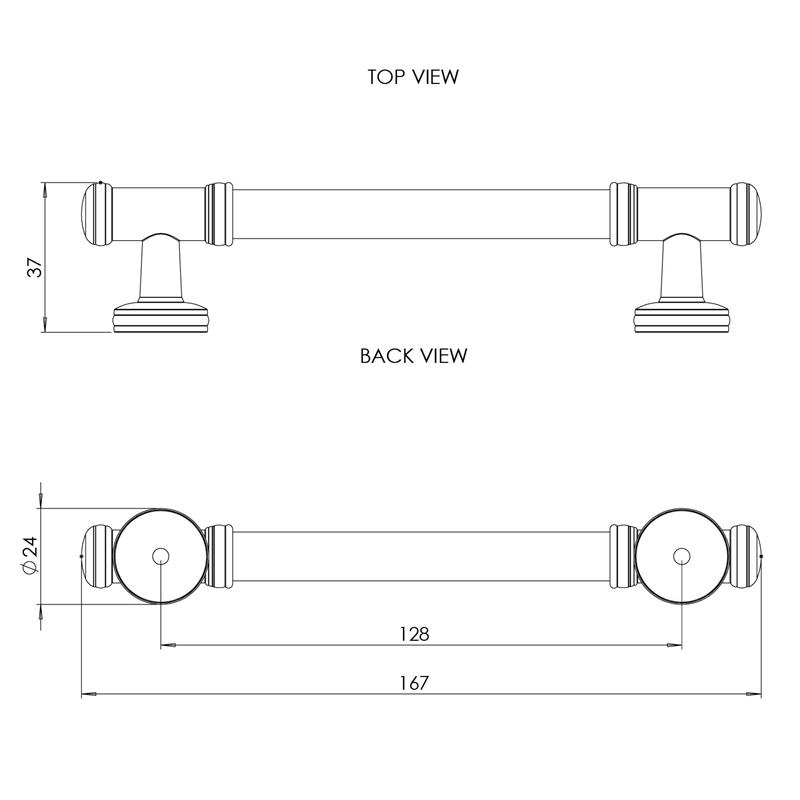

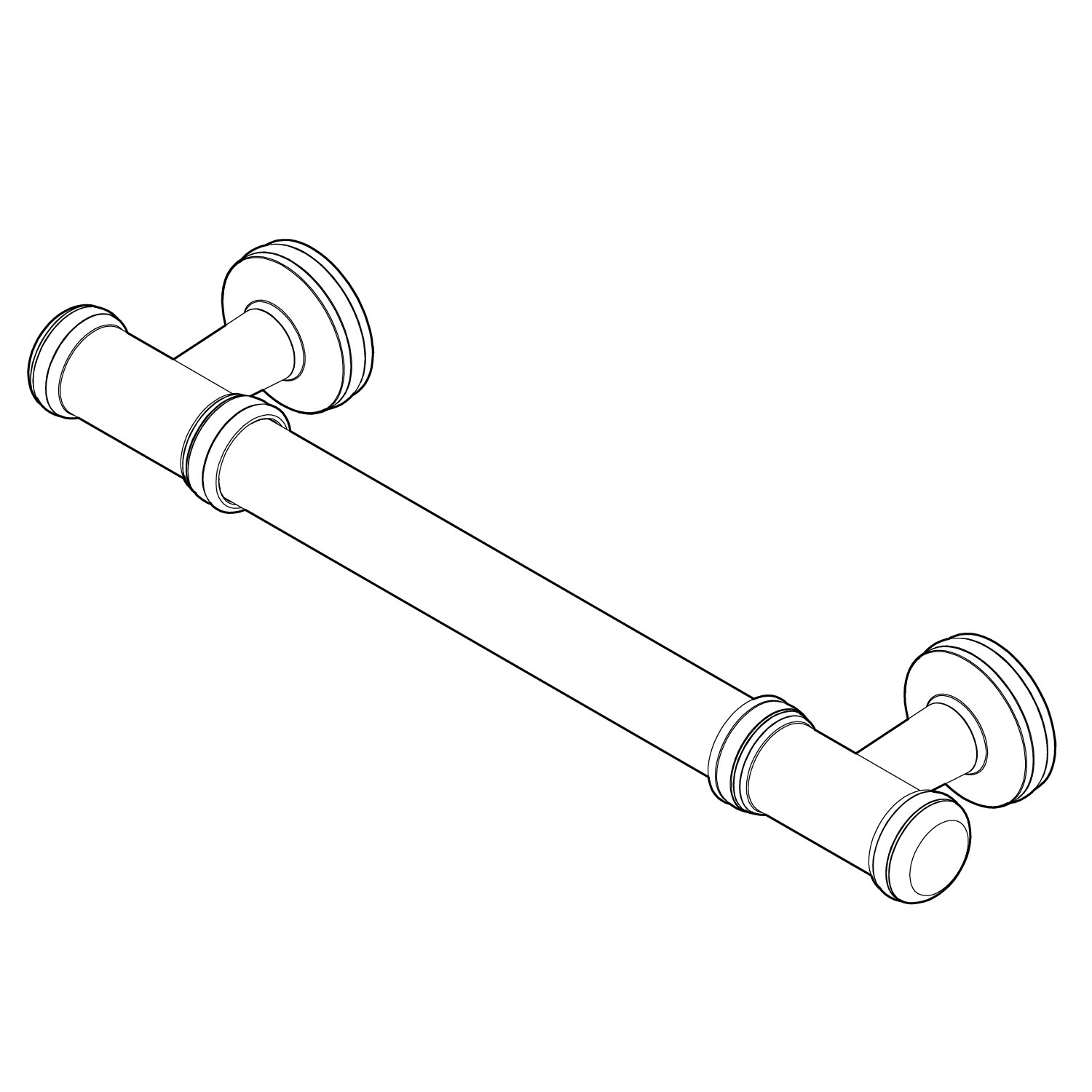

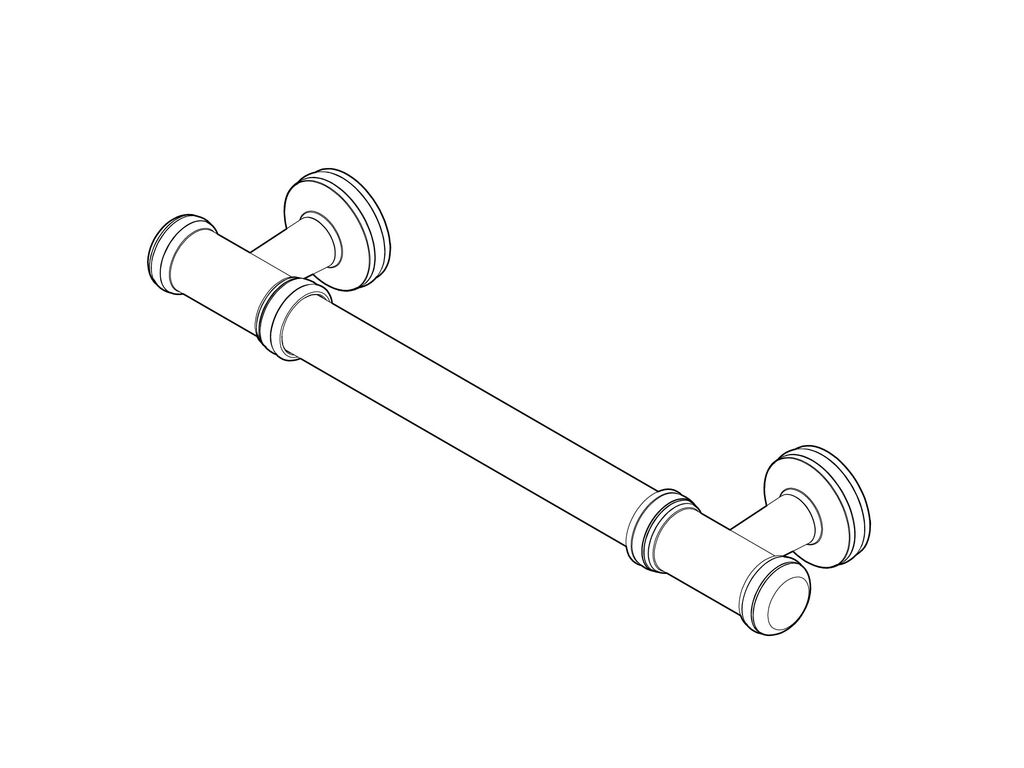

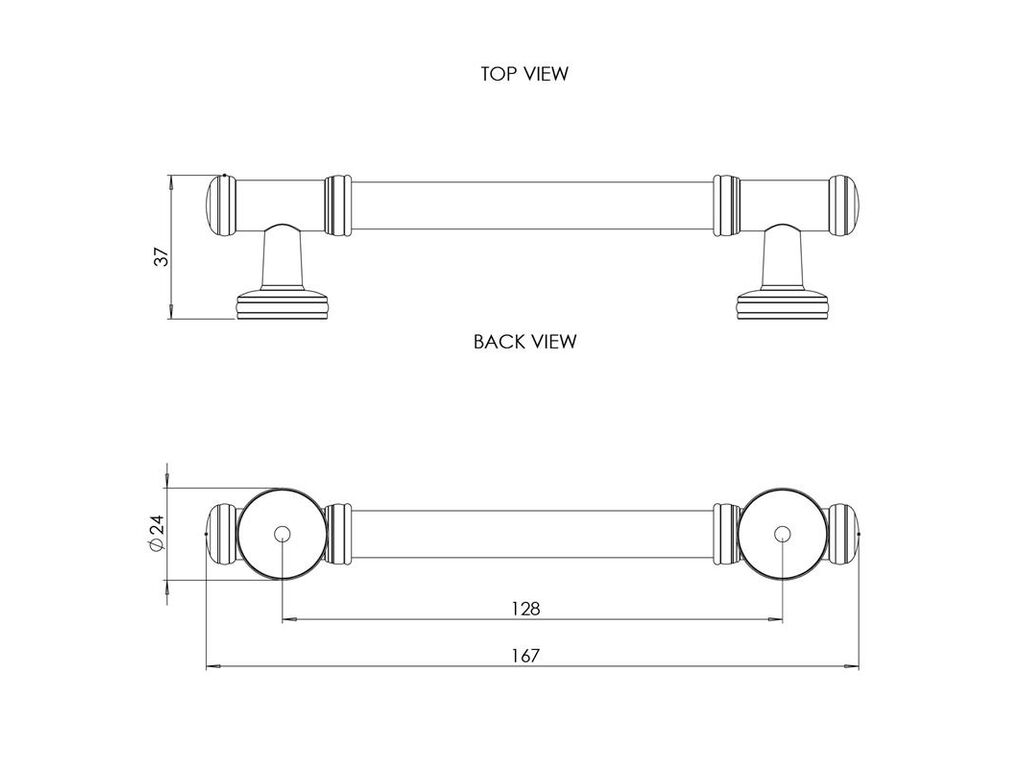

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
167 x 37 x 24mm
Weight:
0.14 kg
Main Construction Material:
Metal
Handle Type:
Bar
Fixing Hole Centres:
128mm
Screw Length Required:
22mm
Number of Screws Required:
2
Surface Finish:
Brushed Brass
Finish Effect:
Brushed
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Floresta Bar Handle 128
M4 machine screws
