Technical Data Sheet
Castello Bar Handle
3653

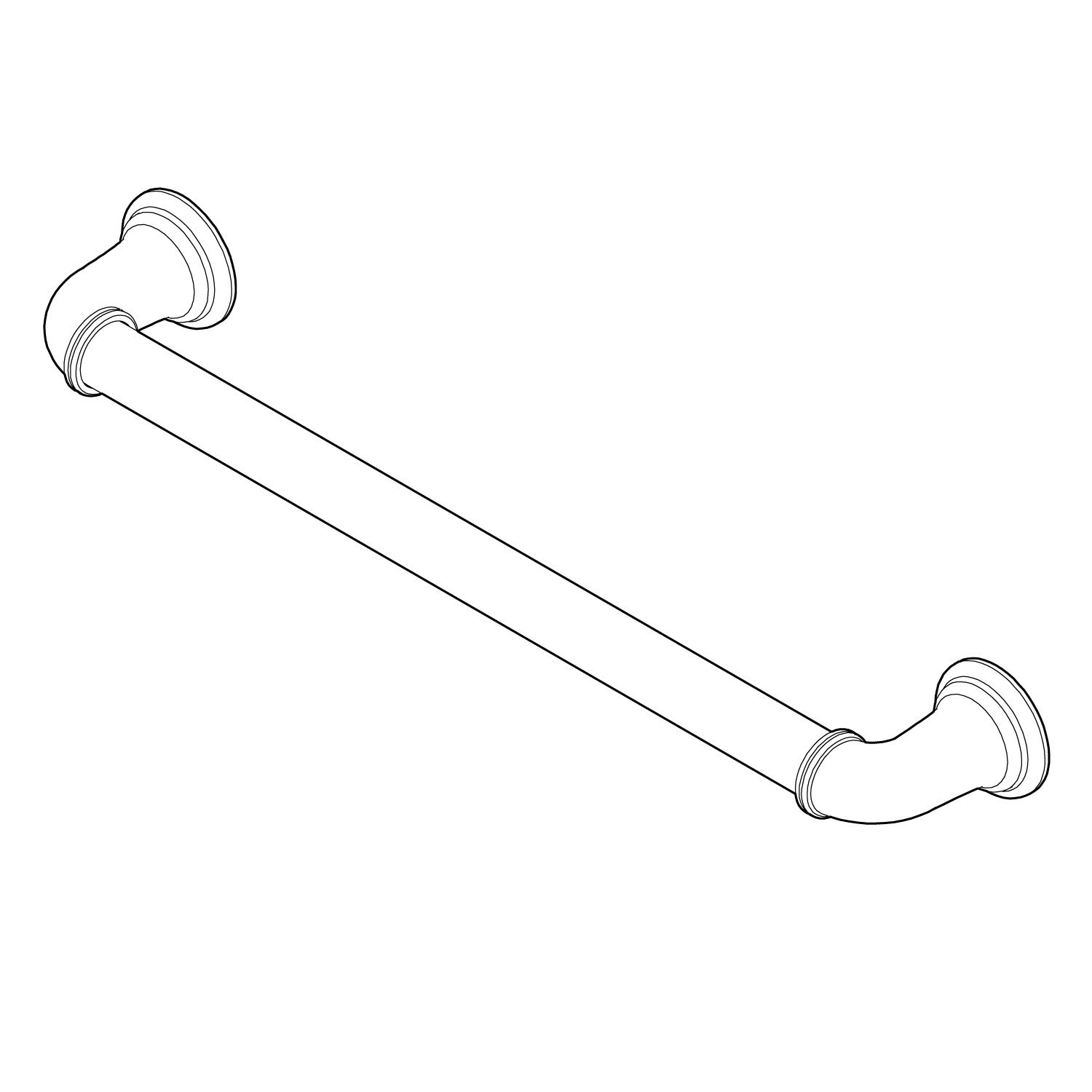

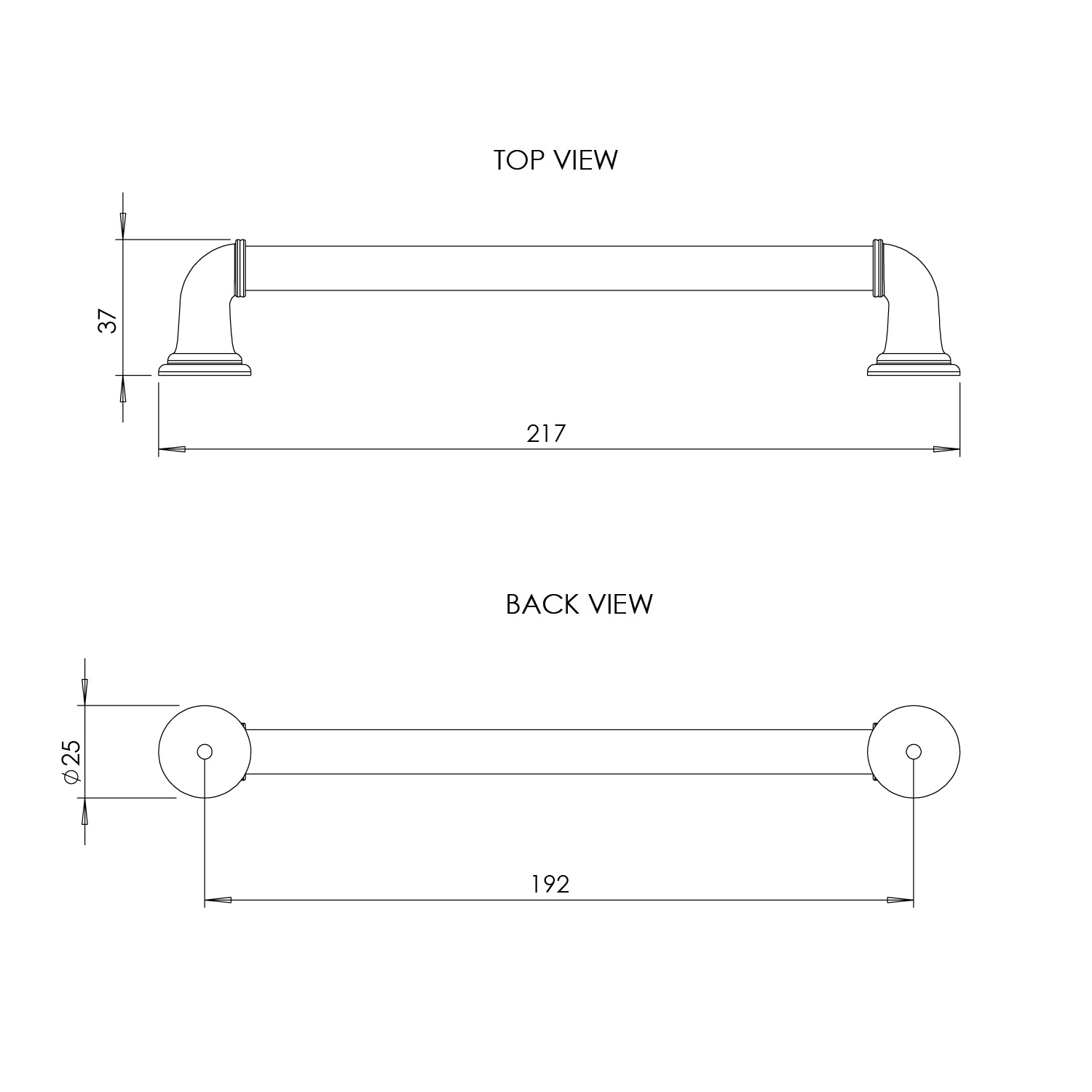

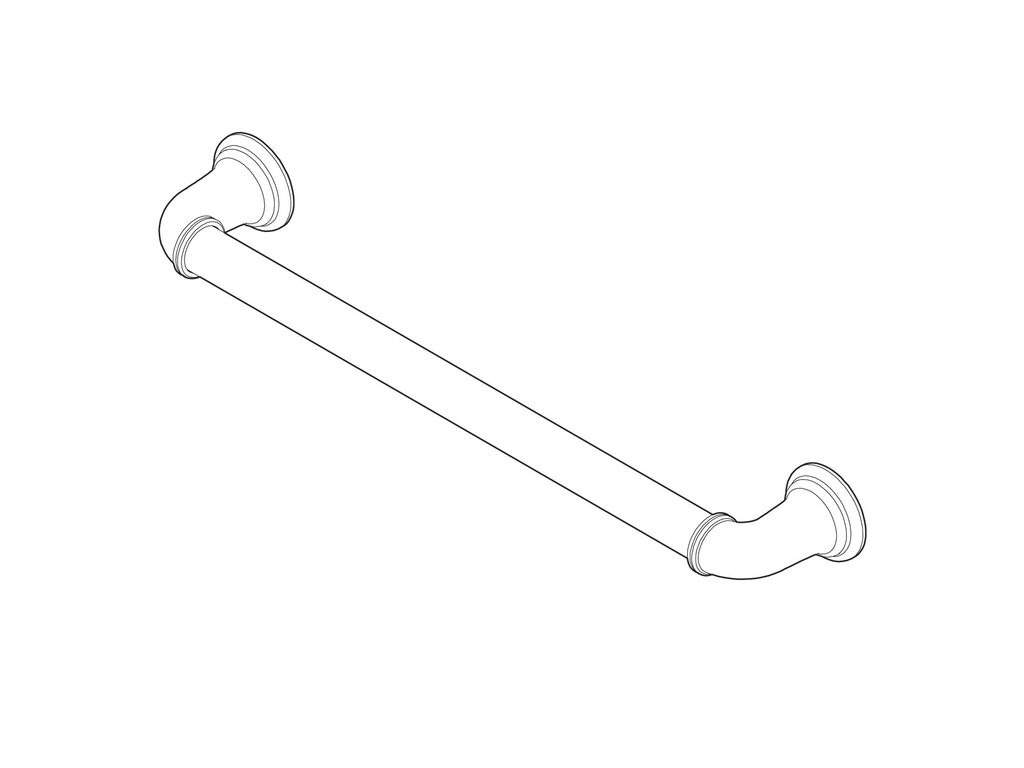

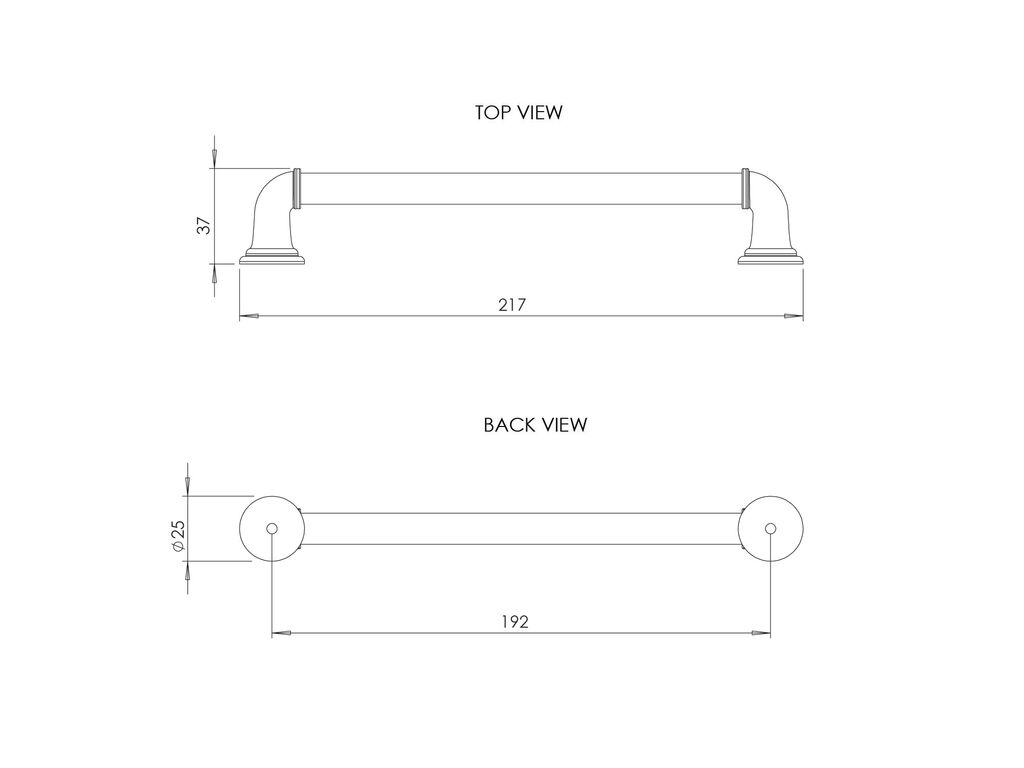

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
217 x 37 x 25mm
Weight:
0.12 kg
Main Construction Material:
Metal
Handle Type:
Bar
Fixing Hole Centres:
192mm
Screw Length Required:
22mm
Number of Screws Required:
2
Surface Finish:
Brushed Brass
Finish Effect:
Brushed
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Castello Bar Handle
M4 machine screws
