Technical Data Sheet
Tall Wall End / Infill Panel Tongue and Groove 222 x 1222mm Slim
3644

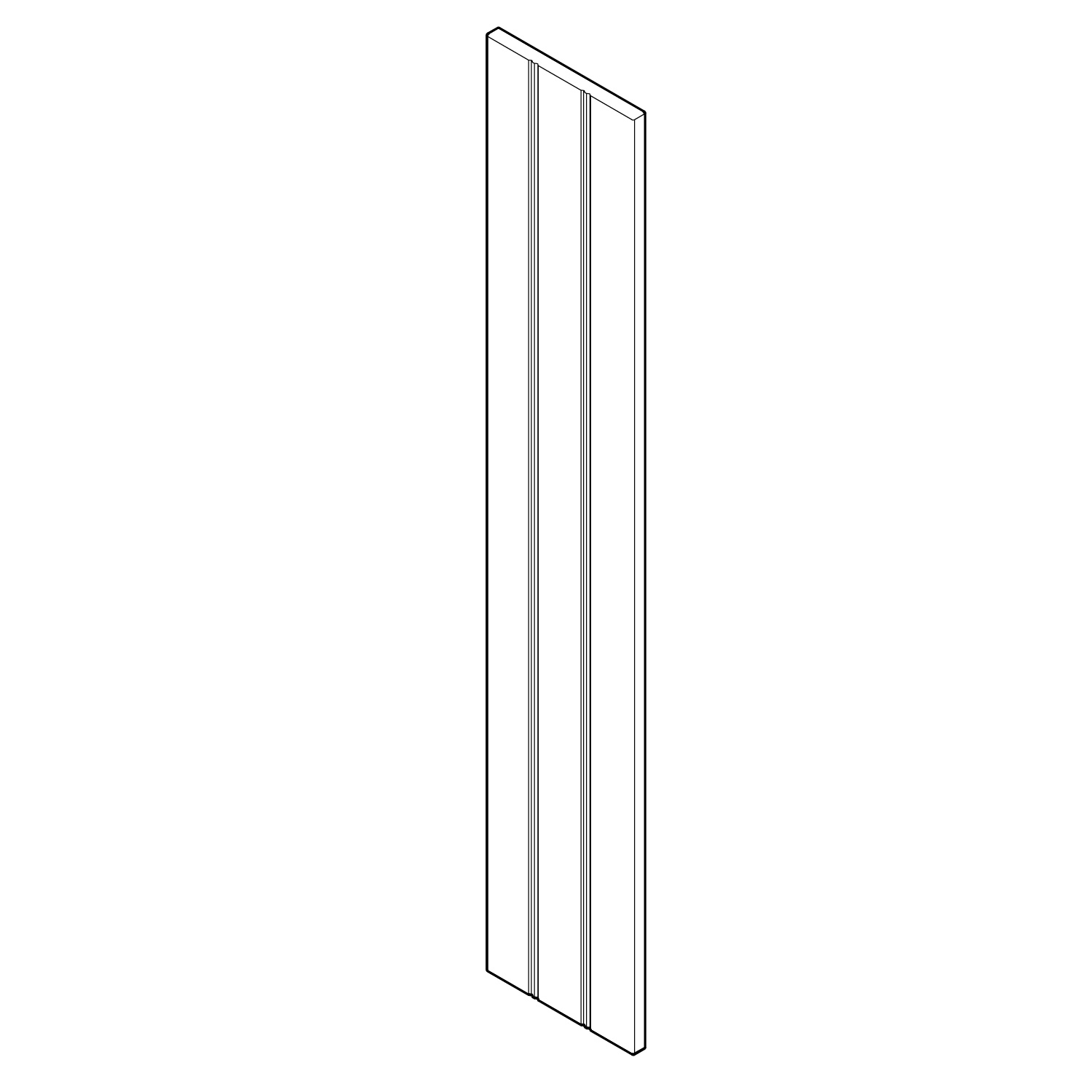

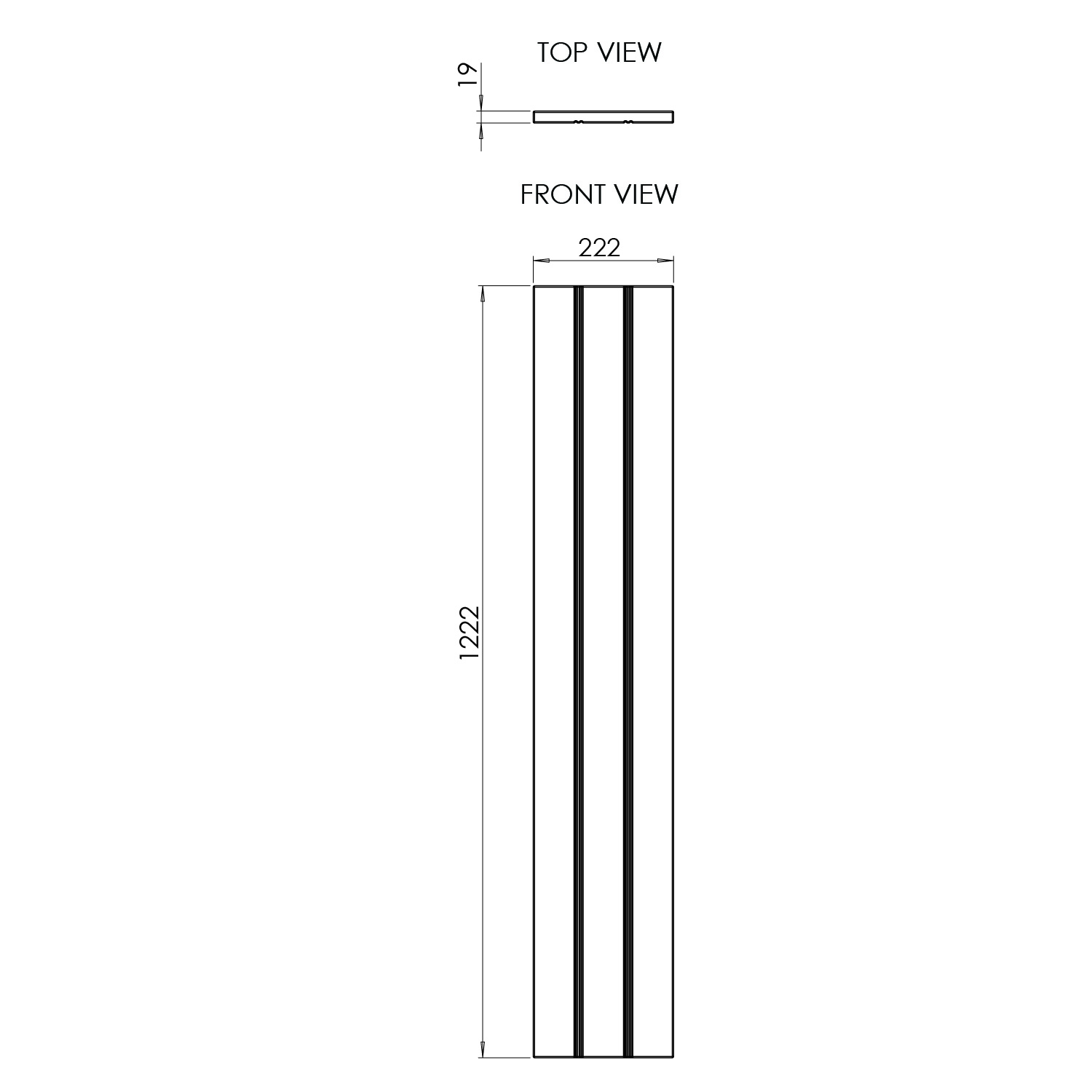

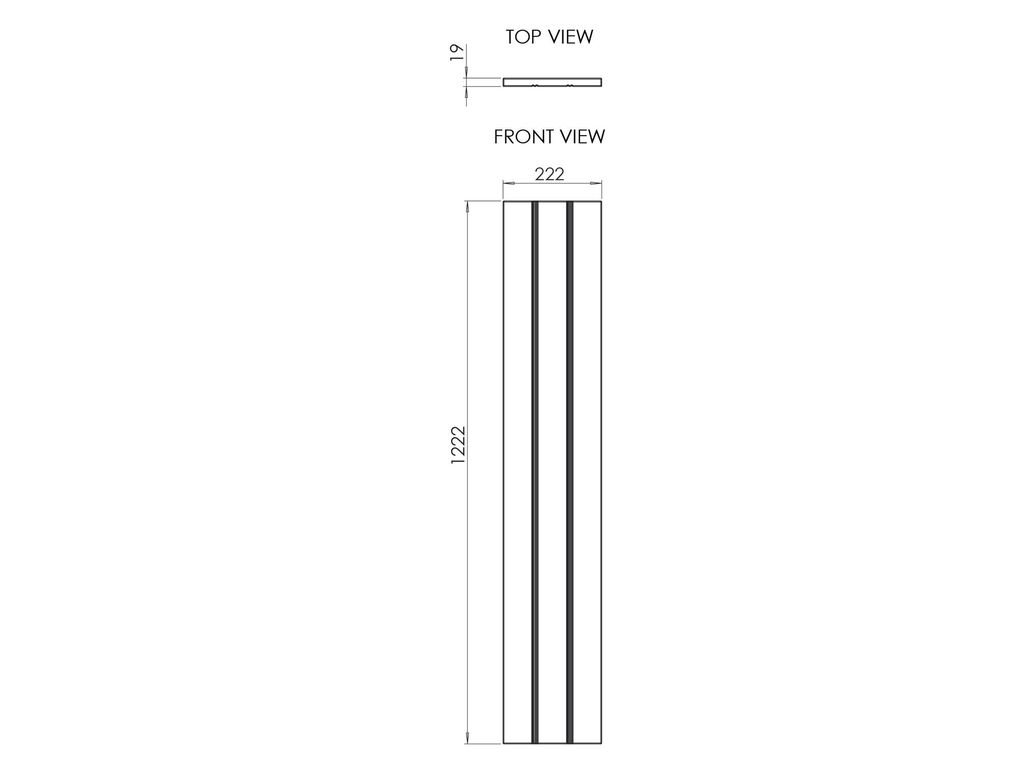

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
19 x 222 x 1222mm
Weight:
4.7 kg
Fascia Type:
End Panel
Main Construction Material:
Wood
Fascia Material:
MDF 19mm
Fascia Style:
Tongue & Groove
Fascia Detail Diameter:
78mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
Bowing Tolerance:
2mm
In The Box:
Tall Wall End / Infill Panel Tongue and Groove 222 x 1222mm Slim
Fitting kit
