Technical Data Sheet

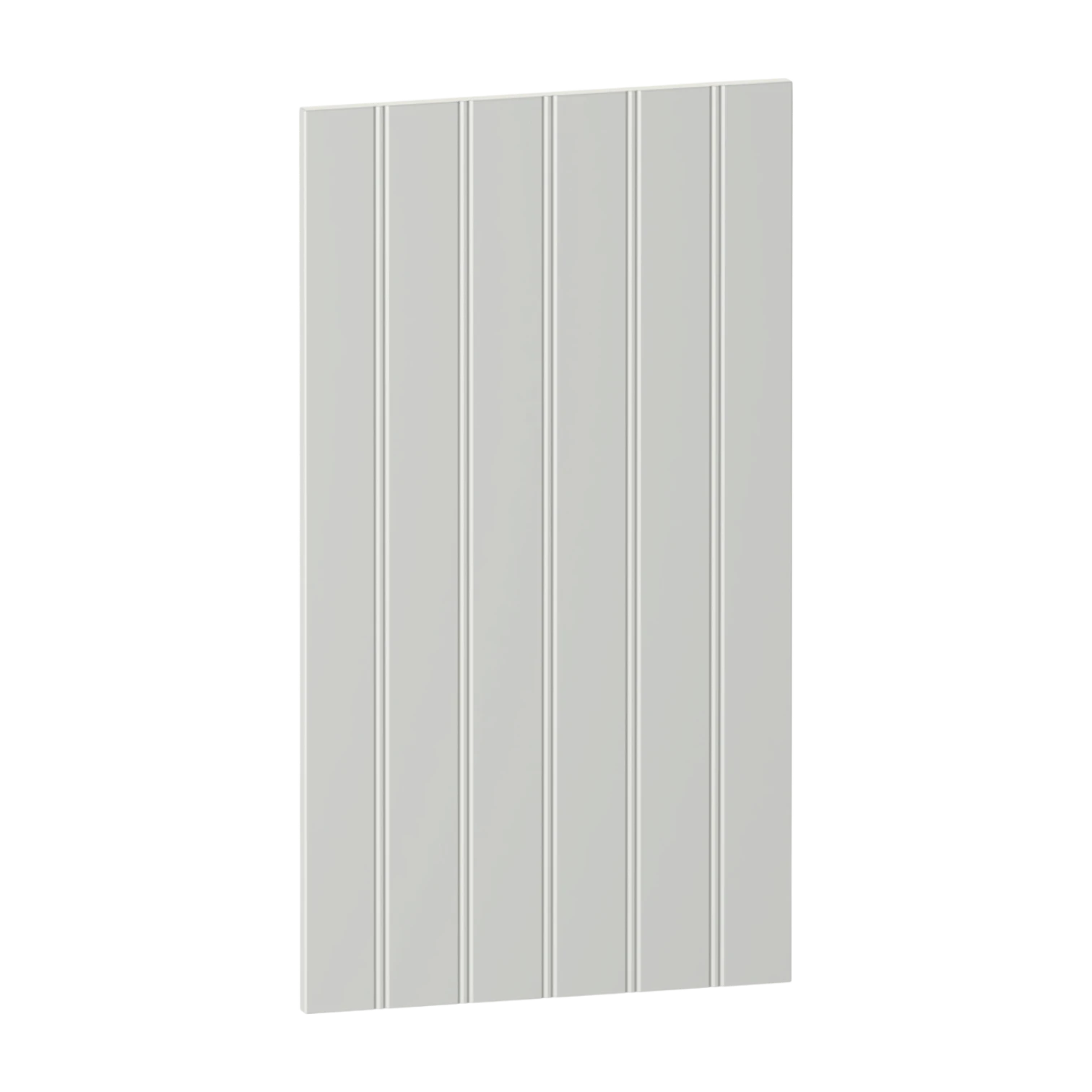

Base End / Infill Panel Tongue and Groove 448 x 811mm Deep
3642

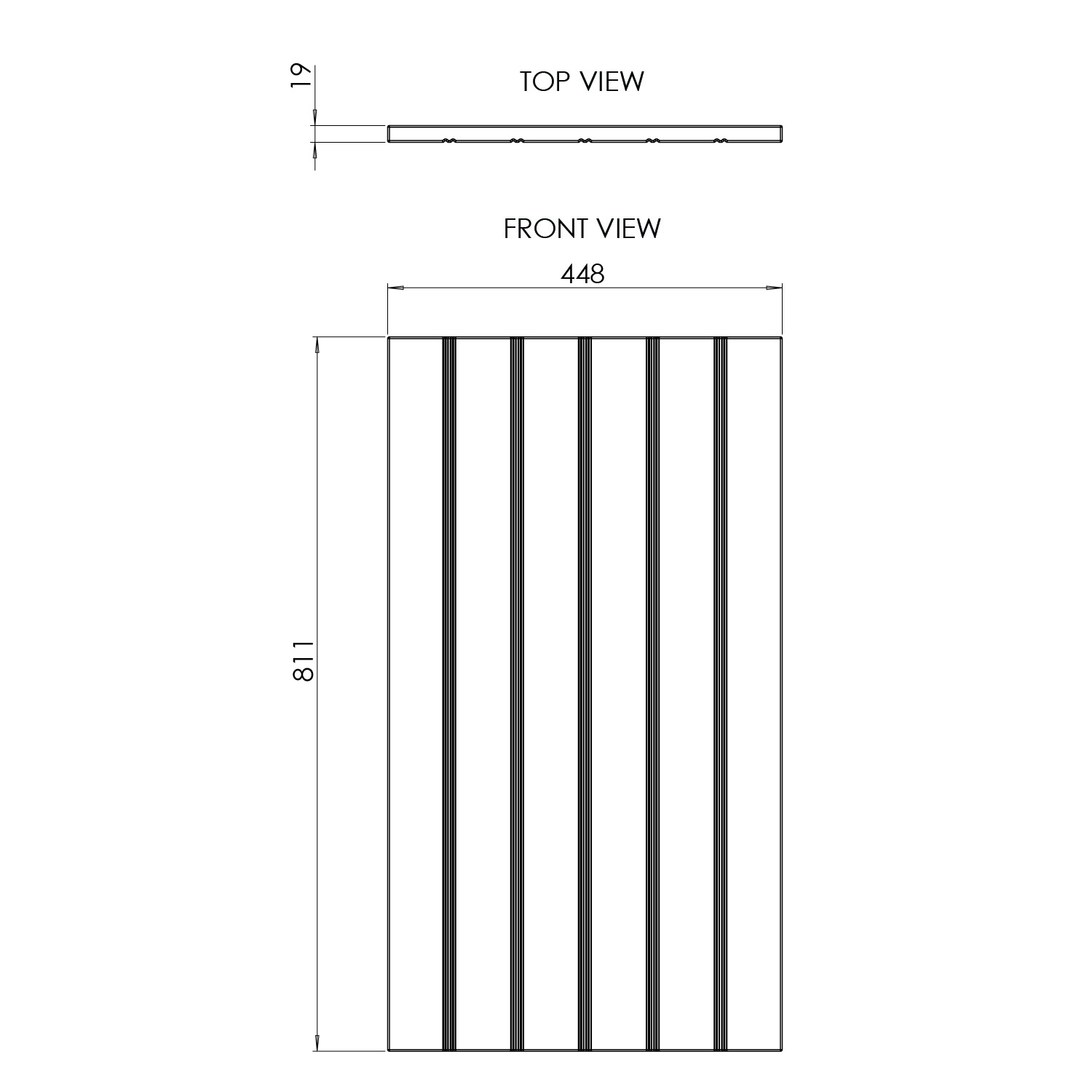

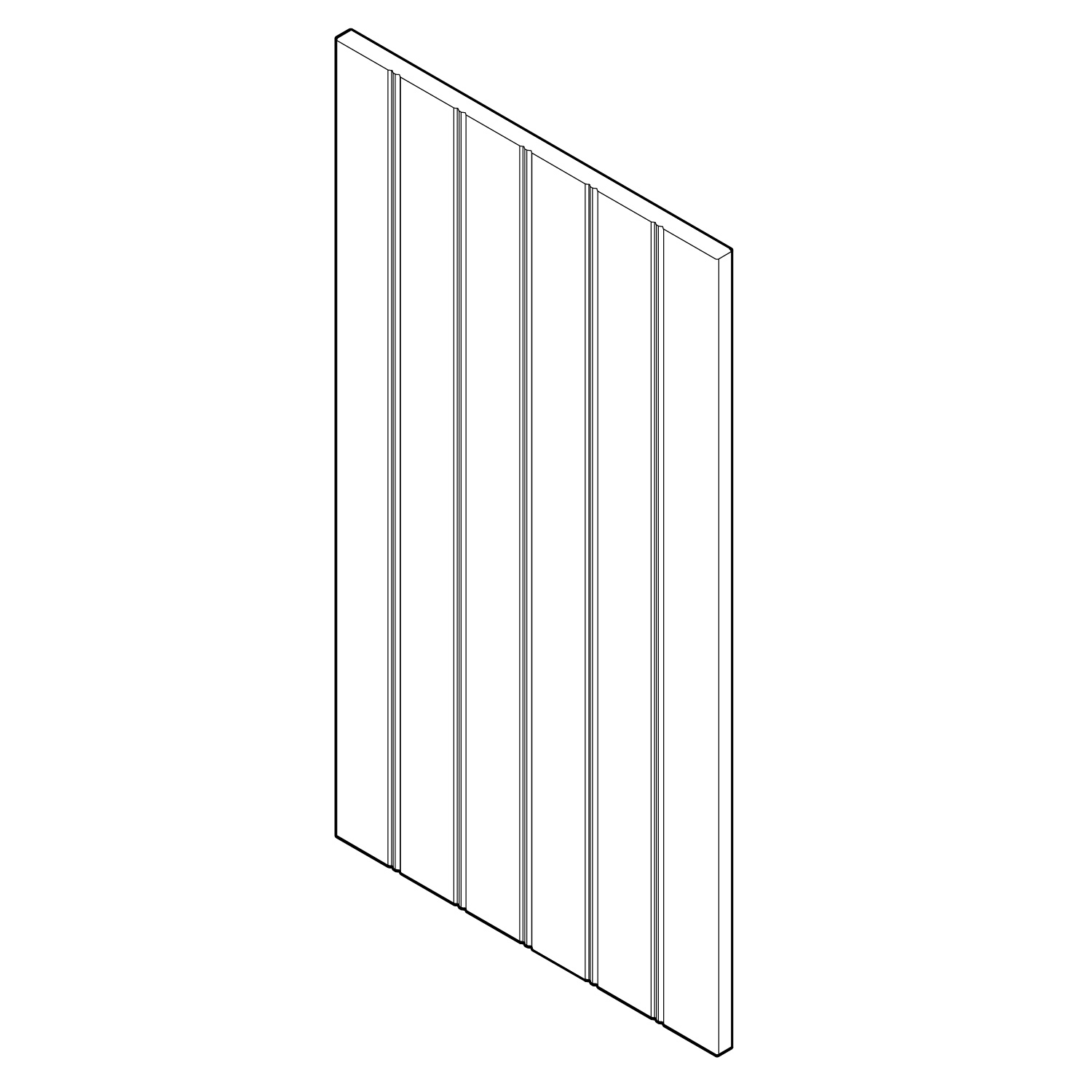

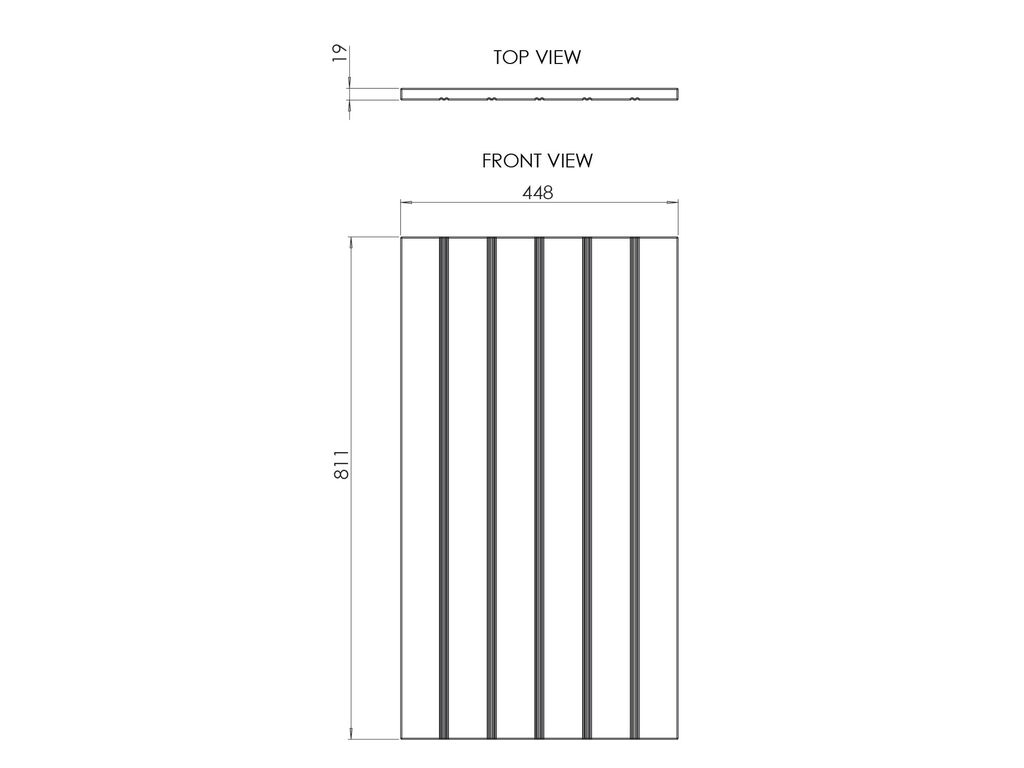

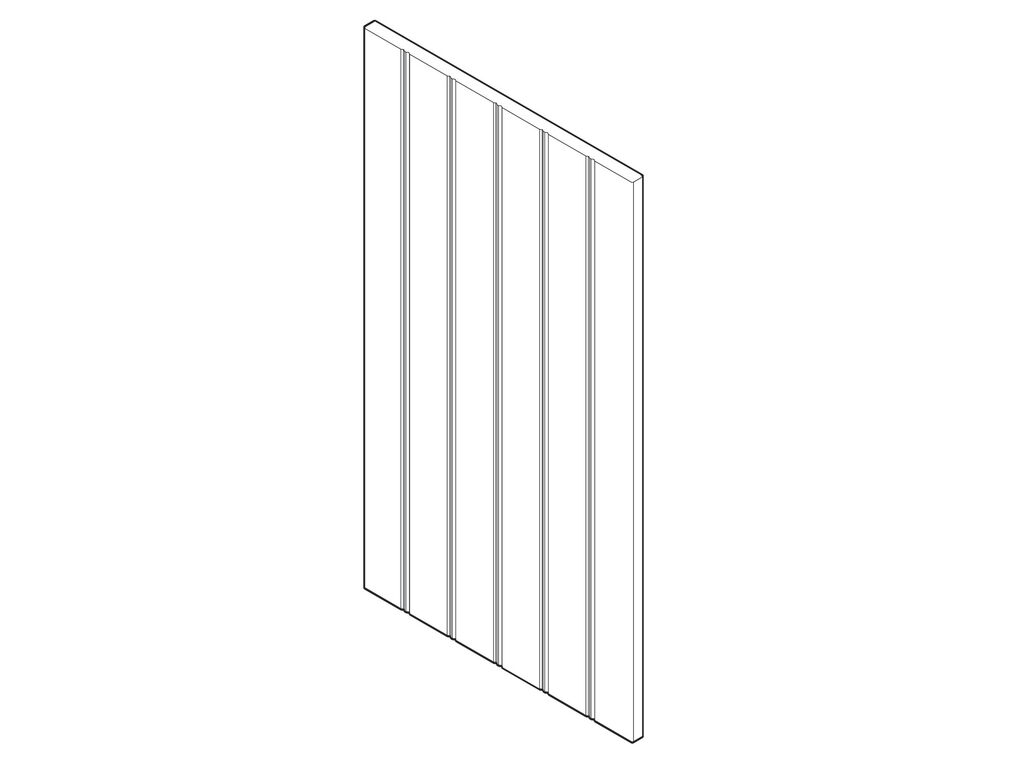

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
20 x 448 x 811mm
Weight:
6.4 kg
Fascia Type:
End Panel
Main Construction Material:
Wood
Fascia Material:
MDF 20mm
Fascia Style:
Tongue & Groove
Fascia Detail Diameter:
78mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
Bowing Tolerance:
2mm
In The Box:
Base End / Infill Panel Tongue and Groove 448 x 811mm Deep
Fitting kit
