Technical Data Sheet

Ferno LED Mirror 600

3630

Calypso Logo

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

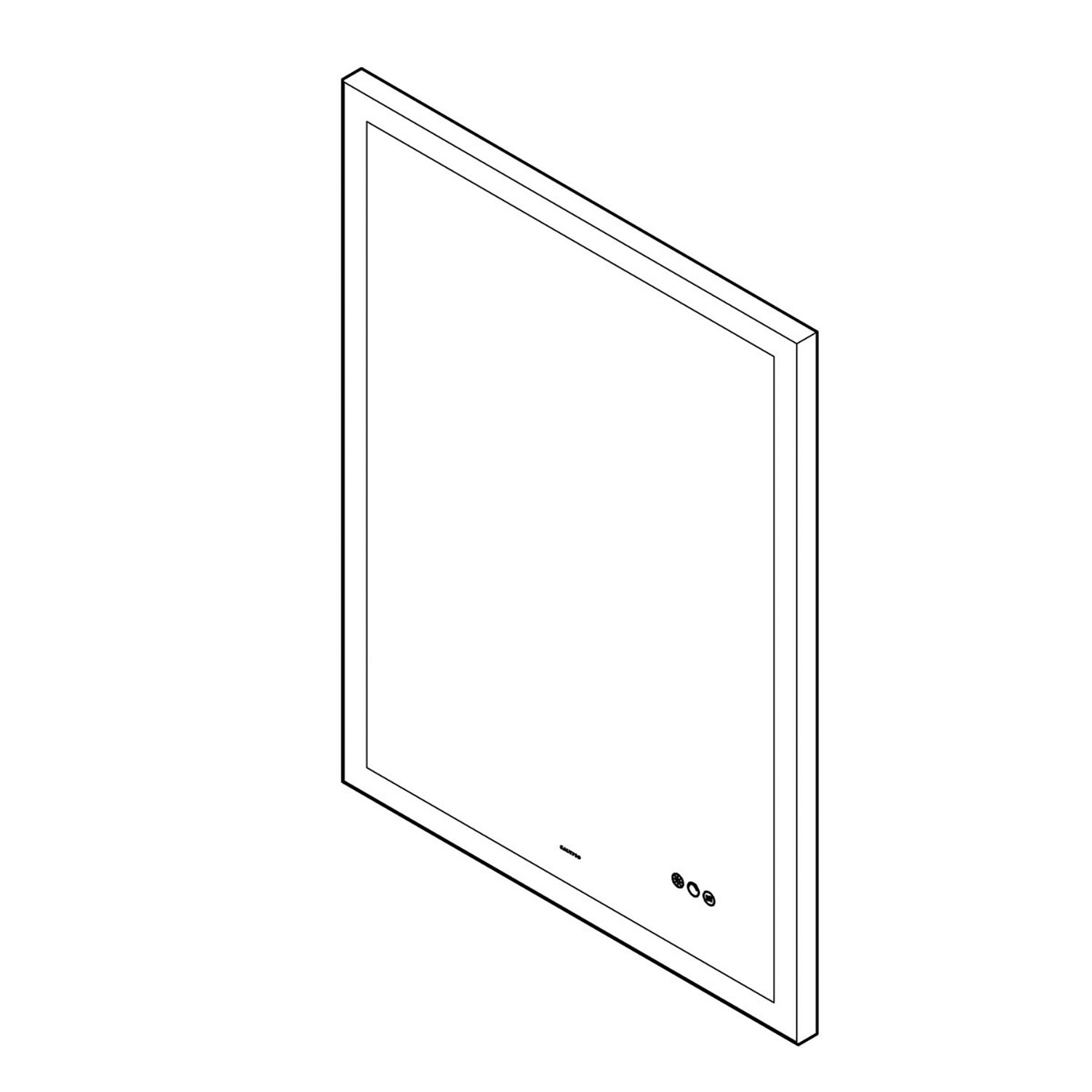

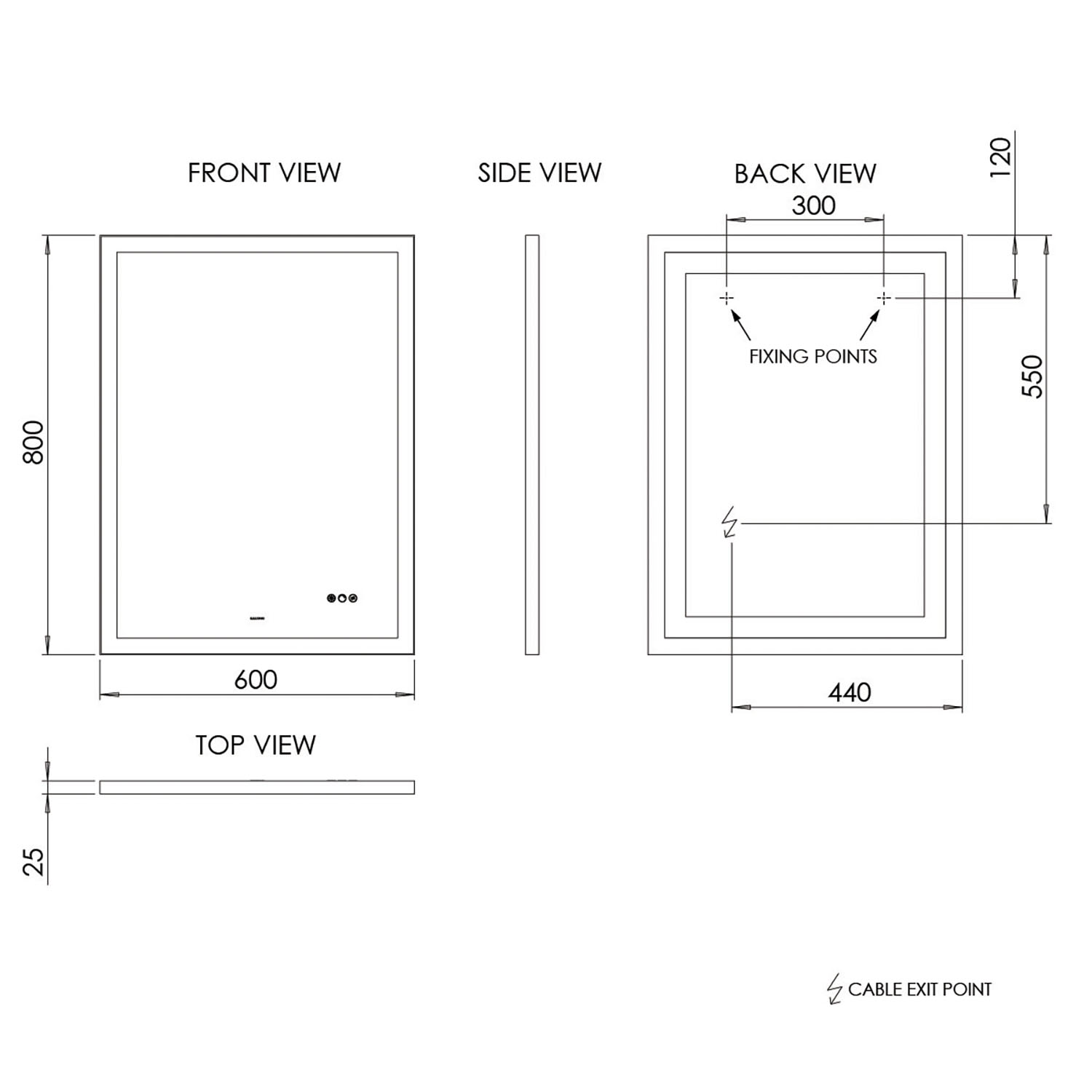

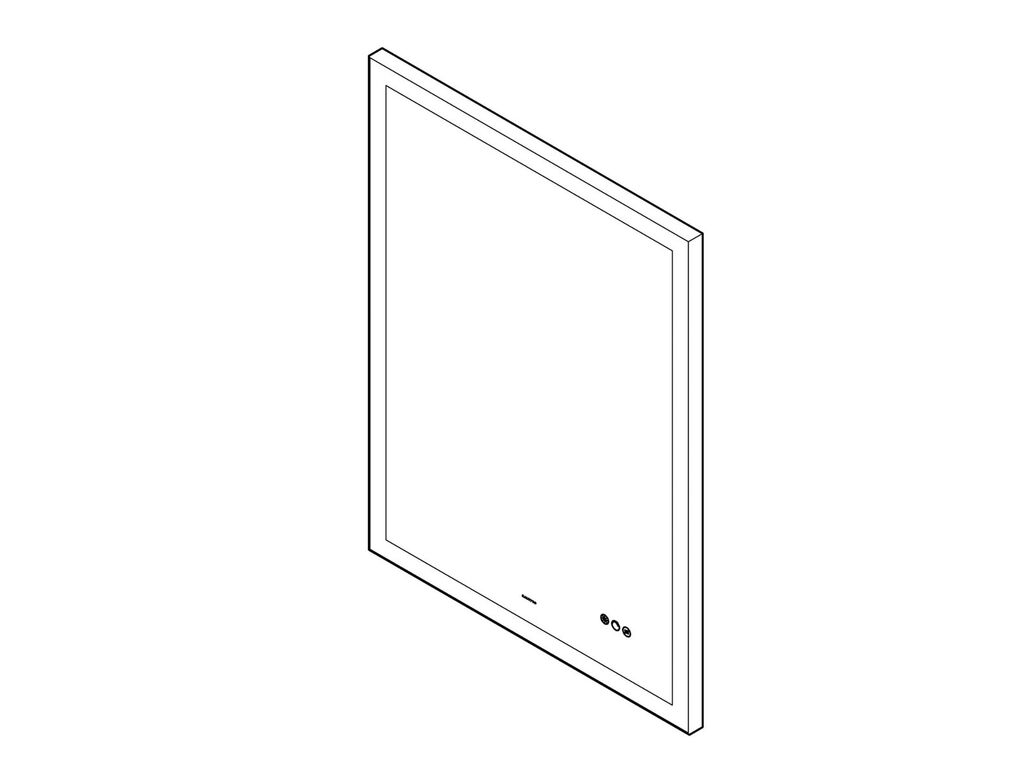

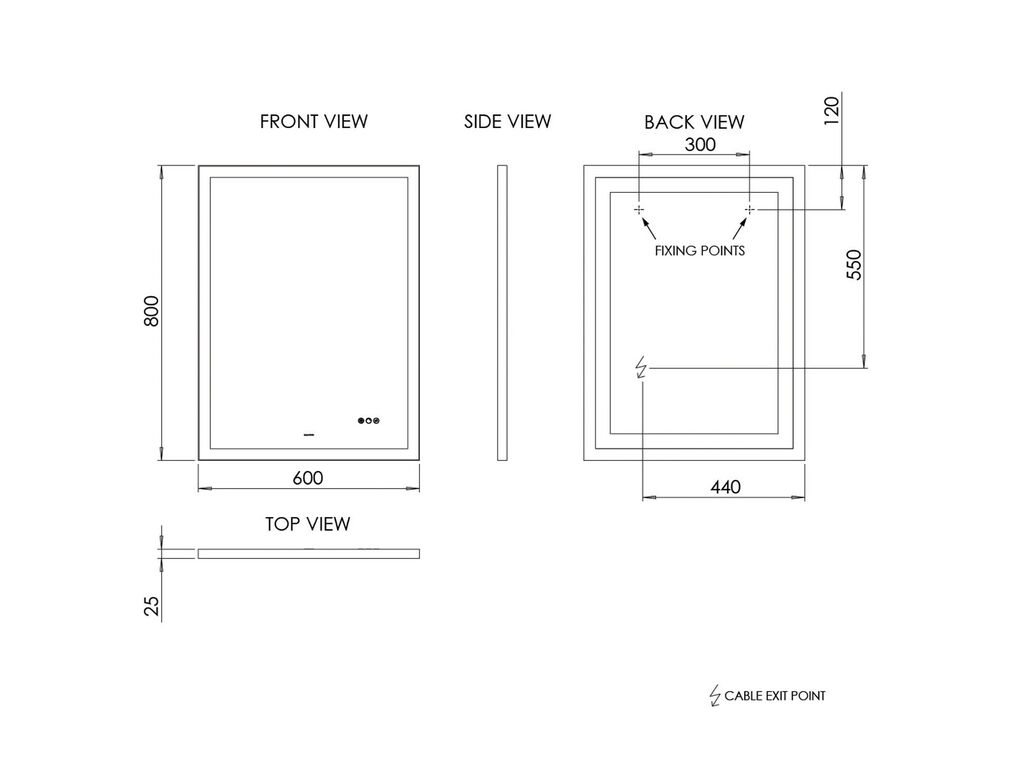

3D Line Drawing2D Line Drawing

Technical Details

Dimensions (WxDxH):

600 x 25 x 800mm

Weight:

6.18 kg

Power Input Voltage:

240v / 50hz

Total Power Outputs:

Light 19W, Demister 22W

IP Rating:

IP44

Bathroom Zone Rating:

Zone 2

Demister Pad Dimensions (WxH):

390 x 290mm

Cable Length:

1000mm

Earth Connection Required:

No

Hanging Orientation:

Portrait

Switching Method:

Touch Control

Light Colour Temperature:

Adjustable (Cool White to Warm White)

Guarantee Period:

5 Years

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 1mm.

In The Box:

Ferno LED Mirror 600
Instructions
Fitting kit
Expansion plugs
Terminal connection box
Wall brackets
Screws
