Technical Data Sheet
Camino LED Mirror 450
3629

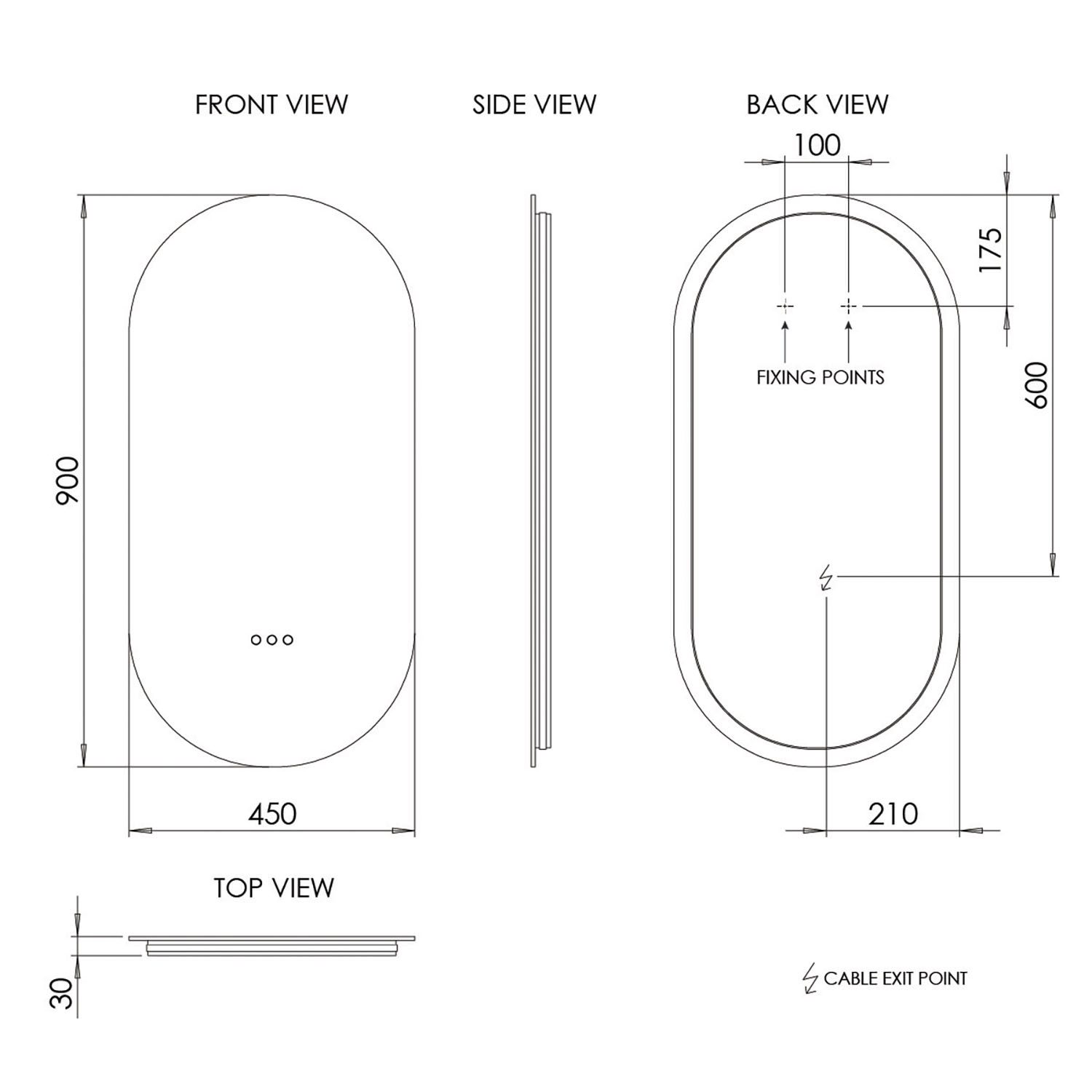

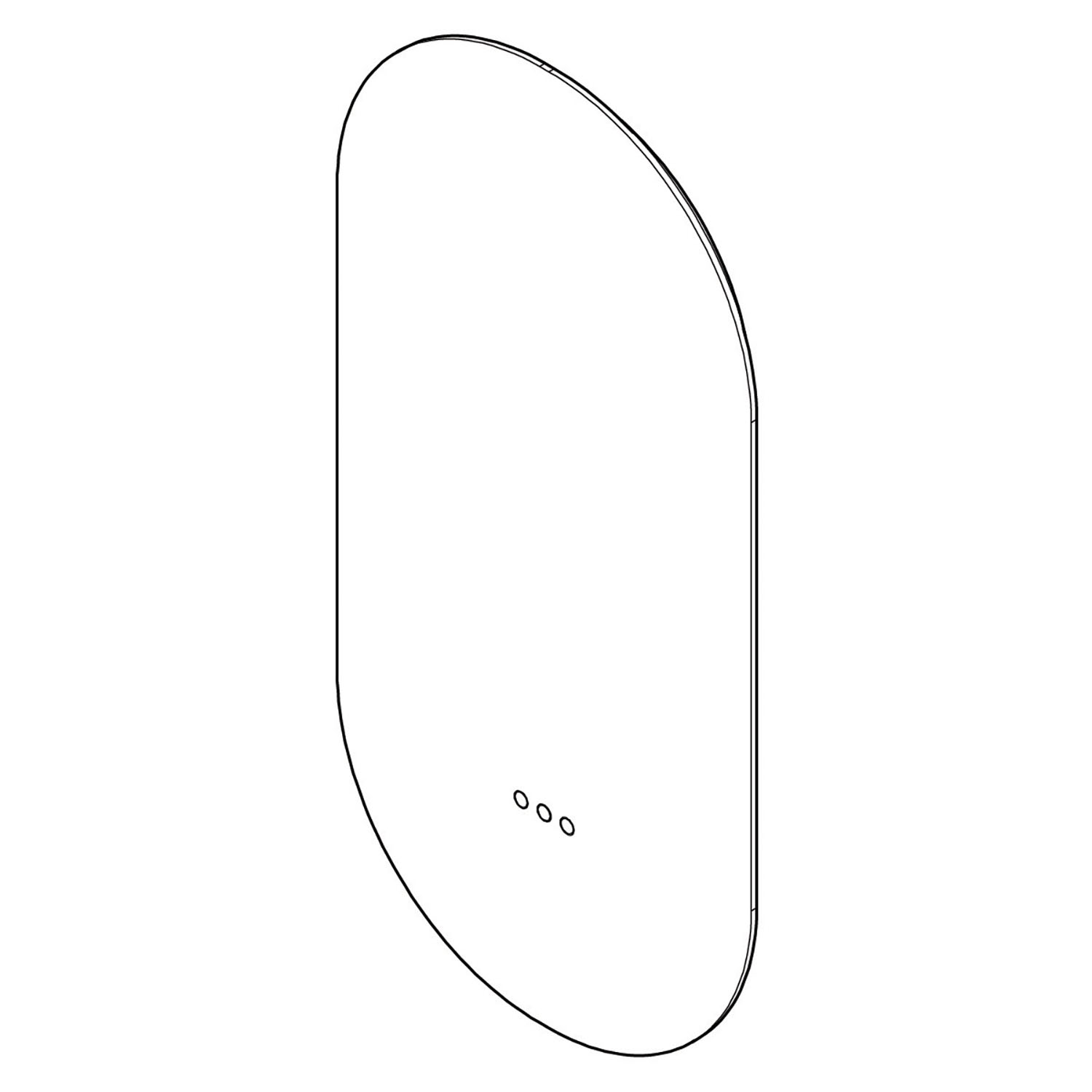

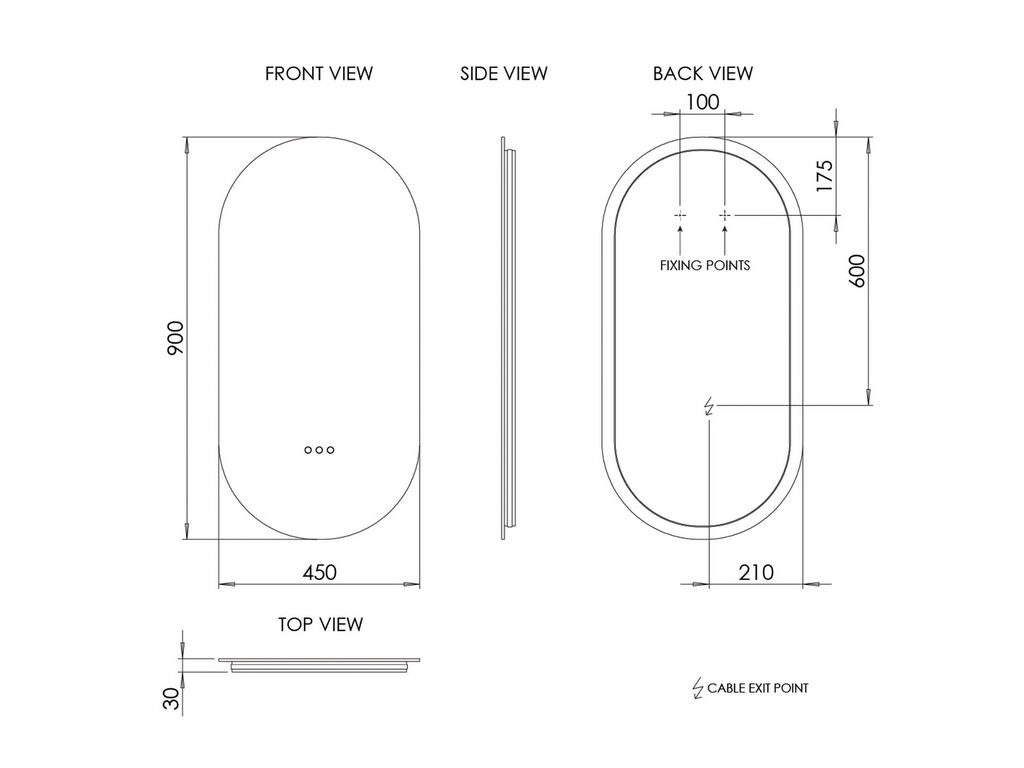

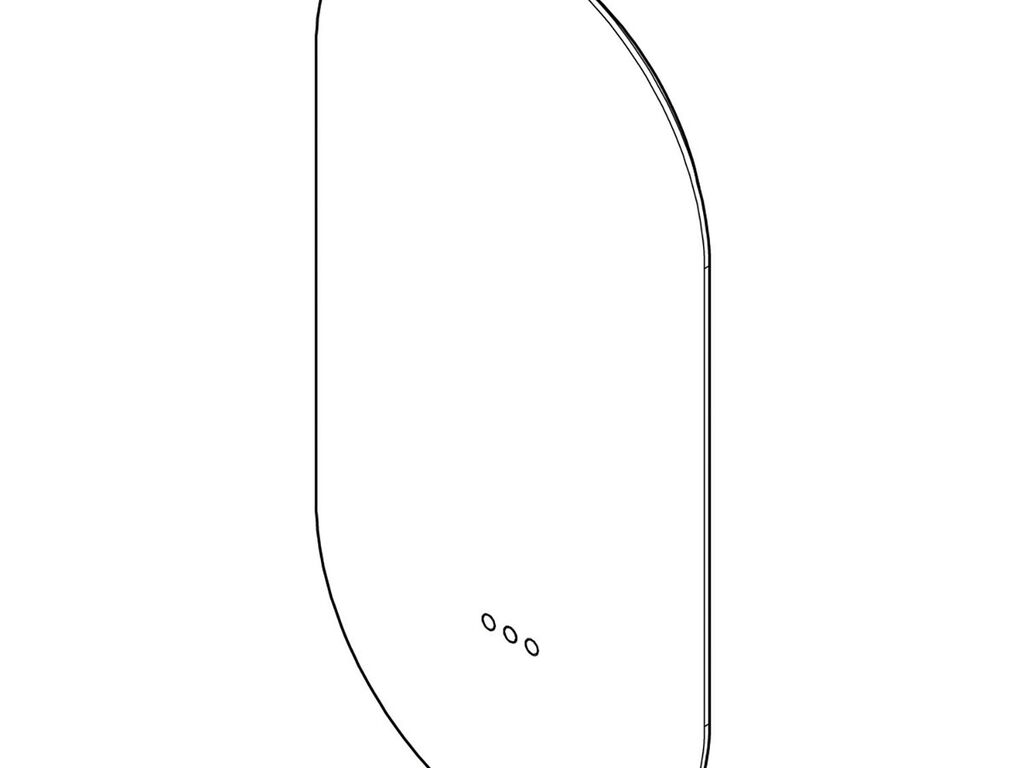

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
450 x 30 x 900mm
Weight:
4.46 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 16W, Demister 12W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
200 x 250mm
Cable Length:
1000mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Adjustable (Cool White to Warm White)
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Camino LED Mirror 450
Instructions
Fitting kit
Expansion plugs
Terminal connection box
Wall brackets
Screws
