Technical Data Sheet
Furnas Knurled T-Pull Handle
3611

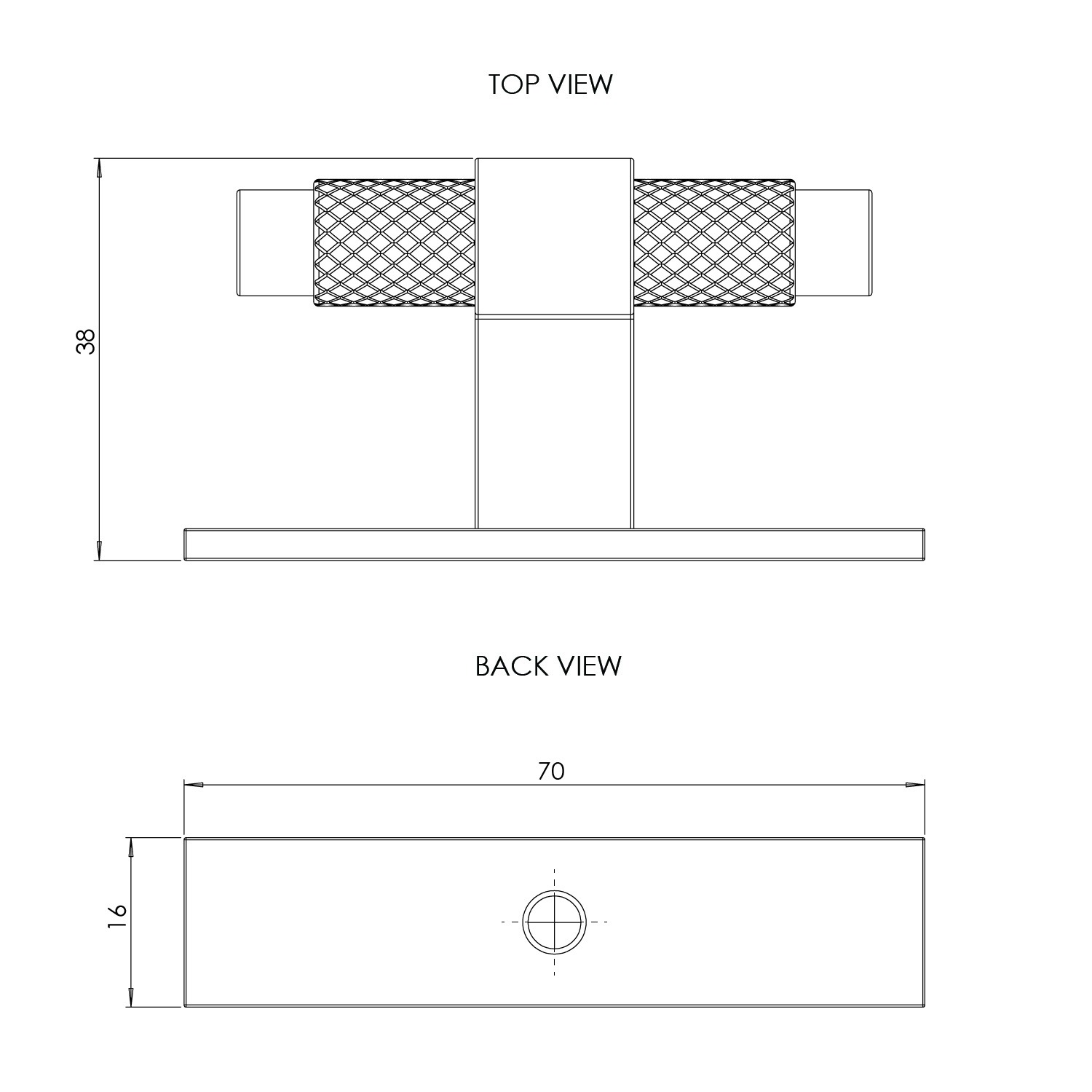

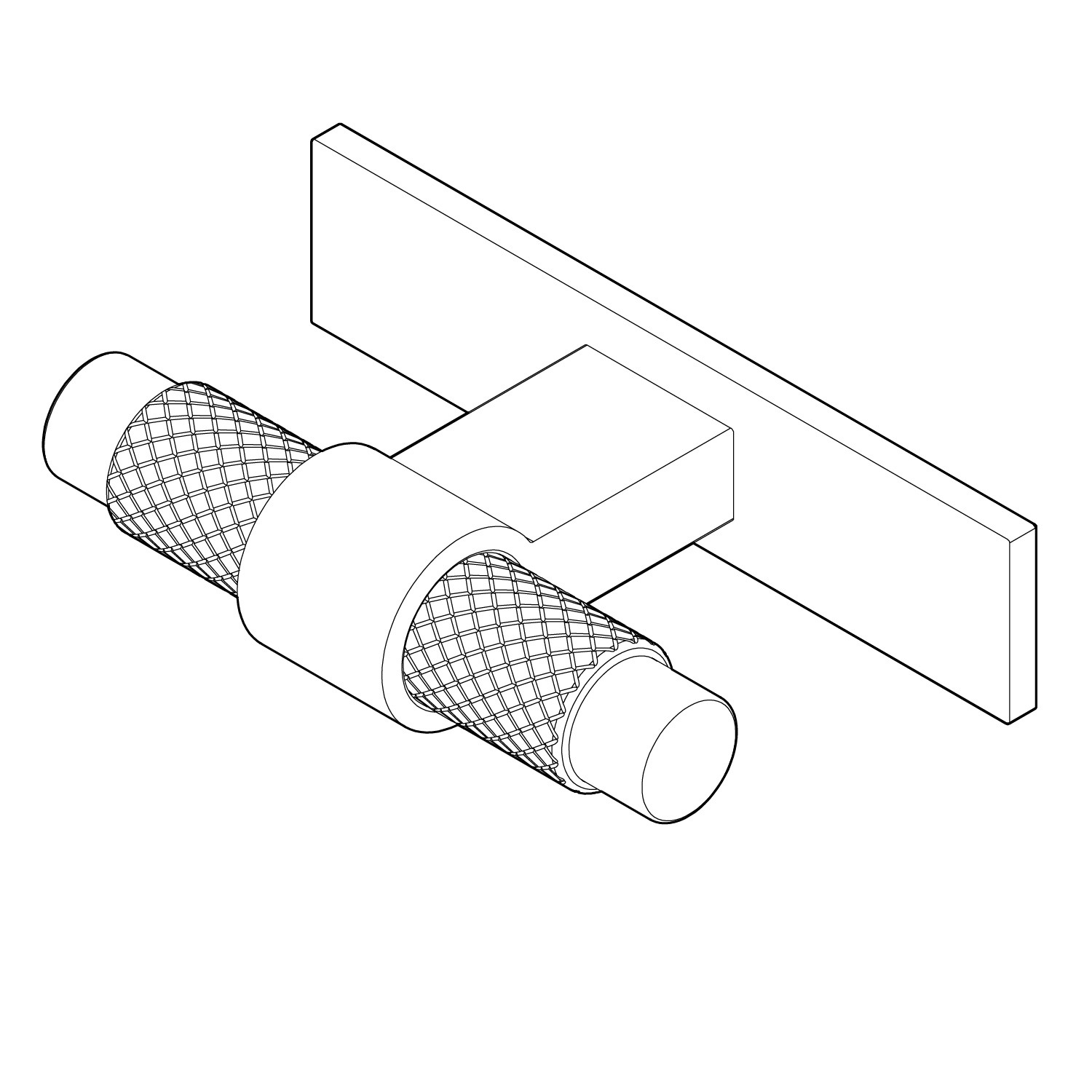

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
70 x 38 x 16mm
Weight:
0.02 kg
Main Construction Material:
Metal
Handle Type:
T-Pull
Screw Length Required:
22mm
Number of Screws Required:
1
Finish:
Brushed Brass
Finish Code:
BBR
Finish Group:
Metallic
Surface Finish Effect:
Brushed
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Furnas Knurled T-Pull Handle
Fixings
