Technical Data Sheet
Furnas Knurled Bar Handle
3610

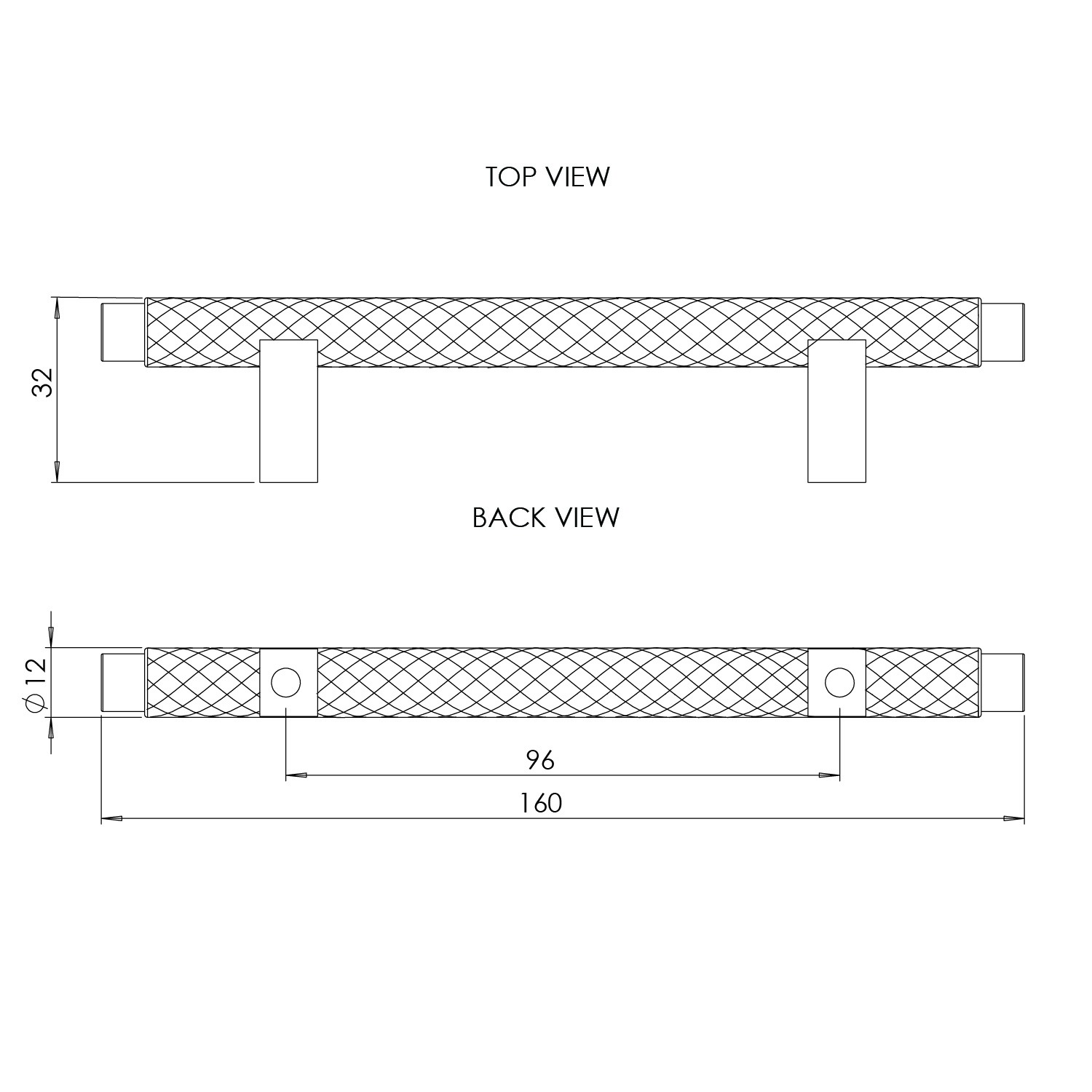

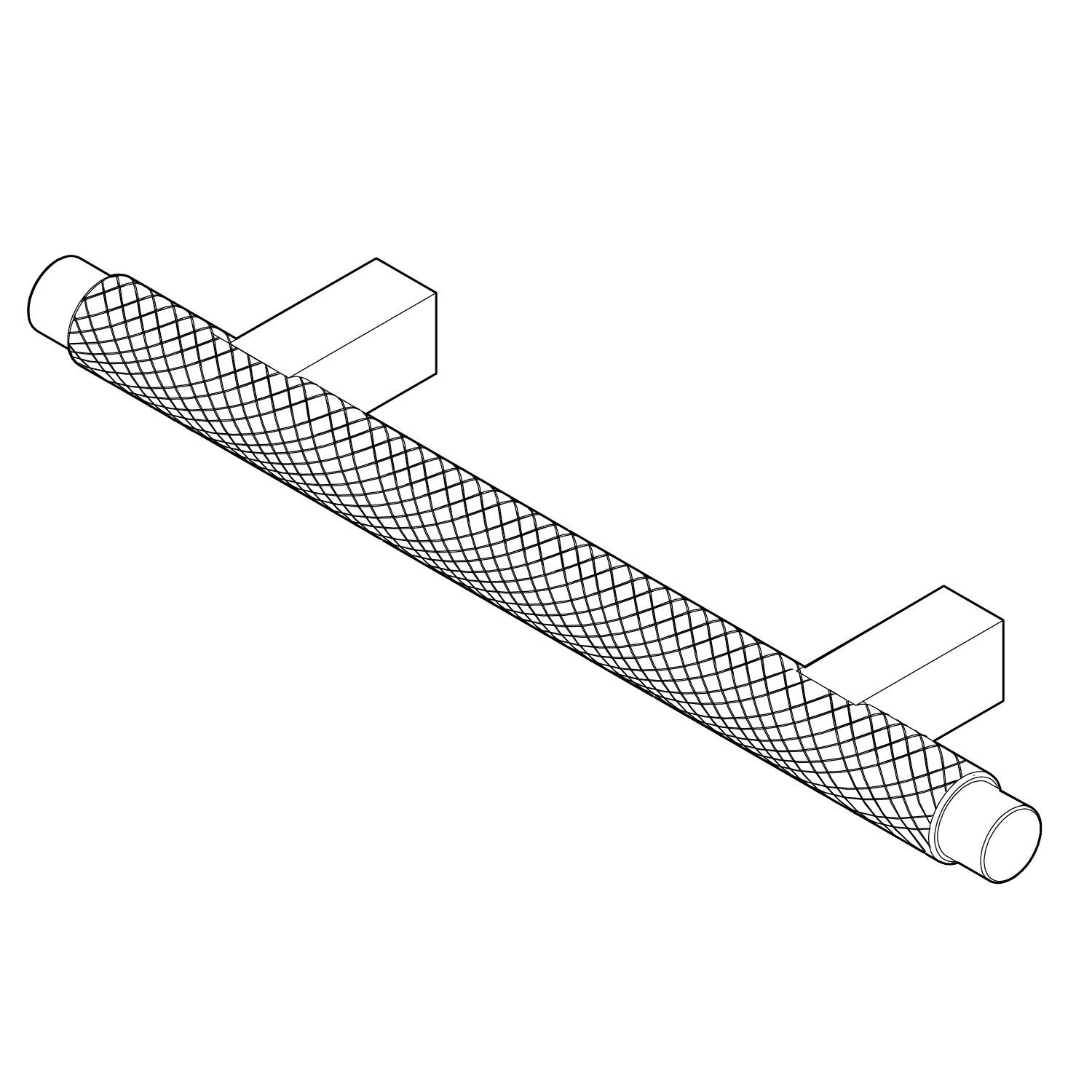

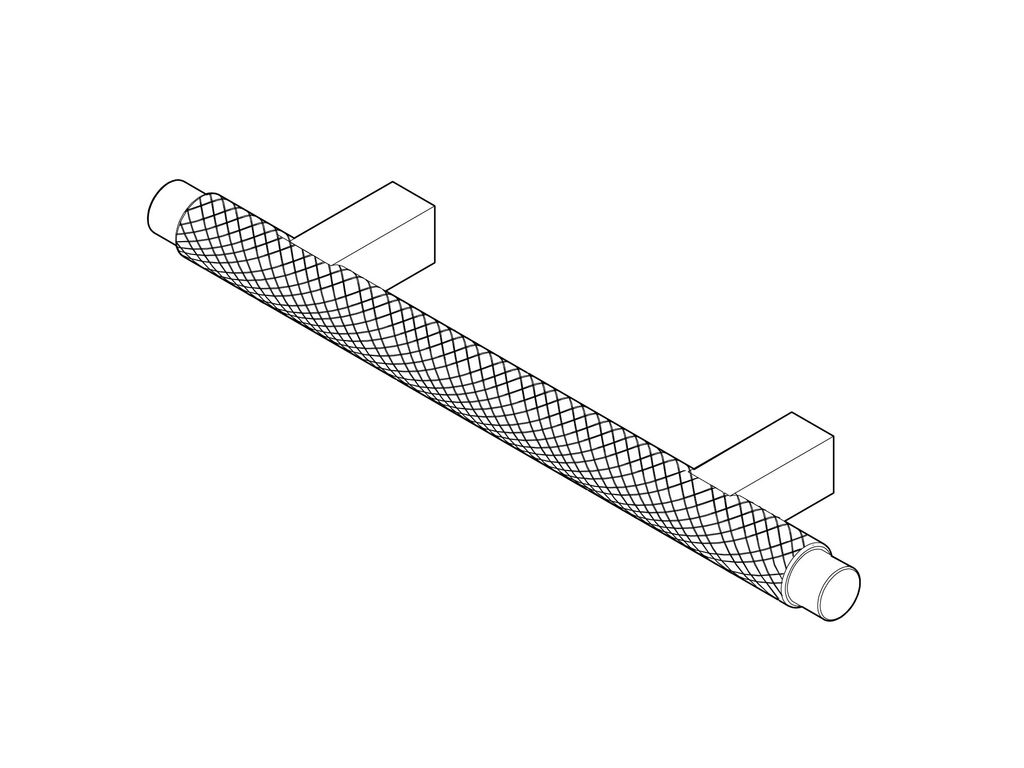

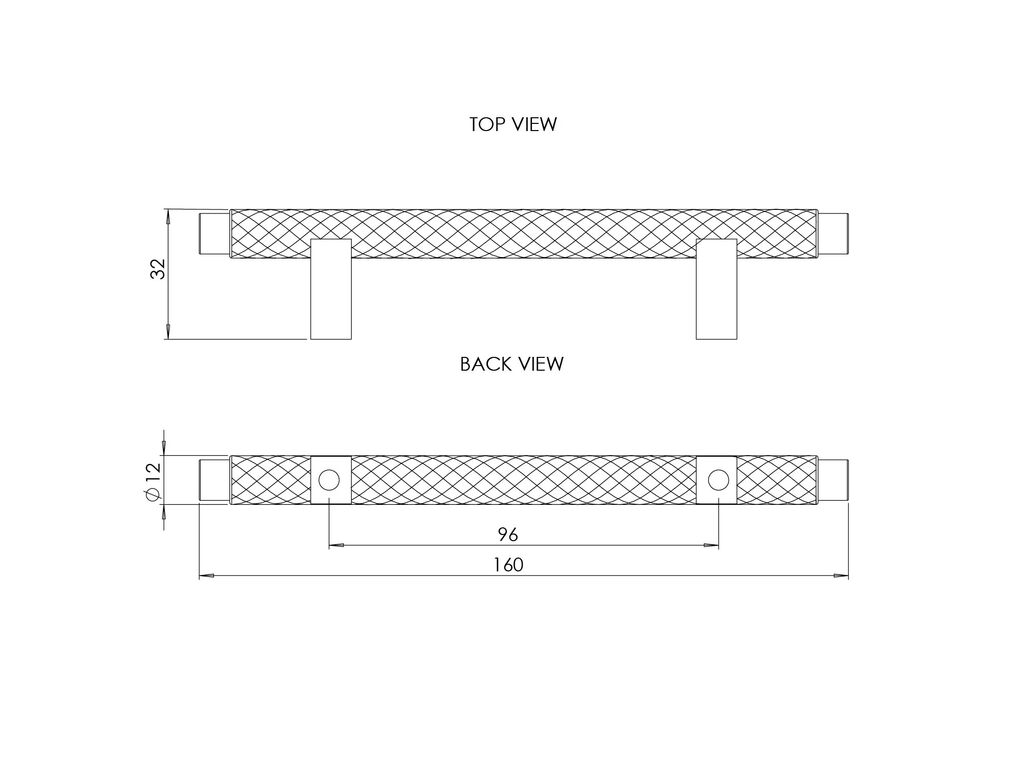

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
160 x 32 x 12mm
Weight:
0.06 kg
Main Construction Material:
Metal
Handle Type:
Bar
Fixing Hole Centres:
96mm
Screw Length Required:
22mm
Number of Screws Required:
2
Surface Finish:
Brushed Brass
Finish Effect:
Brushed
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Furnas Knurled Bar Handle
M4 machine screws
