Technical Data Sheet
Aurora Wall Hung Pan Vortex with Ballina Seat
36.9329.02

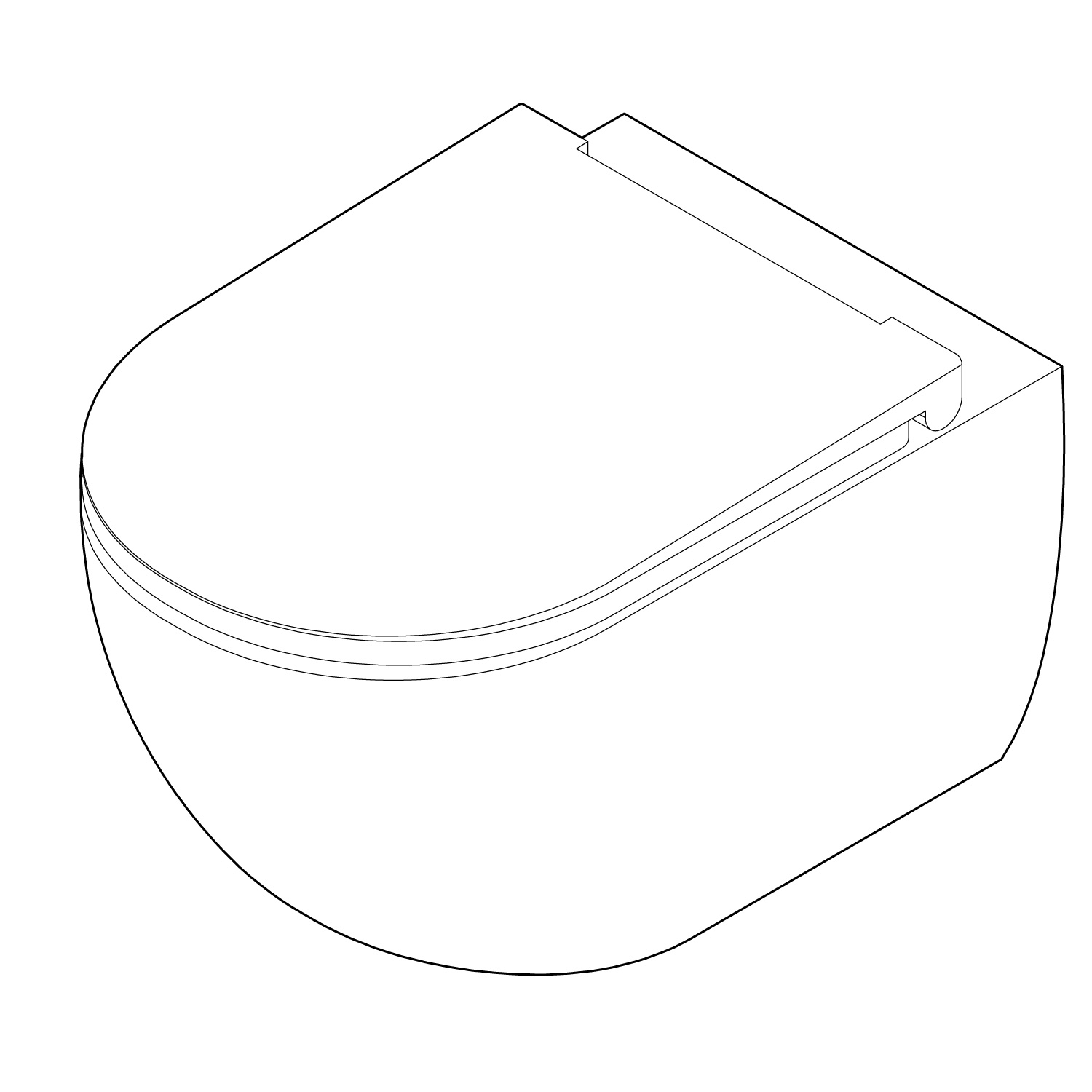

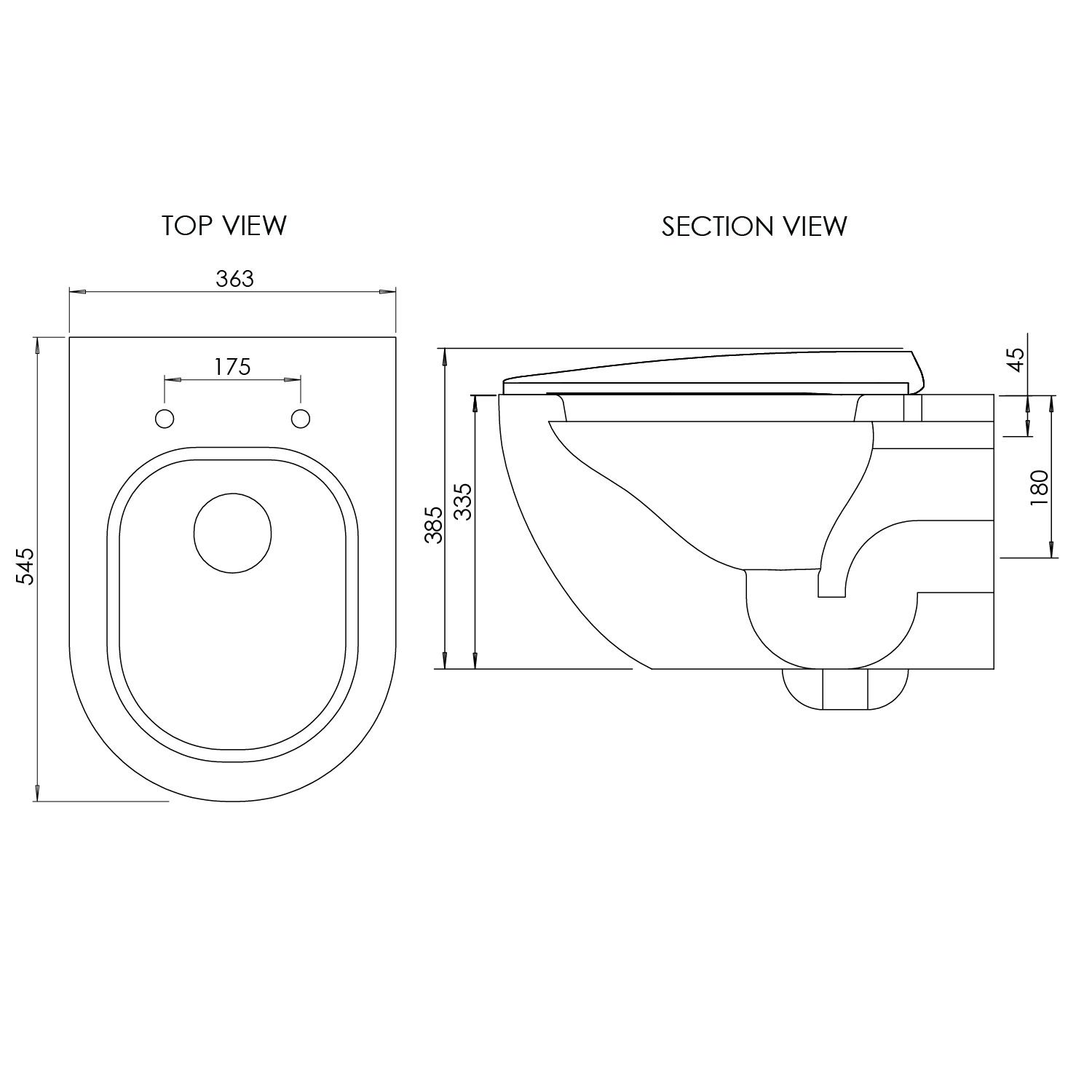

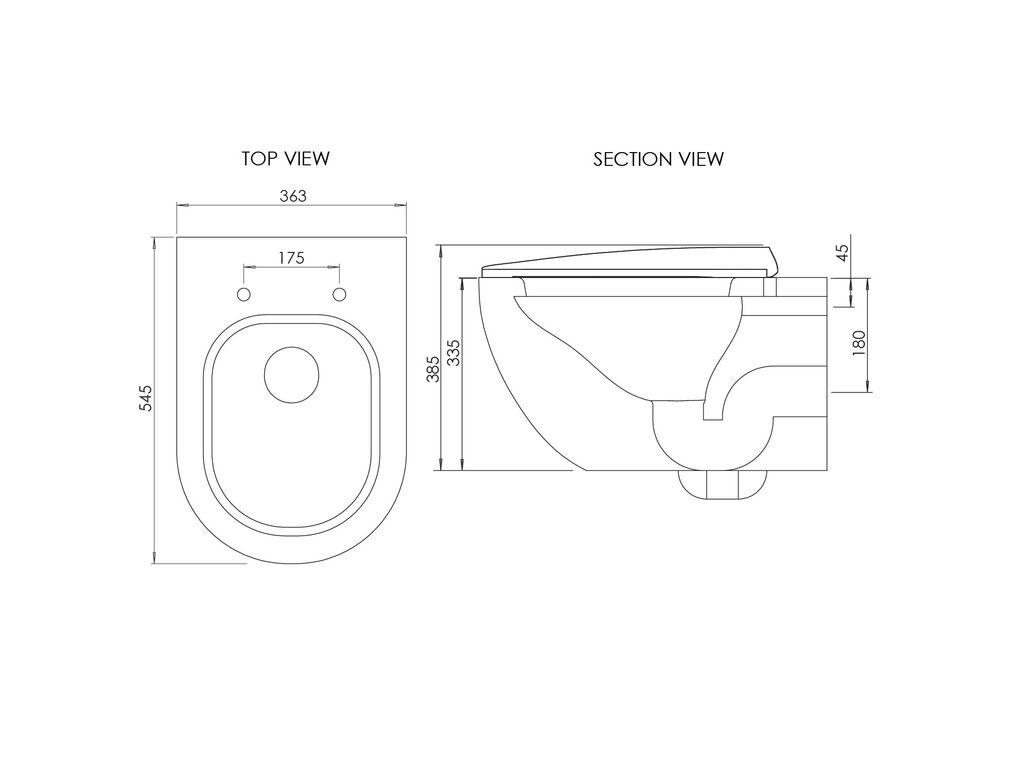

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
363 x 545 x 385mm
Weight:
27.72 kg
WC Pan Material:
Ceramic
WC Type:
Wall Hung
WC Fixation Method:
Fixed at rear
WC Rim Type:
Rimless
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
No
WC Seat Material:
Duroplast Plastic
WC Seat Form:
Wrap over
WC Seat Shape:
D-shaped
WC Seat Finish:
White
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
175mm
WC Seat Hinge Type:
30mm
WC Seat Hinge Material:
Anti-corrosion chrome plated brass
Replaceable Seat Cover Buffers:
Yes
Replaceable Seat Buffers:
Yes
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Aurora Wall Hung Pan Vortex with Ballina Seat
Instructions
Fitting kit
