Technical Data Sheet

Aurora Wall Hung Vortex Pan with Collerina Seat

36.9329.01

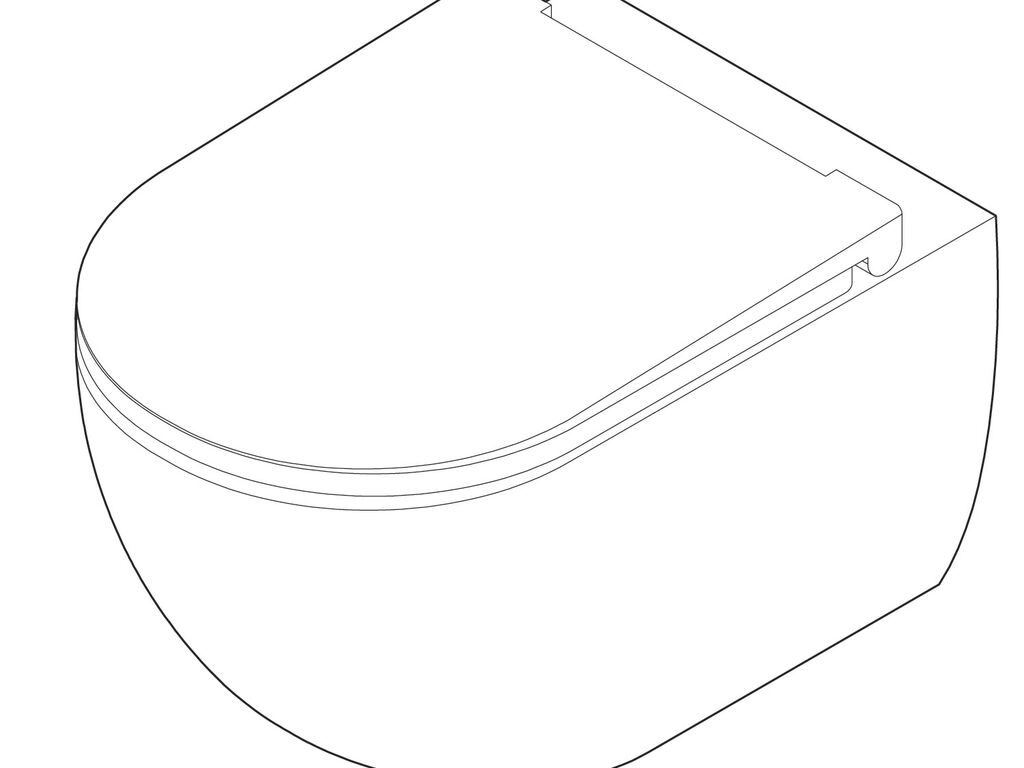

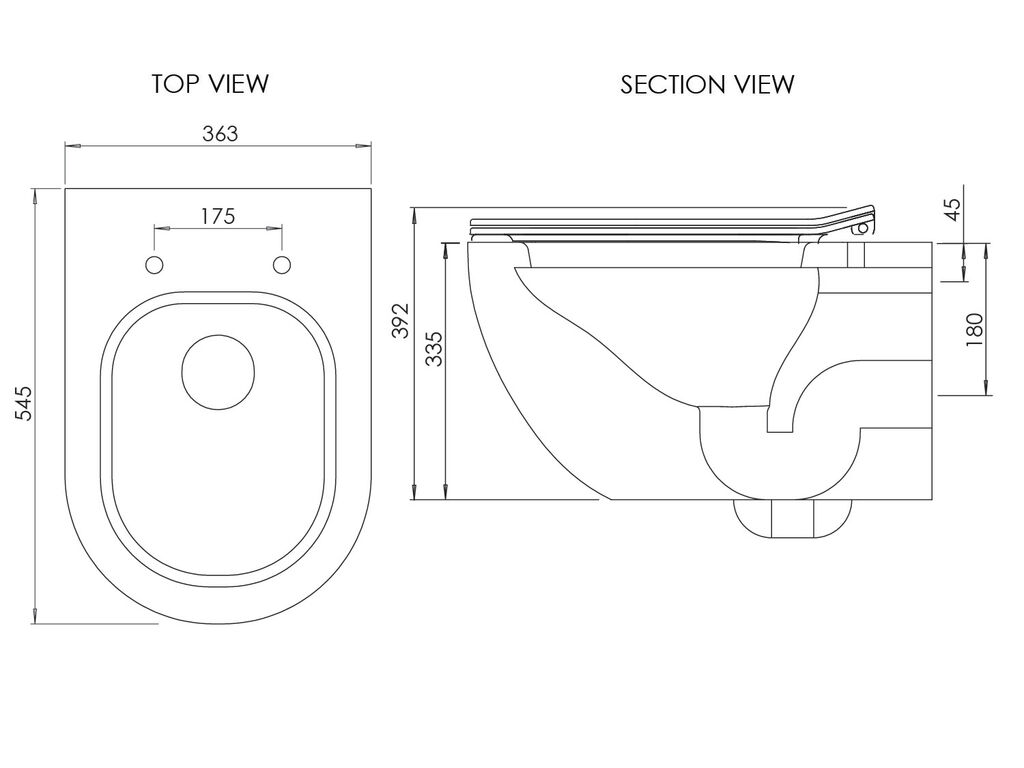

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

Technical Details

Dimensions (WxDxH):

363 x 545 x 392mm

Weight:

27.72 kg

WC Pan Material:

Ceramic

WC Type:

Wall Hung

WC Fixation Method:

Fixed at rear

WC Rim Type:

Vortex

Outlet Orientation:

Horizontal

Outlet Visibility:

Concealed

Flow Regulator Included:

Yes

WC Seat Material:

Thermoset Plastic

WC Seat Form:

Sandwich

WC Seat Shape:

D-shaped

WC Seat Finish:

White

WC Seat Fixation Method:

Top fix

WC Seat Fixation Centres:

175mm

WC Seat Hinge Type:

45mm

WC Seat Hinge Material:

Anti-corrosion chrome plated brass

Interchangeable Hinge Caps:

Yes

Replaceable Seat Cover Buffers:

Yes

Replaceable Seat Buffers:

Yes

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 6mm.

In The Box:
