Technical Data Sheet
Aurora Back to Wall Rimless Pan with Collerina Seat
36.9328.01

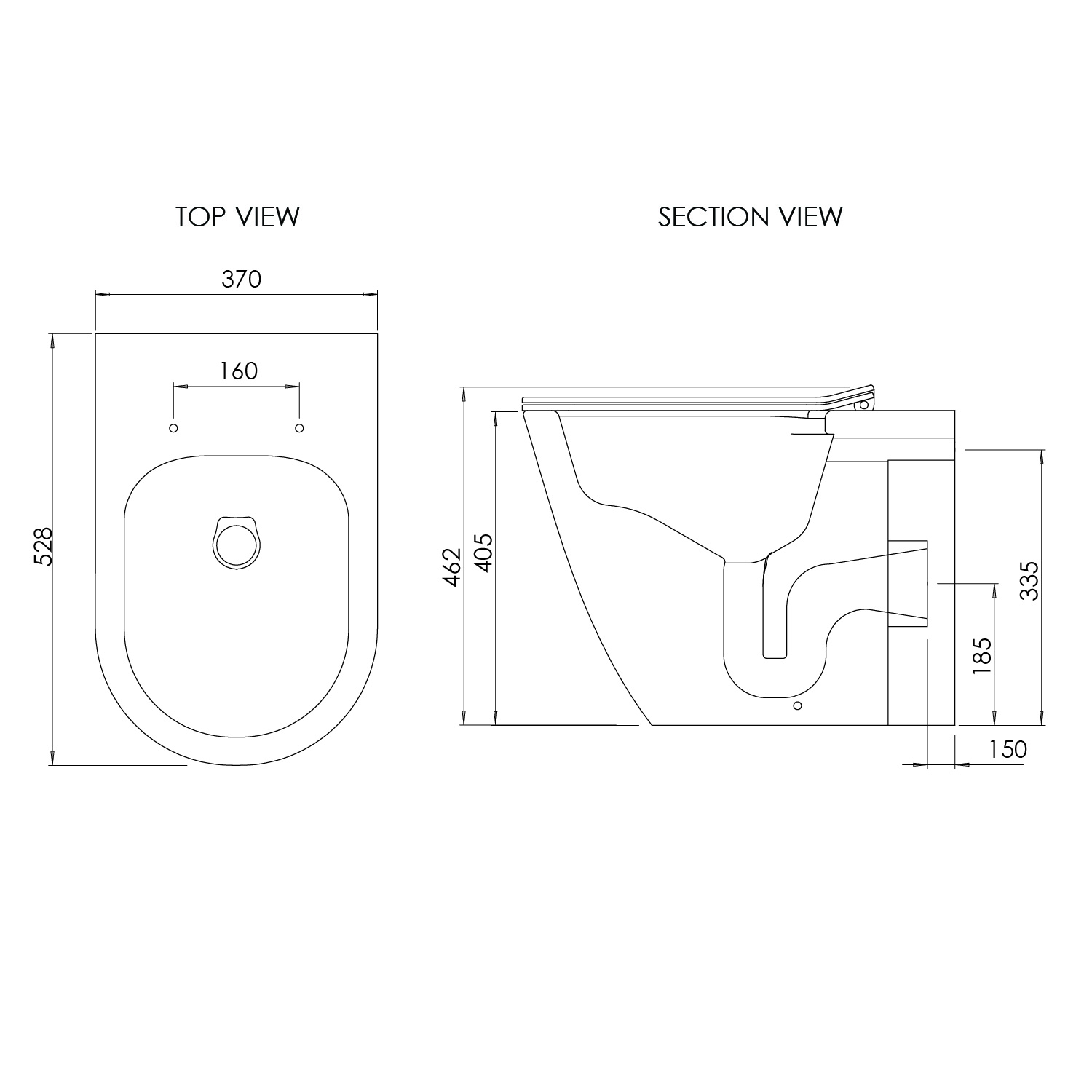

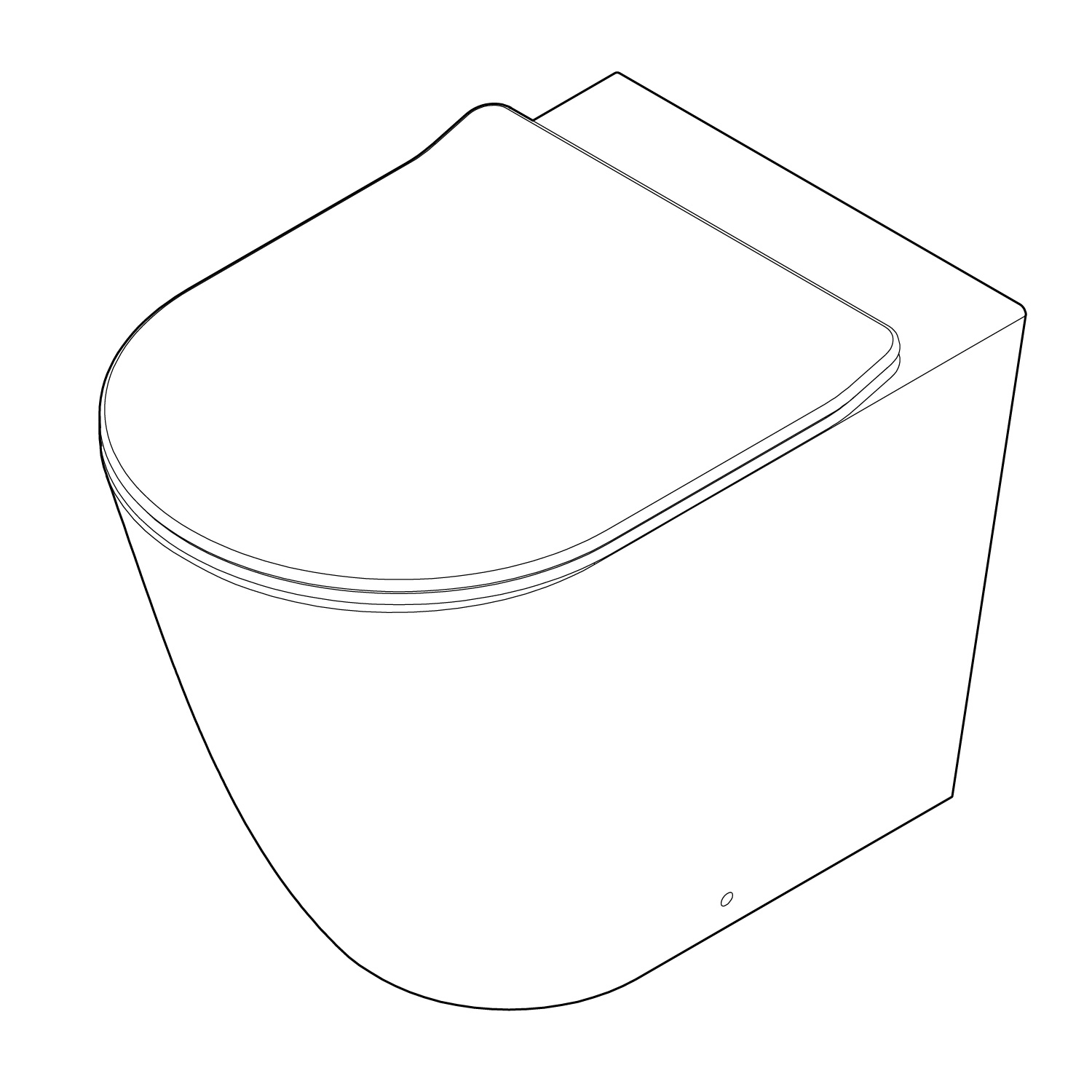

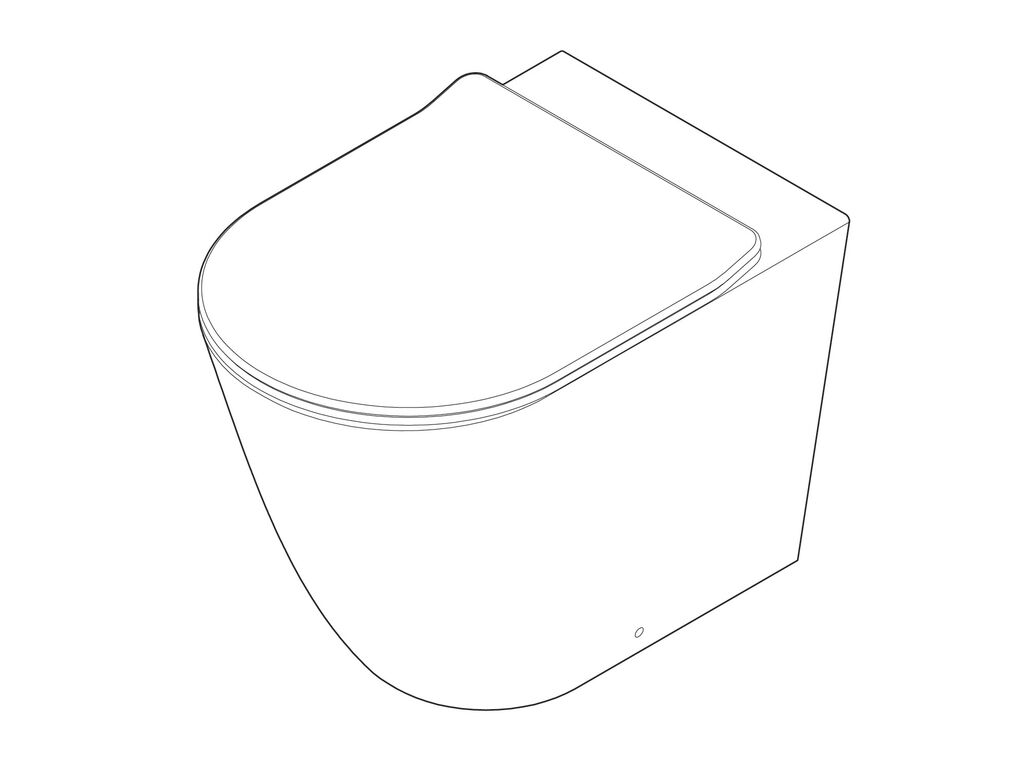

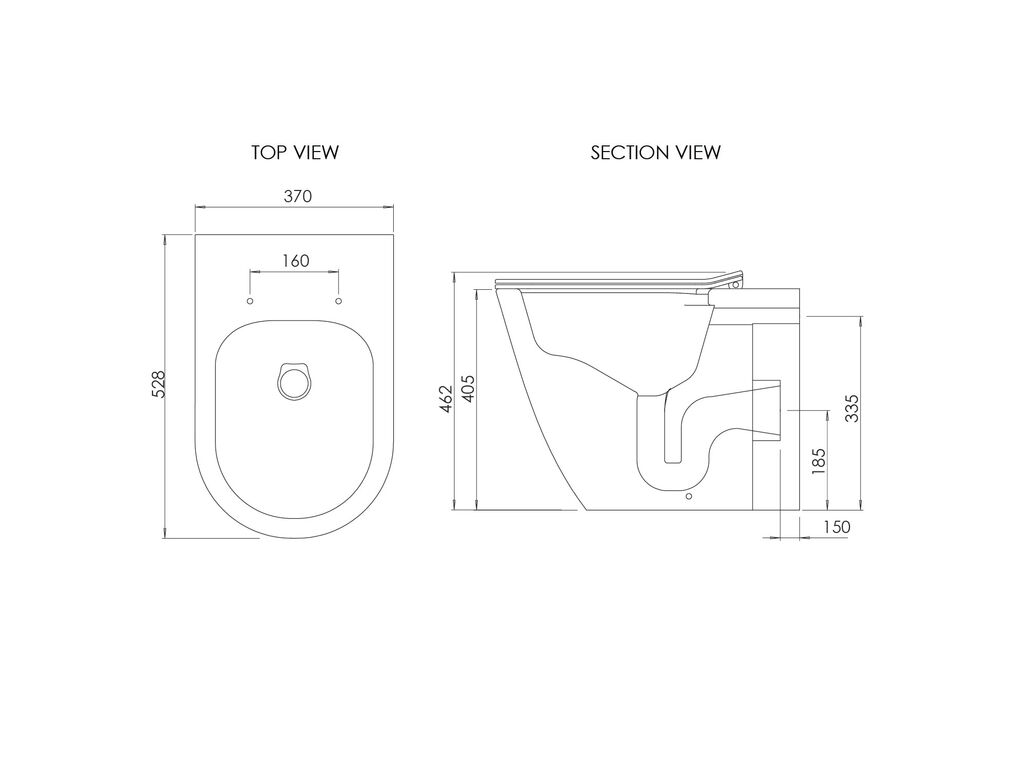

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
370 x 528 x 462mm
Weight:
30.05 kg
WC Pan Material:
Ceramic
WC Type:
Back to Wall
WC Fixation Method:
Fixed at base with supplied kit
WC Rim Type:
Rimless
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
No
WC Seat Material:
Thermoset Plastic
WC Seat Form:
Sandwich
WC Seat Shape:
D-shaped
WC Seat Finish:
White
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
155mm
WC Seat Hinge Type:
45mm
WC Seat Hinge Material:
Stainless steel
Replaceable Seat Cover Buffers:
Yes
Replaceable Seat Buffers:
Yes
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Aurora Back to Wall Rimless Pan with Collerina Seat
Fitting kit
