Technical Data Sheet
Riverdale Back to Wall Rimless Pan with Collerina Seat
36.9325.01

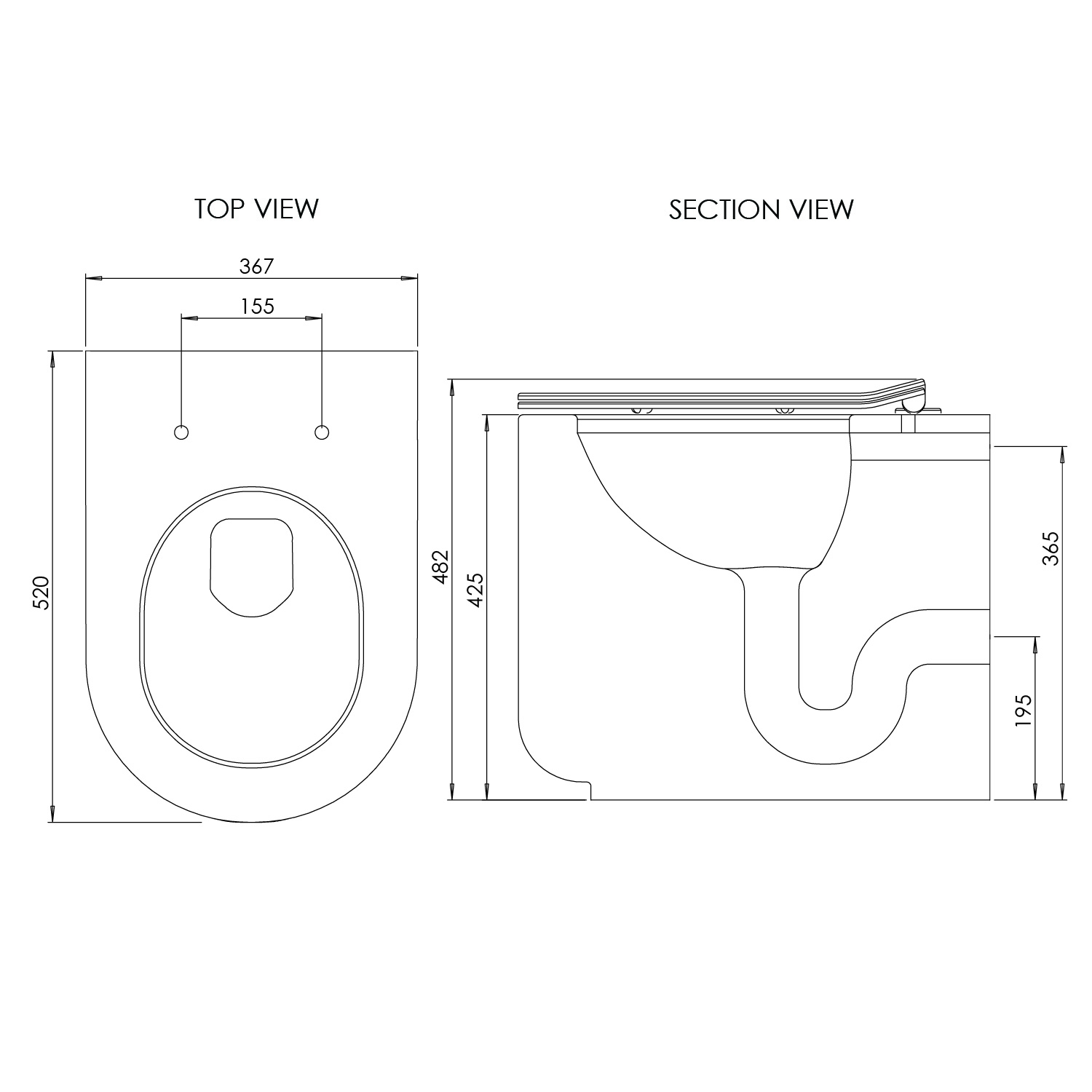

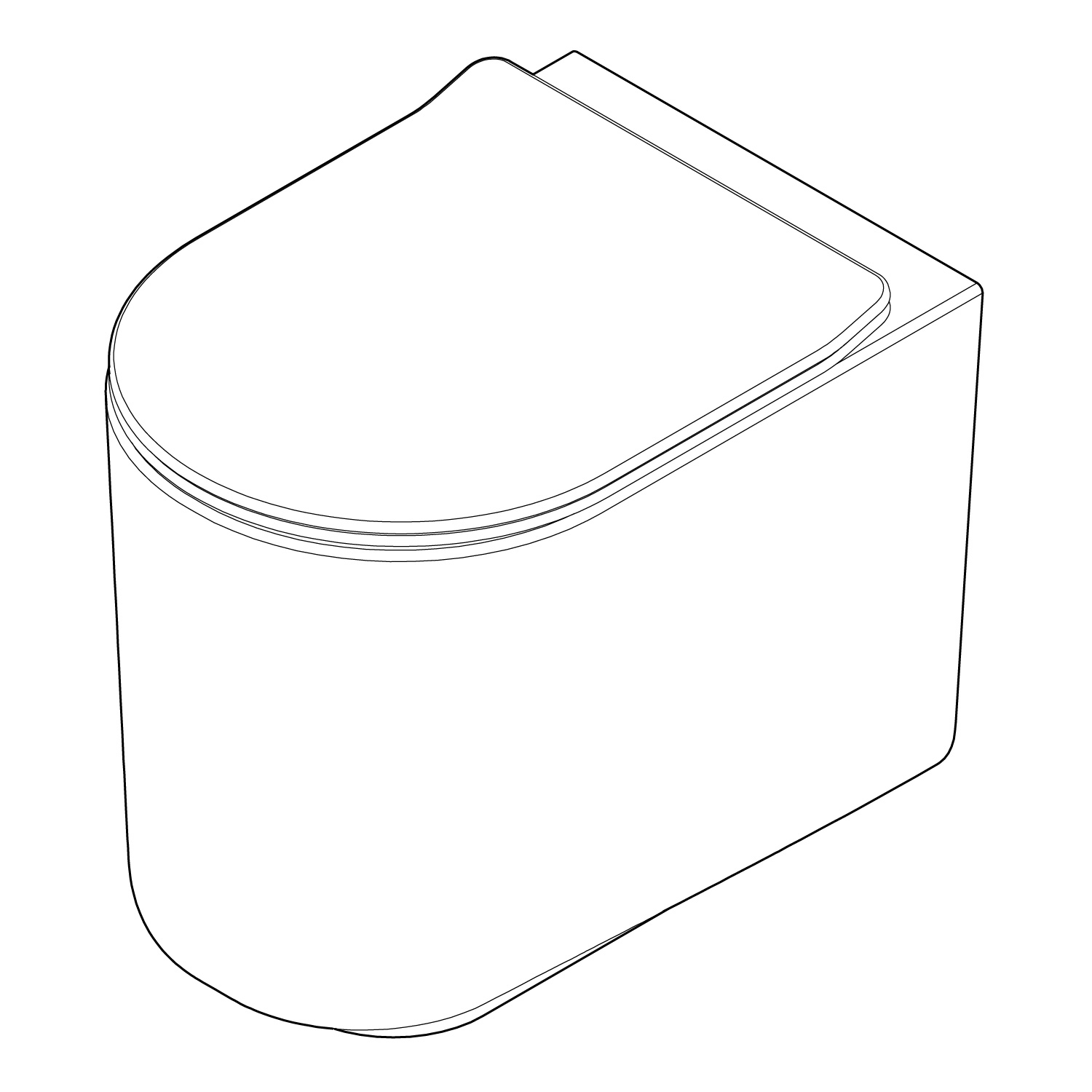

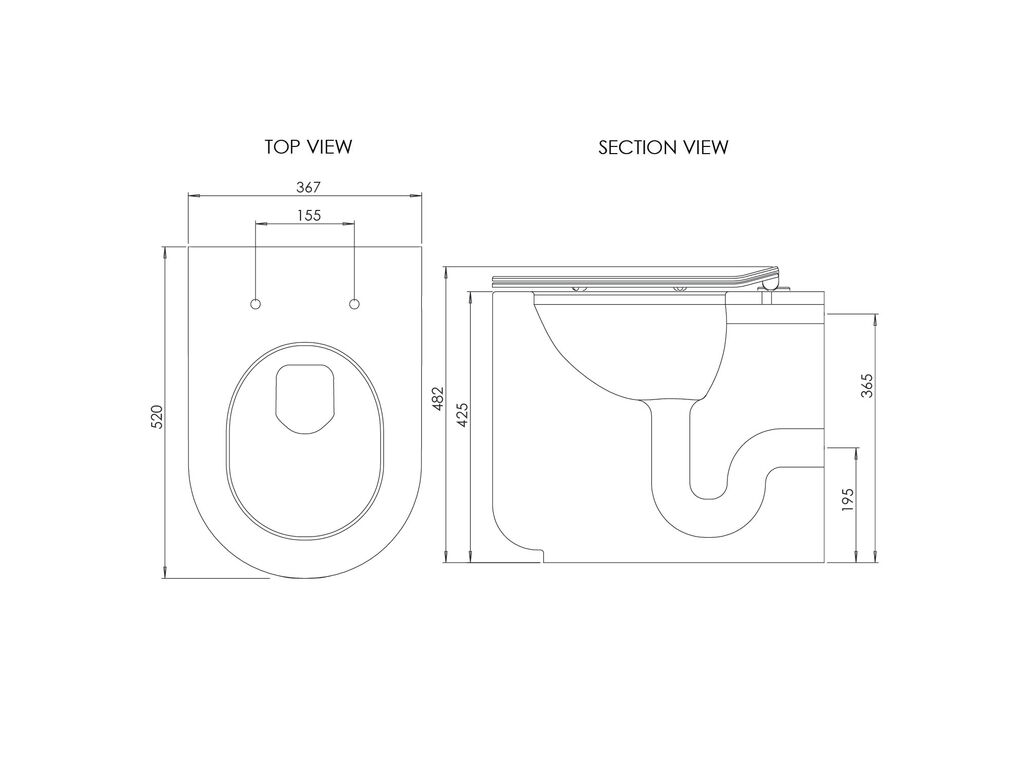

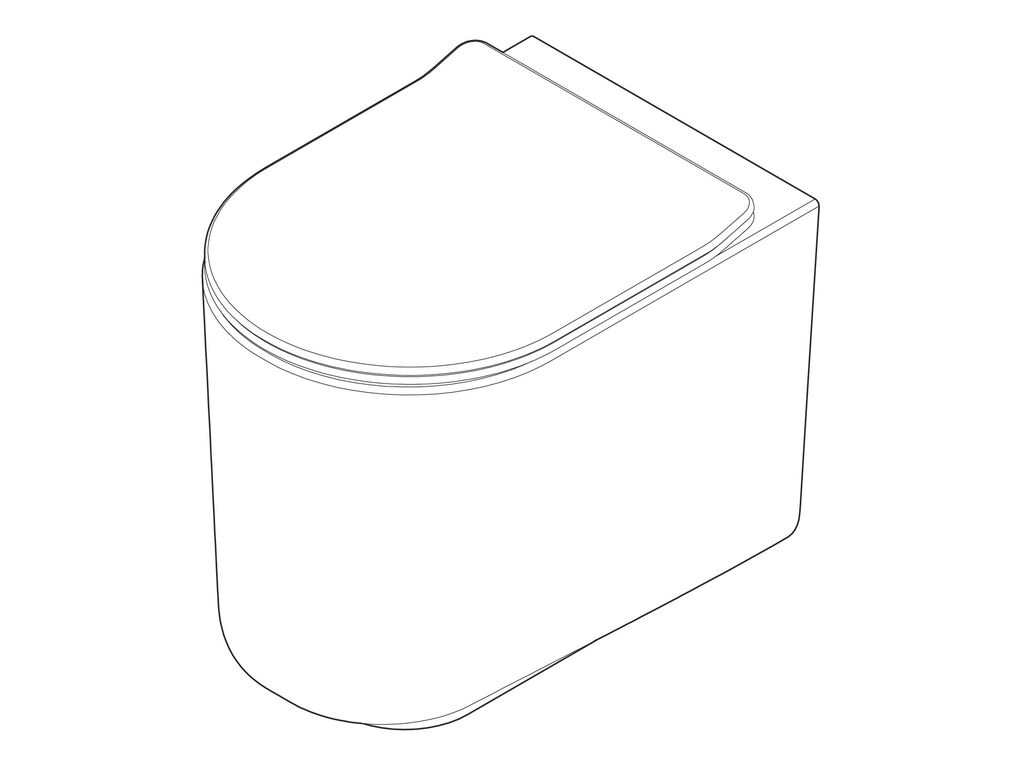

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
367 x 520 x 482mm
Weight:
34.66 kg
WC Pan Material:
Ceramic
WC Type:
Back to Wall
WC Rim Type:
Standard
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
Yes
WC Seat Material:
Duroplast Plastic
WC Seat Form:
Sandwich
WC Seat Shape:
D-shaped
WC Seat Finish:
White
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
155mm
WC Seat Hinge Type:
C4302G 45mm
WC Seat Hinge Material:
Stainless steel
Interchangeable Hinge Caps:
Yes
Replaceable Seat Cover Buffers:
Yes
Replaceable Seat Buffers:
Yes
In The Box:
Riverdale Back to Wall Rimless Pan with Collerina Seat
Instructions
Fitting kit
