Technical Data Sheet

Cleveland Close Coupled Comfort Height Rimless Pan & Cistern with Ballina Seat

36.9182.01

Calypso Logo

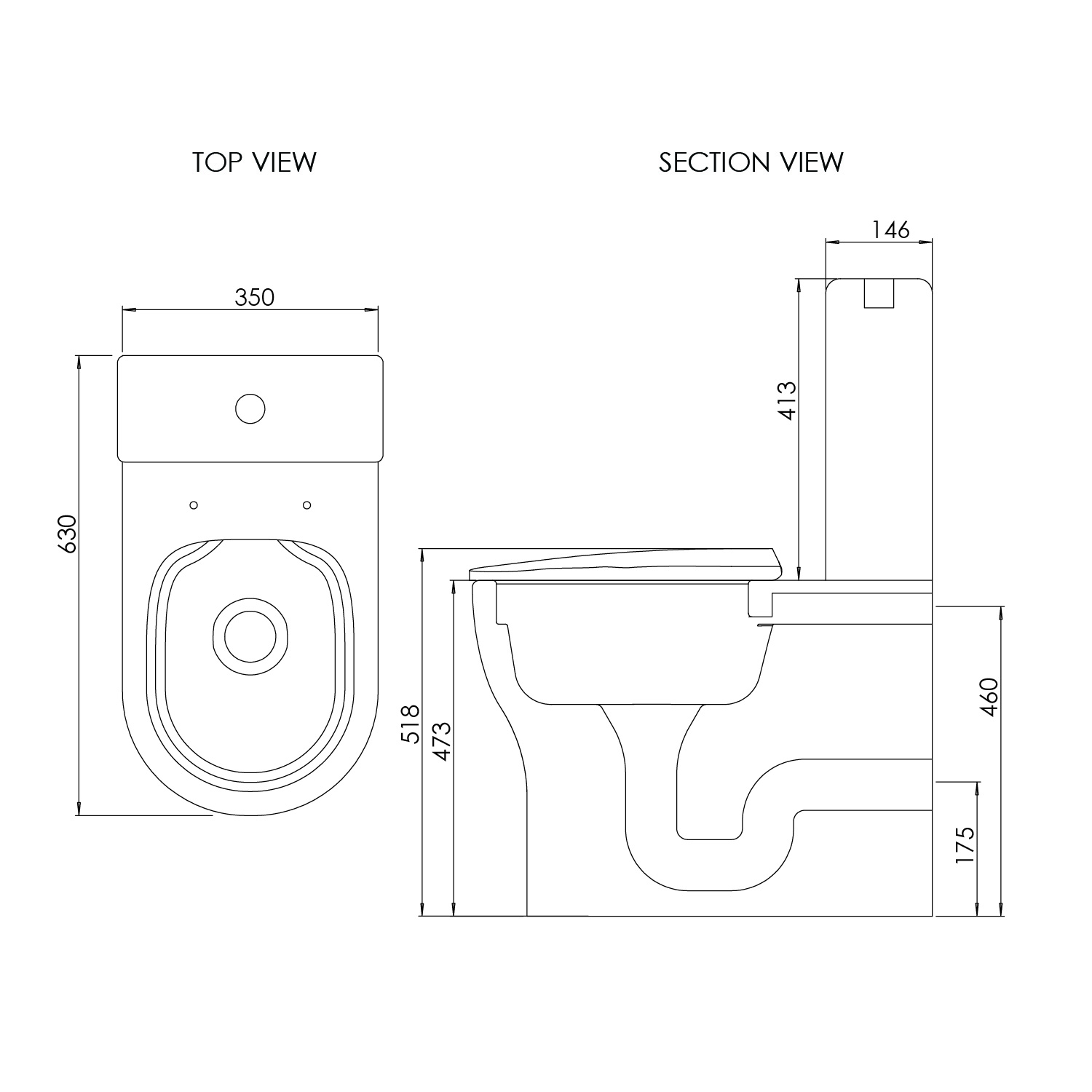

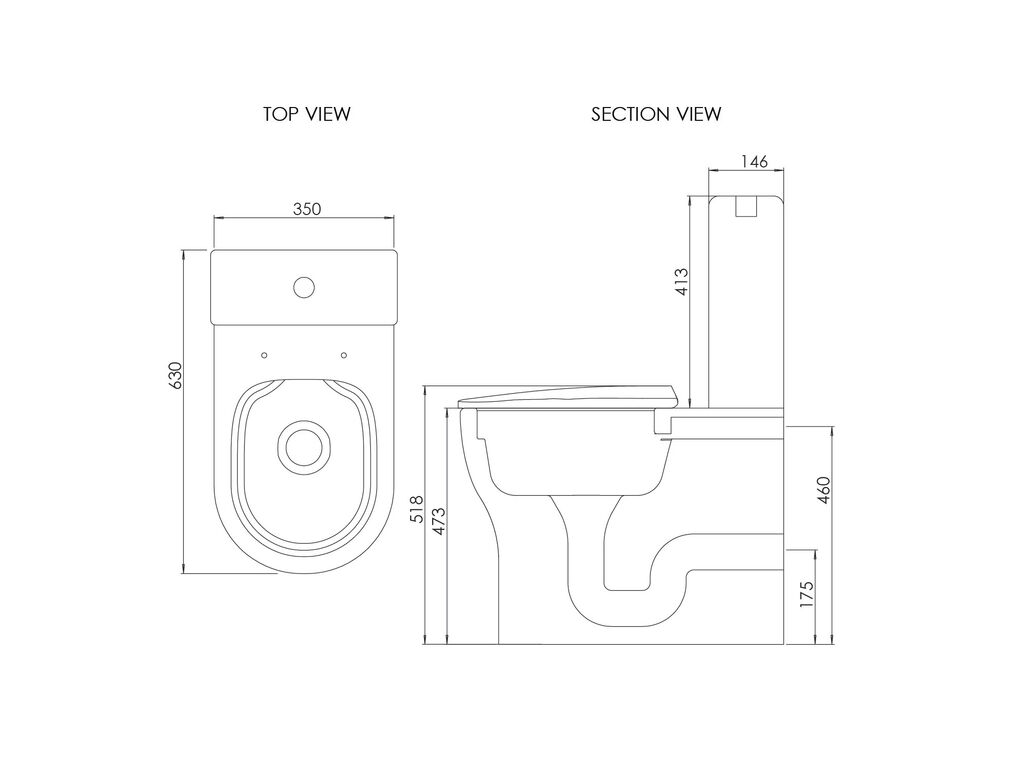

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

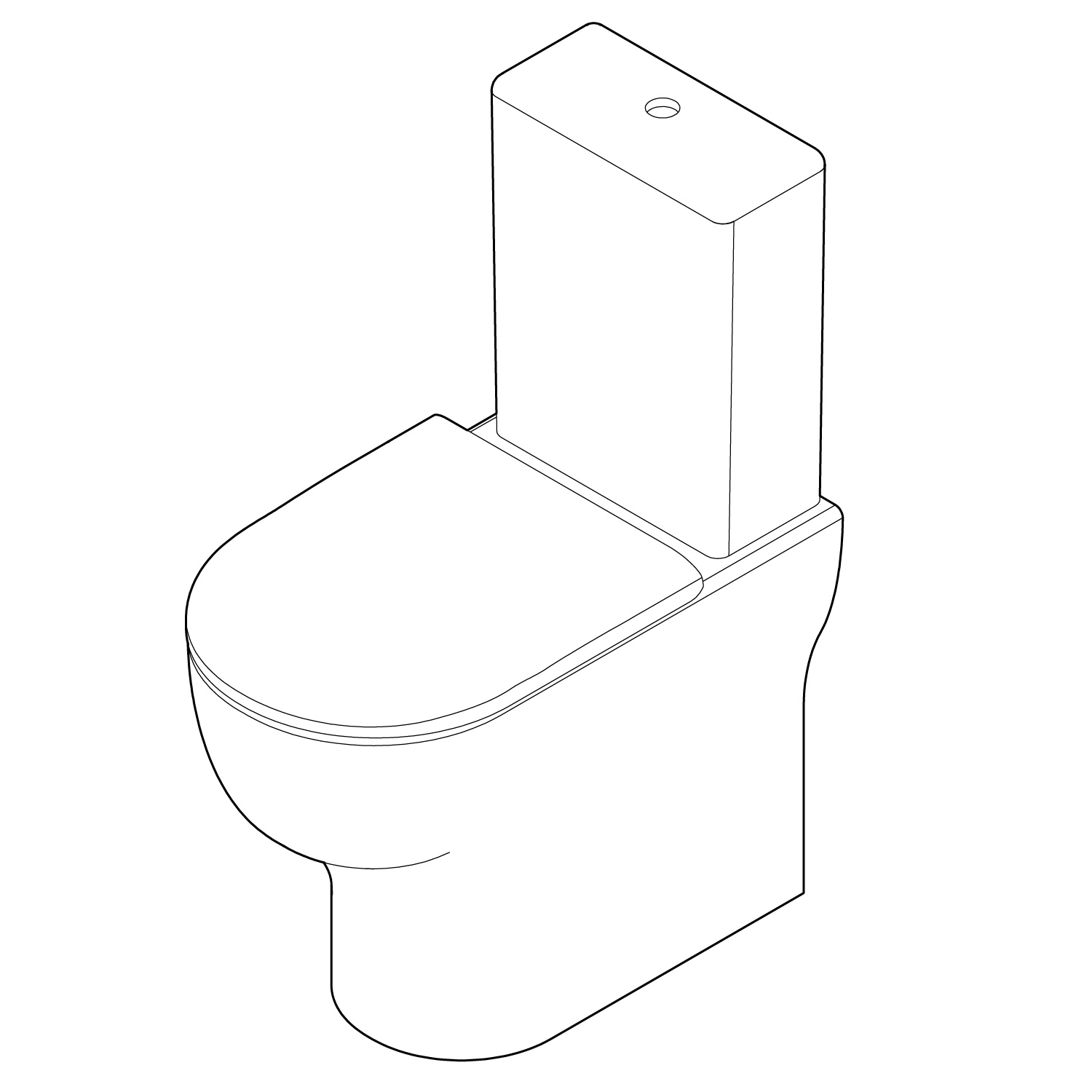

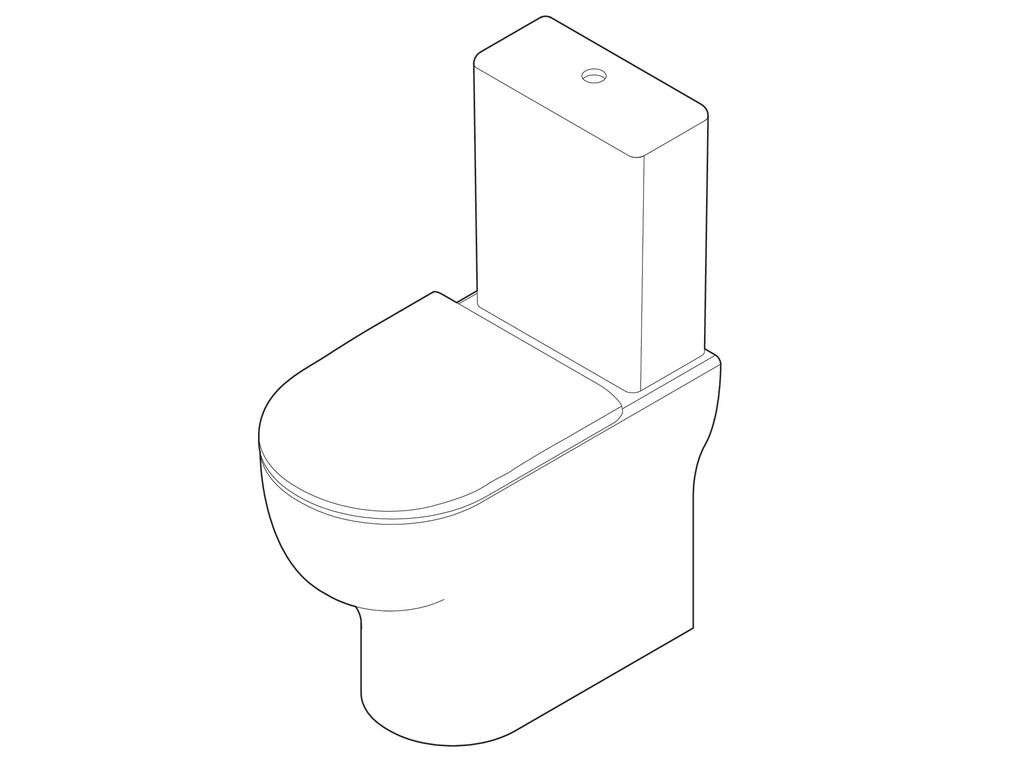

3D Line Drawing2D Line Drawing

Technical Details

Dimensions (WxDxH):

350 x 630 x 518mm

Weight:

31.26 kg

WC Pan Material:

Ceramic

WC Type:

Close Coupled

WC Fixation Method:

Fixed at rear

WC Rim Type:

Rimless

Outlet Orientation:

Horizontal

Outlet Visibility:

Concealed

Flow Regulator Included:

No

WC Seat Material:

Duroplast Plastic

WC Seat Form:

Wrap over

WC Seat Shape:

D-shaped

WC Seat Finish:

White

WC Seat Fixation Method:

Top fix

WC Seat Fixation Centres:

155mm

WC Seat Hinge Type:

C0102G 32mm

WC Seat Hinge Material:

Stainless steel

Interchangeable Hinge Caps:

No

Replaceable Seat Cover Buffers:

Yes

Replaceable Seat Buffers:

Yes

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 5mm.

In The Box:

Cleveland Close Coupled Comfort Height Rimless Pan & Cistern with Ballina Seat
Instructions
Fitting kit
