Technical Data Sheet
Georgia Back to Wall Pan with Wentworth Seat Slate
36.9170.06

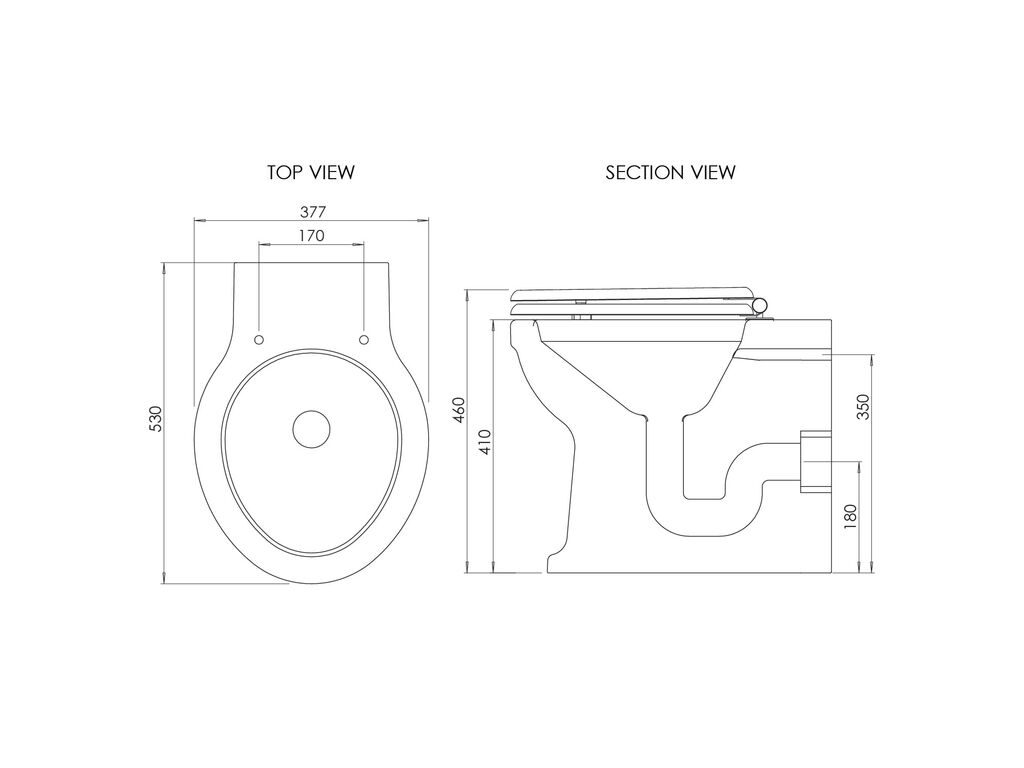

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
377 x 530 x 460mm
Weight:
27.16 kg
WC Pan Material:
Ceramic
WC Type:
Back to Wall
WC Rim Type:
Rimless
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
No
WC Seat Material:
Wood
WC Seat Form:
Sandwich
WC Seat Shape:
Oval
WC Seat Finish:
Slate
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
135mm
WC Seat Hinge Type:
45mm
WC Seat Hinge Material:
Anti-corrosion chrome plated brass
Interchangeable Hinge Caps:
No
Replaceable Seat Cover Buffers:
No
Replaceable Seat Buffers:
No
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Georgia Back to Wall Pan with Wentworth Seat Slate
Instructions
Fitting kit
