Technical Data Sheet
Madison Back to Wall Pan with Beechworth Seat
36.9161.01

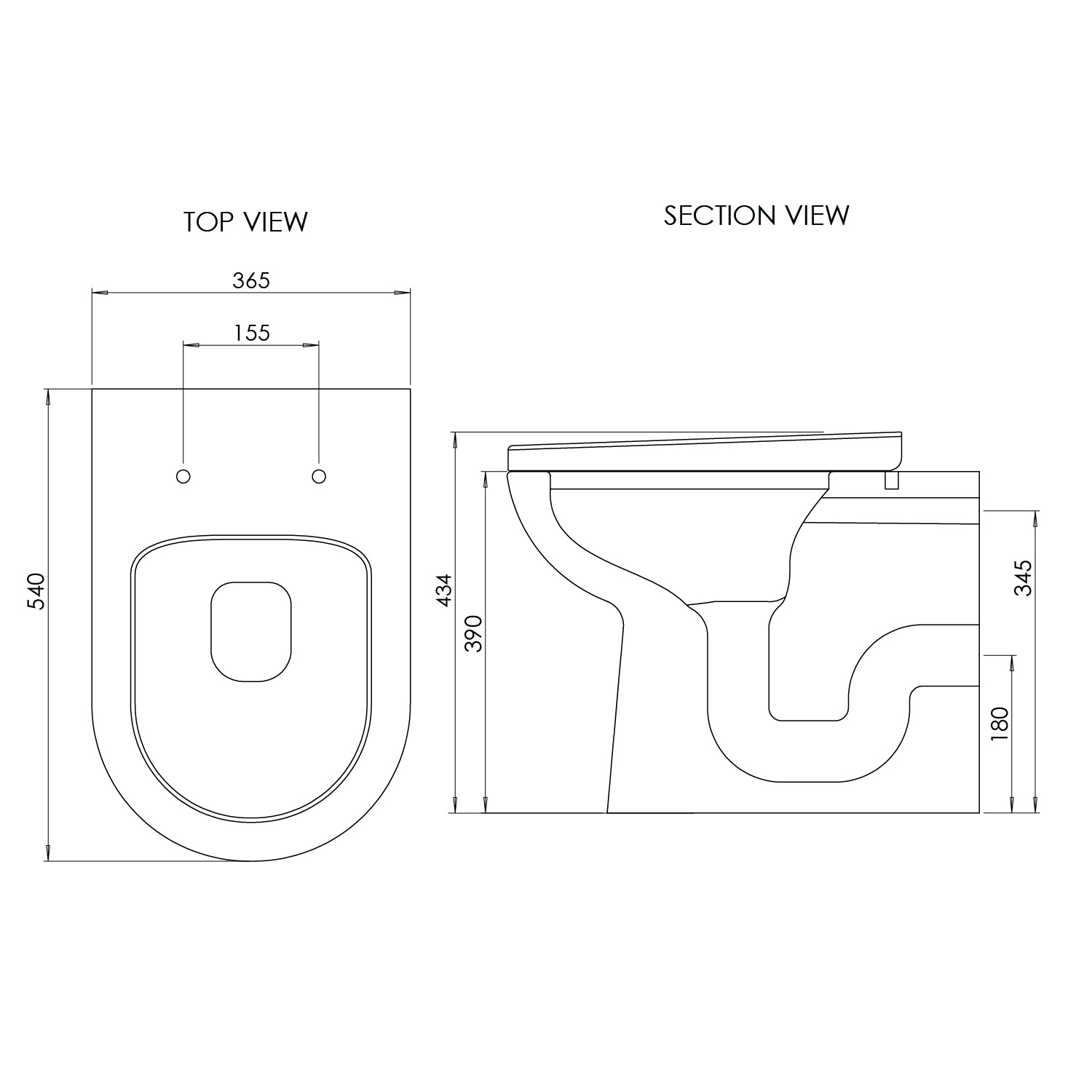

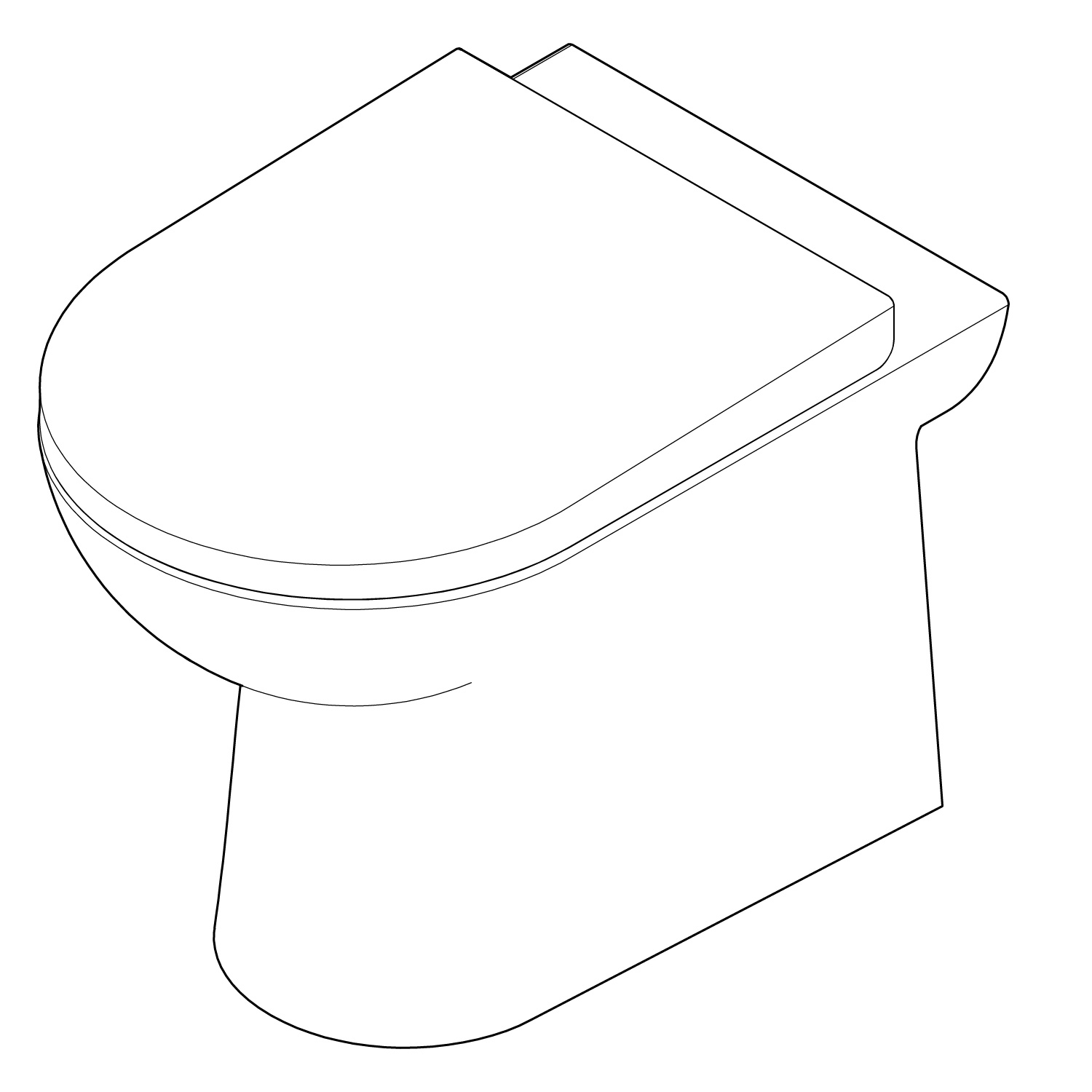

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
365 x 540 x 434mm
Weight:
26.68 kg
WC Pan Material:
Ceramic
WC Type:
Back to Wall
WC Rim Type:
Standard
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
No
WC Seat Material:
Duroplast Plastic
WC Seat Form:
Wrap over
WC Seat Shape:
D-shaped
WC Seat Finish:
White
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
135mm
WC Seat Hinge Type:
S227K 45mm
WC Seat Hinge Material:
Stainless steel
Interchangeable Hinge Caps:
No
Replaceable Seat Cover Buffers:
Yes
Replaceable Seat Buffers:
Yes
In The Box:
Madison Back to Wall Pan with Beechworth Seat
Instructions
Fitting kit
