Technical Data Sheet
Charlotte Wall Hung Pan with Temora Seat
36.9116.01

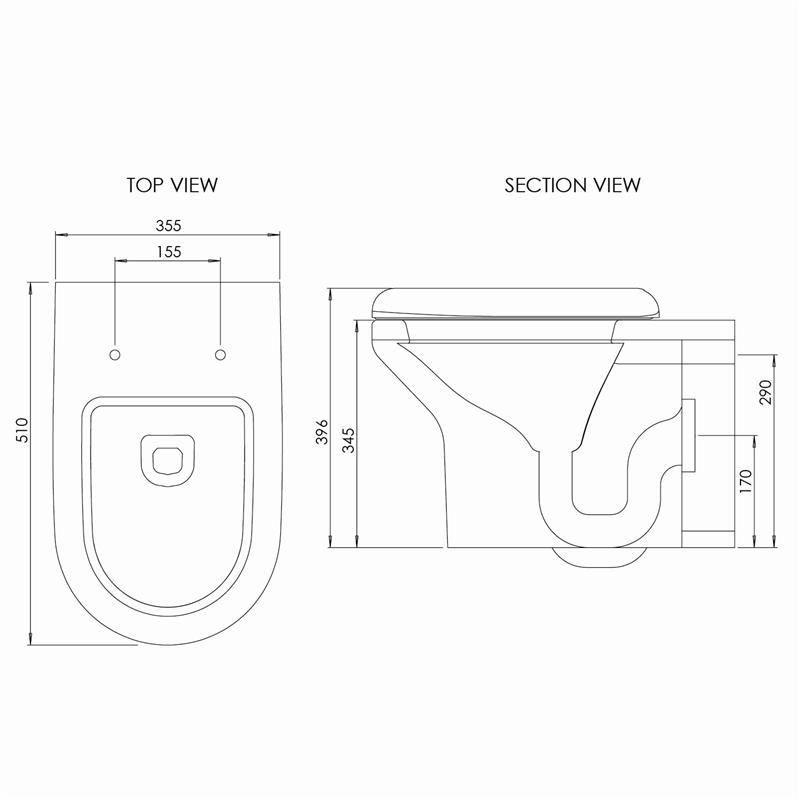

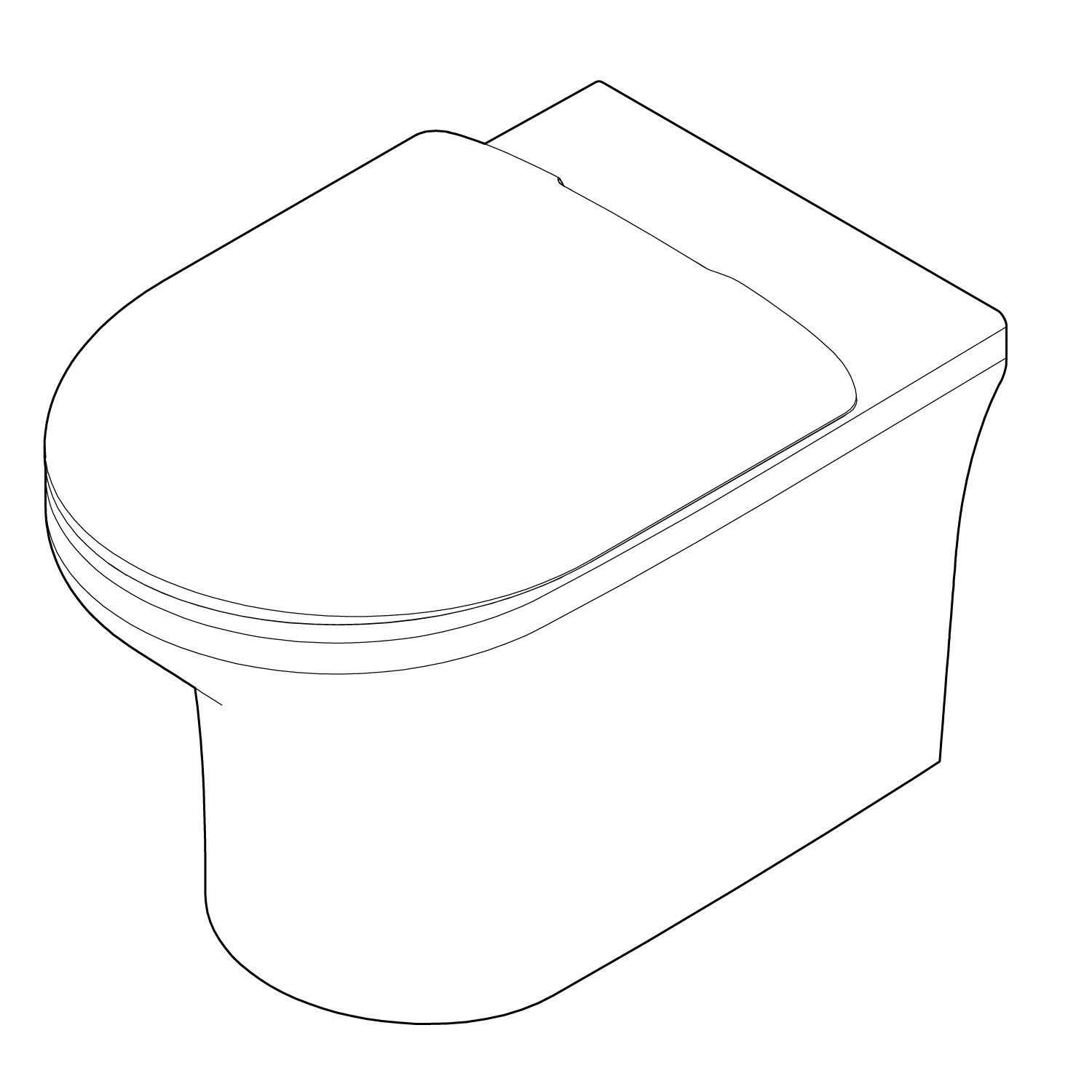

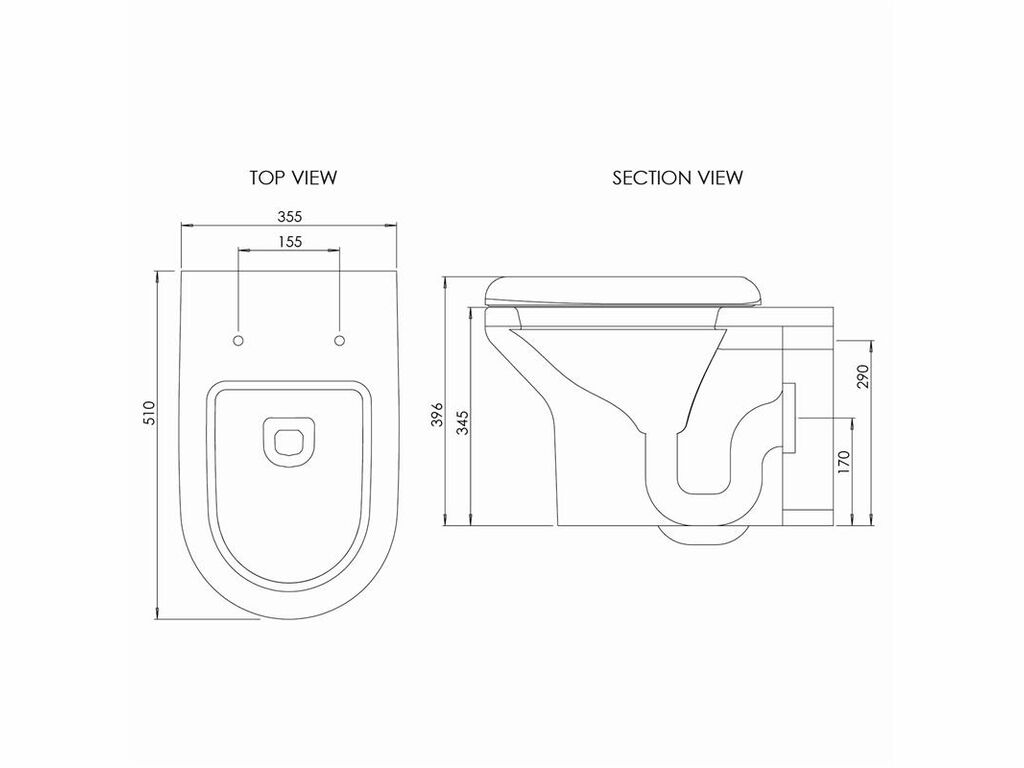

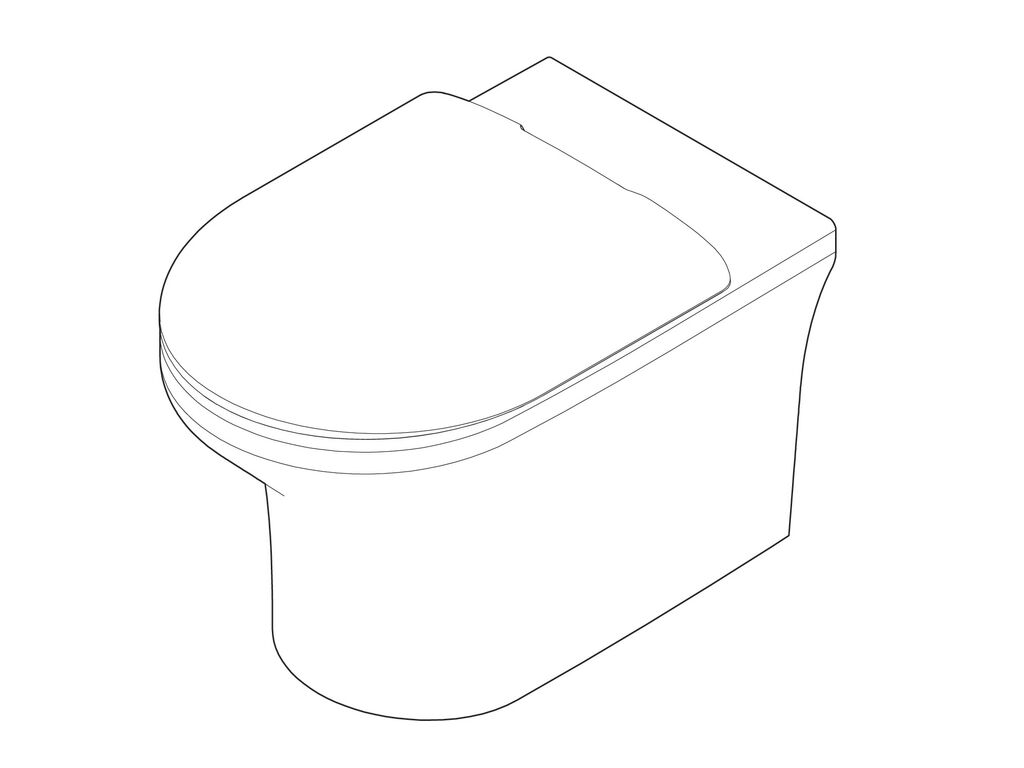

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
355 x 510 x 396mm
Weight:
19.04 kg
WC Pan Material:
Ceramic
WC Type:
Wall Hung
WC Fixation Method:
Fixed at rear
WC Rim Type:
Standard
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
No
WC Seat Material:
Thermoset Plastic
WC Seat Form:
Wrap over
WC Seat Shape:
D-shaped
WC Seat Finish:
White
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
155mm
WC Seat Hinge Type:
C34302G 45mm
WC Seat Hinge Material:
Stainless steel
Interchangeable Hinge Caps:
Yes
Replaceable Seat Cover Buffers:
Yes
Replaceable Seat Buffers:
Yes
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Charlotte Wall Hung Pan with Temora Seat
Fitting kit
