Technical Data Sheet
Charlotte Close Coupled Pan & Cistern with Temora Seat
36.9111.01

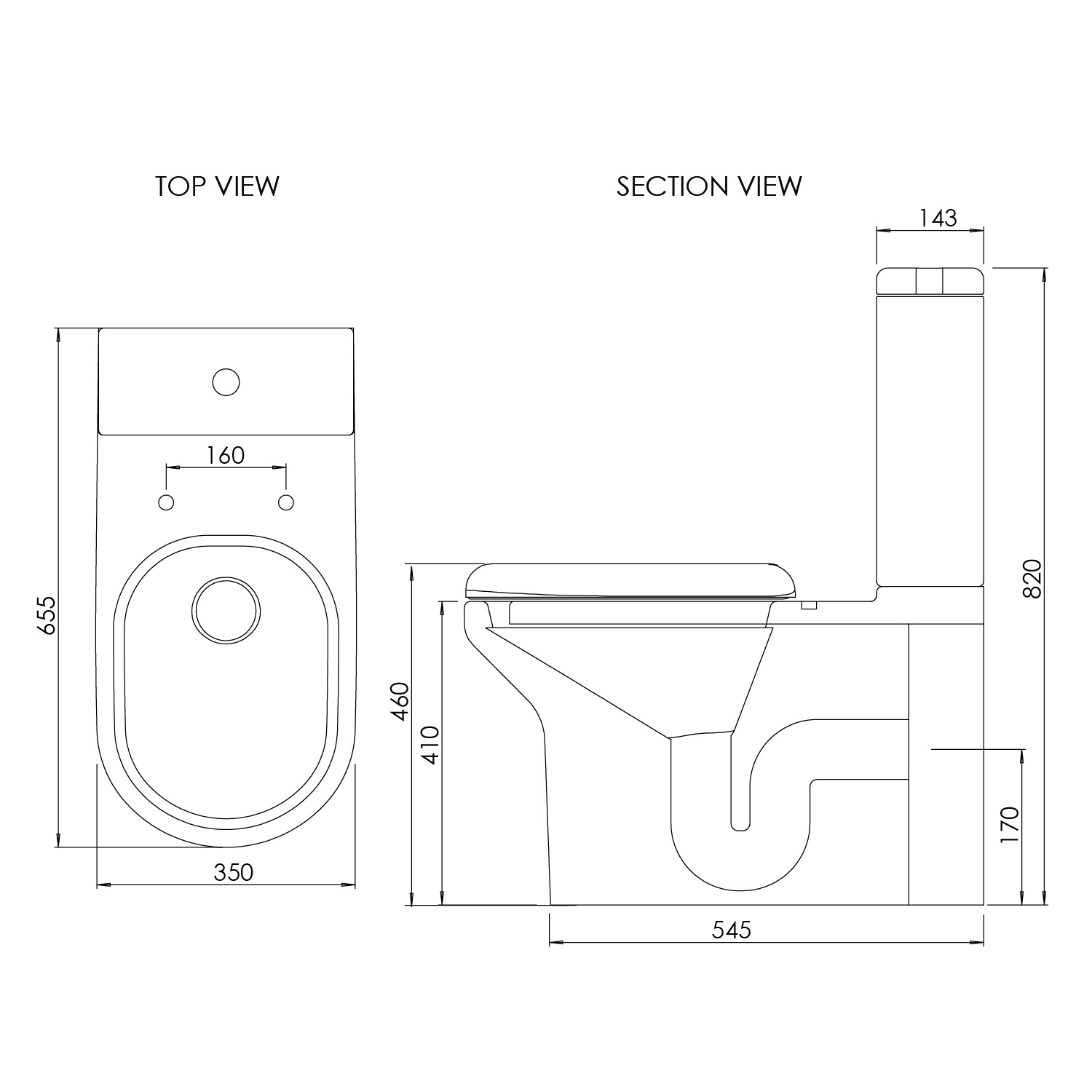

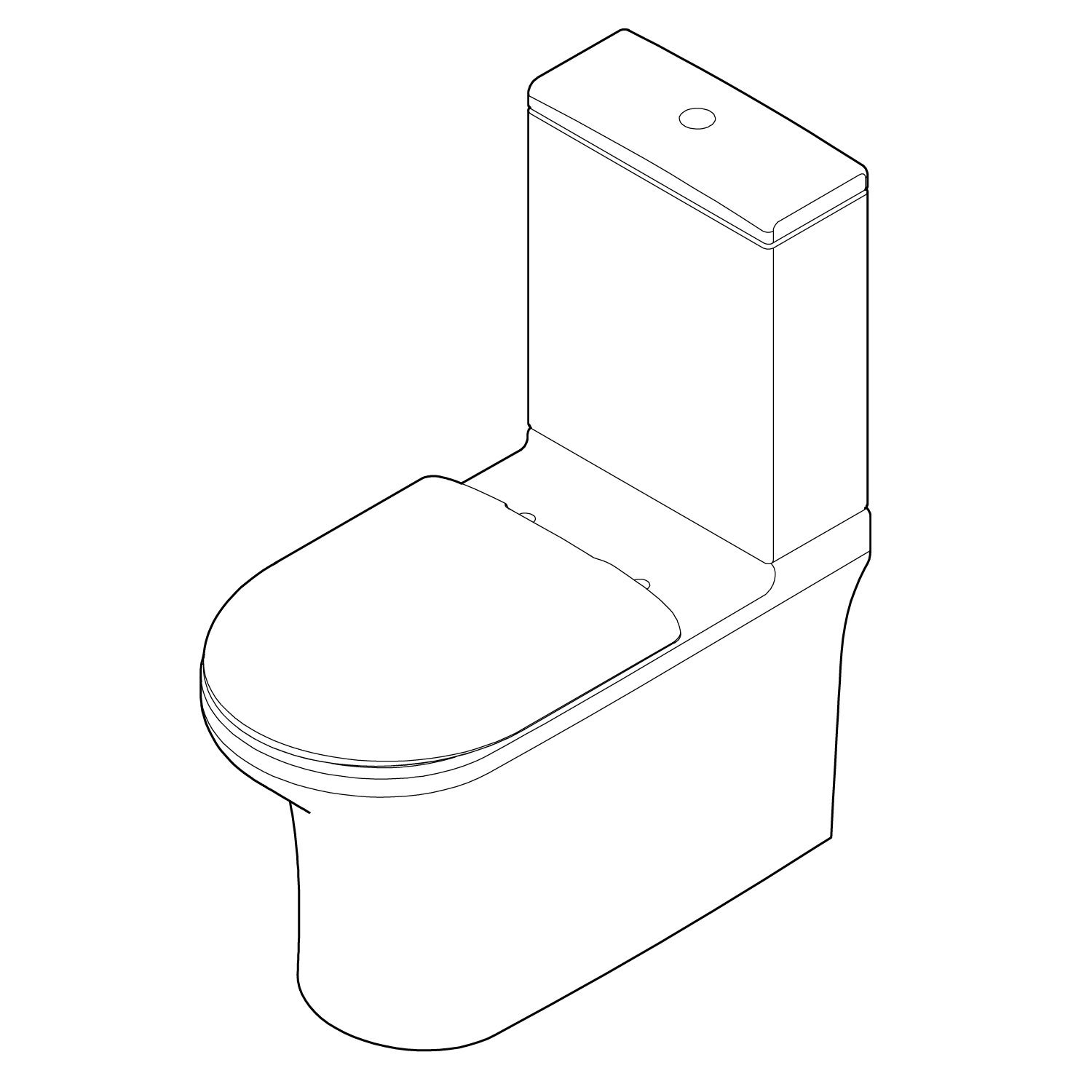

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
350 x 655 x 460mm
Weight:
31.96 kg
WC Pan Material:
Ceramic
WC Type:
Close Coupled
WC Fixation Method:
Fixed at base with supplied kit
WC Rim Type:
Standard
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
No
WC Seat Material:
Thermoset Plastic
WC Seat Form:
Wrap over
WC Seat Shape:
D-shaped
WC Seat Finish:
White
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
155mm
WC Seat Hinge Type:
C34302G 45mm
WC Seat Hinge Material:
Stainless steel
Interchangeable Hinge Caps:
Yes
Replaceable Seat Cover Buffers:
Yes
Replaceable Seat Buffers:
Yes
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Charlotte Close Coupled Pan & Cistern with Temora Seat
Instructions
Fitting kit
