Technical Data Sheet
Denver Back to Wall Pan with Kempsey Seat
36.9076.02

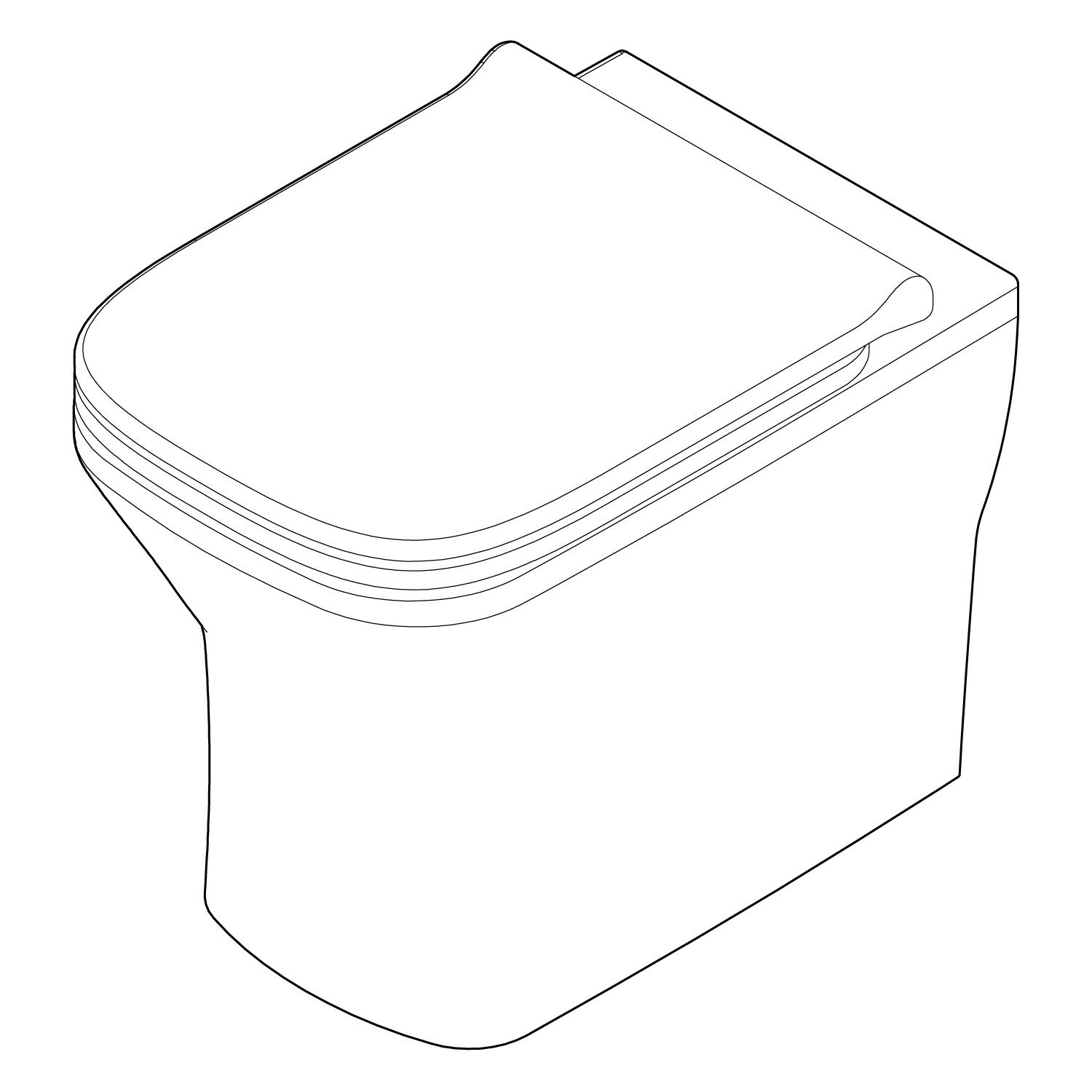

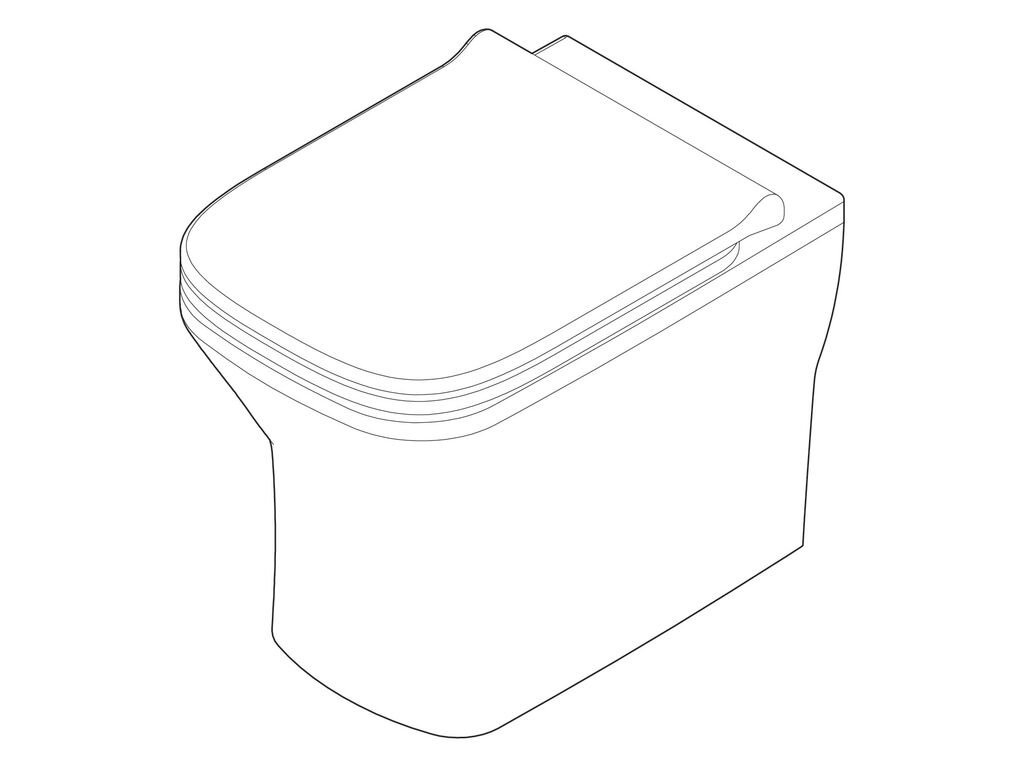

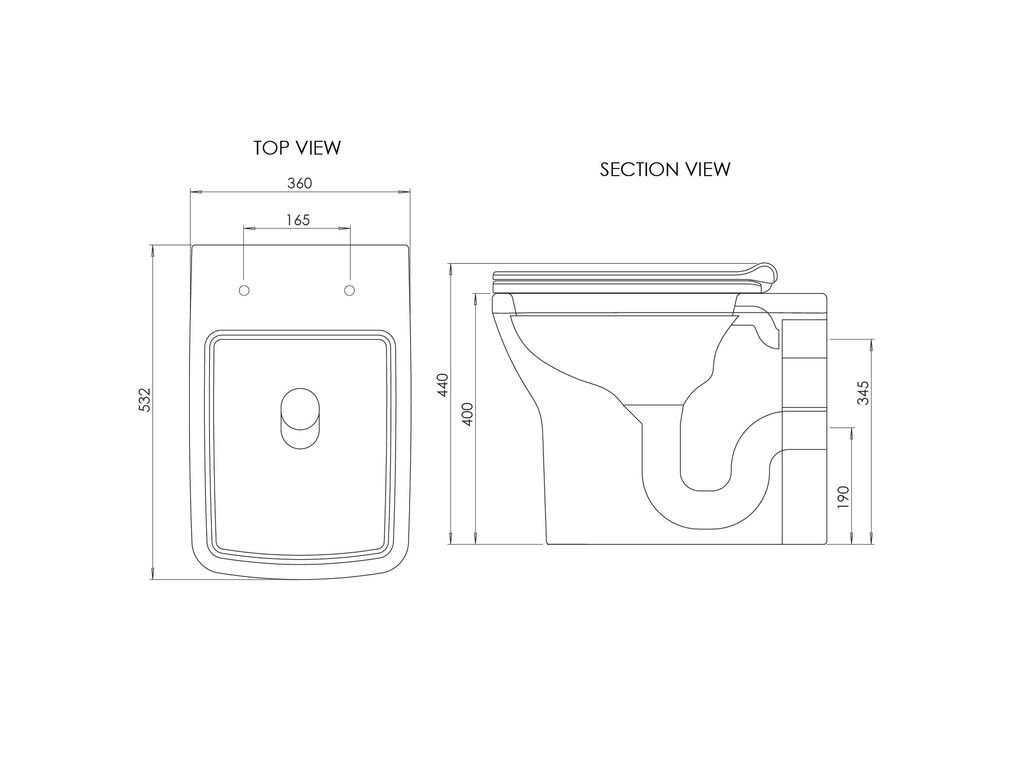

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
360 x 532 x 440mm
Weight:
31.54 kg
WC Pan Material:
Ceramic
WC Type:
Back to Wall
WC Fixation Method:
Fixed at rear
WC Rim Type:
Standard
Outlet Orientation:
Horizontal
Outlet Visibility:
Concealed
Flow Regulator Included:
No
WC Seat Material:
Duroplast Plastic
WC Seat Form:
Sandwich
WC Seat Shape:
Square
WC Seat Finish:
White
WC Seat Fixation Method:
Top fix
WC Seat Fixation Centres:
155mm
WC Seat Hinge Type:
30mm
WC Seat Hinge Material:
Stainless steel
Interchangeable Hinge Caps:
No
Replaceable Seat Cover Buffers:
No
Replaceable Seat Buffers:
Yes
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Denver Back to Wall Pan with Kempsey Seat
Instructions
Fitting kit
