Technical Data Sheet
Calypstone Worktop with Double Undermount Basin 1200 x 465mm Storm Grey
3498SY

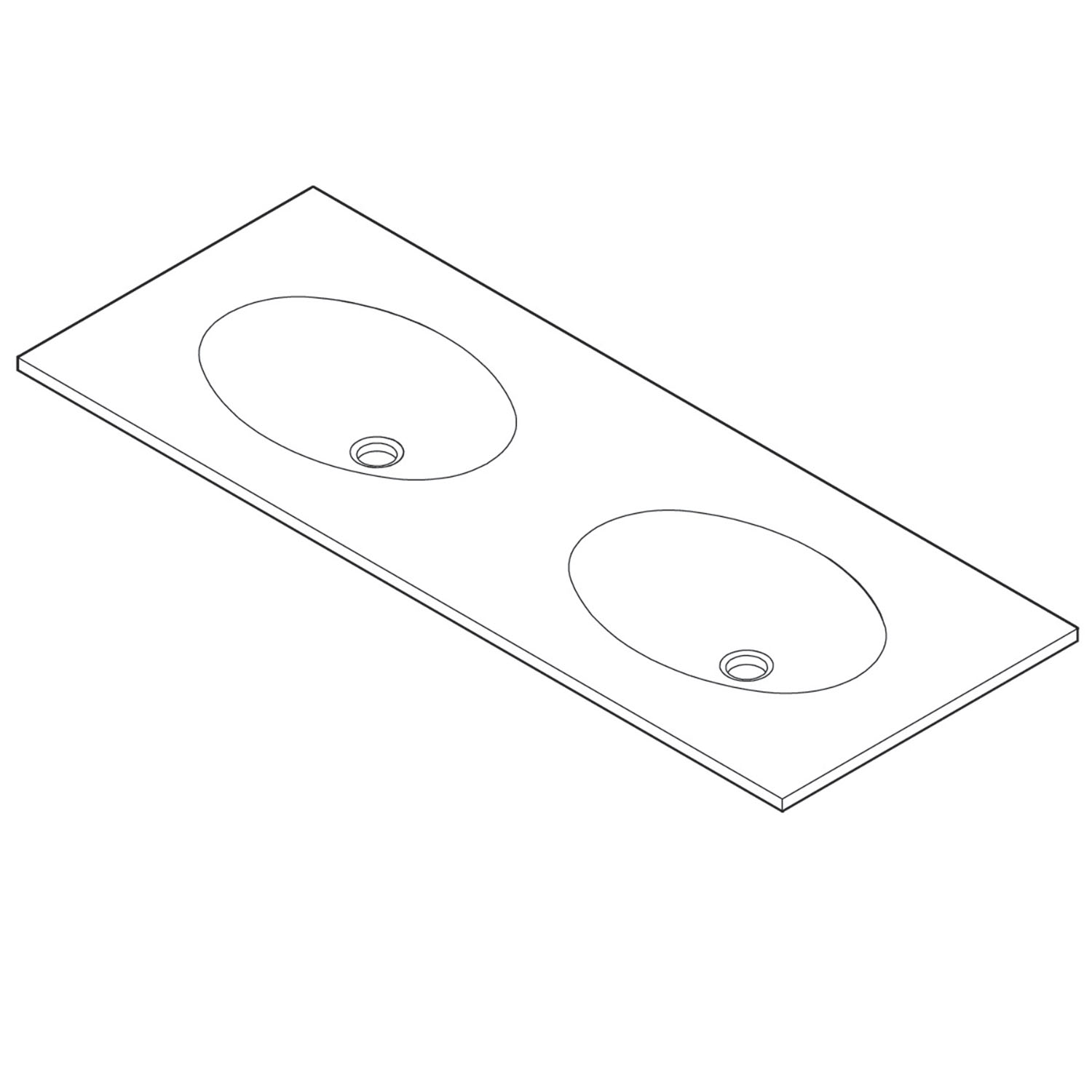

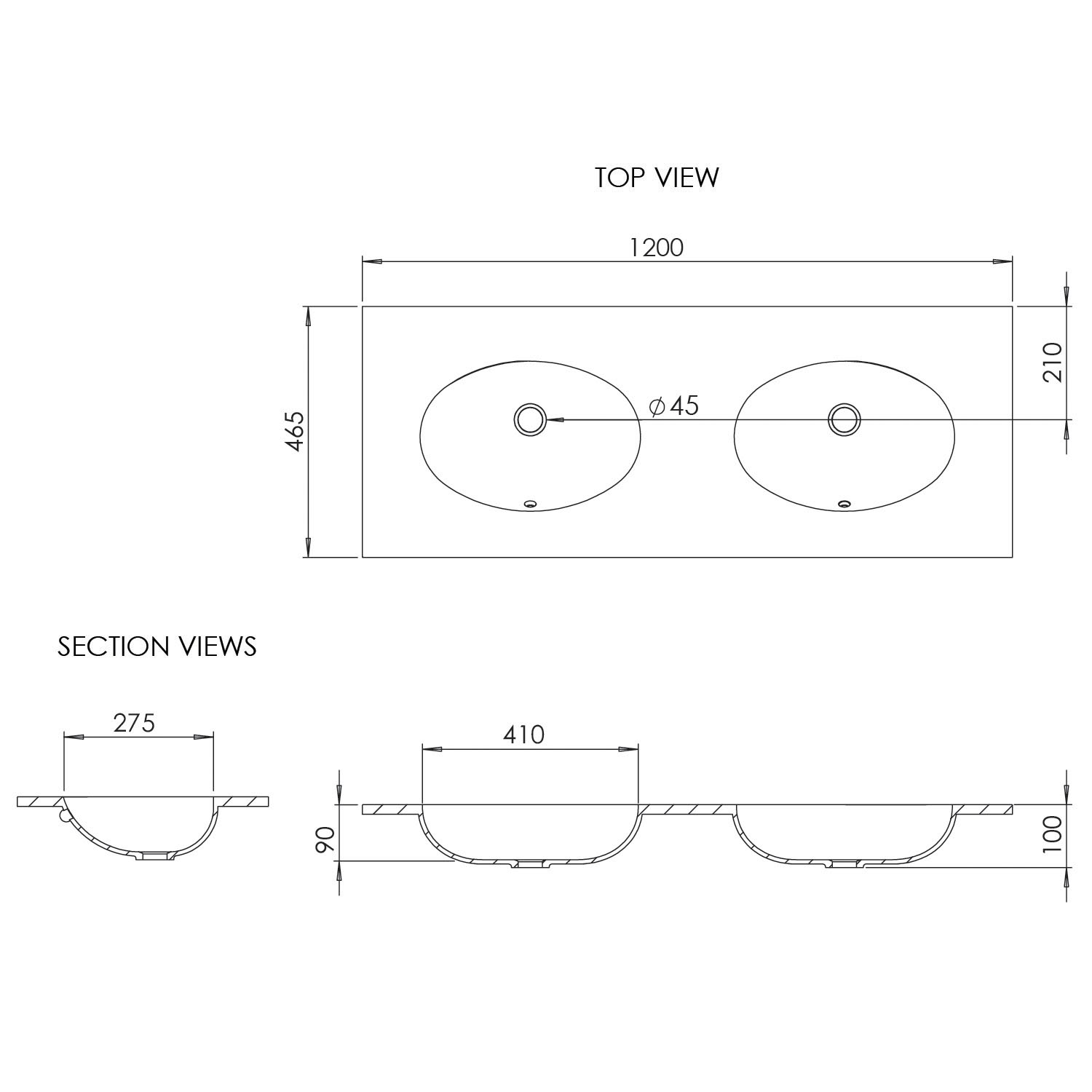

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1200 x 465 x 110mm
Weight:
15.44 kg
Basin Type:
Worktop with Undermount Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Matt
Basin Exterior:
White Matt
Worktop:
Natural Aglomerate Marble Storm Grey
Number of Bowls:
2
Number of Tap Holes:
0
Max Water Temperature (°C):
65
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Not Interchangeable
Waste Hole Diameter:
45 mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Calypstone Worktop with Double Undermount Basin 1200 x 465mm Storm Grey
Instructions
Fitting kit
External Overflow Kit
