Technical Data Sheet
Lucina Bar Handle 320
3478

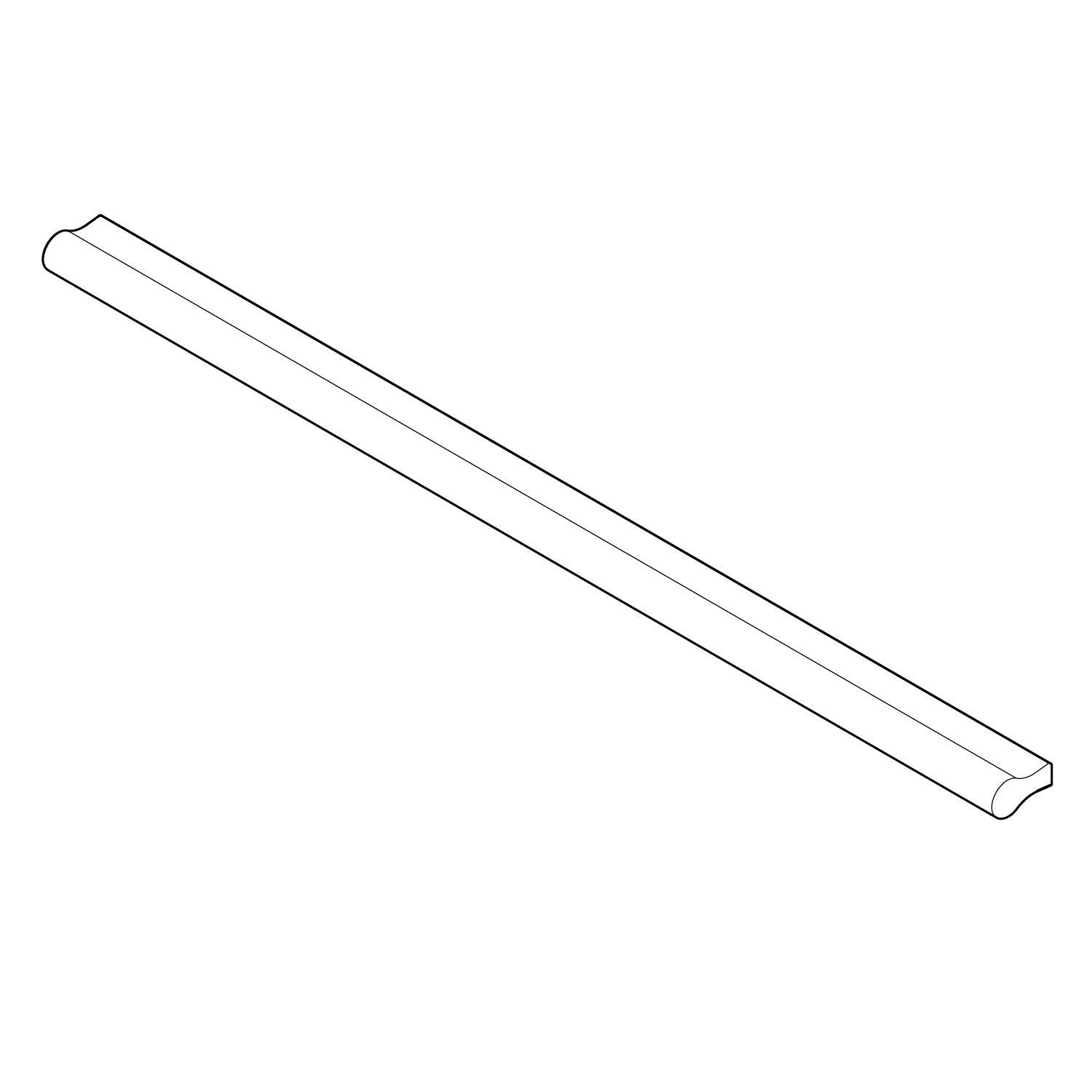

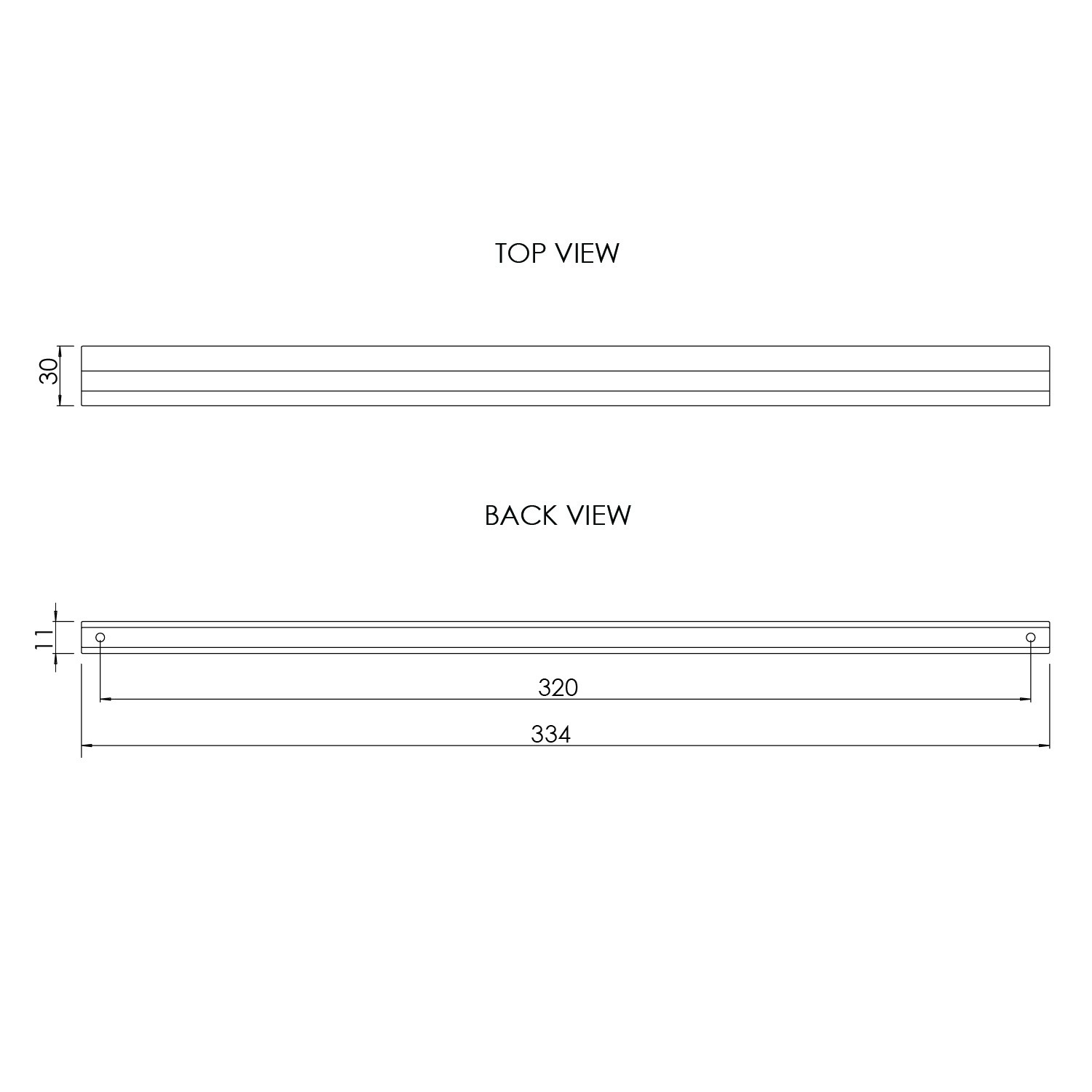

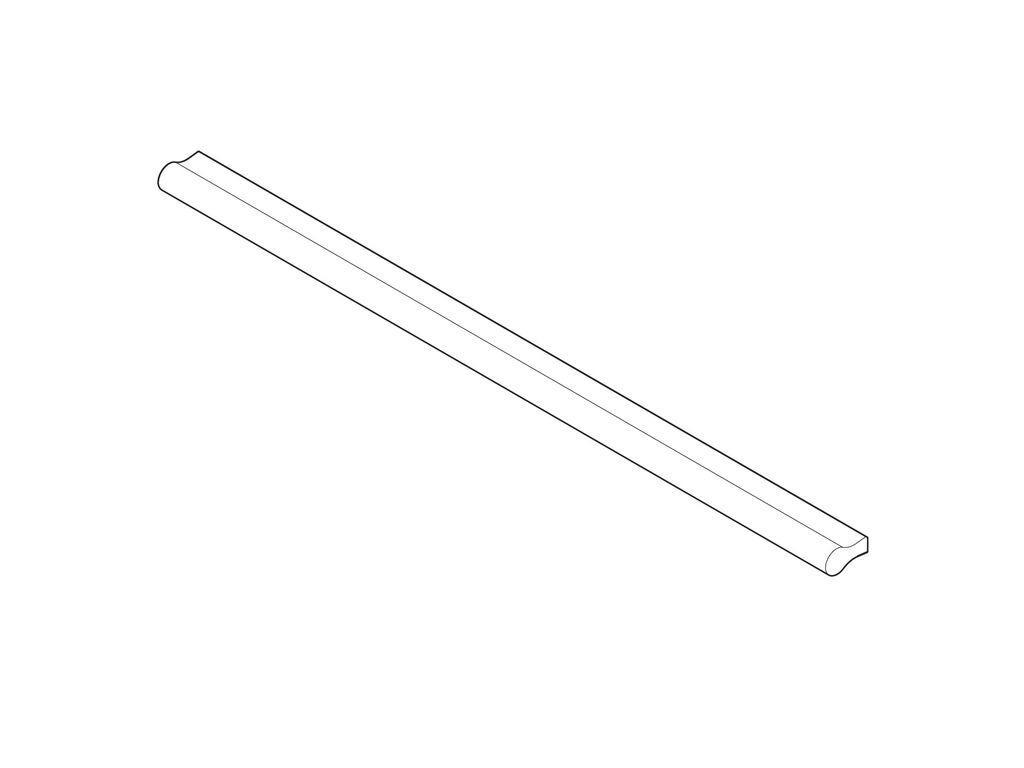

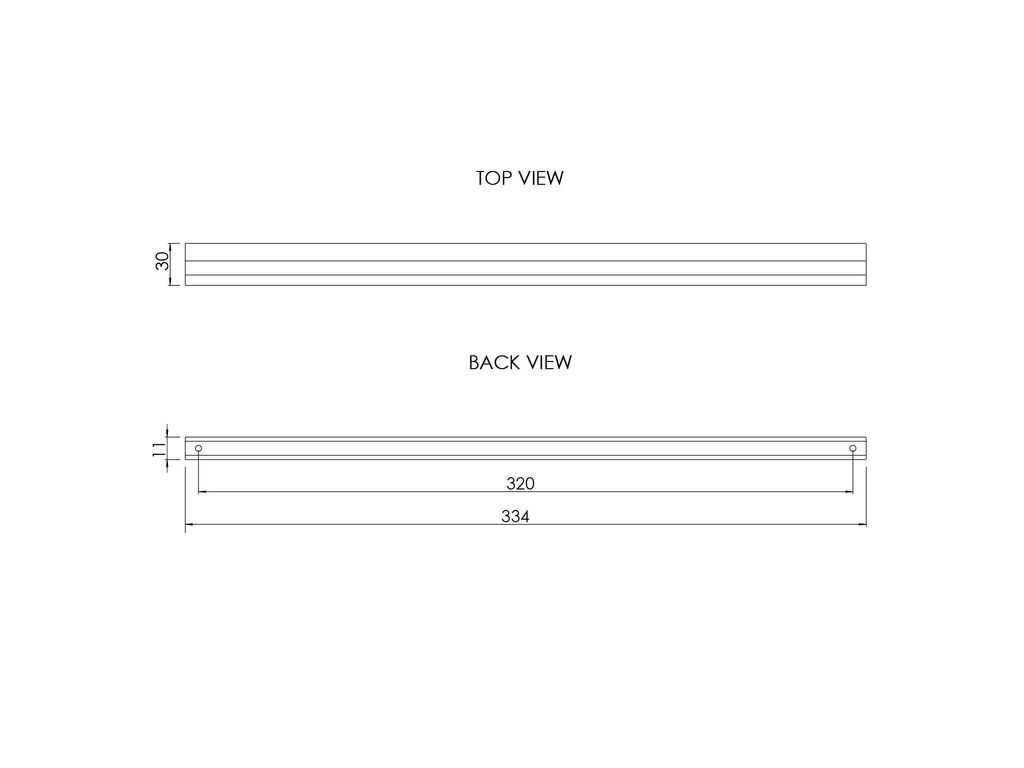

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
334 x 30 x 11mm
Weight:
0.28 kg
Main Construction Material:
Metal
Handle Type:
Bar
Screw Length Required:
22mm
Number of Screws Required:
2
Finish:
Brushed Brass
Finish Code:
BBR
Finish Group:
Metallic
Surface Finish Effect:
Brushed
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Lucina Bar Handle 320
Fixings
