Technical Data Sheet
Felisa Bar Handle 96
3456

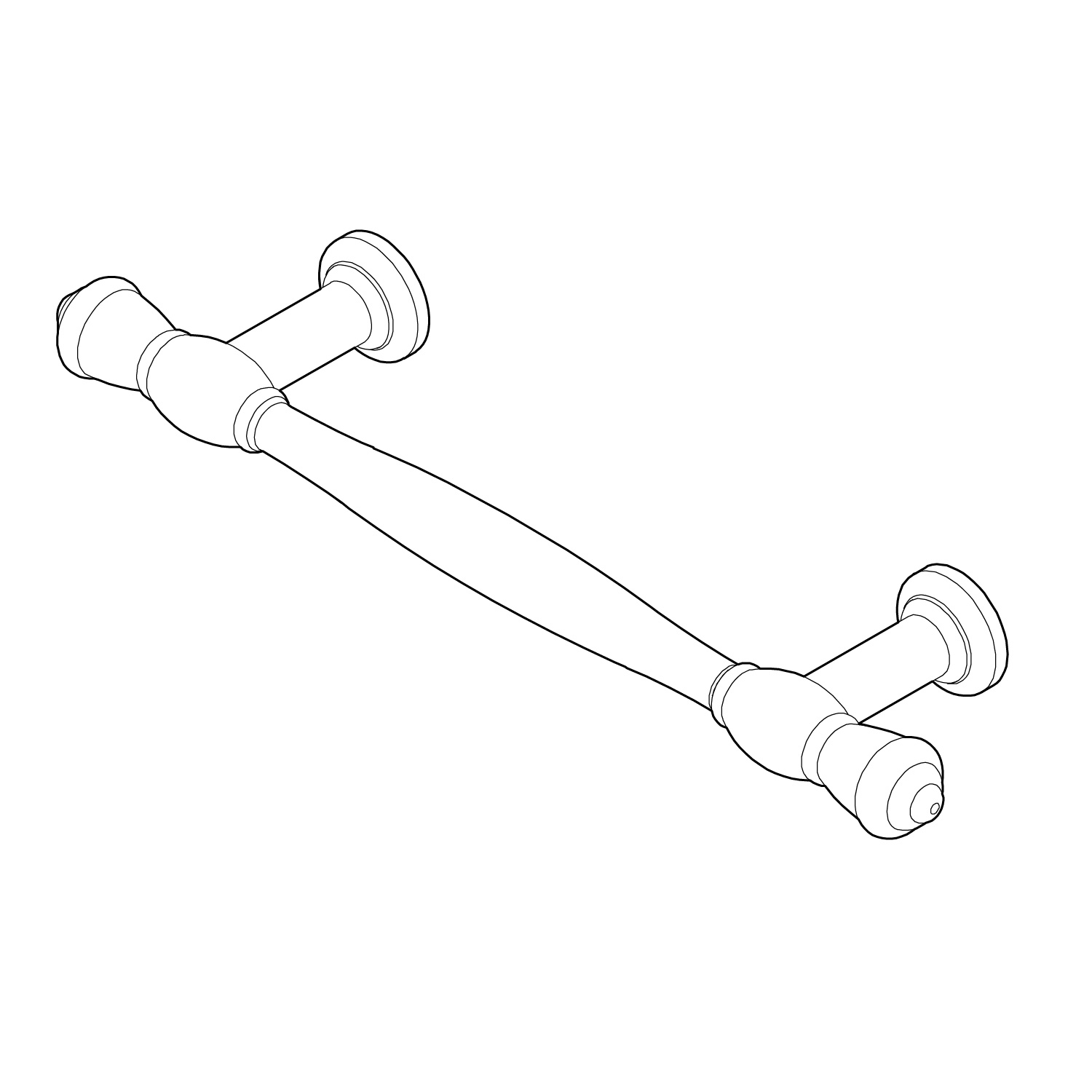

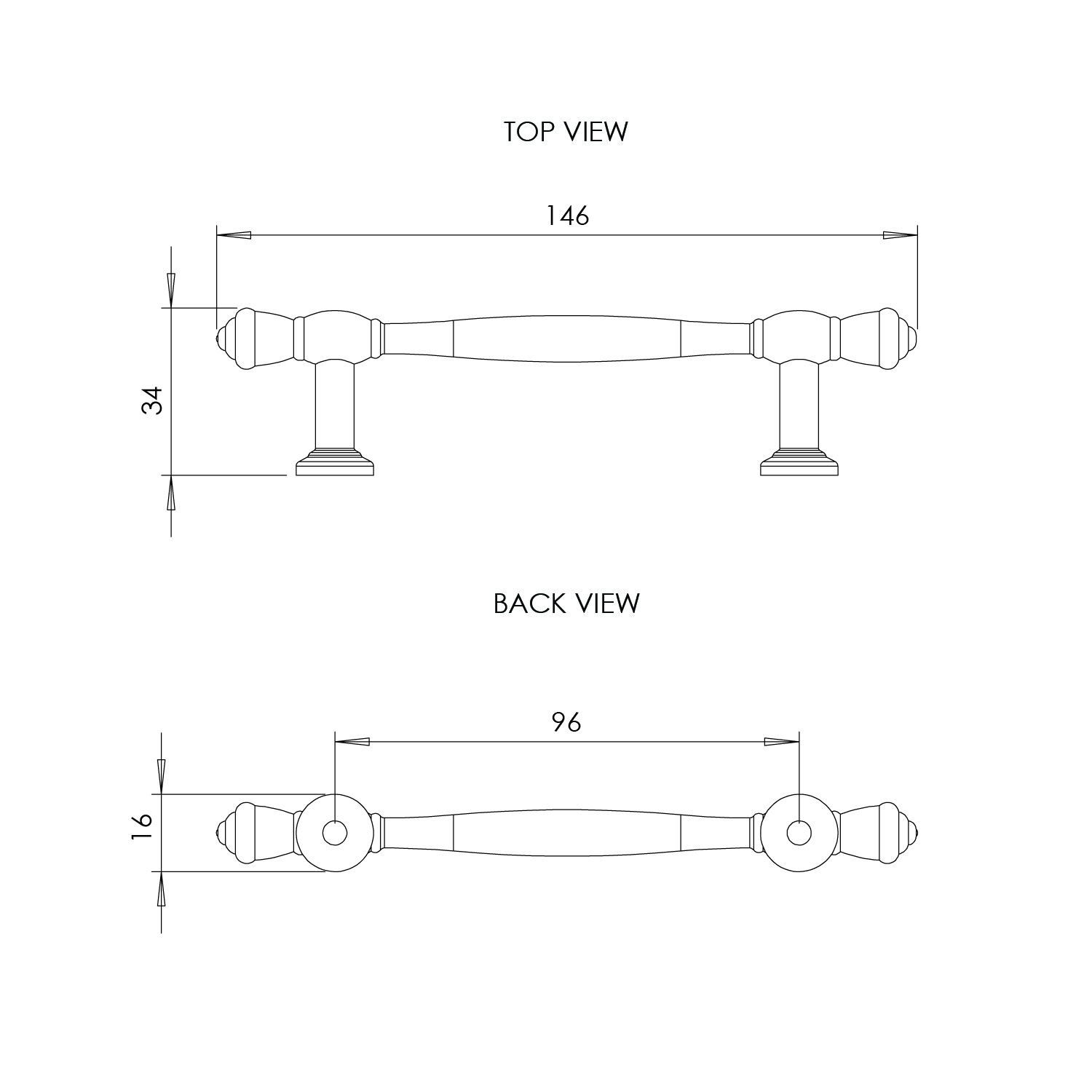

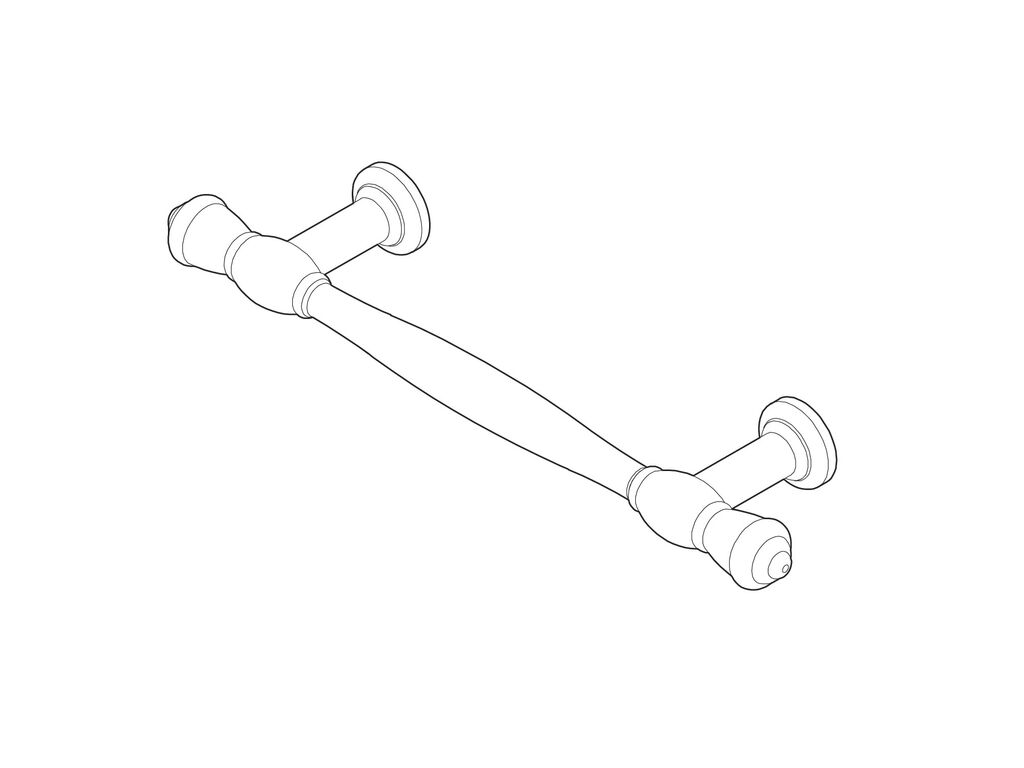

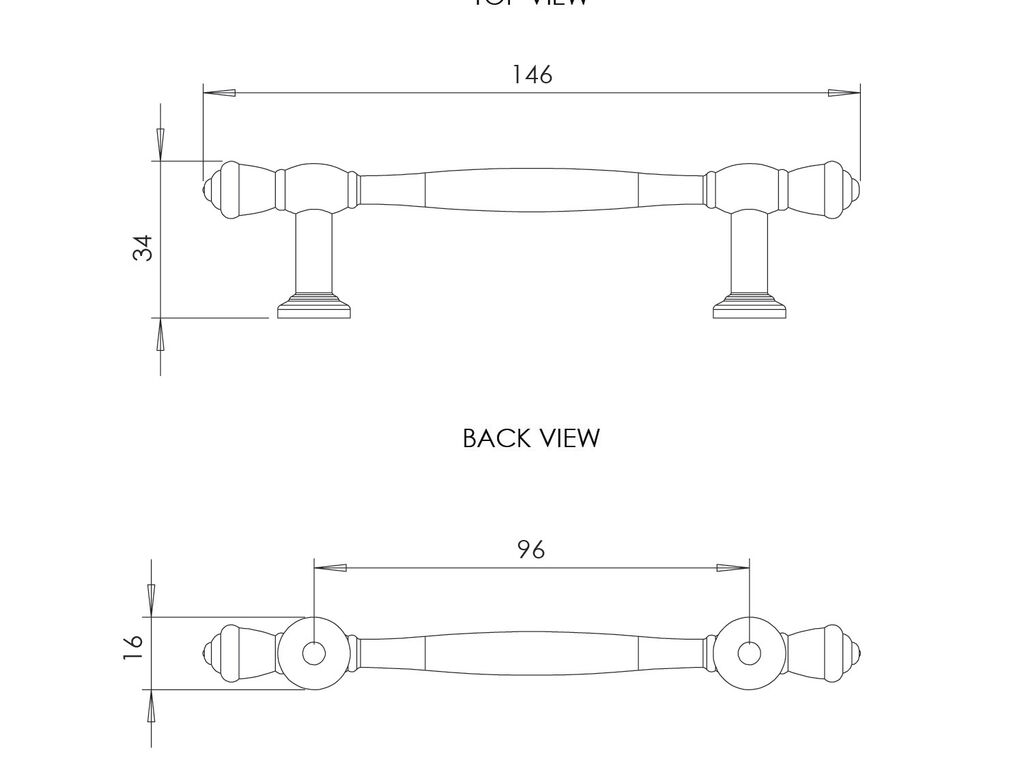

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
146 x 34 x 16mm
Weight:
0.10 kg
Main Construction Material:
Metal
Handle Type:
Bar
Fixing Hole Centres:
96mm
Screw Length Required:
22mm
Number of Screws Required:
2
Surface Finish:
Polished Nickel
Finish Effect:
Polished
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Felisa Bar Handle 96
M4 machine screws
