Technical Data Sheet
Mora LED Mirror 1410
3449

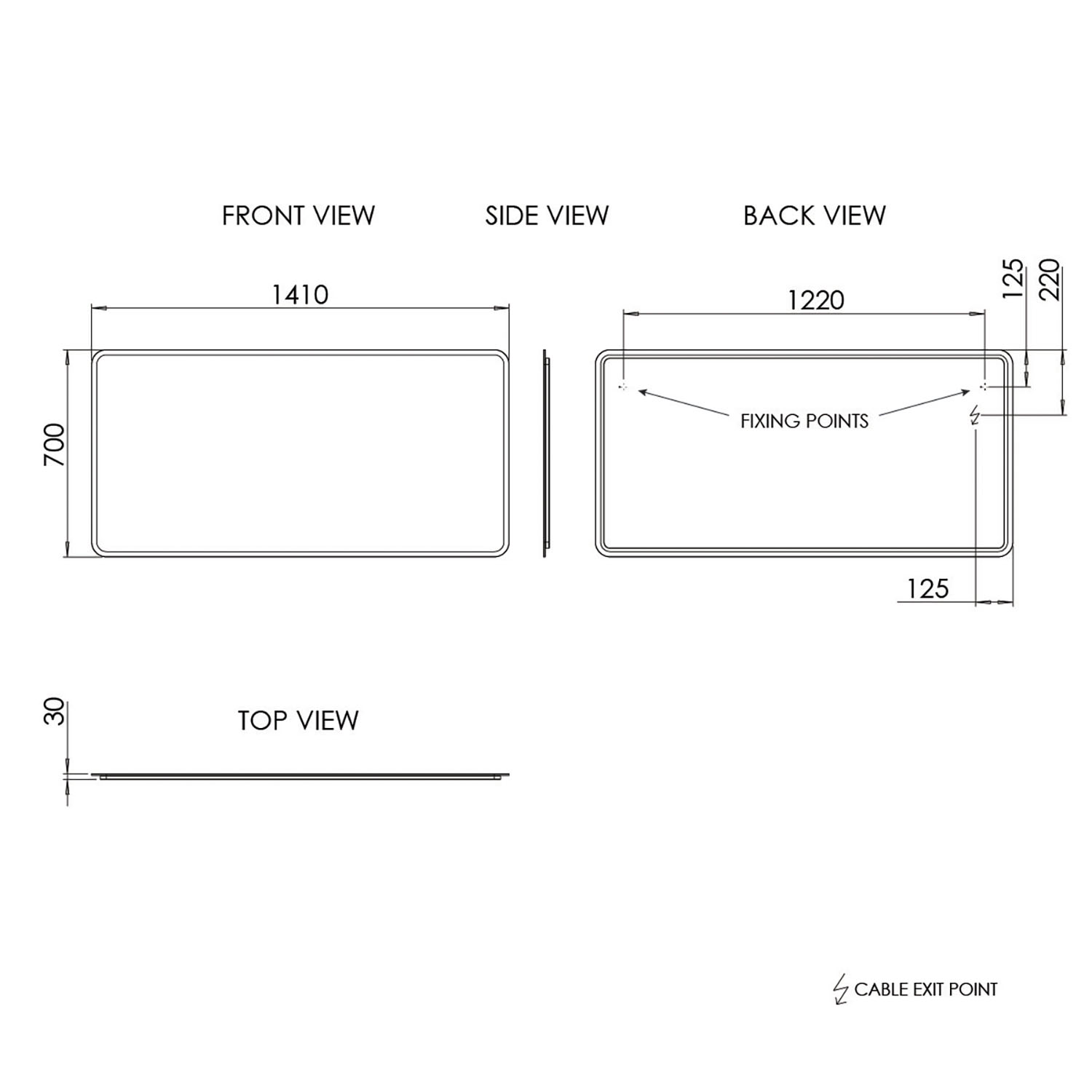

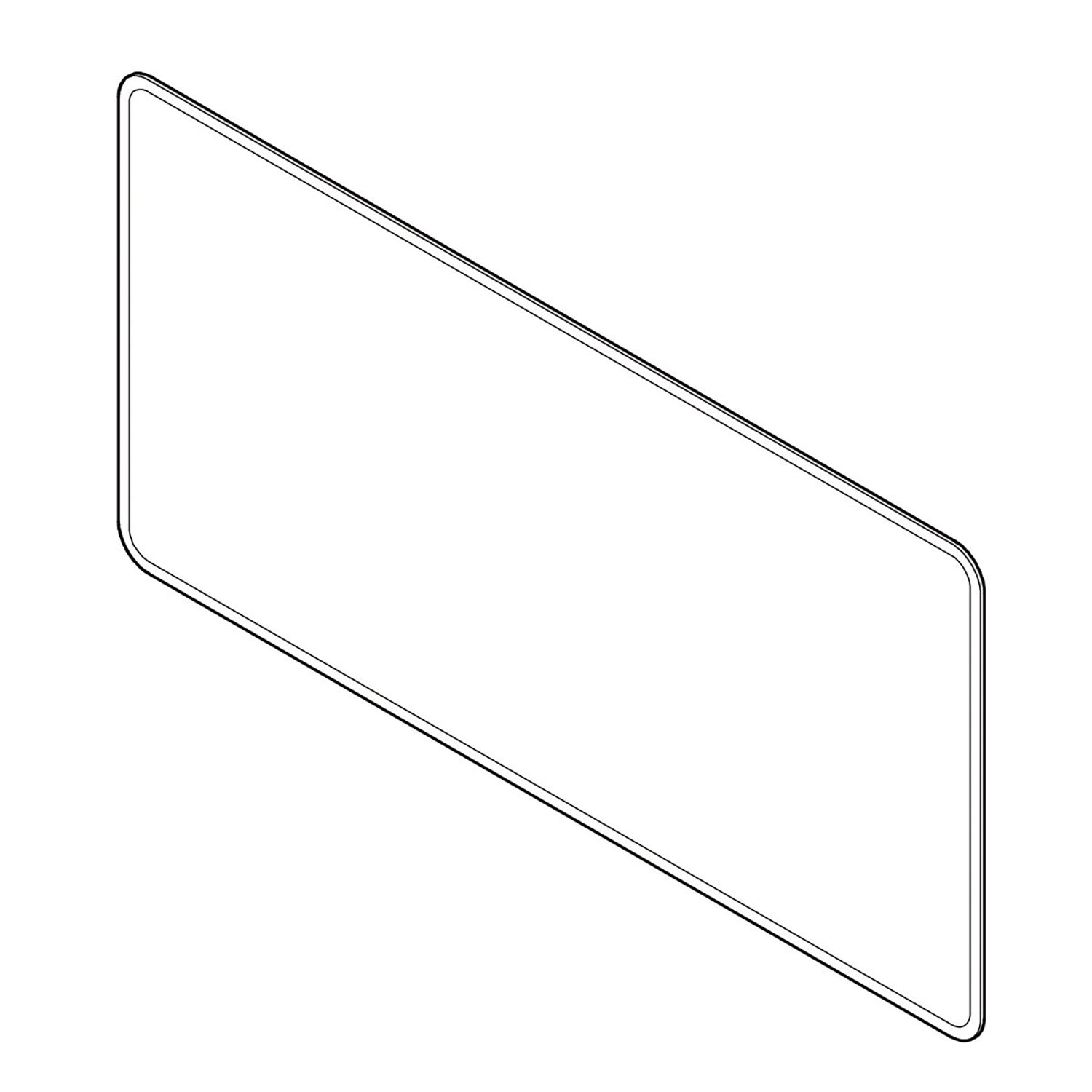

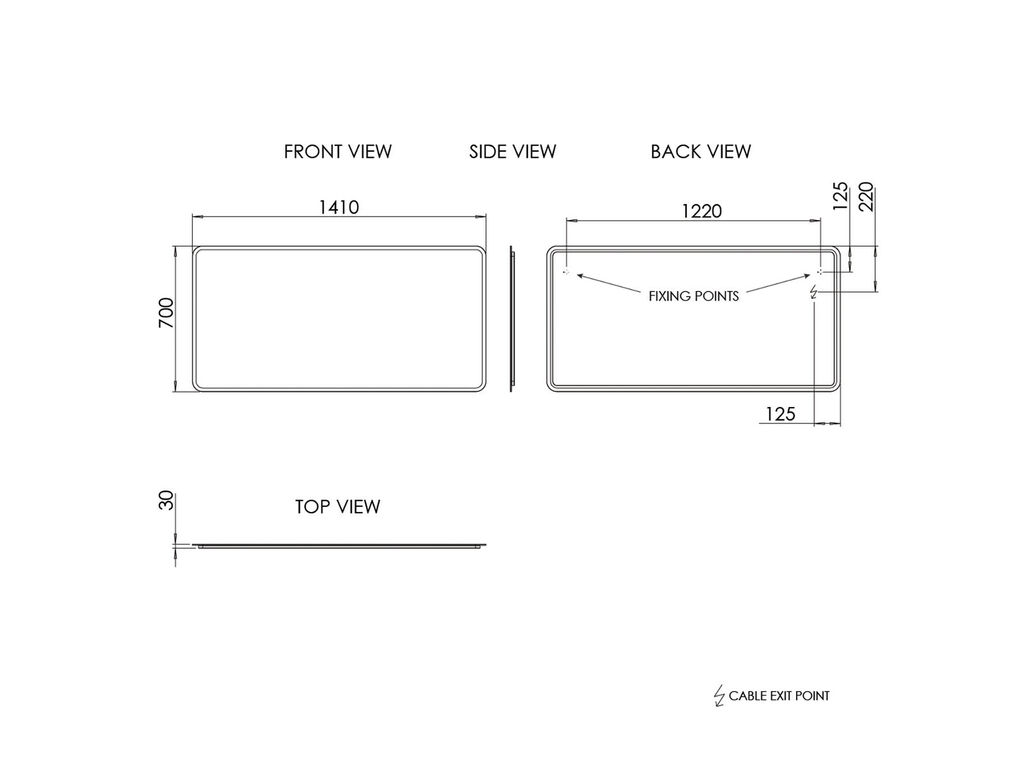

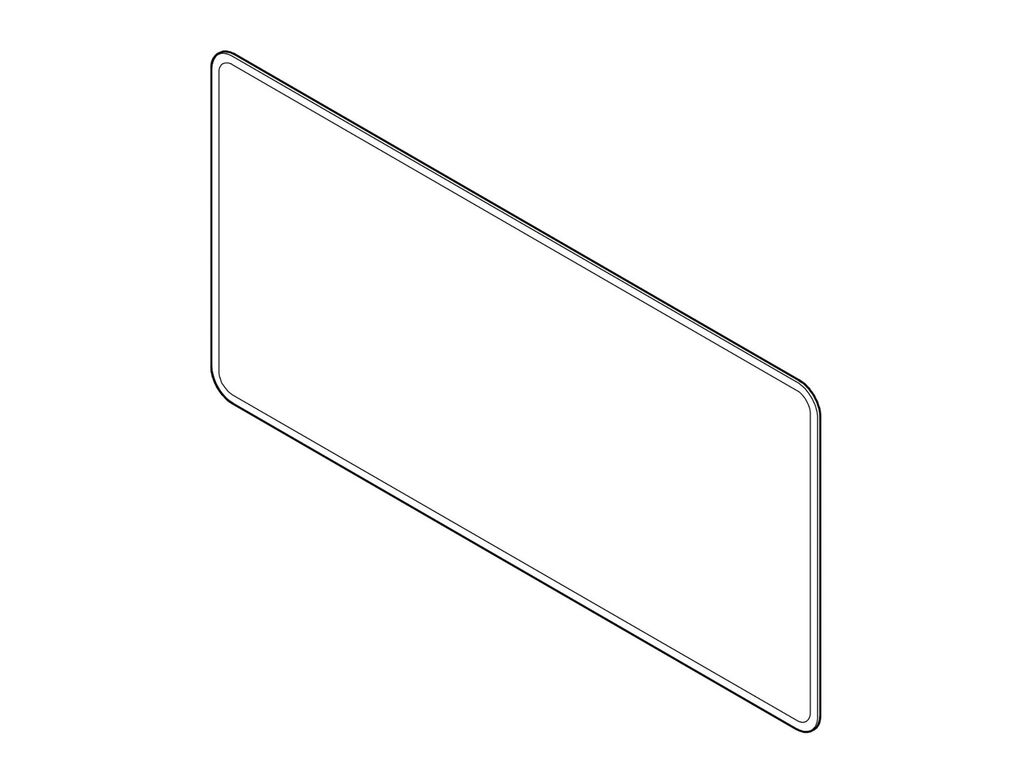

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1410 x 30 x 700mm
Weight:
14.8 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 29W, Demister 60W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
800 x 600mm
Cable Length:
450mm
Earth Connection Required:
No
Hanging Orientation:
Landscape
Switching Method:
Touch Control
Light Colour Temperature:
Cool White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Mora LED Mirror 1410
Instructions
Fitting kit
Screw hooks
Expansion plugs
