Technical Data Sheet
Mora LED Mirror 950
3448

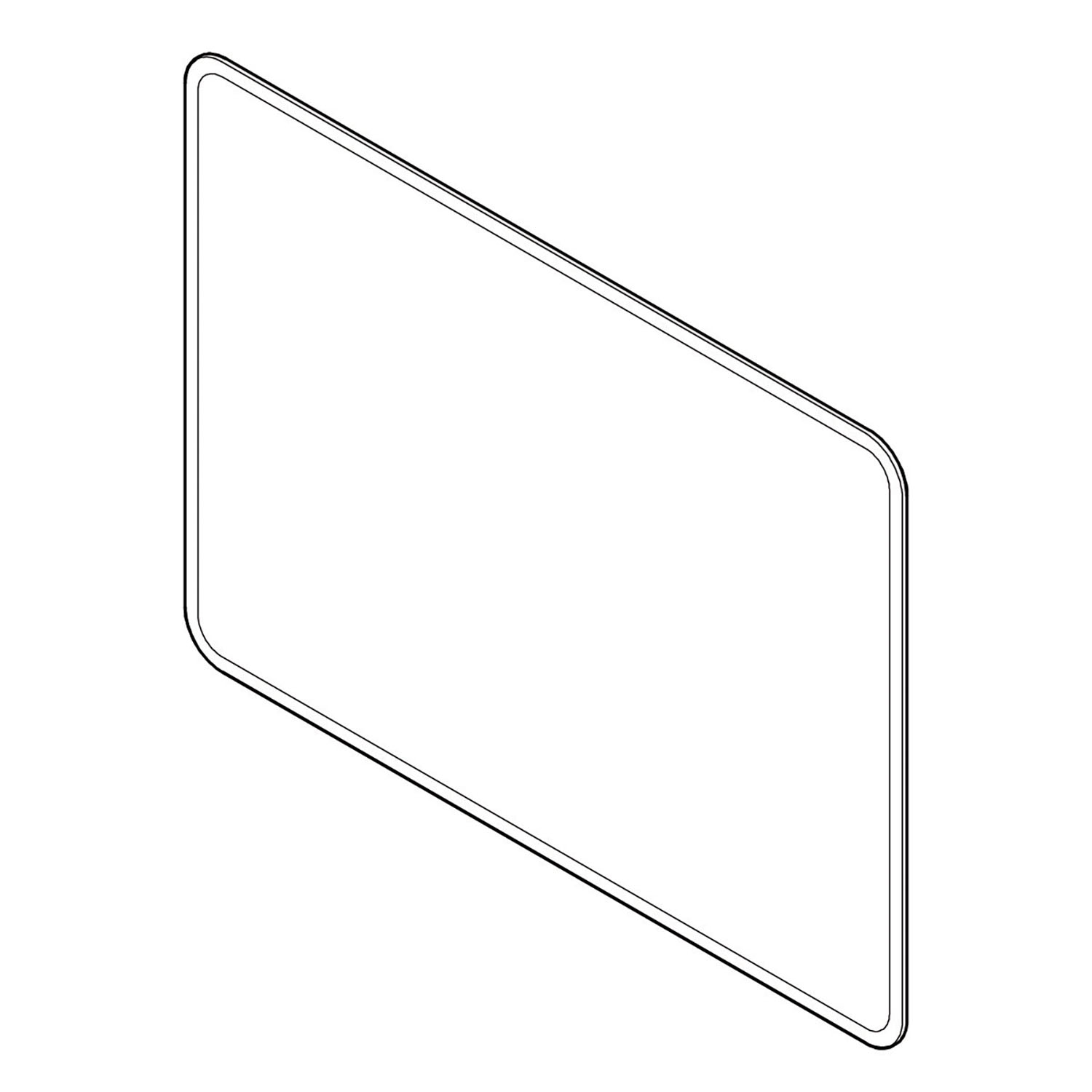

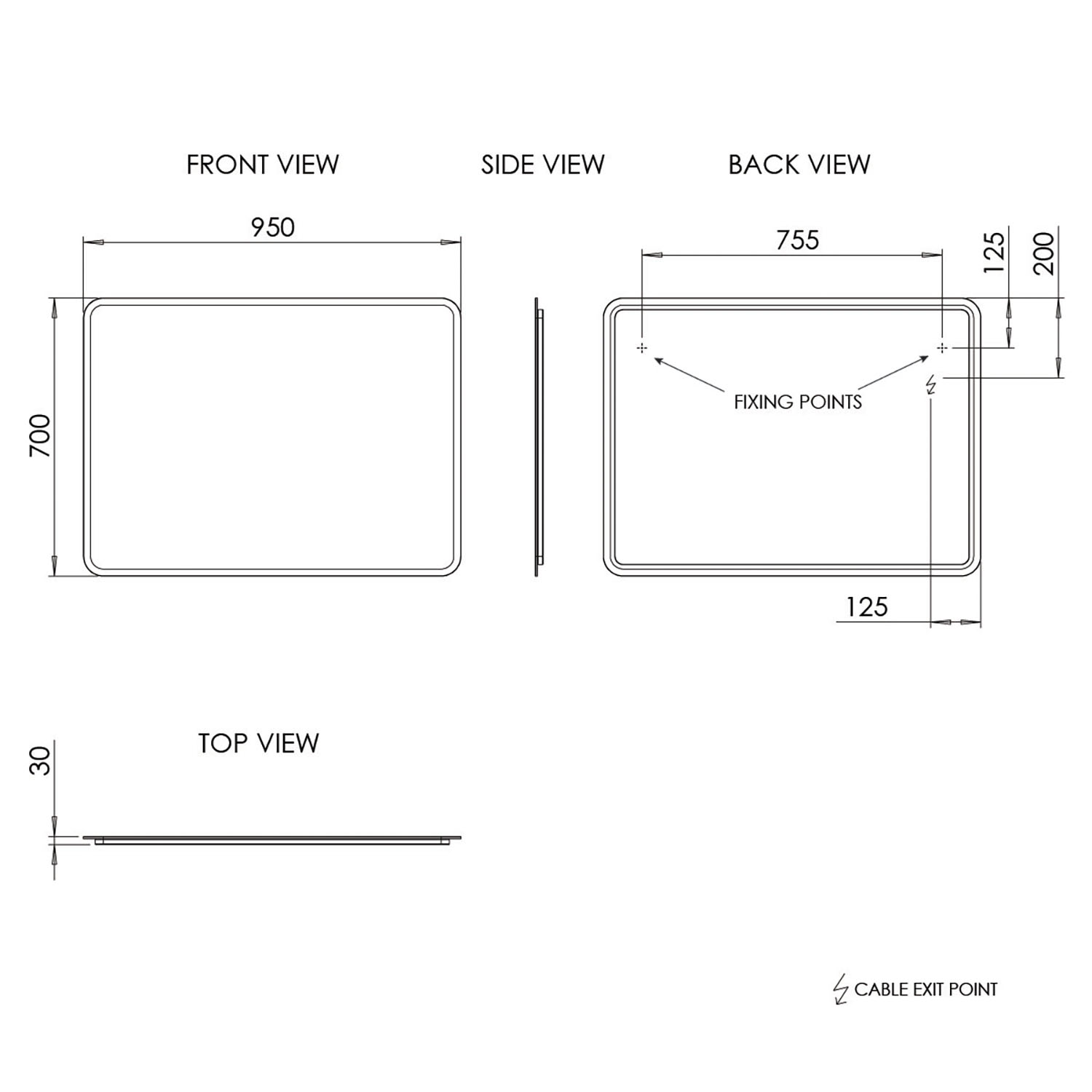

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
950 x 30 x 700mm
Weight:
10.64 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 22W, Demister 30W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
400 x 300mm
Cable Length:
450mm
Earth Connection Required:
No
Hanging Orientation:
Landscape
Switching Method:
Touch Control
Light Colour Temperature:
Cool White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Mora LED Mirror 950
Instructions
Fitting kit
Expansion plugs
Screw hooks
