Technical Data Sheet
Tucano Knob Handle
3402

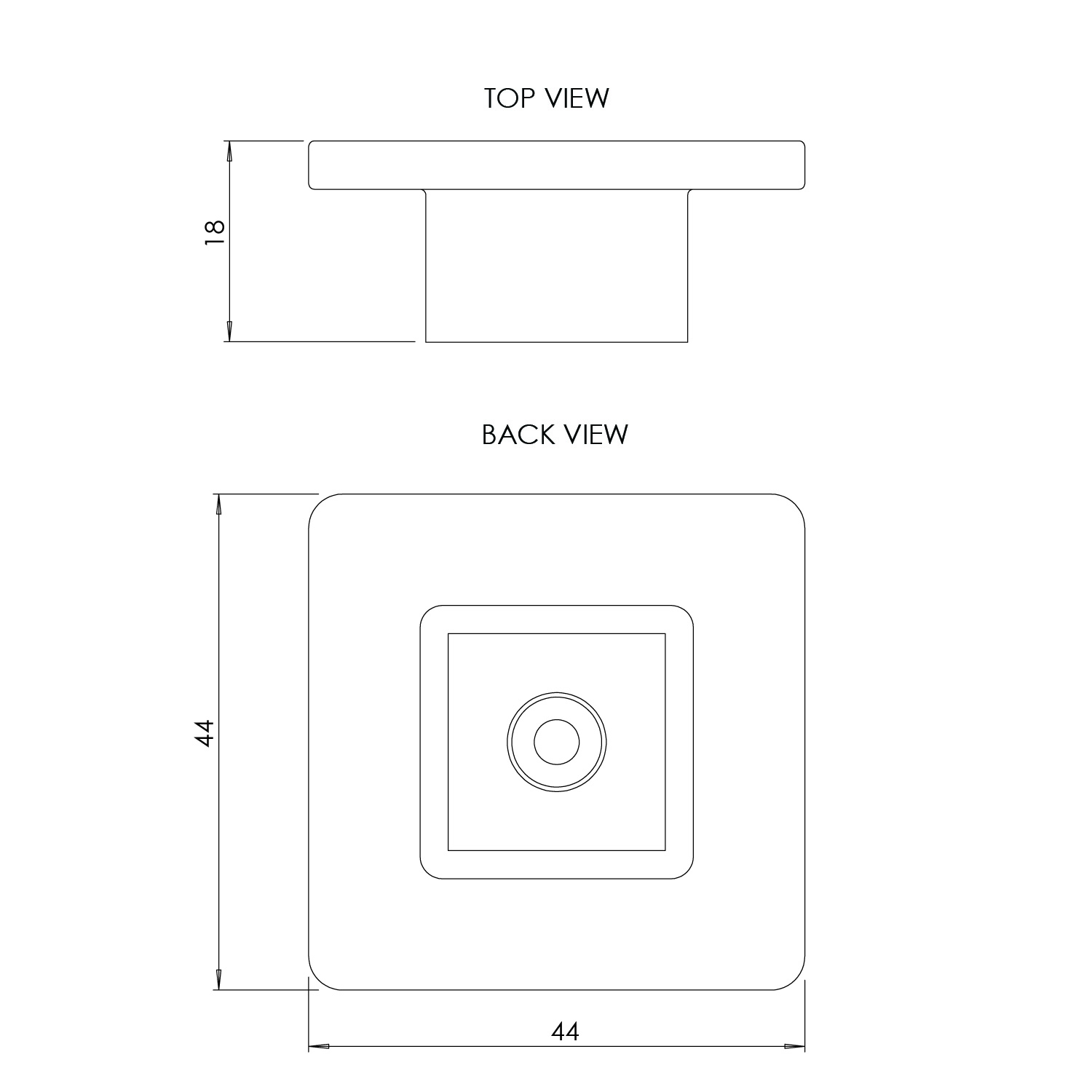

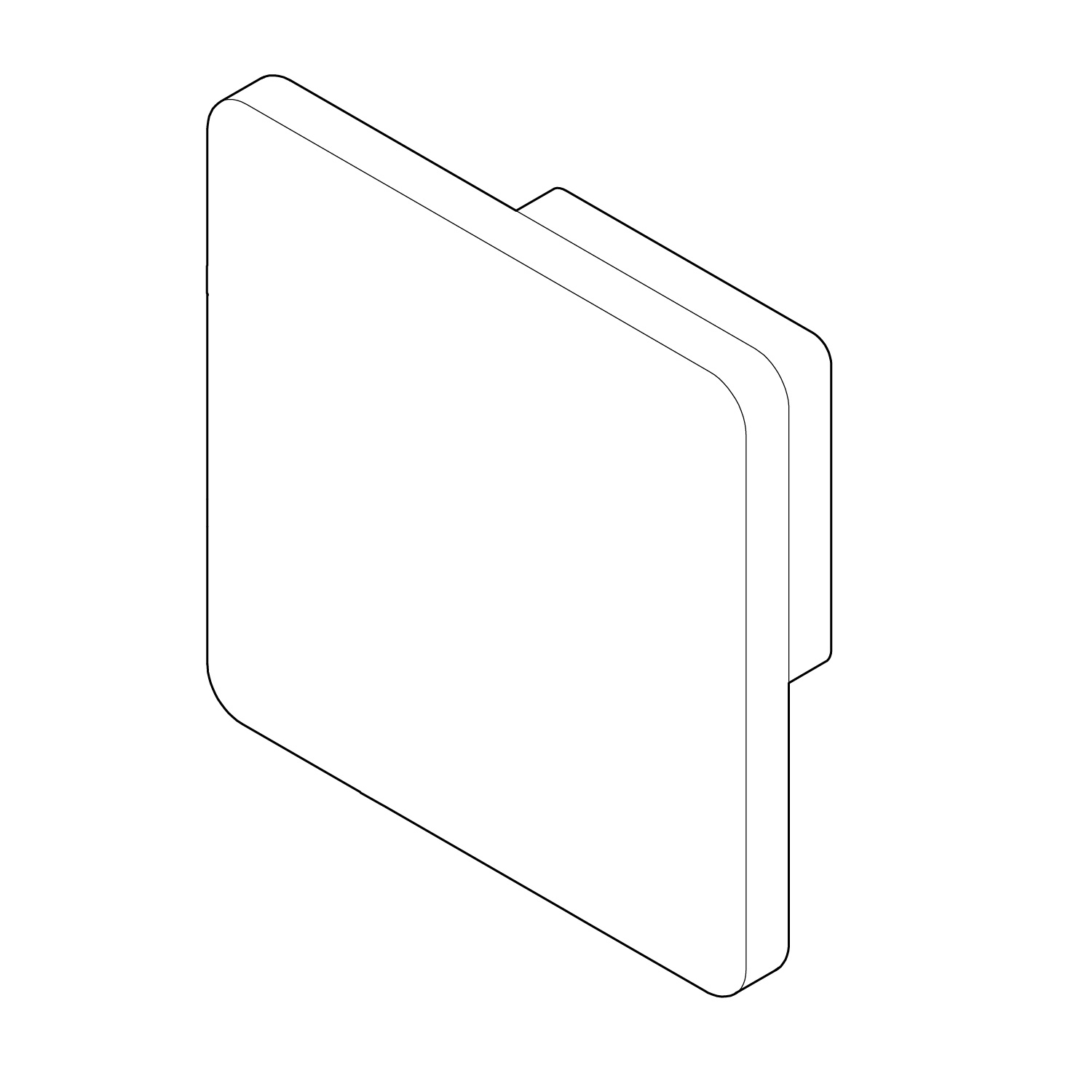

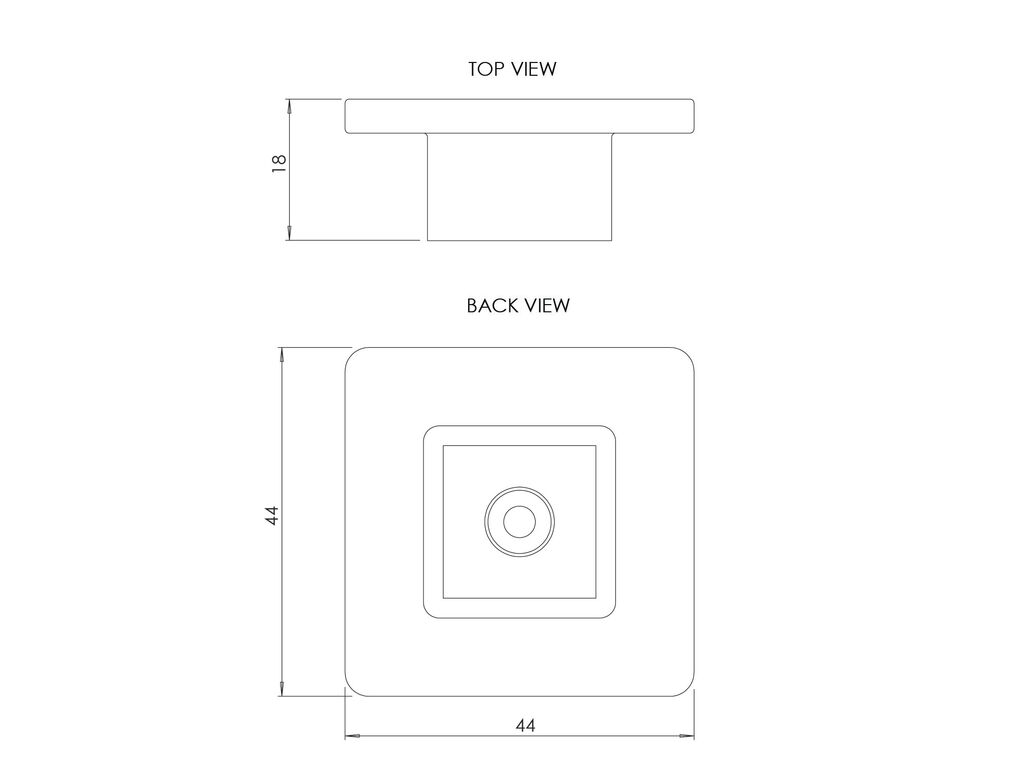

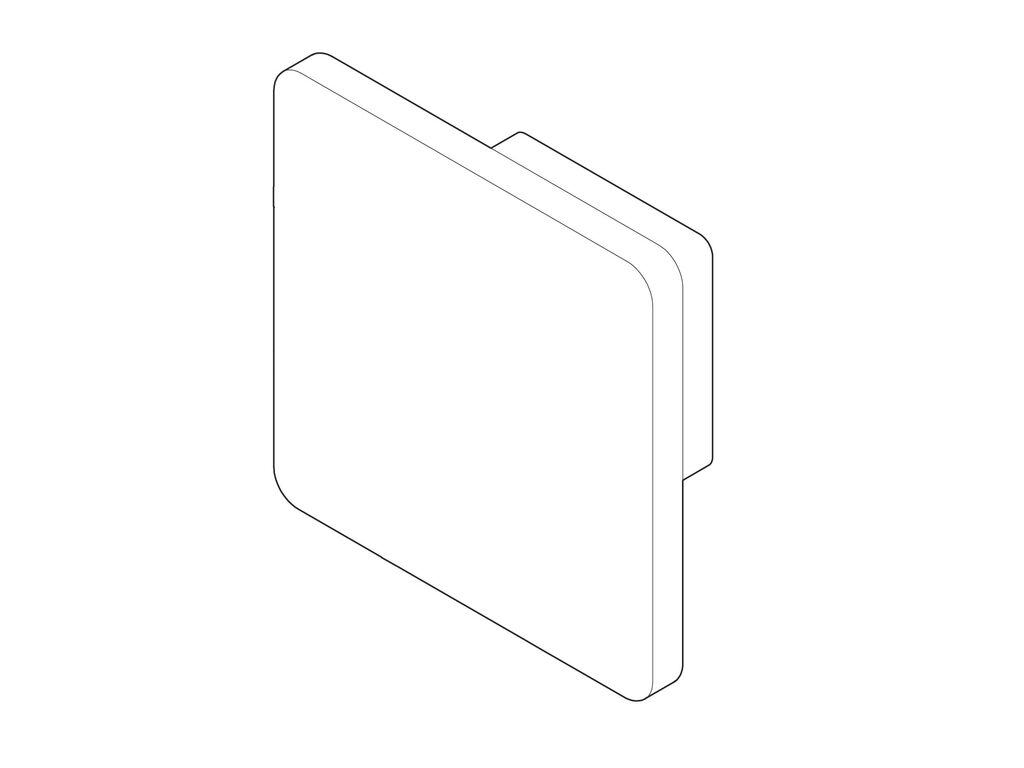

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
44 x 18 x 44mm
Weight:
0.08 kg
Main Construction Material:
Metal
Handle Type:
Knob
Fixing Hole Centres:
17mm
Screw Length Required:
25mm
Number of Screws Required:
2
Surface Finish:
Polished Chrome
Finish Effect:
Polished
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Tucano Knob Handle
M4 machine screws
