Technical Data Sheet
Velas LED Mirror 700
3398

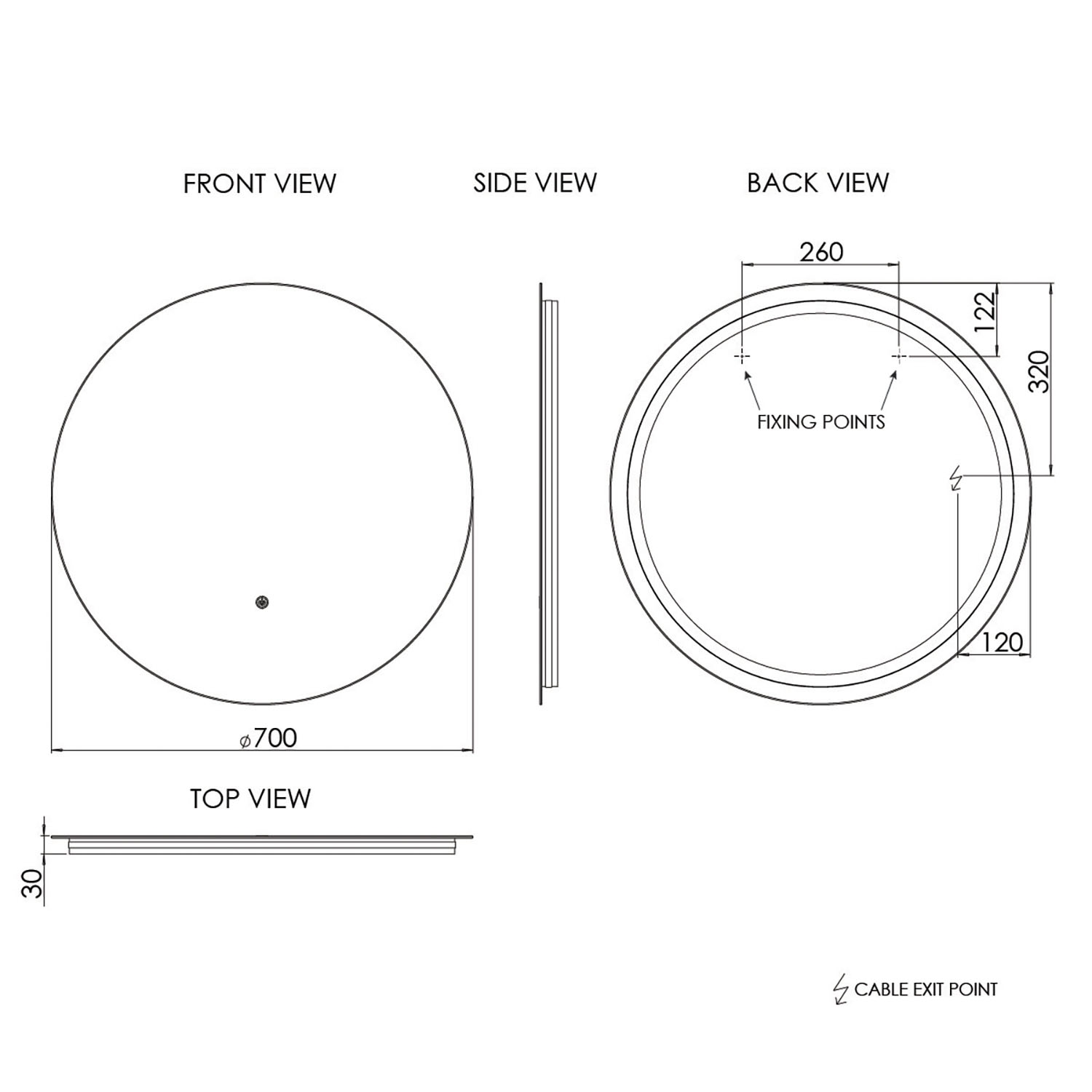

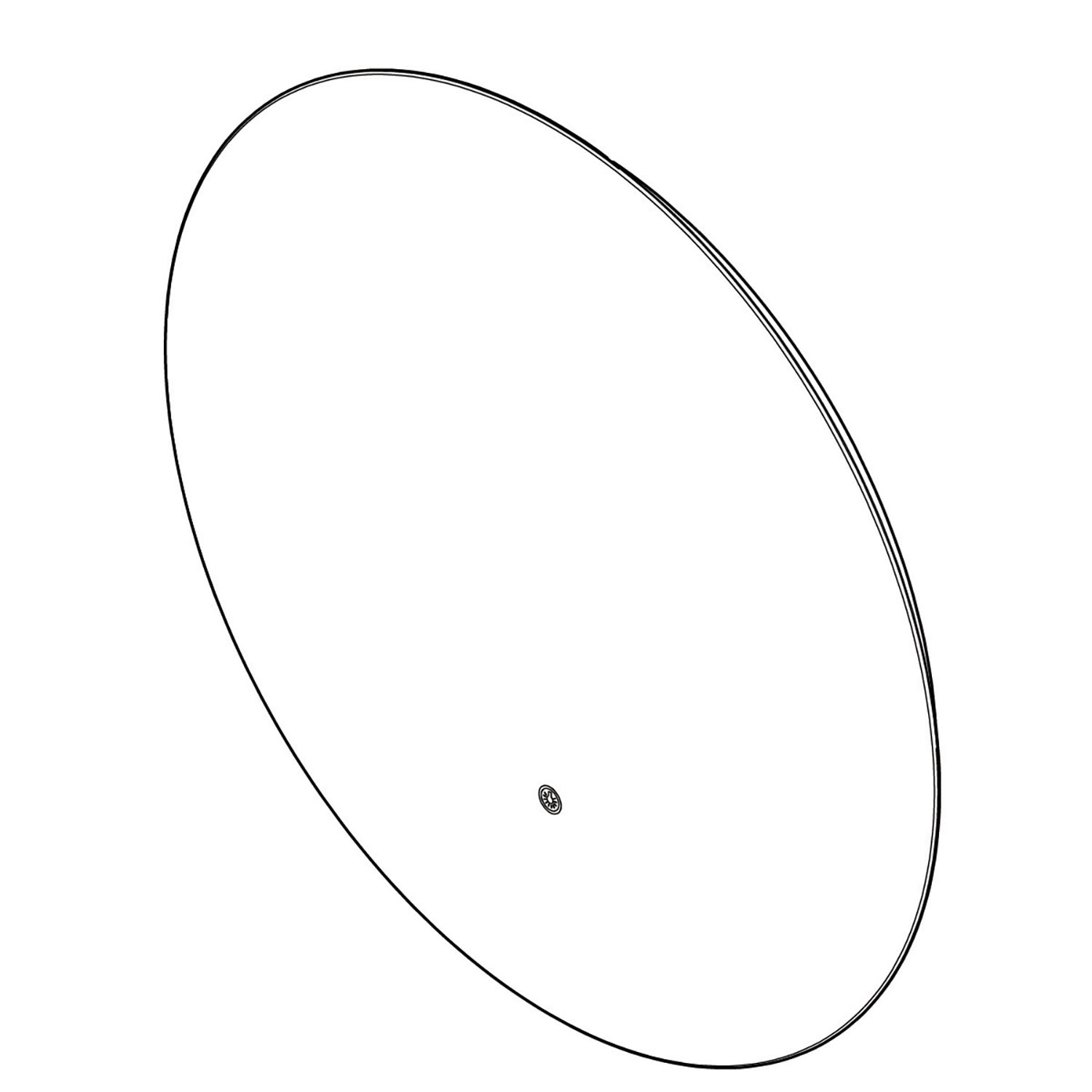

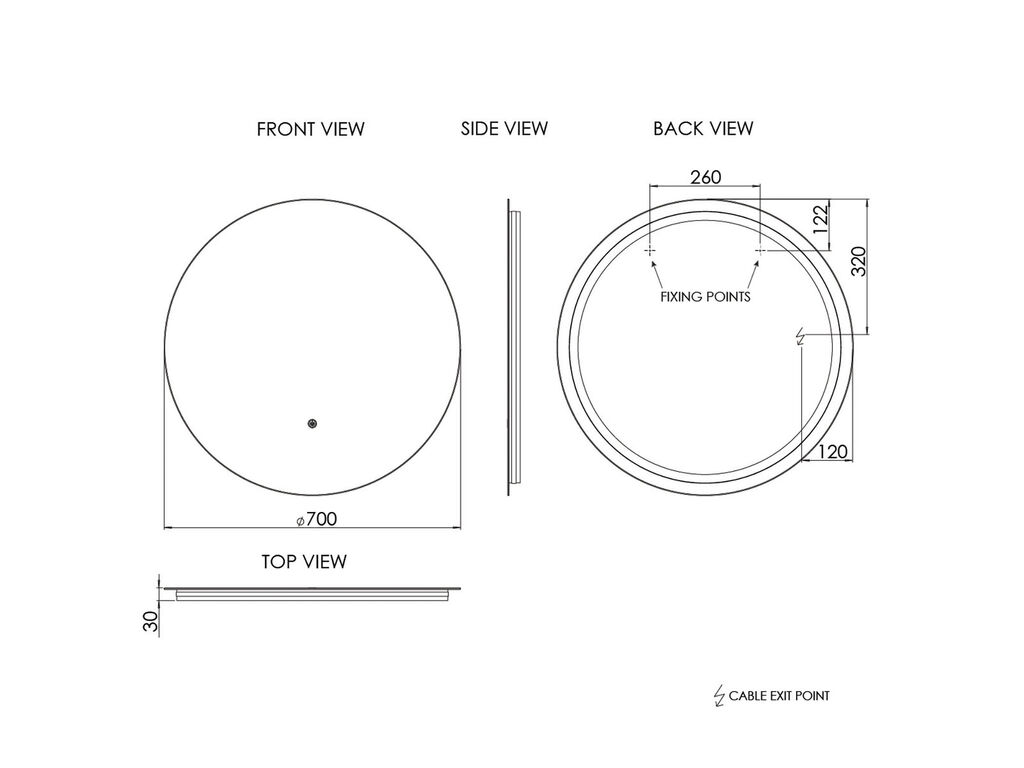

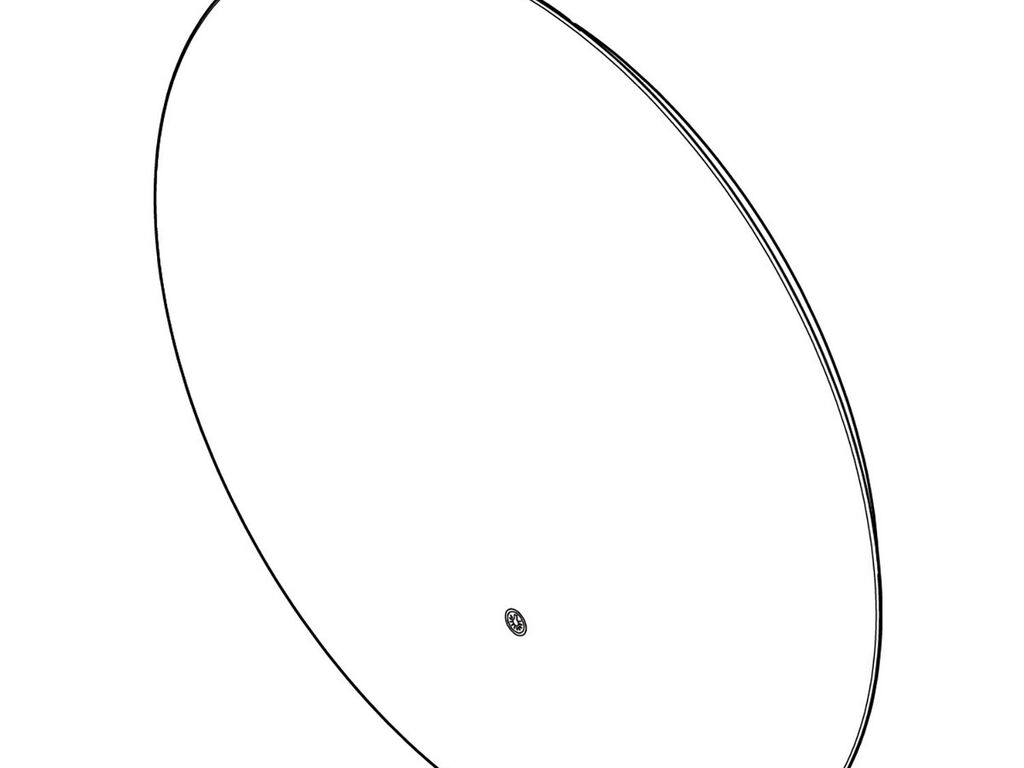

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
700 x 30 x 700mm
Weight:
4.54 kg
Form / Shape:
Circular
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Portrait
Hanging Fixation Method:
Two fixed hanging points
LED Mirror:
Yes
Lamp Type:
Dotless LED
Light Direction:
Back lit
Light Switching Method:
Touch Control
Dimmable:
Yes
Light Colour Temperature:
Daylight White
Total Power Outputs:
Light 21.1W, Demister 22.5W
Power Input Voltage:
240v / 50hz
Cable Length:
400mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
410 x 220mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Velas LED Mirror 700
Instructions
Fitting kit
