Technical Data Sheet
Avelar LED Mirror 1000
3396

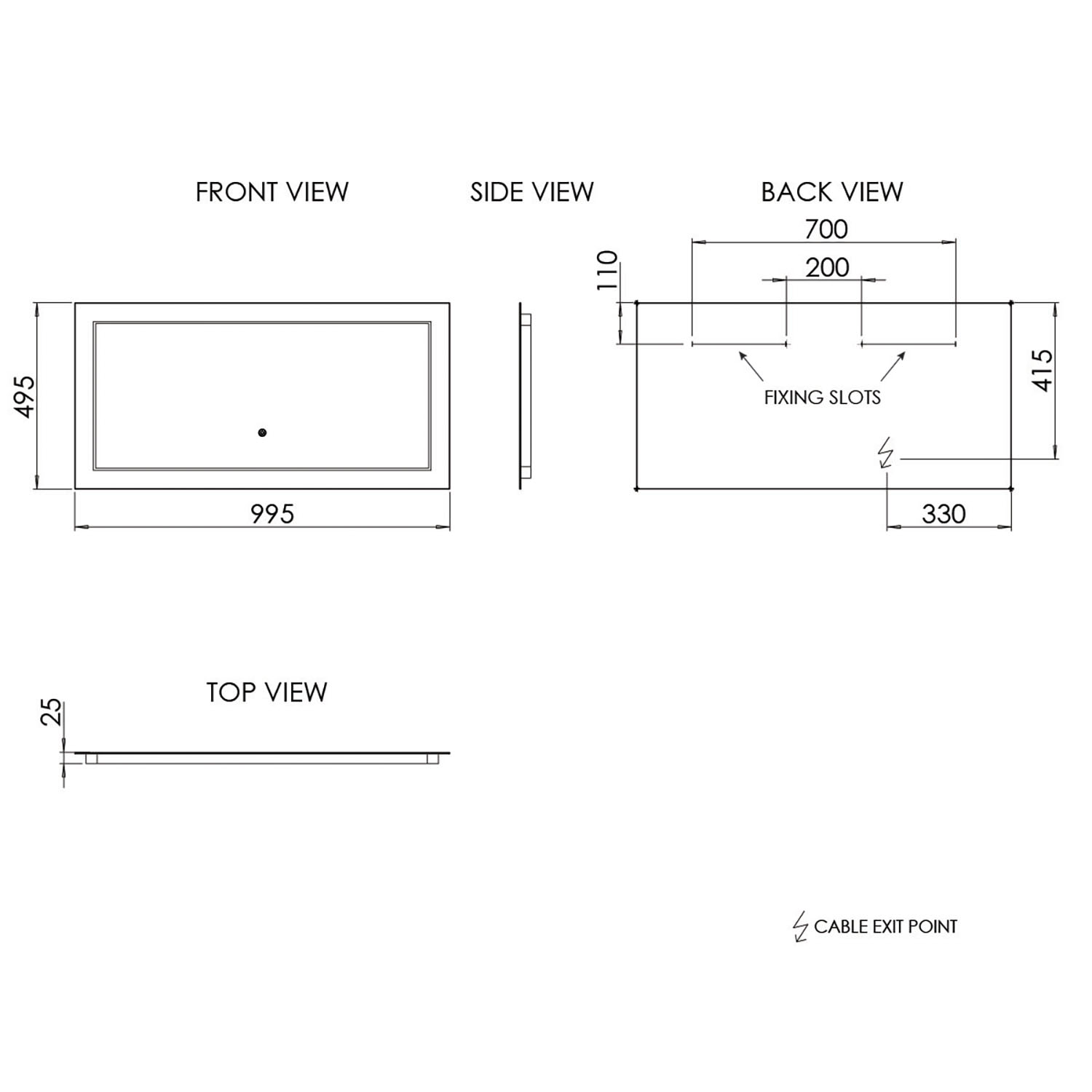

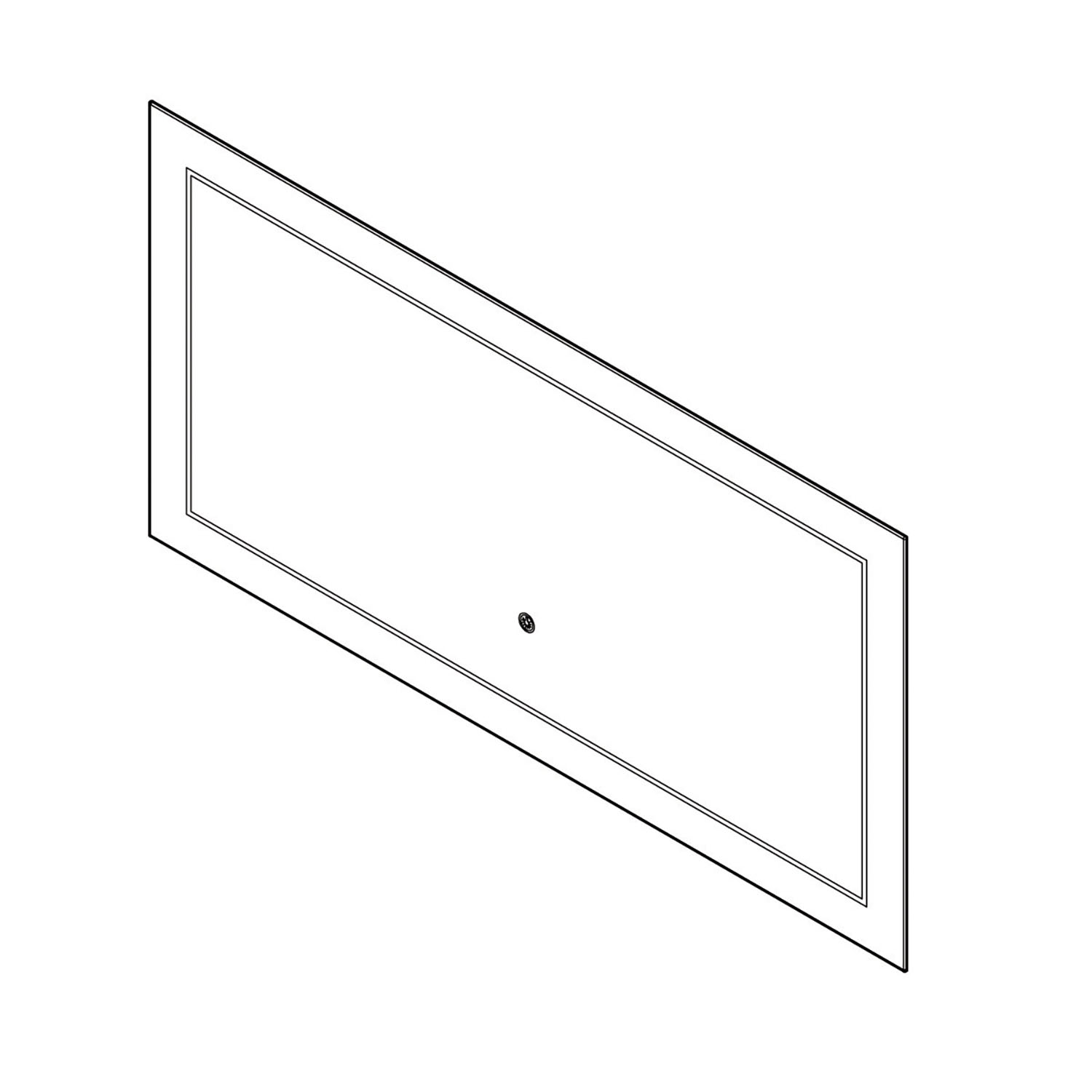

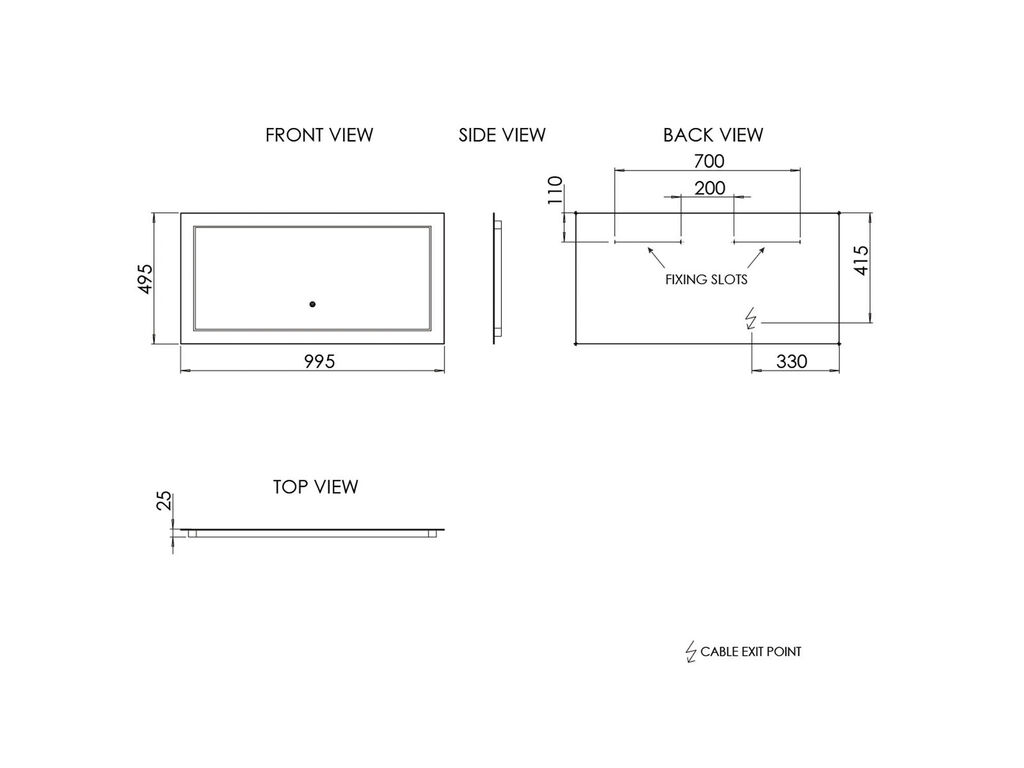

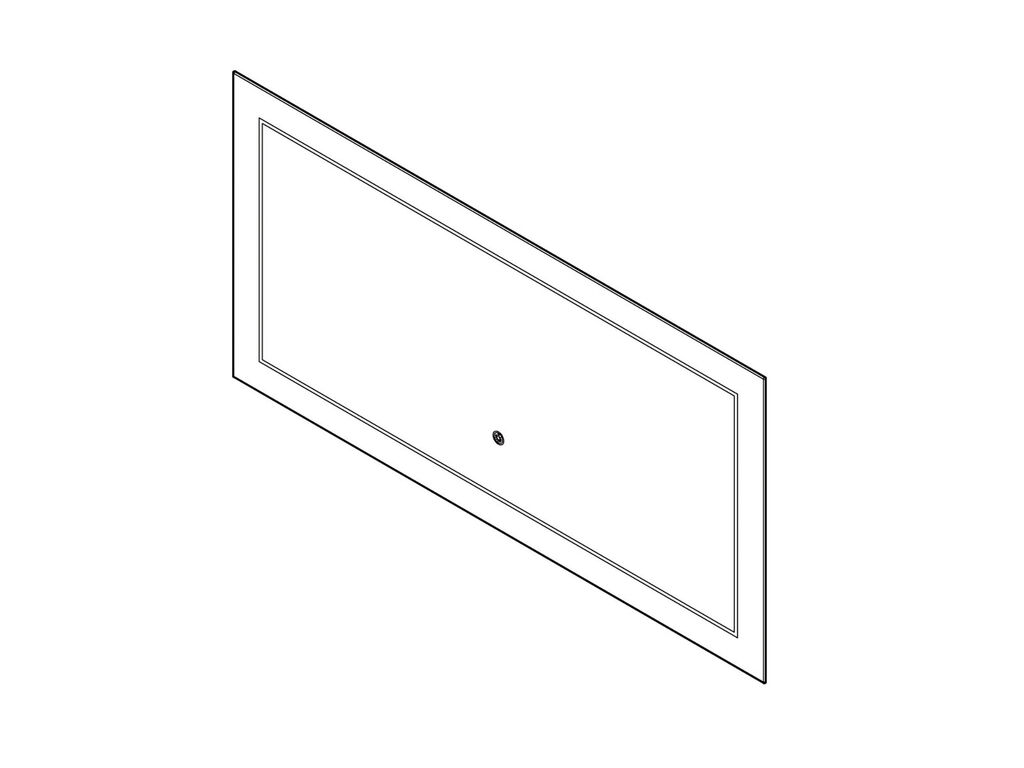

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
995 x 25 x 495mm
Weight:
6.24 kg
Form / Shape:
Rectangular with square corners
Main Construction Material:
Glass
Frame Material:
Frameless
Hanging Orientation:
Portrait or Landscape
Hanging Fixation Method:
Two adjustable hanging grooves
LED Mirror:
Yes
Lamp Type:
LED
Light Direction:
Front lit
Light Switching Method:
Touch Control
Dimmable:
Yes
Light Colour Temperature:
Daylight White
Total Power Outputs:
Light 22W, Demister 22.5W
Power Input Voltage:
240v / 50hz
Cable Length:
400mm
Earth Connection Required:
No
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Included:
Yes
Demister Pad (WxH):
410 x 220mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Avelar LED Mirror 1000
Instructions
Fitting kit
