Technical Data Sheet
Avelar LED Mirror 500
3394

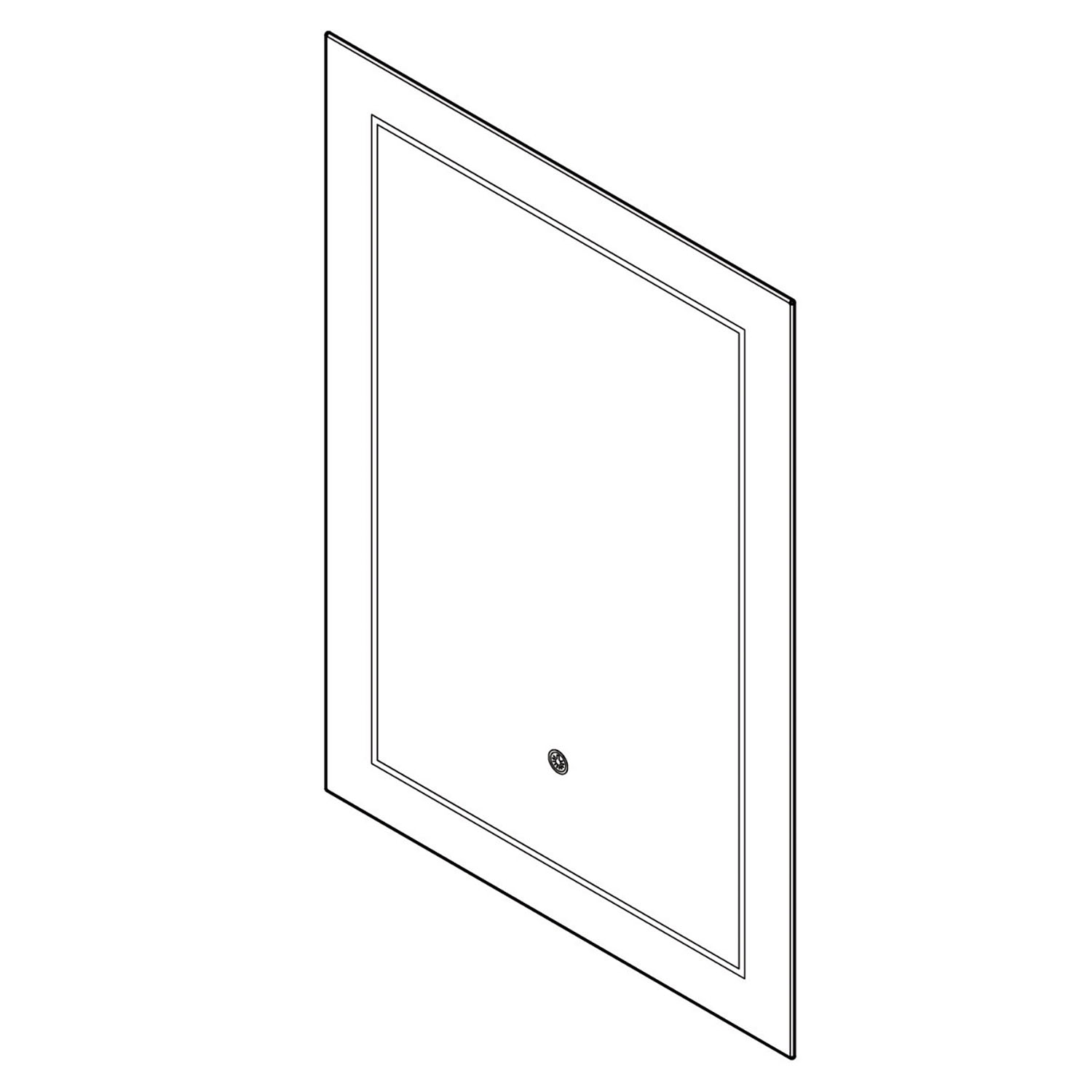

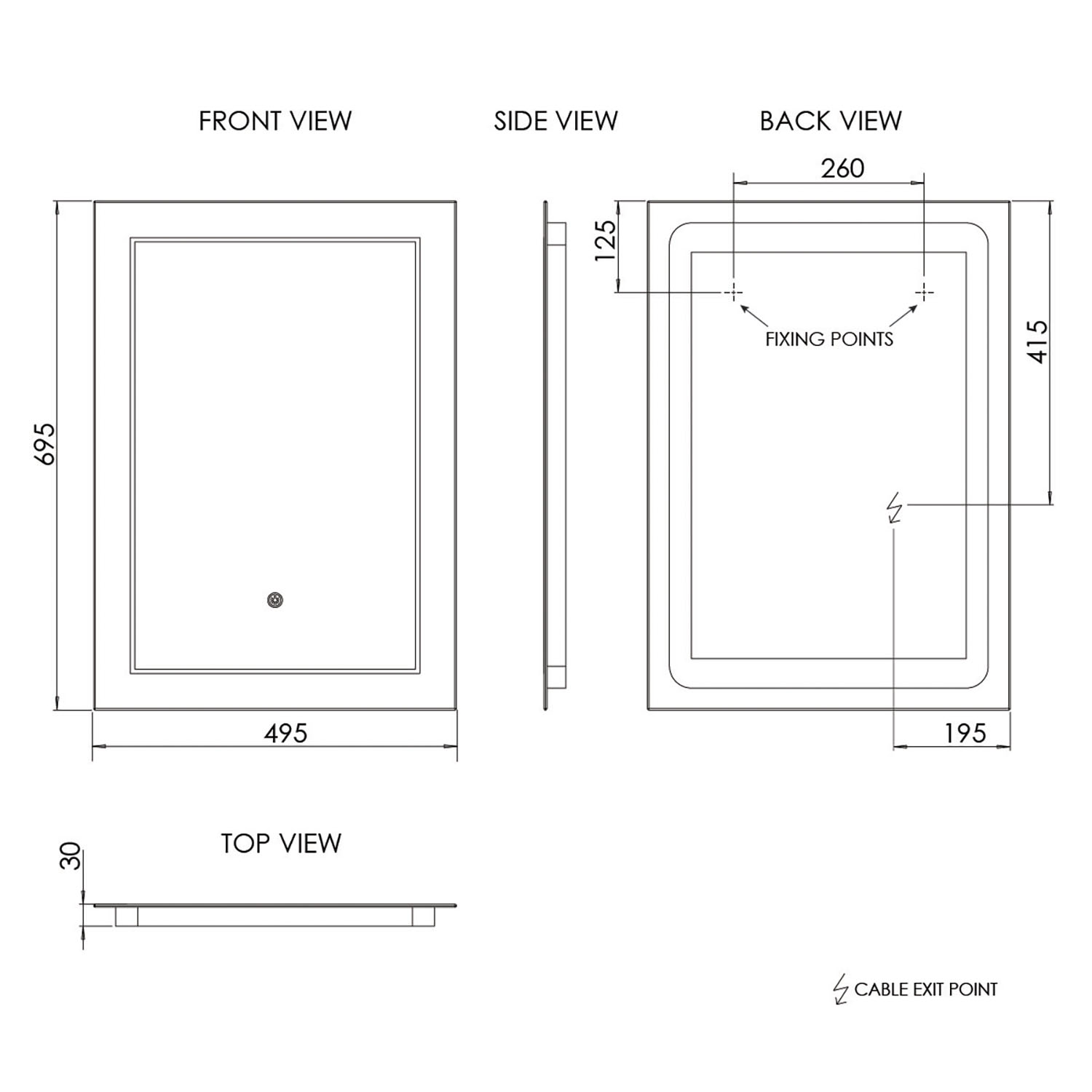

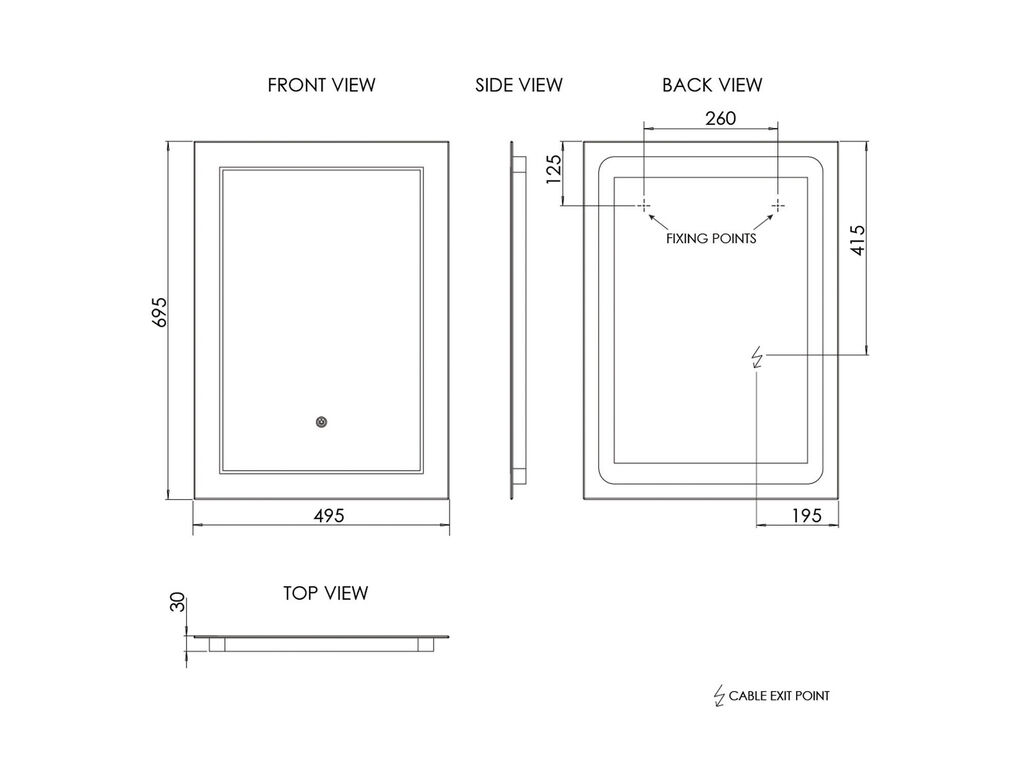

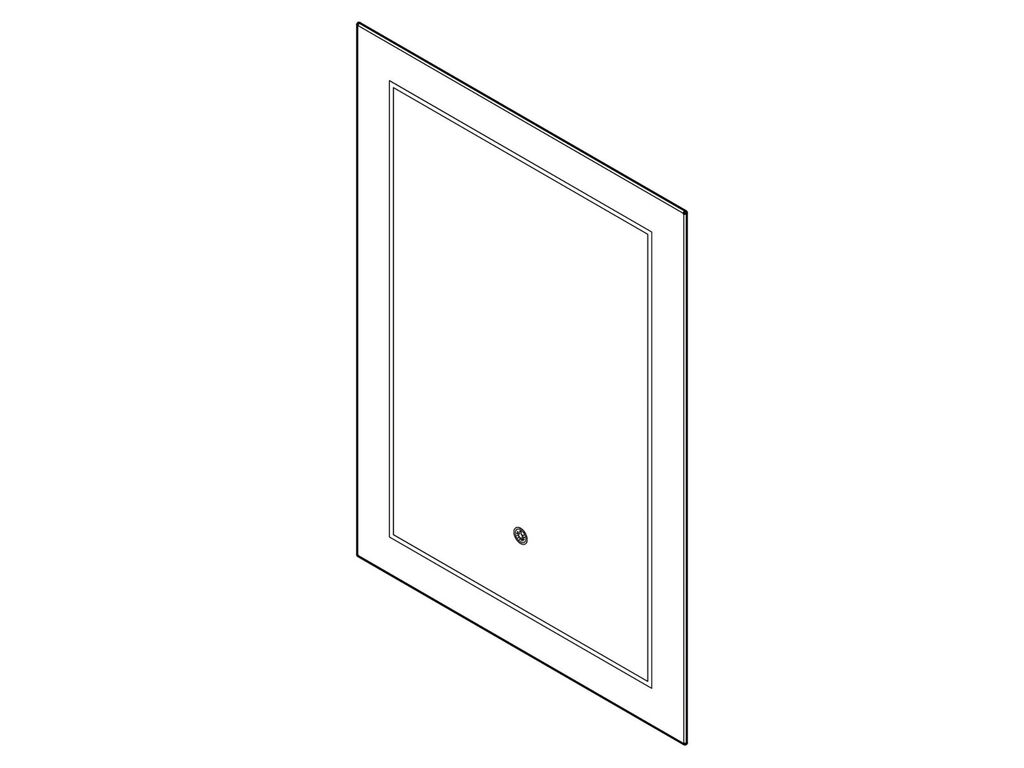

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
495 x 30 x 695mm
Weight:
4.54 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 16.1W, Demister 15W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
300 x 200mm
Cable Length:
300mm
Earth Connection Required:
No
Hanging Orientation:
Portrait
Switching Method:
Touch Control
Light Colour Temperature:
Daylight White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Avelar LED Mirror 500
Instructions
Fitting kit
Screw hooks
Expansion plugs
Terminal connection box
